Acura RL. Manual - part 511





CONNECTOR TERMINAL DESCRIPTION CHART

NOTE:

Standard battery voltage is about 12 V.

Terminal

number

Wire color

Terminal name

Description

Signal

12

BLU

VSB1
(VSCELL+BANK1)

Detects rear A/F
sensor (Bank 1,
sensor 1)VS CELL
signal

With engine
running: about 3.4-
4.8 V

13

RED

VCENTB1
(VIRTUAL
GROUND BANK 1)

Reference voltage
supply for rear A/F
sensor (Bank 1,
sensor 1)

With fully warmed
up engine at idle:
about 3.4-3.8 V

14

GRN

IPB1 (IP CELL +
BANK1)

Detects rear A/F
sensor (Bank 1,
sensor 1) pump cell

With engine
running: about 2.0-
5.6 V

15

BRN/YEL

LG2 (LOGIC
GROUND)

Ground circuit for
the PCM

Less than 1.0 Vat
all times

17

BLU

CKPA
(CRANKSHAFT
POSITION (CKP)
SENSOR A)

Detects CKP sensor
A signal

With engine
running: pulses

18

WHT

SHO2SB2
(SECONDARY
HEATED OXYGEN
SENSOR
(SECONDARY
HO2S) BANK 2,
SENSOR 2)

Detects front
secondary HO2S
(Bank 2, sensor 2)
signal

With throttle fully
opened from idle
with fully warmed
up engine: above
0.6 V
With throttle
quickly closed:
below 0.4 V

19

BLU

NC (OUTPUT
SHAFT
(COUNTERSHAFT)
SPEED SENSOR)

Detects output shaft
(countershaft)
speed sensor
signals

With ignition
switch ON (II) and
front wheels
rotated by hand:
pulses

20

RED/BLU

VSB2 (VS
CELL+BANK2)

Detects front A/F
sensor (Bank 2,
sensor 1)VS CELL
signal

With fully warmed
up engine running:
about 3.4-4.8 V

21

RED/WHT

VCENTB2
(VIRTUAL
GROUND BANK 2)

Reference voltage
supply for front
A/F sensor (Bank 2,
sensor 1)

With fully warmed
up engine at idle:
about 3.4-4.8 V

22

GRN/RED

IPB2
(IPCELL+BANK2)

Detects front A/F
sensor (Bank 2,
sensor 1) pump cell

With engine
running: about 2.0-
5.6 V

23

RED/BLK

ATPN
(TRANSMISSION
RANGE SWITCH N

Detects
transmission range
switch N position

In N position:
about 0 V
In any position



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 39

© 2005 Mitchell Repair Information Company, LLC.

PCM INPUTS AND OUTPUTS AT CONNECTOR C (22P)

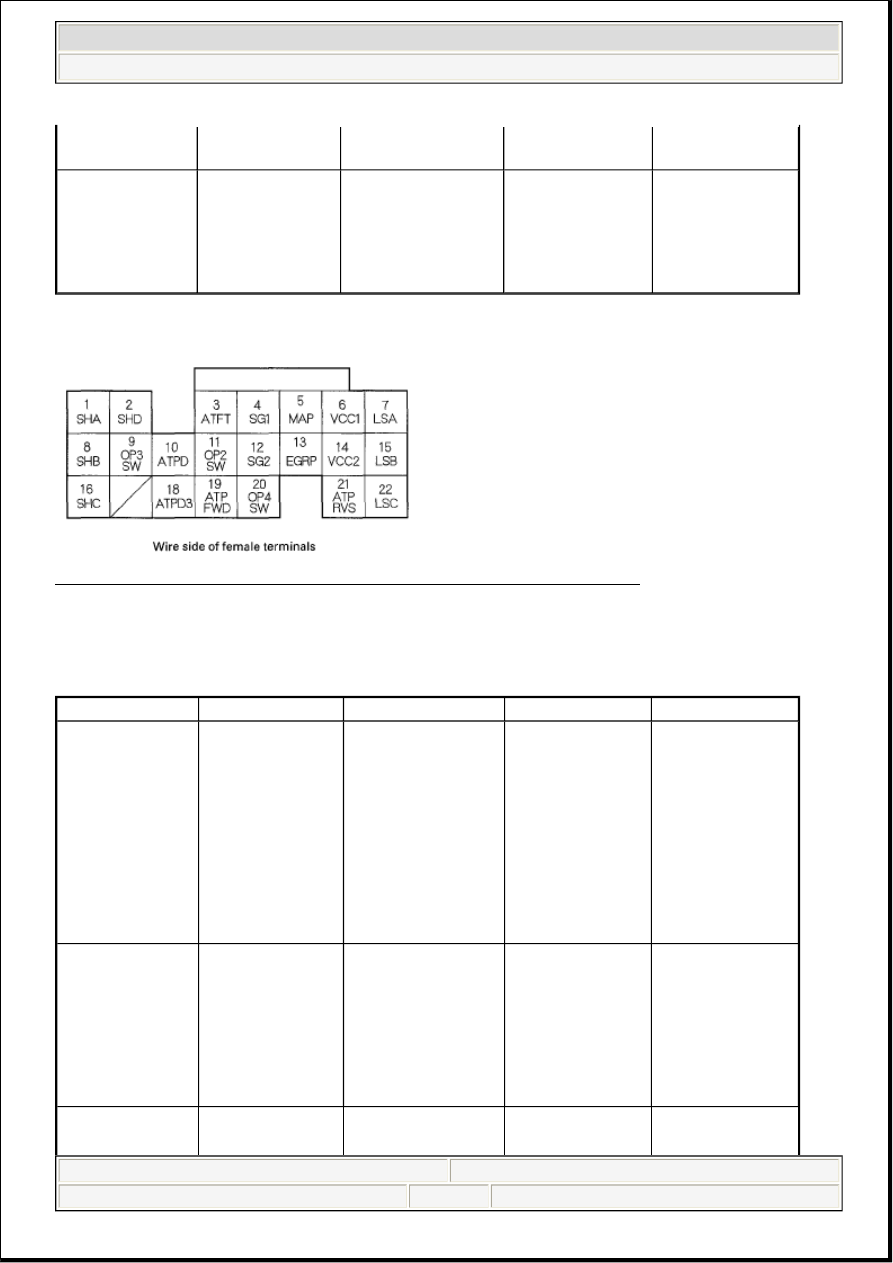

Fig. 22: Identifying PCM Inputs And Outputs Connector Terminals C (22P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CONNECTOR TERMINAL DESCRIPTION CHART

POSITION)

signal

other than N:
battery voltage

24

GRN/RED

ECT2 (ENGINE
COOLANT
TEMPERATURE
(ECT) SENSOR 2)

Detects ECT sensor
2 signal

With ignition
switch ON (II):
about 0.1-4.8 V
(depending on
engine coolant
temperature)

NOTE:

Standard battery voltage is about 12 V.

Terminal number

Wire color

Terminal name

Description

Signal

1

BLU/YEL

SHA (SHIFT
SOLENOID VALVE
A)

Drives shift
solenoid valve A

With engine
running in D3, D
(in 2nd, 3rd gears),
M, and R positions:
battery voltage
With engine
running in N, P, R,
or D (in 1st, 4th,
and 5th gears), D3,
and M positions:
about 0 V

2

GRN/RED

SHD (SHIFT
SOLENOID VALVE
D)

Drives shift
solenoid valve D

With engine
running in N, D,
and D3 positions:
about 0 V
With engine
running in P, N, D,
and D3 positions:
battery voltage

3

BLU/YEL

ATFT (ATF
TEMPERATURE

Detects ATF
temperature signal

With ignition
switch ON (II):



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 40

© 2005 Mitchell Repair Information Company, LLC.

SENSOR)

about 0.2-4.0 V
(about 1.8 V at
operating
temperature)
(depending on ATF
temperature)

4

GRN/WHT

SG1 (SENSOR
GROUND)

Sensor ground

Less than 1.0 V at
all times

5

GRN/RED

MAP (MANIFOLD
ABSOLUTE
PRESSURE (MAP)
SENSOR)

Detects MAP
sensor signal

With ignition
switch ON (II):
about 3.0 V
At idle: about 1.0 V
(depending on
engine speed)

6

YEL/RED

VCC1 (SENSOR
VOLTAGE)

Provides sensor
voltage

With ignition
switch ON (II):
about 5.0 V
With ignition
switch OFF: about
0 V

7

RED

LSA (A/T CLUTCH
PRESSURE
CONTROL
SOLENOID VALVE
A)

Drives A/T clutch
pressure control
solenoid valve A

With ignition
switch ON (II):
pulses

8

GRN/WHT

SHB (SHIFT
SOLENOID VALVE
B)

Drives shift
solenoid valve B

With engine
running in D3 or D
(in 1st, 2nd, 5th
gears), or N, P, or
M positions:
battery voltage
With engine
running in D (in
3rd, 4th gears), D3,
and M positions:
about 0 V

9

BLU/WHT

OP3SW (3RD
CLUTCH
TRANSMISSION
FLUID PRESSURE
SWITCH)

Detects 3rd clutch
transmission fluid
pressure switch
input

With ignition
switch ON (II):
Without 3rd clutch
pressure: about 5.0

With 3rd clutch
pressure: about 0 V

10

YEL/GRN

ATPD5
(TRANSMISSION
RANGE SWITCH D
POSITION)

Detects
transmission range
switch D signal
input

In D position:
about 0 V
In any position
other than D:
battery voltage

11

BLU/BLK

OP2SW (2ND
CLUTCH

Detects 2nd clutch
transmission fluid

With ignition
switch ON (II):



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 41

© 2005 Mitchell Repair Information Company, LLC.

PCM INPUTS AND OUTPUTS AT CONNECTOR C (22P)

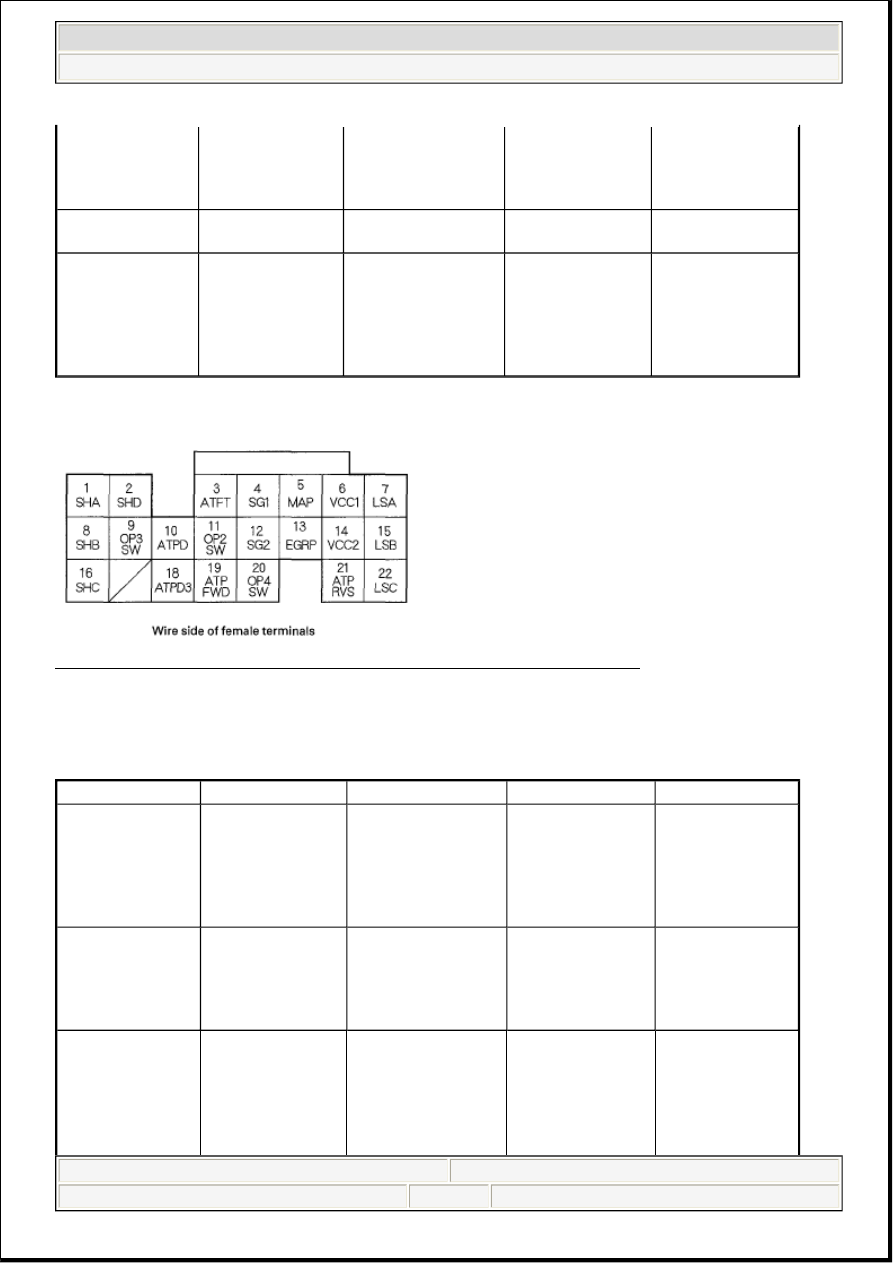

Fig. 23: Identifying PCM Inputs And Outputs Connector Terminals C (22P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CONNECTOR TERMINAL DESCRIPTION CHART

TRANSMISSION
FLUID PRESSURE
SWITCH)

pressure switch
input

Without 2nd clutch
pressure: about 5.0
V With 2nd clutch
pressure: about 0 V

12

GRN/YEL

SG2 (SENSOR
GROUND)

Sensor ground

Less than 1.0 V at
all times

13

WHT/BLK

EGRP (EXHAUST
GAS
RECIRCULATION
(EGR) VALVE
POSITION
SENSOR)

Detects EGR valve
position

With engine
running: about 1.2-
3.0 V sensor signal
(depending on
EGR valve lift)

NOTE:

Standard battery voltage is about 12 V.

Terminal number

Wire color

Terminal name

Description

Signal

14

YEL/BLU

VCC2 (SENSOR
VOLTAGE)

Provides sensor
voltage

With ignition
switch ON (II):
about 5.0 V
With ignition
switch OFF: about
0 V

15

BRN/WHT

LSB (A/T CLUTCH
PRESSURE
CONTROL
SOLENOID VALVE
B)

Drives A/T clutch
pressure control
solenoid valve B

With ignition
switch ON (II):
pulses

16

GRN

SHC (SHIFT
SOLENOID VALVE
C)

Drives shift
solenoid valve C

With engine
running in D, D3,
and M (in 1st, 3rd,
5th gears)
positions: battery
voltage



2007 Acura RL

2005-08 ENGINE PERFORMANCE Fuel and Emissions Systems - RL



me



Friday, June 05, 2009 2:33:27 PM

Page 42

© 2005 Mitchell Repair Information Company, LLC.
