Acura CSX. Manual - part 672

１０

０１

ＳＮＲ９Ａ００Ｈ４６２０００５３４０２ＫＢＡＴ００

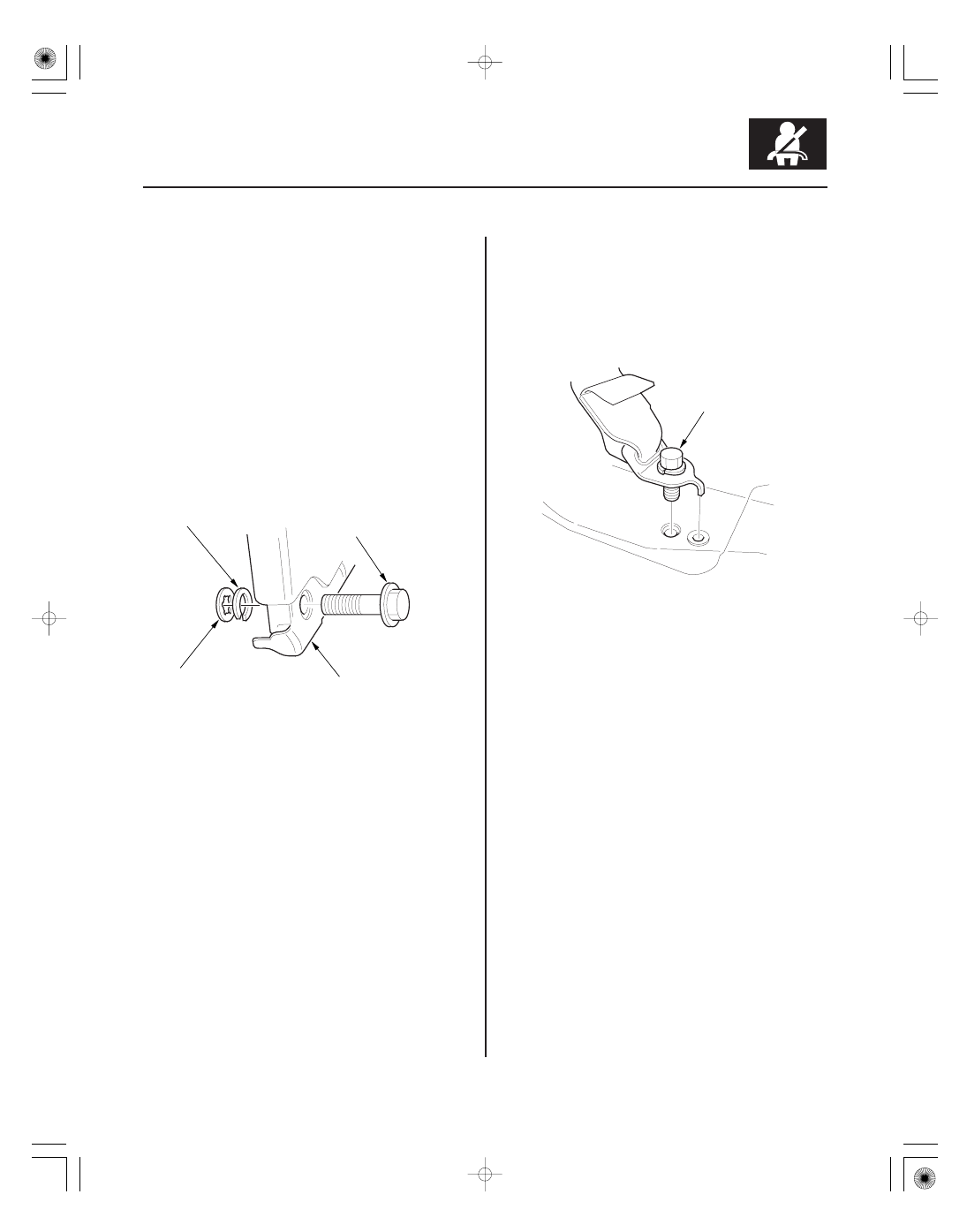

Center anchor bolt installation

Rear Seat Belt

24-7

Rear Seat Belt Replacement

CENTER ANCHOR

CENTER ANCHOR
BOLT

TOOTHED
LOCK WASHER

SPRING WASHER

A
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

6. Install the buckle in the reverse order of removal,

and note these items:

• Assemble the washers on the center anchor bolt

as shown.

• Apply medium strength liquid thread lock to the

center anchor bolt before reinstallation.

• Tighten the bolts by hand first, then tighten to

specification with a torque wrench.

• Make sure the seat belt switch connector and

seat belt buckle tensioner connector are plugged
in properly.

• Check for any DTCs that may have been set

during repairs, and clear them using the HDS.

• Do the battery terminal reconnection procedure

(see page 22-68).

NOTE: Check the second row seat belts for damage,
and replace them if necessary.

1. Remove the rear seat cushion (see page 20-133).

2. Remove the lower anchor bolt (A).

3. Remove these items:

• Rear seat side bolsters, both sides (see page

20-134)

• C-pillar trim, both sides (see page 20-75)
• Rear shelf (see page 20-78)

08/08/21 13:54:09 61SNR030_240_0007

１０

０１

ＳＮＲ９Ａ００Ｈ４６２０００５３４０２ＫＢＡＴ００

Center anchor bolt installation

Rear Seat Belt

24-7

Rear Seat Belt Replacement

CENTER ANCHOR

CENTER ANCHOR
BOLT

TOOTHED
LOCK WASHER

SPRING WASHER

A
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

6. Install the buckle in the reverse order of removal,

and note these items:

• Assemble the washers on the center anchor bolt

as shown.

• Apply medium strength liquid thread lock to the

center anchor bolt before reinstallation.

• Tighten the bolts by hand first, then tighten to

specification with a torque wrench.

• Make sure the seat belt switch connector and

seat belt buckle tensioner connector are plugged
in properly.

• Check for any DTCs that may have been set

during repairs, and clear them using the HDS.

• Do the battery terminal reconnection procedure

(see page 22-68).

NOTE: Check the second row seat belts for damage,
and replace them if necessary.

1. Remove the rear seat cushion (see page 20-133).

2. Remove the lower anchor bolt (A).

3. Remove these items:

• Rear seat side bolsters, both sides (see page

20-134)

• C-pillar trim, both sides (see page 20-75)
• Rear shelf (see page 20-78)

08/08/21 13:54:09 61SNR030_240_0007

０２

０３

０４

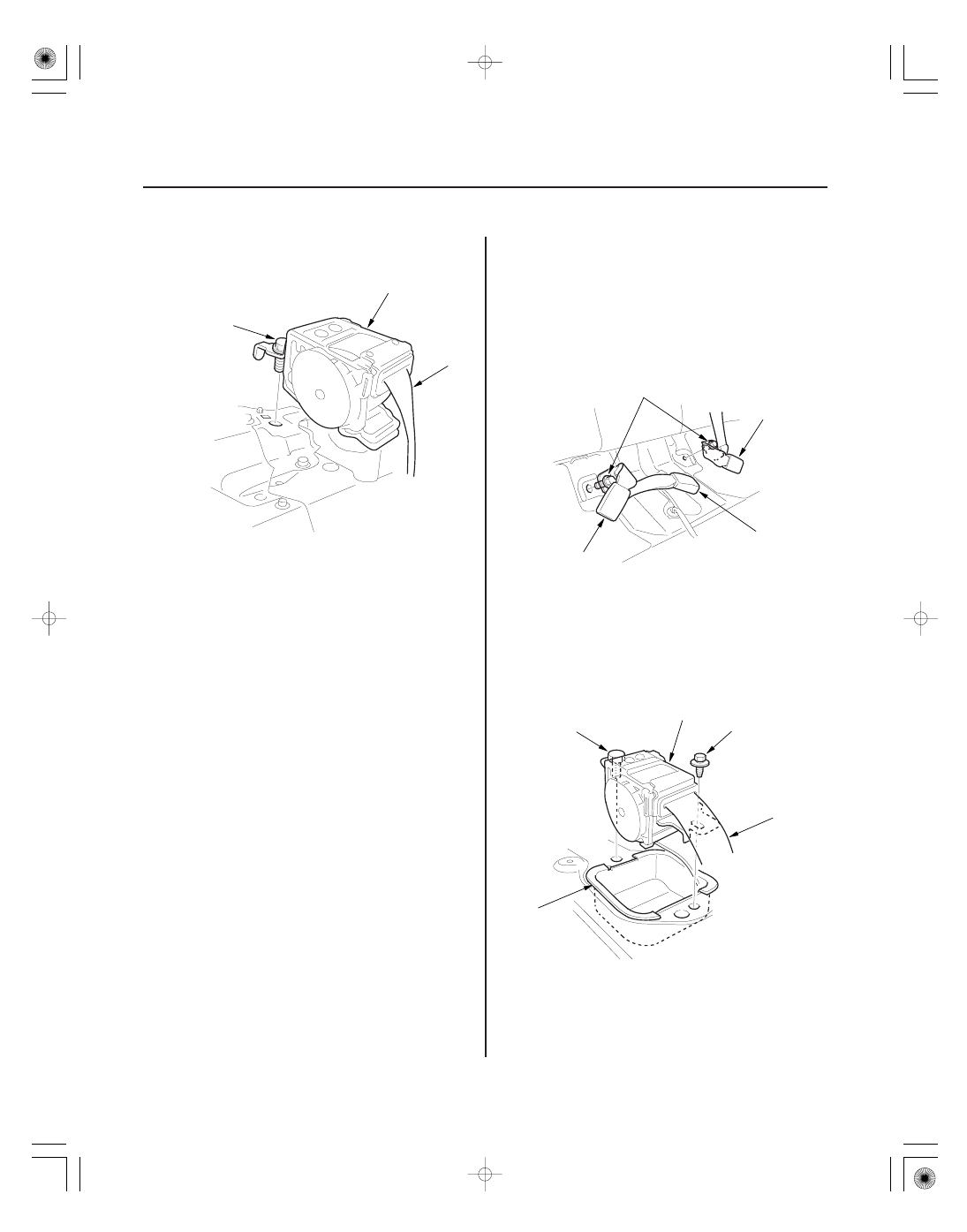

Center Seat Belt and Seat Belt Buckles

24-8

Seat Belts

A
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

A
6 x 1.0 mm
1.5 N·m
(0.15 kgf·m, 1.1 lbf·ft)

B
7/16-20 UNF
32 N·m
(3.3 kgf·m, 24 lbf·ft)

4. Remove the retractor bolt (A), then remove the rear

seat belt (B) and retractor (C).

5. Install the rear seat belt and retractor in the reverse

order of removal, and note these items:

• Apply medium strength liquid thread lock to the

anchor bolts before reinstallation.

• Check that the retractor locking mechanism

functions as described (see page 24-9).

• Before installing the anchor bolt, make sure there

are no twists or kinks in the rear seat belt.

1. Remove the rear seat cushion (see page 20-133).

2. Remove the center anchor bolts (A), then remove

the right seat belt buckle (B), center seat belt buckle
(C), and left seat belt buckle (D).

3. Fold both rear seat-backs forward.

4. Remove the rear shelf (see page 20-78).

5. Remove the retractor mounting ET screw (A) and

the retractor bolt (B), then remove the rear seat belt
(C) and retractor (D).

6. Remove the rear center seat belt protector (E).

08/08/21 13:54:09 61SNR030_240_0008

０２

＊０１

０１

０２

ＳＮＲ９Ａ００Ｈ４６２０００５３４０１ＭＡＡＴ００

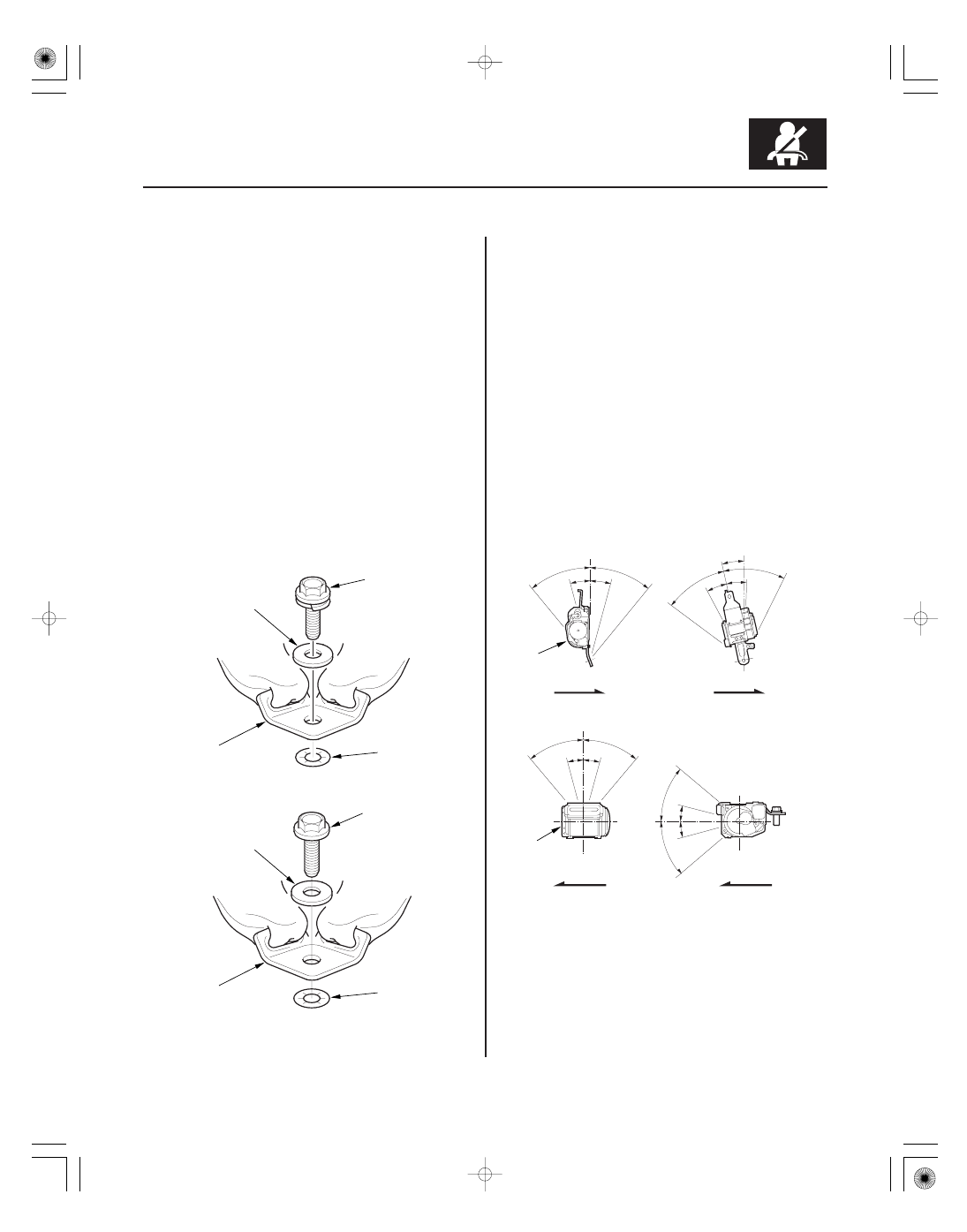

Center anchor bolt installation

Front

Rear

Out of Vehicle

Retractor

24-9

Inspection

CENTER ANCHOR
BOLT

WASHER

TOOTHED
LOCK WASHER

CENTER ANCHOR

’06 model

CENTER ANCHOR
BOLT

WASHER

TOOTHED
LOCK WASHER

CENTER ANCHOR

’07-09 models

Left side: 10 °
Right side: 13 °

40 °

15 °

Inside

Front

40 °

15 °

Inside

Front

7. Install the seat belt and buckles in the reverse order

of removal, and note these items:

• If the threads on a retractor mounting ET screw

are worn out, use an oversized selftapping ET
screw (P/N 90133-SZ4-003) made specifically for
this application.

• Apply medium strength liquid thread lock to the

center anchor bolt before reinstallation.

• Tighten the bolt by hand first, then tighten to the

specified torque.

• Check that the retractor locking mechanism

functions as described (see page 24-9).

• Assemble the washers on the center anchor bolt

as shown.

• Before installing the center anchor bolt, make

sure there are no twists or kinks in the center belt.

• Make sure the rear center emergency locking

retractor (ELR) is pointing straight forward.

For front seat belt retractor with seat belt tensioner,
review the SRS component locations (see page 24-11)
and the precautions and procedures (see page 24-13)
before doing repairs or service.

1. Before installing the retractor, check that the seat

belt can be pulled out freely.

2. Make sure that the seat belt does not lock when the

retractor (A) is leaned slowly up to 15 ° from the
mounted position. The seat belt should lock when
the retractor is leaned over 40 °. Do not attempt to
disassemble the retractor.

08/08/21 13:54:10 61SNR030_240_0009
