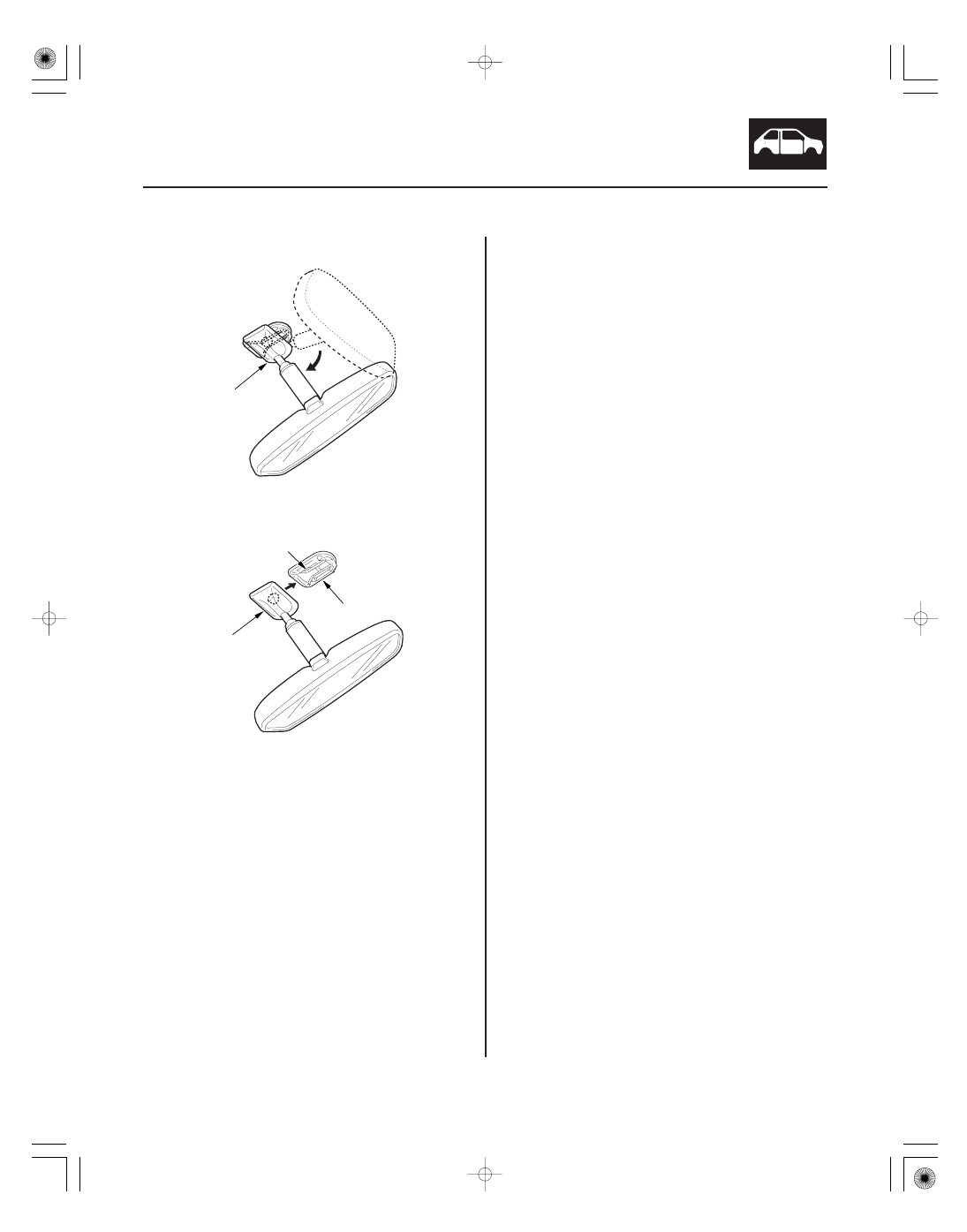

Mirrors
Mirror Holder Replacement
A
B
C
A
B
C
D
E
C
E
F
A
B
C
B
A
B
C
A
C
C
B
A
A
B
C
NO GOOD
OK
NOTE: Put on gloves to protect your hands.

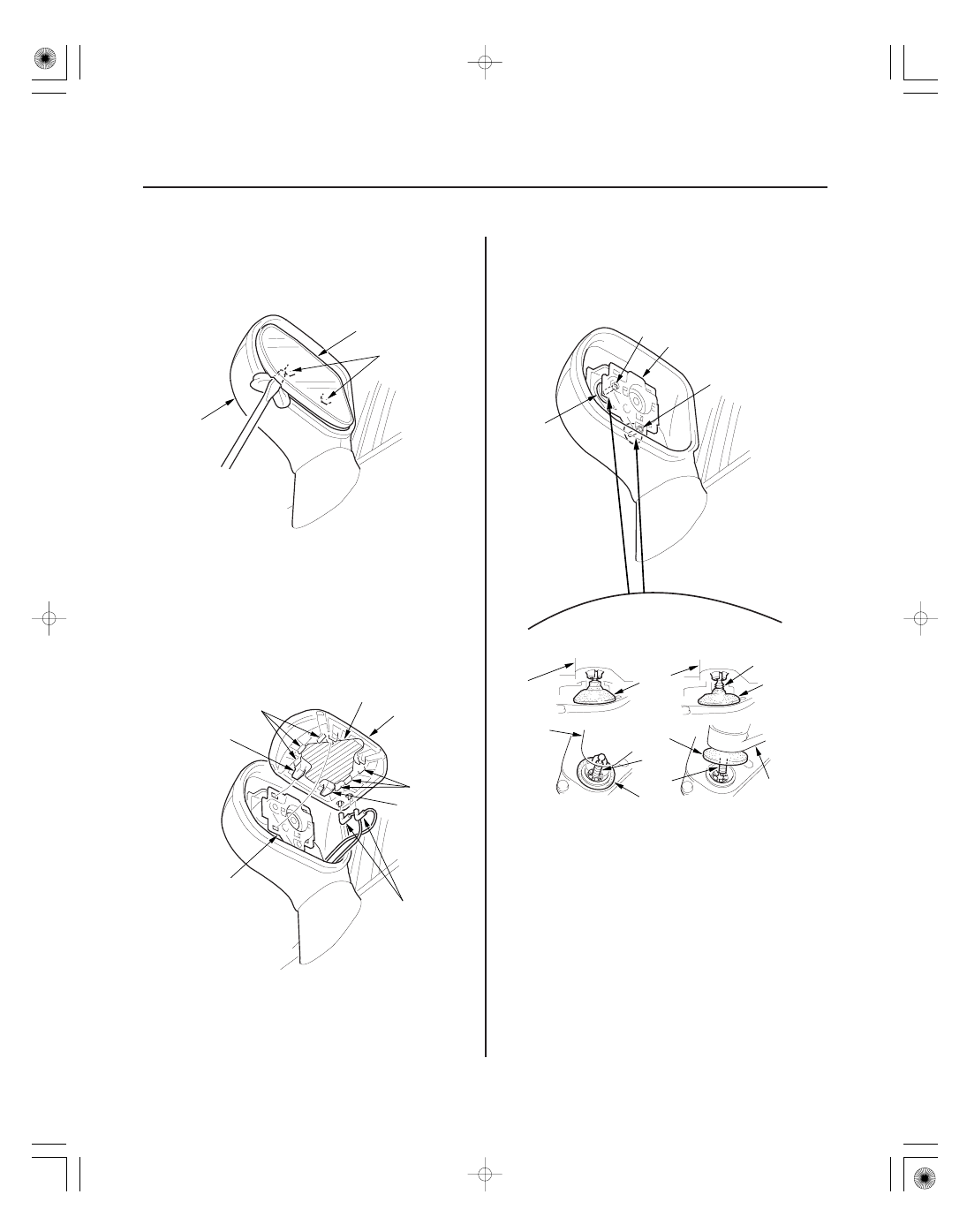

1. Carefully push on the top edge of the mirror holder
(A) by hand.
2. Put a shop towel in the opening between the lower
edge of the mirror holder and the mirror housing
(B) to prevent scratches, and detach the bottom
clips (C) with a flat-tip screwdriver wrapped with
protective tape.
3. Carefully pull out the bottom edge of the mirror
holder (A) to separate the adhesive (B), and then
release the side clips (C).
4. Separate the mirror holder from the actuator (D) by
releasing the hooks (E). Disconnect the mirror
defogger connectors (F) from the heater pad
terminals.
5. Before reinstalling the mirror holder to the inner
holder (A) on the actuator, check the actuator rods
(B) and the actuator boots (C). Make sure the
actuator rods are securely mounted in the holes,
and that the boots properly cover each rod.
6. Reconnect the mirror defogger connectors.
7. Reattach the hooks of the mirror holder to the
actuator, then position the mirror holder on the
actuator. Carefully push on the clip portions of the
mirror holder until the mirror holder locks into
place.
8. Check the actuator operation.
