Acura CSX. Manual - part 354

０１

０２

−

＋

−

＋

−

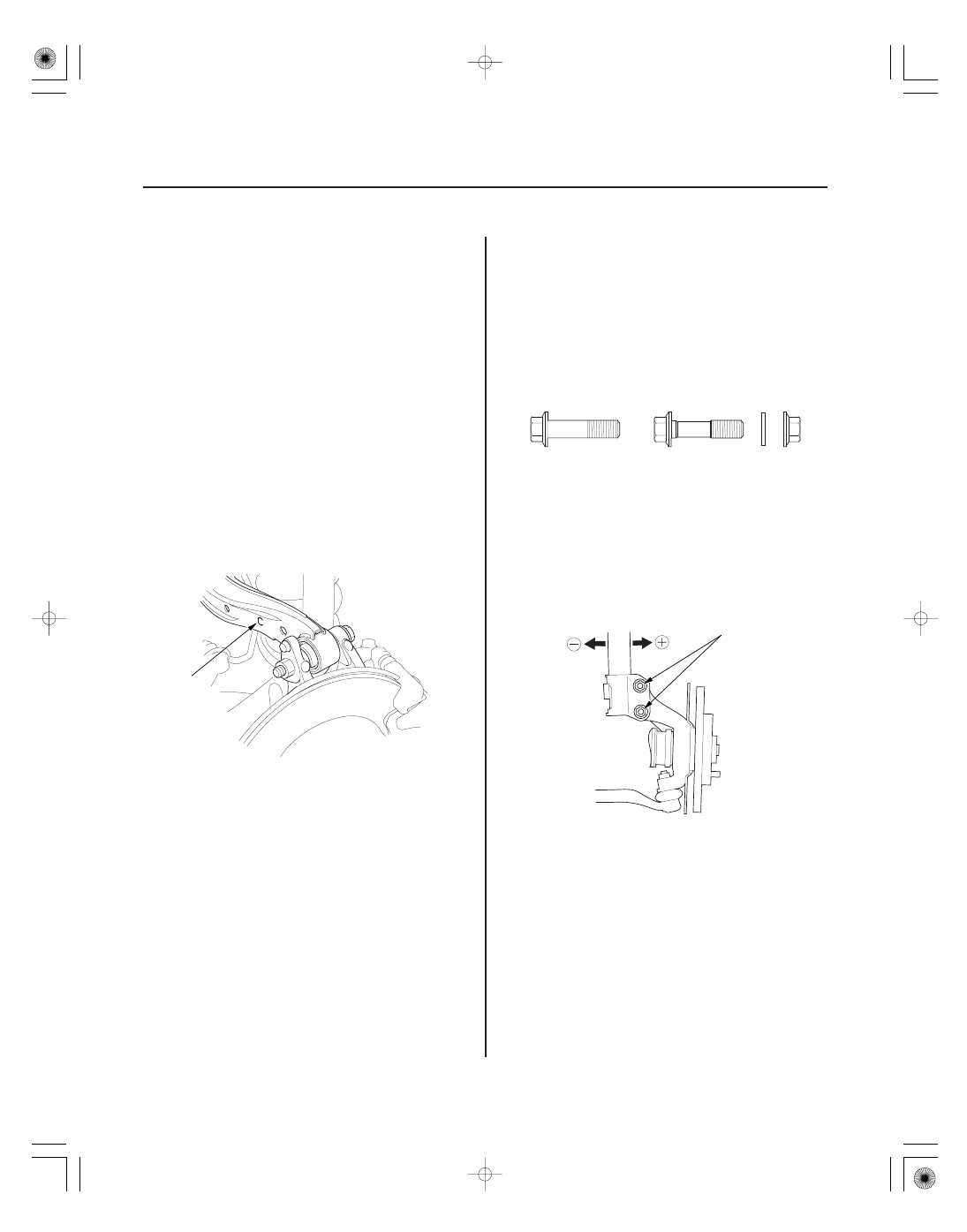

Camber Inspection

Front Camber Adjustment

Camber angle:

Front:

0 ° 00 ’

30 ’

(Maximum difference between the front right and left
side: 0 ° 35 ’)

Rear (without ‘‘C’’ marks on the upper arm):

1 ° 30 ’

Rear (with ‘‘C’’ marks on the upper arm):

0 ° 45 ’

1° 05 ’

0° 45 ’

1° 05 ’

0° 45 ’

18-6

Front and Rear Suspension

Damper pinch bolt

Adjusting bolt set:
P/N 04512-SNA-305

A
14 x 1.5 mm
90 N·m
(9.2 kgf·m,
67 lbf·ft)

Use commercially available computerized four wheel
alignment equipment to measure wheel alignment
(caster, camber, toe, and turning angle). Follow the
equipment manufacturer’s instructions.

1. Check the camber angle.

NOTE:

• There are two types of rear upper arms. Those

that are marked with ‘‘C’’ (A), and those with no
marks. Be sure to use the correct alignment
specifications.

• If the measurement is within specification,

measure the toe-in.

• If the measurement for the front camber is

outside the specification, go to front camber
adjustment.

• If the measurement for the rear camber is outside

the specification, check for bent or damaged
suspension components.

The front camber can be adjusted by exchanging one or
both of the damper pinch bolts with a smaller diameter
adjusting bolt. The difference between the adjusting
bolt diameter and the pinch bolt hole diameter allows
for a small range of adjustment.

1. Raise the front of the vehicle, and support it with

safety stands in the proper locations (see page
1-11).

2. Remove the front wheels.

3. Loosen the damper pinch bolts (A), and adjust the

camber angle by moving the bottom of the damper
within the range of the damper pinch bolt free play.

4. Tighten the damper pinch bolts to the specified

torque.

5. Clean the mating surfaces of the brake disc and the

inside of the wheel, then install the front wheels.

6. Lower the vehicle to the ground, and bounce the

front of the vehicle up and down several times to
stabilize the suspension.

Replace.

08/08/21 14:56:45 61SNR030_180_0006

０３

０５

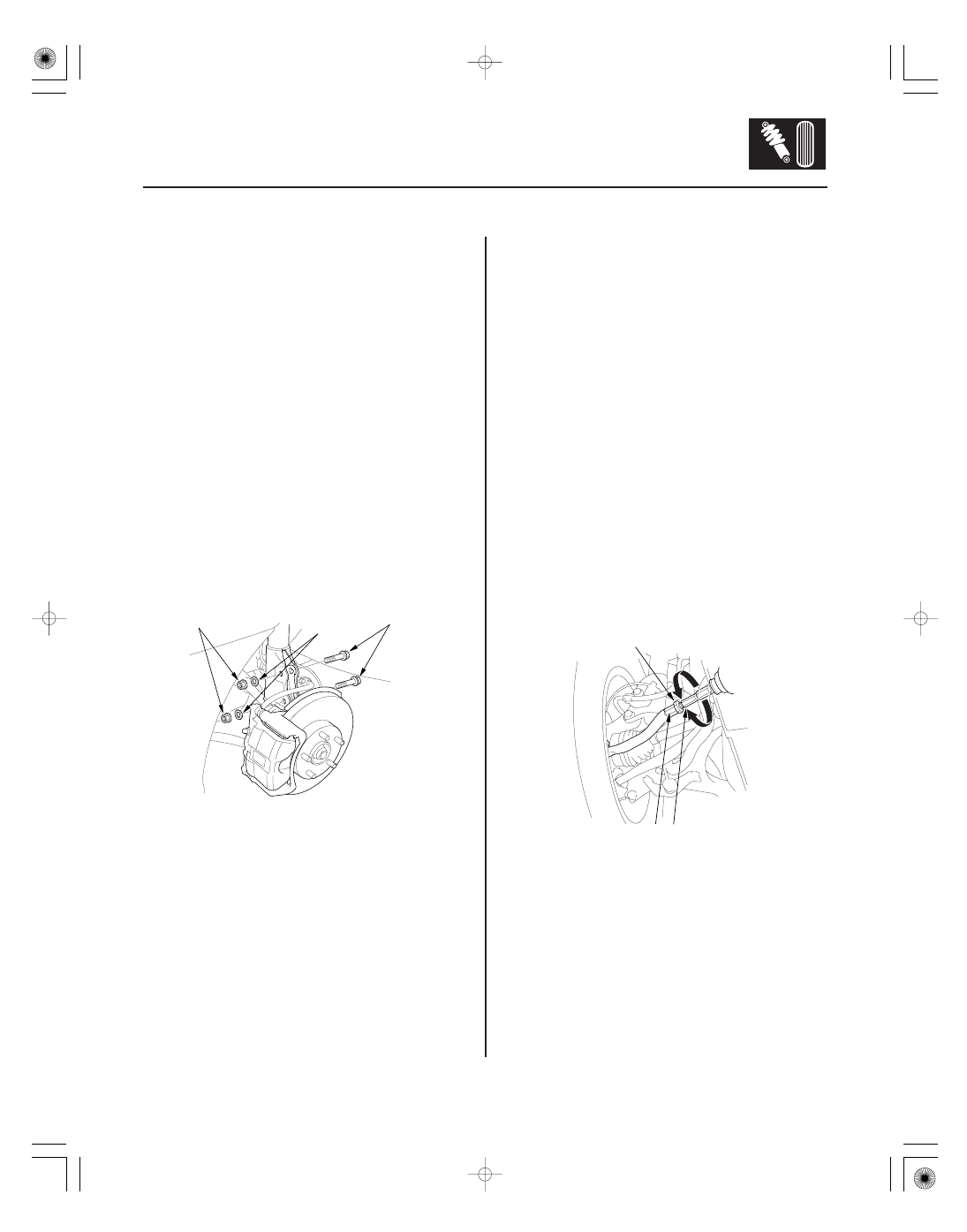

Front Toe Inspection/Adjustment

Front toe-in: 0

2 mm (0

0.08 in.)

18-7

A
14 x 1.5 mm
90 N·m
(9.2 kgf·m,
67 lbf·ft)

A
14 x 1.5 mm
44 N·m (4.5 kgf·m, 33 lbf·ft)

7. Measure the camber angle.

• If the measurement is within specification,

measure the toe.

• If the measurement is not within specification, go

to step 8.

8. Raise the front of the vehicle, and support it with

safety stands in the proper locations (see page
1-11).

9. Remove the front wheels.

10. Replace the damper pinch bolts with the adjusting

bolts (A), and adjust the camber angle.

NOTE:

• Install the washers (B) included adjusting bolt set

between the front damper and self-locking nut.

• The camber angle can be adjusted up to

25 ’

(center of tolerance) by replacing one damper
pinch bolt with the adjusting bolt.

• The camber angle can be adjusted up to 50 ’ by

replacing both damper pinch bolts with the
adjusting bolts.

11. Tighten the adjusting bolts to the specified torque

value.

12. Clean the mating surfaces of the brake disc and the

inside of the wheel, then install the front wheels.

13. Lower the vehicle to the ground, and bounce the

front of the vehicle up and down several times to
stabilize the suspension.

14. Measure the camber angle. If the camber angle is

not within specification, repeat steps 8 through 13
to readjust the camber angle. If the camber
measurement is correct, measure toe-in, and adjust
it if necessary.

Use commercially available computerized four wheel
alignment equipment to measure wheel alignment
(caster, camber, toe, and turning angle). Follow the
equipment manufacturer’s instructions.

1. Set the steering column to the middle tilt and

center telescopic positions. Center the steering
wheel spokes, and install a steering wheel holder
tool.

2. Check the toe with the wheels pointed straight

ahead.

• If adjustment is required, go to step 3.
• If no adjustment is required, go to rear toe

inspection/adjustment.

3. Loosen the tie-rod locknuts (A) while holding the

flat surface sections (B) of the tie-rod end with a
wrench, and turn both tie-rods (C) until the front toe
is within specifications.

4. After adjusting, tighten the tie-rod locknuts to the

specified torque value. Reposition the rack-end
boot if it is twisted or displaced.

5. Go to rear toe inspection/adjustment.

Replace.

08/08/21 14:56:46 61SNR030_180_0007

０４

０７

＋

−

＋

−

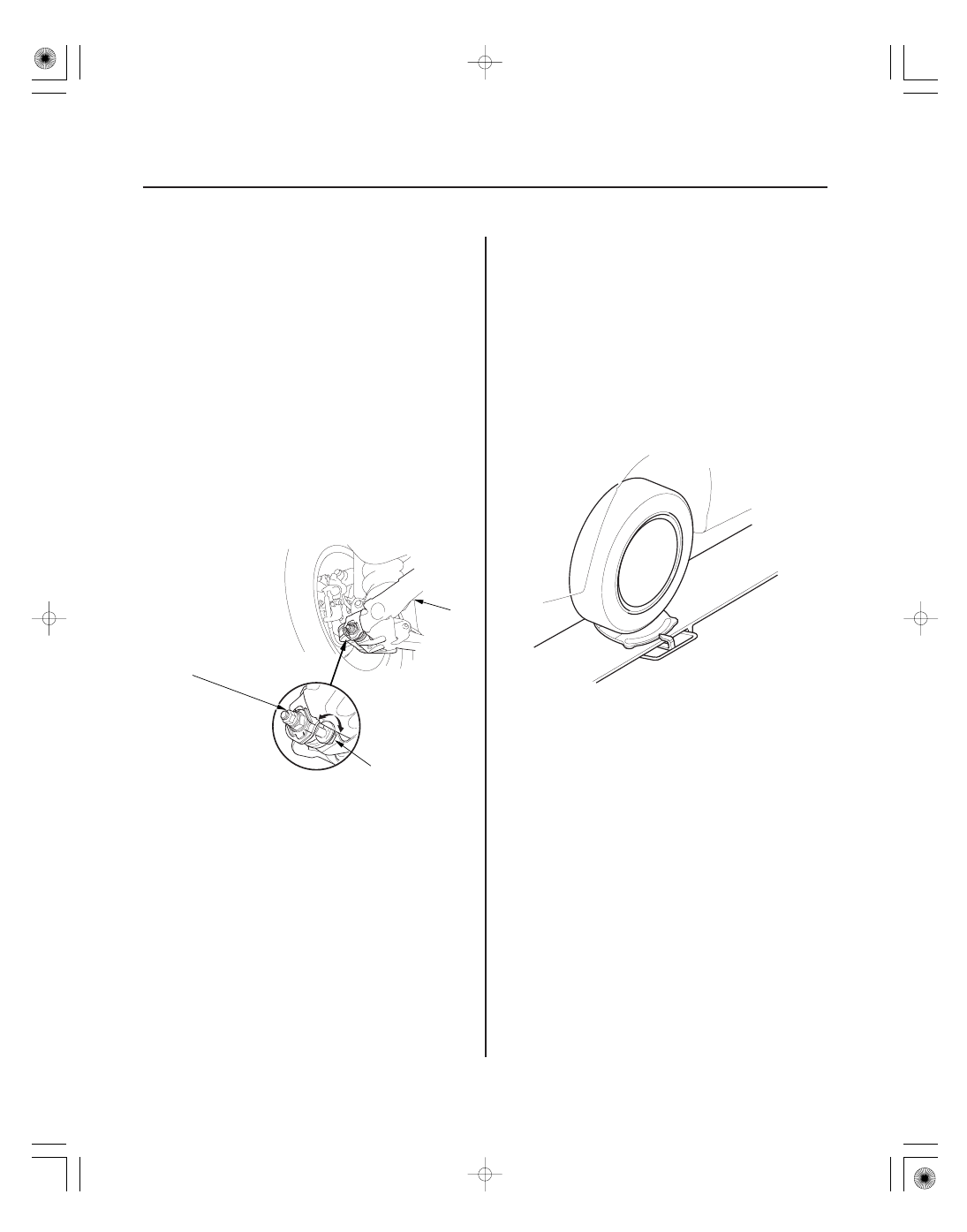

Rear Toe Inspection/Adjustment

Turning Angle Inspection

Rear toe-in: 2

mm (0.08

in.)

Turning angle:

Inward wheel:

38 ° 46 ’

2 °

Outward wheel (reference):

31 ° 14 ’

0.08

0.04

18-8

Front and Rear Suspension

C
Except Type S model:
12 x 1.25 mm
69 N·m
(7.0 kgf·m, 51 lbf·ft)

Type S model:
12 x 1.25 mm
74 N·m
(7.5 kgf·m, 54 lbf·ft)

Use commercially available computerized four wheel
alignment equipment to measure wheel alignment
(caster, camber, toe, and turning angle). Follow the
equipment manufacturer’s instructions.

1. Release the parking brake to avoid an incorrect

measurement.

2. Check the toe.

• If adjustment is required, go to step 3.
• If no adjustment is required, go to turning angle

inspection.

3. Hold the adjusting bolt (A) on the trailing arm (B),

and loosen the self-locking nut (C).

4. Replace the self-locking nut with a new one, and

lightly tighten it.

NOTE:

• Always use a new self-locking nut whenever it

has been tightened to the specified torque.

• Reassemble the adjusting bolt and the adjusting

cam plate with the eccentric facing up.

5. Adjust the rear toe by turning the adjusting bolt

until the toe is correct.

6. Tighten the self-locking nut to the specified torque

value while holding the adjusting bolt.

Use commercially available computerized four wheel
alignment equipment to measure wheel alignment
(caster, camber, toe, and turning angle). Follow the
equipment manufacturer’s instructions.

1. Turn the wheel right and left while applying the

brake, and measure the turning angle of both
wheels.

2. If the measurement is not within the specifications,

even up both sides of the tie-rod threaded section
length while adjusting the front toe. If it is correct,
but the turning angle is not within the
specifications, check for bent or damaged
suspension components.

Replace.

08/08/21 14:56:46 61SNR030_180_0008

０１

０２

ＳＮＲ９Ａ００Ｂ２０２０００６５２０１ＭＡＡＴ００

０１

ＳＮＲ９Ａ００Ｂ５４１００００００００ＭＡＡＴ００

−

Front

Rear

Wheel bearing end play:

Front/Rear: 0

0.05 mm (0

0.002 in.)

Front and rear wheel axial runout:

Standard:

0.7 mm (0

0.03 in.)

Service limit: 2.0 mm (0.08 in.)

18-9

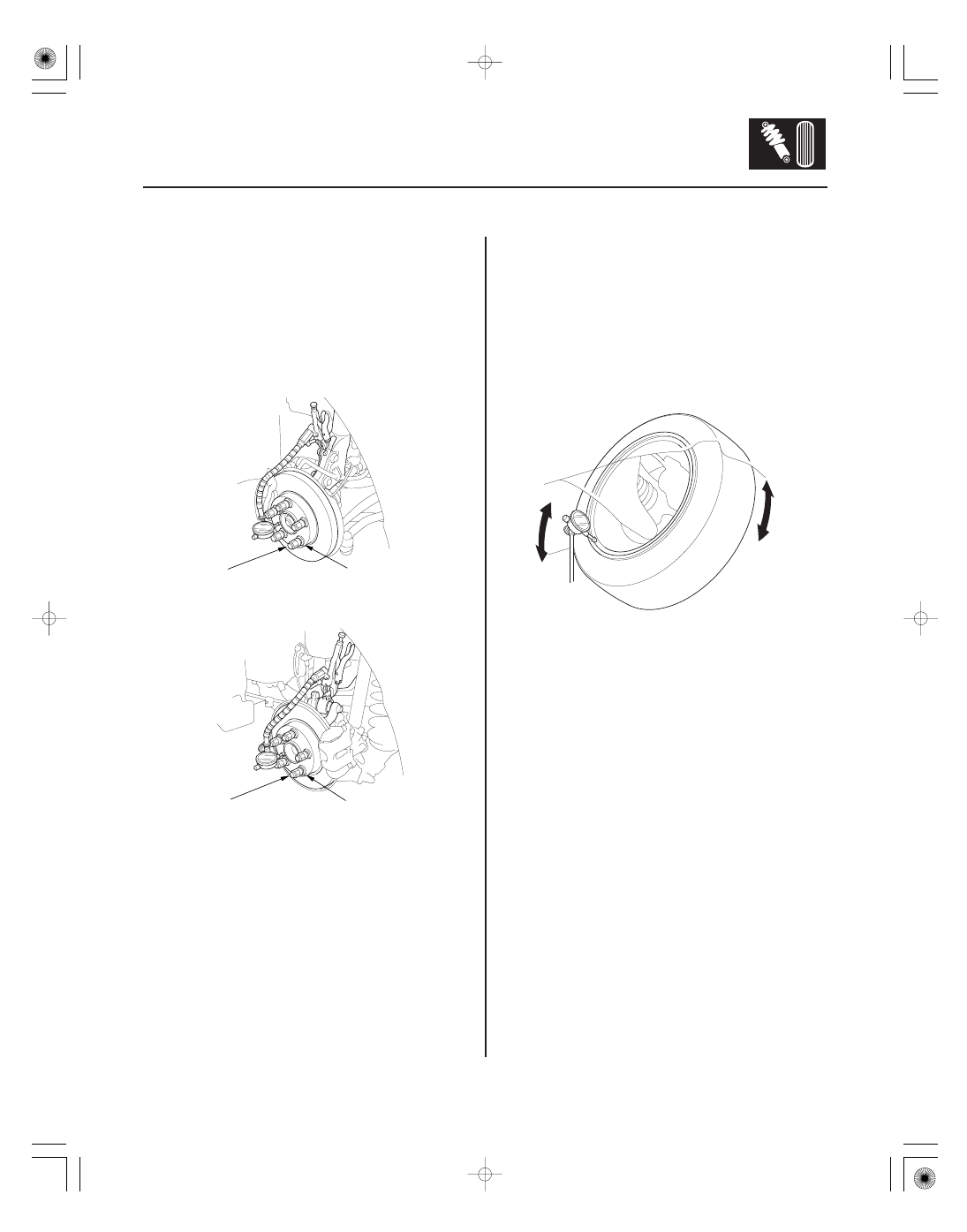

Wheel Bearing End Play Inspection

Wheel Runout Inspection

108 N·m
(11.0 kgf·m, 79.6 lbf·ft)

1. Raise the vehicle, and support it with safety stands

in the proper locations (see page 1-11).

2. Remove the wheels.

3. Install suitable flat washers (A) and the wheel nuts.

Tighten the nuts to the specified torque to hold the
brake disc securely against the hub.

4. Attach the dial gauge. Place the dial gauge against

the hub flange.

5. Measure the bearing end play while moving the

brake disc inward and outward.

6. If the bearing end play measurement is more than

the standard, replace the wheel bearing or the hub
bearing unit.

1. Raise the vehicle, and support it with safety stands

in the proper locations (see page 1-11).

2. Check for bent or deformed wheels.

3. Set up the dial gauge as shown, and measure the

axial runout by turning the wheel.

08/08/21 14:56:47 61SNR030_180_0009
