RAIN SENSOR

DESCRIPTION

The Rain sensing windshield wiper system is a wiper system that, in addition to providing normal wiper
functions off, mist, manual low speed, manual high speed, and wash, provides automatic control of automatic
intermittent automatic low, and automatic high speeds.

When the ignition key is in the ON position, the rain sensor will be activated.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:10:03 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

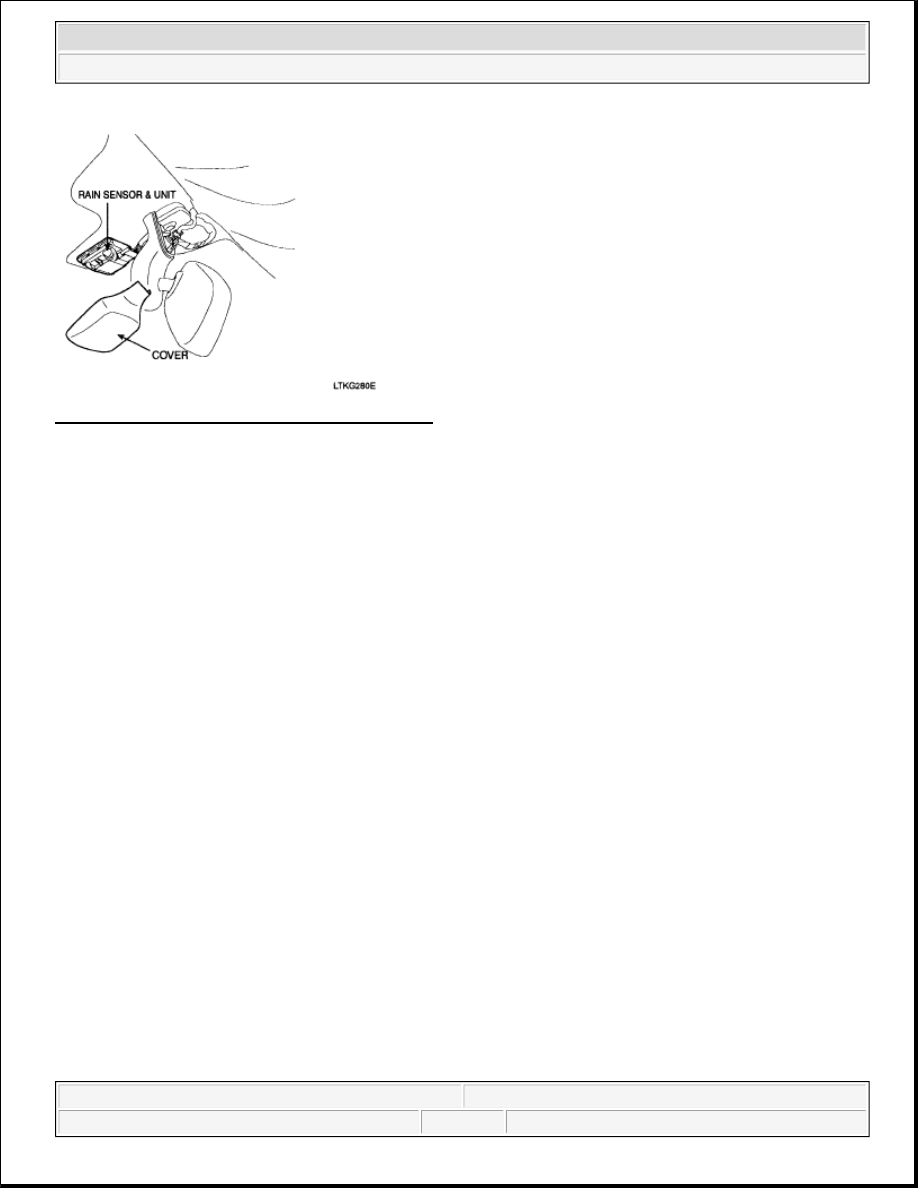

Fig. 17: Identifying Rain Sensor, Unit And Cover
Courtesy of KIA MOTORS AMERICA, INC.

SYSTEM FUNCTION

BASIC PRINCIPLE

Emitted Beam from luminosity diode is reflected entirely against the windshield exterior, and then turn into
photo diode.

If there is water on the windshield exterior, beam separates optically, and the degree of remained beam is
measured in the photo diode.

What there is water in the windshield, it means beam is not reflected all, so the degree of lost beam indicates the
degree of glass surface wet.

OPERATION CONTROL

Wiper ECU transmits the signal as a rain sensor, and then the rain sensor perceives the rainwater to transmit to
the wiping order wiper ECU, wiper ECU controls the wiper motor according to the signal.

CONTACT INFLUENCE

The rain sensor can malfunction due to the following conditions :

1. Contamination of the measurement surface.

2. Air bubbles between the windshield and the coupling pad contact surface.

3. The movement of coupling pad by vibration.

4. Damaged wiper blade.

NOTE:

Rain sensor consist of two luminosity diode, two photo diode, optic fiber and
coupling pad.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:10:03 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

AUTO OPERATION

1. Operation Condition

RAIN SENSOR OPERATION CONDITION

2. Safety Function



When there is an ice in the sensing field, the rain sensor cannot recognize the correct working
condition.



Glass damage: rain sensor cannot perceive the damaged windshield within the sensing field.



The rain sensor will not operate properly if detached from the windshield.



If the wiper ECU does not transmit any effective data in 5 seconds, the rain sensor turns off LED.



If the intermittent wiper signal is interrupted for >2 sec, the wipers are moved to the parking
position.



If a rain sensor signal communication error lasts for > 5sec, the wipers are moved into the parking
position.



If the rain sensor transmits an error to the wiper ECU, the wiper ECU stops the AUTO function
after 4.5 seconds.

REMOVAL

Operation mode

Operation condition

Direct mode

Switch AUTO is basic operation

condition that rain sensor perceives dry

windshield. From this condition, the

rain sensor decides the wiper operation

mode depend on the quantity and time

of measured rainwater

Intermittent mode

Operation pauses between 0.5-5

seconds, then the wipers switch to

intermittent mode

Low speed

Operate continuously at low speed

High speed

Operate continuously at high speed

NOTE:

Do not operate the rain sensing wipers unless the windshield is
completely clear of ice and snow.

CAUTION: The rain sensor may not operate properly if contaminated. Protect the rain

sensor surface by not removing the cover until installation time. The
coupling pad on the rain sensor surface has adhesive strength. Take care
when installing the sensor. If the sensor is separated from the windshield
by force, the sensor or windshield may be damaged. Take care when
removing the sensor.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:10:03 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

1. Remove the sensor cover. When removing it, make sure take care to prevent damage. To remove it, press

back the locking hook using the cover hole using an appropriate tool.

Fig. 18: Identifying Sensor Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. When removing rain sensor from the bracket, open the spring clip using the (-) driver, and then remove.

Fig. 19: Identifying Rain Sensor And Bracket
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the wiring harness connector from the sensor.

4. Rain sensor is fitted with 2 spring slides by clip type on the front glass, it can be replaced easily. When

replacing the front glass, take away the rain sensor from the existing glass.

After then attach it to new one again.
