2008 ACCESSORIES & BODY, CAB

Windshield Wiper/Washer - Sedona

COMPONENT LOCATION

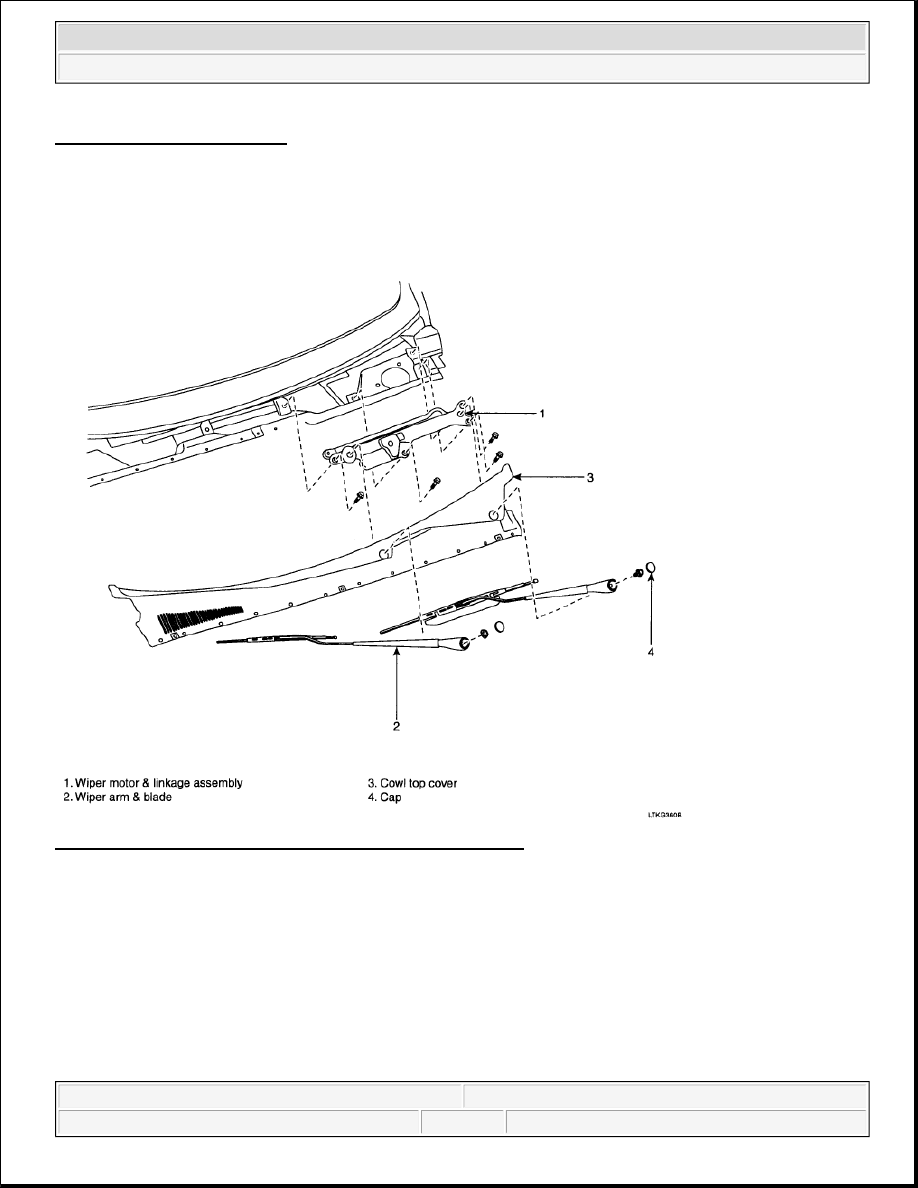

Fig. 1: Identifying Windshield Wiper/Washer Components
Courtesy of KIA MOTORS AMERICA, INC.

WINDSHIELD WIPER/WASHER SWITCH

REPLACEMENT

1. Remove the steering column upper and lower shrouds (A) after removing 3 screws.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Wiper/Washer - Sedona





2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:10:03 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 4:10:05 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Fig. 2: Identifying Steering Column Upper And Lower Shrouds And Screws
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the wiper switch (A) by pushing the lock pin (B) after disconnecting the connector.

Fig. 3: Identifying Wiper Switch And Lock Pin
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

INSPECTION

Check for continuity between the terminals while operating the wiper and washer switch. If it is not normal
condition, replace wiper and wiper switch.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:10:03 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

Fig. 4: Identifying Rear Washer Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

WIPER SWITCH

Fig. 5: Testing Wiper Switch
Courtesy of KIA MOTORS AMERICA, INC.

WASHER SWITCH



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Windshield Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:10:03 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

Fig. 6: Testing Washer Switch
Courtesy of KIA MOTORS AMERICA, INC.

FRONT WIPER MOTOR

COMPONENT LOCATION

Fig. 7: Identifying Front Wiper Motor Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Remove the windshield wiper arm and blade after removing the mounting nut (A).

TORQUE: 28-32 N.m (2.8-3.2 kgf.m, 20-23.1 lbs. ft)
