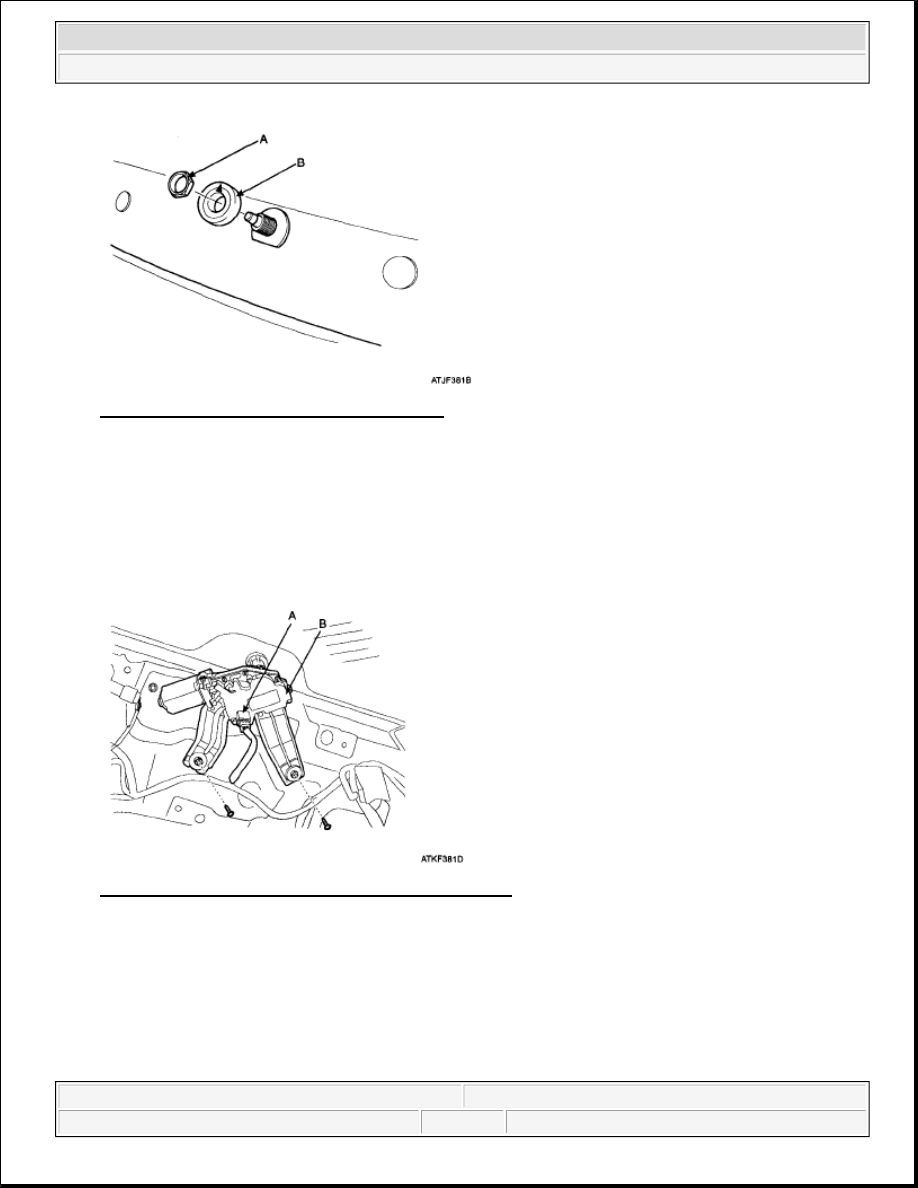

Fig. 2: Identifying Rear Wiper Cap And Pad
Courtesy of KIA MOTORS AMERICA, INC.

4. Disconnect the rear wiper motor connector (A) then remove the rear wiper motor (B) after removing 2

bolts.

Tightening torque Nut:

7-11 N.m (0.7-1.1 kgf.m, 5.1-8.0 lbf. ft.)

Fig. 3: Identifying Rear Wiper Motor And Connector
Courtesy of KIA MOTORS AMERICA, INC.

5. Installation is the reverse of removal.

INSPECTION

1. Remove the 3-pin connector from the rear wiper motor.

2. Connect battery positive (+) and negative (-) cables to terminals 2 and 1 respectively.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Rear Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:09:24 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

3. Check that the motor operates normally. Replace the motor if it operates abnormally.

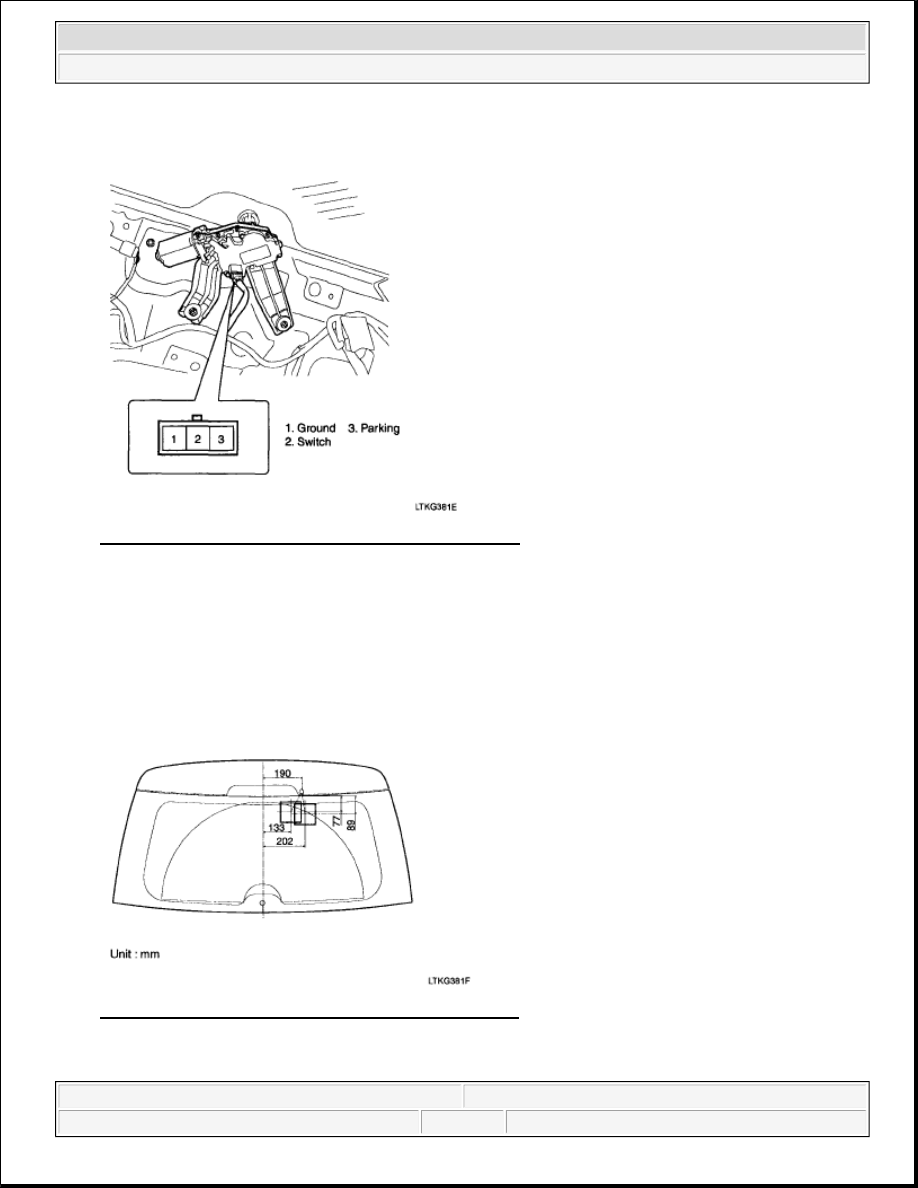

Fig. 4: Identifying Rear Wiper Motor 3-Pin Connector
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

1. Install the rear wiper arm and blade to the specified position.

Specified position: The first defogger line from bottom of the rear window.

2. Set the rear washer nozzle on the specified spray position.

Fig. 5: Identifying Rear Washer Nozzle Spray Position
Courtesy of KIA MOTORS AMERICA, INC.

REAR WASHER SWITCH



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Rear Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:09:24 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

INSPECTION

With the rear wiper and washer switch in each position, make sure that continuity exists between the terminals.
See Fig. 6 and Fig. 7. If continuity is not as specified, replace the multifunction switch.

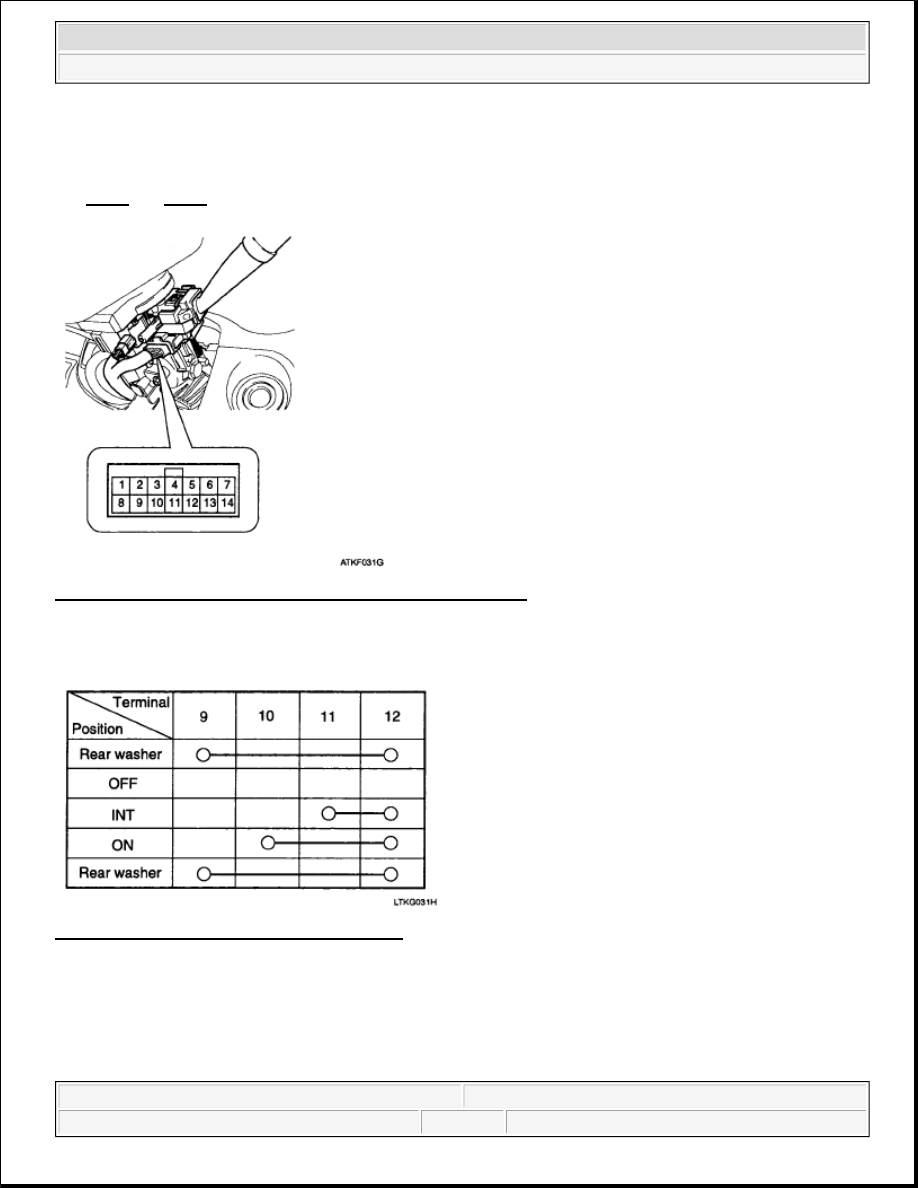

Fig. 6: Identifying Rear Washer Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

REAR WIPER & WASHER SWITCH

Fig. 7: Testing Rear Wiper & Washer Switch
Courtesy of KIA MOTORS AMERICA, INC.

REAR WASHER MOTOR

INSPECTION



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Rear Wiper/Washer - Sedona



Microsoft



Monday, May 24, 2010 4:09:24 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

1. With the washer motor connected to the reservoir tank, fill the reservoir tank with water.

2. Remove the front bumper. Refer to FRONT BUMPER .

3. Connect positive (+) and negative (-) battery cables to terminals 3 and 1 respectively to see that the

washer motor runs and water is pumped.

4. Check that the motor operates normally. Replace the motor if it operates abnormally.

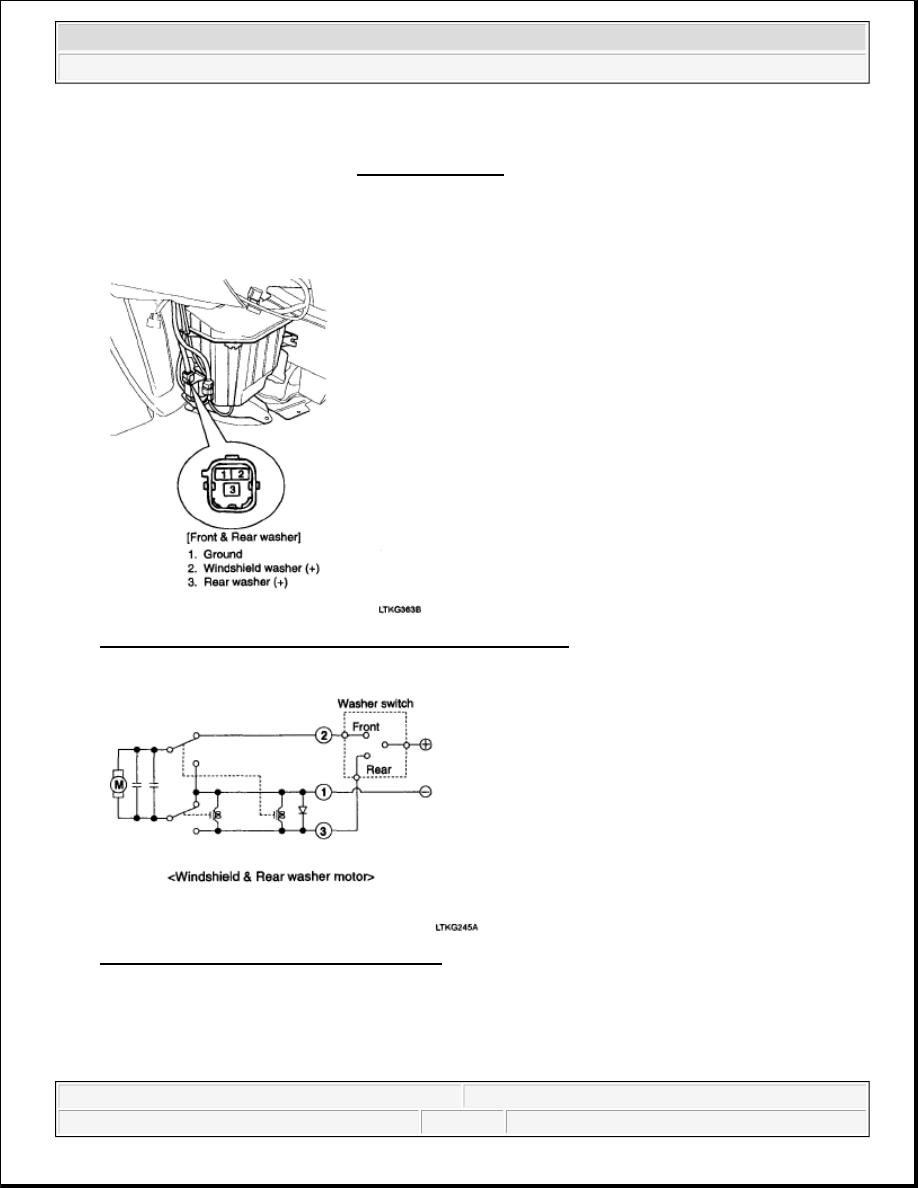

Fig. 8: Identifying Rear Washer Motor Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 9: Rear Washer Motor Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
