Sunroof - Sedona

COMPONENT LOCATION

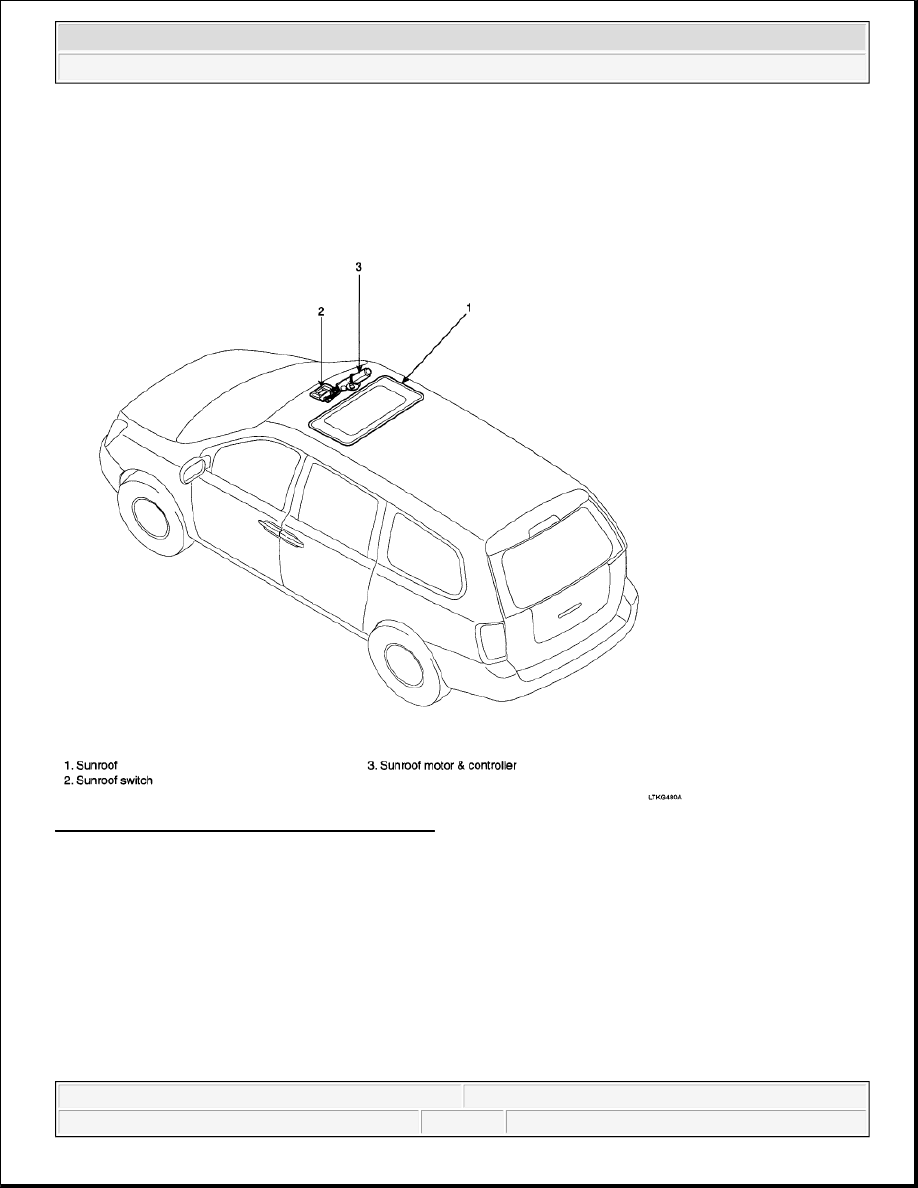

Fig. 1: Identifying Sunroof Component Locations
Courtesy of KIA MOTORS AMERICA, INC.

SUNROOF SWITCH

INSPECTION

1. Disconnect the negative (-) battery terminal.

2. Remove the lens and open the sunglass case cover from the overhead console then remove the 2 screws

holding the overhead console. And disconnect the connector then remove the overhead console lamp
assembly from the headliner.



2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Sunroof - Sedona





2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Sunroof - Sedona



Microsoft



Saturday, May 22, 2010 6:56:52 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Saturday, May 22, 2010 6:56:54 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

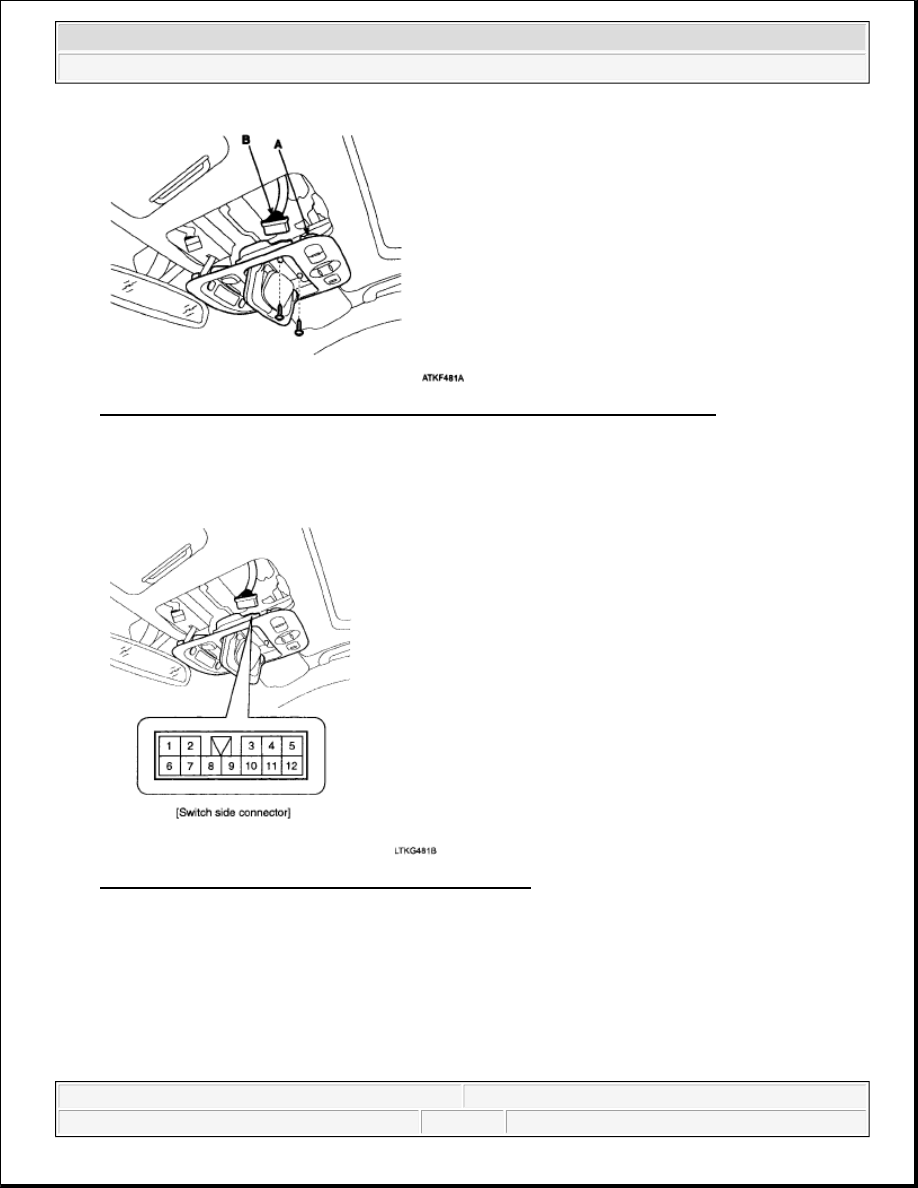

Fig. 2: Identifying Sunglass Case Cover And Overhead Console Lamp Assembly
Courtesy of KIA MOTORS AMERICA, INC.

3. Check for continuity between the terminals. If the continuity is not as specified, replace the sunroof

switch.

Fig. 3: Identifying Sunroof Switch Connector Terminals
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Sunroof - Sedona



Microsoft



Saturday, May 22, 2010 6:56:52 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

Fig. 4: Testing Sunroof Switch
Courtesy of KIA MOTORS AMERICA, INC.

SUNROOF MOTOR

REPLACEMENT

1. Disconnect the negative (-) battery terminal.

2. Remove the overhead console and loosen sunroof motor bracket (A) mounting bolts (4 each).

Fig. 5: Identifying Sunroof Motor Bracket And Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove sunroof motor mounting screw (3 each) and disconnect connector (10-pin). And then remove the

sun roof motor.



2008 Kia Sedona

2008 ACCESSORIES & BODY, CAB Sunroof - Sedona



Microsoft



Saturday, May 22, 2010 6:56:52 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

Fig. 6: Identifying Sunroof Motor Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.

RESETTING THE SUNROOF

Whenever the vehicle battery is disconnected or discharged, or you use the emergency handle to operate the
sunroof, you have to reset your sunroof system as follows:

1. Turn the ignition key to the ON position. Press and hold the TILT UP button more than 15 seconds until

the sunroof has tilted upward/downward slightly.

2. When this is complete, Press and hold the TILT UP button once again until the sunroof has raised and

returned to the maximum TILT UP position. When this is complete, the sunroof system is reset.
