Symptom

Probable cause

Remedy

Excessive play in
steering

Loose yoke plug

Retighten

Loose steering gear mounting bolts

Retighten

Loose or worn tie rod end

Retighten or replace as
necessary

Steering wheel
operation is not
smooth
(Insufficient power
assist)

V-belt slippage

Readjust

Damaged V-belt

Replace

Low fluid level

Replenish

Air in the fluid

Bleed air

Twisted or damaged hoses

Correct the routing or
replace

Insufficient oil pump pressure

Repair or replace the oil
pump

Sticky flow control valve

Replace

Excessive internal oil pump leakage

Replace the damaged parts

Excessive oil leaks from rack and pinion in gear box

Replace the damaged parts

Distorted or damaged gear box or valve body seals

Replace

Steering wheel
does not return
properly

Excessive turning resistance of tie rod end

Replace

Yoke plug excessively tight

Adjust

Tie rod and/or ball joint cannot turn smoothly

Replace

Loose mounting of gear box mounting bracket Worn
steering shaft joint and/or

Retighten

Worn steering shaft joint and/or body grommet

Correct or replace

Distorted rack

Replace

Damaged pinion bearing

Replace

Twisted or damaged hoses

Reposition or replace

Damaged oil pressure control valve

Replace

Damaged oil pump input shaft bearing

Replace

Noise

Hissing Noise in Steering Gear
There is some noise with all power steering systems. One of the most common is a
hissing sound when the steering wheel is turned and the car is not moving. This noise
will be most evident when turning the wheel while the brakes are being applied.
There is no relationship between this noise and steering performance. Do not replace
the valve unless the "hissing" noise becomes extreme. A replaced valve will also
make a slight noise, and is not always a solution for the condition.

Rattling or
chucking noise in
the rack and pinion

Interference with hoses from vehicle body

Reposition

Loose gear box bracket

Retighten

Loose tie rod end and/or ball joint

Retighten

Worn tie rod and/or ball joint

Replace

Noise in the oil
pump

Low fluid level

Replenish

Air in the fluid

Bleed air

Loose pump mounting bolts

Retighten



2008 Kia Sedona EX

2008 STEERING Steering System - General - Sedona



Microsoft



Monday, May 24, 2010 3:49:21 PM

Page 6

© 2006 Mitchell Repair Information Company, LLC.

SERVICE ADJUSTMENT PROCEDURE

CHECKING STEERING WHEEL FREE PLAY

1. Start the engine and with the steering wheel in the straight ahead position.

2. Measure the play while turning the steering wheel to the left and right.

Standard value:

Steering wheel free play: 30 mm (1.1 in)

Fig. 1: Measuring Steering Wheel Free Play Gap
Courtesy of KIA MOTORS AMERICA, INC.

3. If the play exceeds the standard value, inspect the connection between the steering shaft and tie rod ends.

CHECKING STEERING ANGLE

1. Place the front wheel on a turning radius gauge and measure the steering angle.

STEERING ANGLE

STEERING ANGLE SPECIFICATION

2. If the measured value is not within the standard value, adjust the toe and inspect again.

Inner

38.64°

Outer

31.78°



2008 Kia Sedona EX

2008 STEERING Steering System - General - Sedona



Microsoft



Monday, May 24, 2010 3:49:21 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

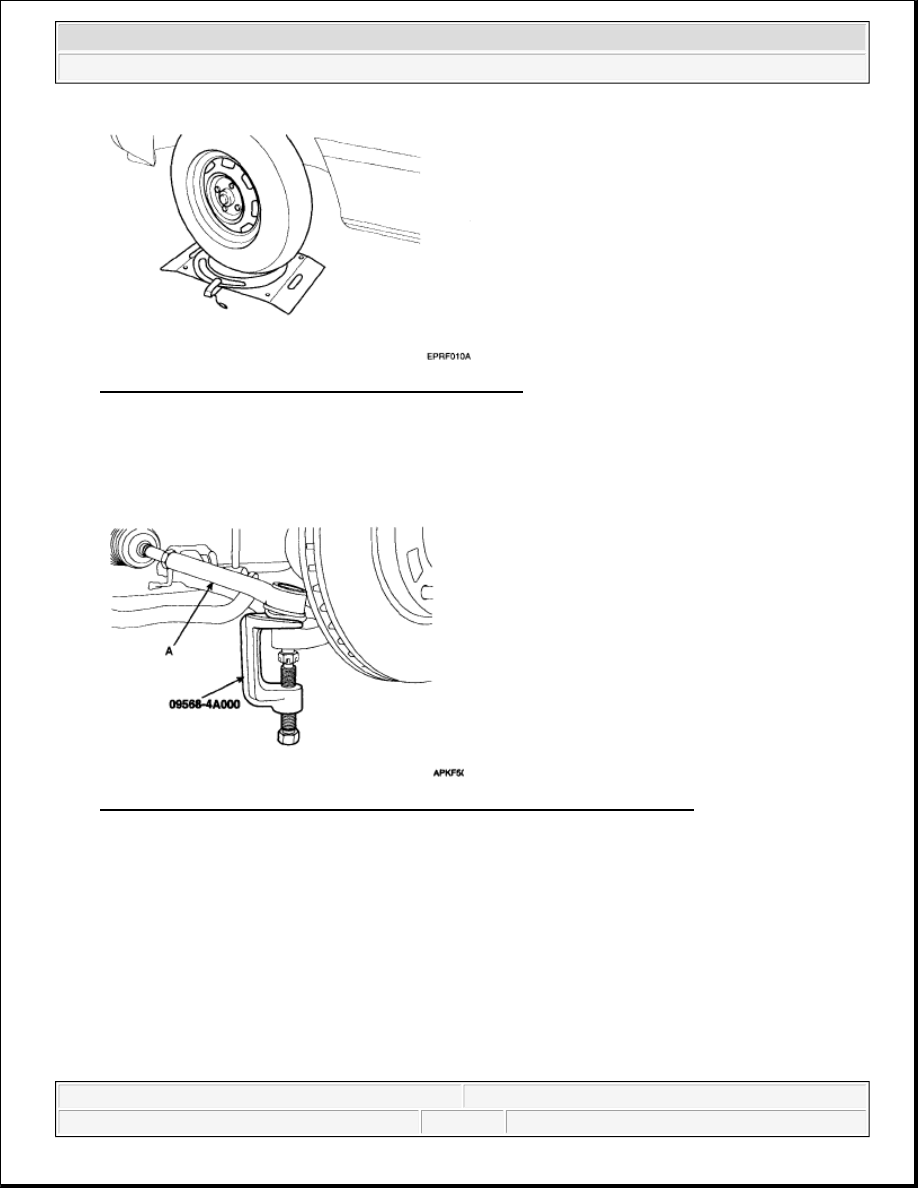

Fig. 2: Placing Front Wheel On Turning Radius Gauge
Courtesy of KIA MOTORS AMERICA, INC.

CHECKING THE TIE ROD END BALL JOINT STARTING TORQUE

1. Disconnect tie rod and knuckle with the special tool (09568-4A000).

Fig. 3: Disconnecting Tie Rod And Knuckle With Special Tool (09568-4A000)
Courtesy of KIA MOTORS AMERICA, INC.

2. Shake the ball joint stud several times to check for looseness.

Tie rod end ball joint starting torque:

2.96 N.m (30 kg.cm, 2.18 lb-ft) or less



2008 Kia Sedona EX

2008 STEERING Steering System - General - Sedona



Microsoft



Monday, May 24, 2010 3:49:21 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

Fig. 4: Checking Tie Rod End Ball Joint Starting Torque
Courtesy of KIA MOTORS AMERICA, INC.

3. If the starting torque exceeds the upper limit of the standard value, replace the tie rod end.

4. Even if the starting torque is below the lower limit of the standard value, check the play of the ball joint

and replace if necessary.

STEERING WHEEL RETURN

1. The force required to turn the steering wheel and the wheel return should be the same for both moderate

and sharp turns.

2. When the steering wheel is turned 90° and held for a couple of seconds while the vehicle is being driven

at 20-30 kph (12-19 mph), the steering wheel should return at least 20° from its central position when it is
released.

Fig. 5: Checking Steering Wheel Return
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:

If the steering wheel is turned very quickly, steering may be momentarily
difficult. This is not a malfunction because the oil pump output will be
somewhat decreased.
