Kia Sedona (2008 year). Manual - part 529

LUBRICANT

LUBRICANT SPECIFICATIONS

SPECIAL TOOLS

SPECIAL TOOLS DESCRIPTION

Item

Lubricant

Quantity

Power steering fluid

PSF-3

1.1 l

Tool (Number

and Name)

Illustration

Use

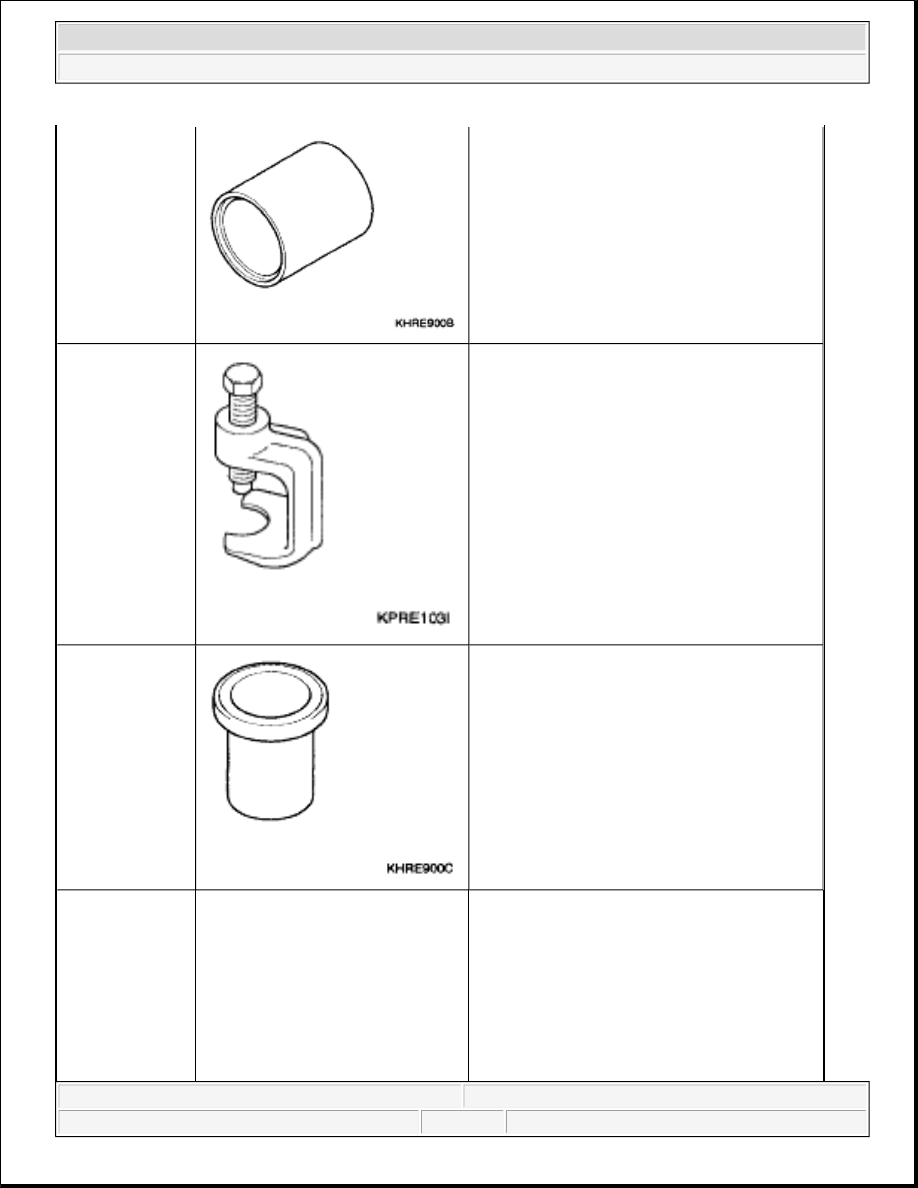

09222-32100
Valve stem oil
seal installer

Installation of the oil pump oil seal

09555-21000
Bar

Removal and installation of the oil seal (Use
with 09573-33100, 09573-33000,09573-21000)

09561-11001
Steering wheel
puller

Removal of steering wheel



2008 Kia Sedona EX

2008 STEERING Steering System - General - Sedona



Microsoft



Monday, May 24, 2010 3:49:21 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

09568-4A000
Tie rod end puller

Separation of the tie rod end bail joint

09572-21000
Oil pressure gauge

Measurement of the oil pressure (Use with
09572-22100, 09572-21200)

09572-21200
Oil pressure gauge
adapter

Measurement of the oil pressure
(Use with 09572-21000, 09572-22100)



2008 Kia Sedona EX

2008 STEERING Steering System - General - Sedona



Microsoft



Monday, May 24, 2010 3:49:21 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

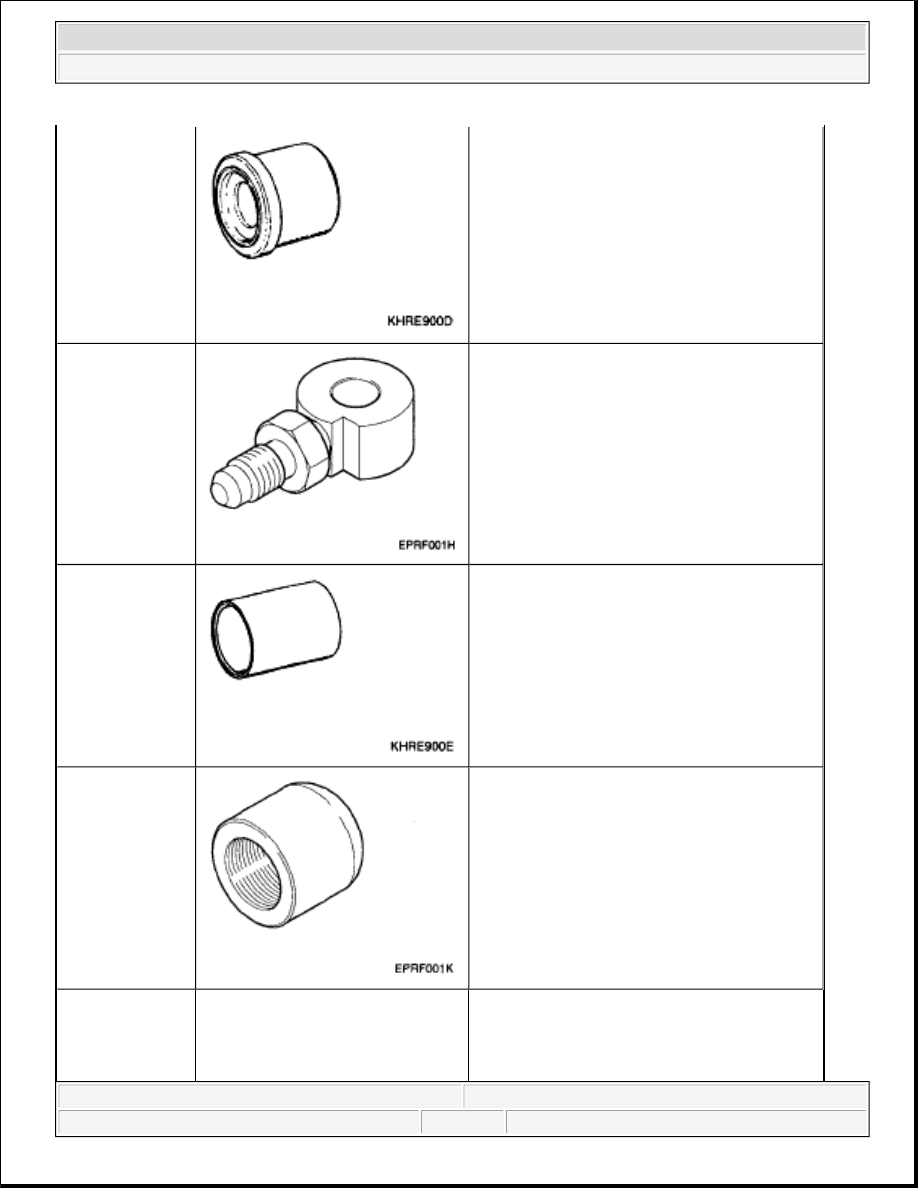

09572-22100
Oil pressure gauge
adapter

Measurement of the oil pressure
(Use with 09572-21000, 09572-21200)

09573-21100
Oil seal installer

Installation of the back up washer and oil seal
(Use with 09753-21000,09573-33100, 09555-
21000)

09573-33100
Oil seal guide

Removal and installation of the oil seal
(Use with 09573-21000, 09573-33000,09555-
21000)



2008 Kia Sedona EX

2008 STEERING Steering System - General - Sedona



Microsoft



Monday, May 24, 2010 3:49:21 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.
