Kia Sedona (2008 year). Manual - part 533

2008 SUSPENSION

Suspension System - General - Sedona

SPECIFICATIONS

FRONT SUSPENSION SYSTEM

FRONT SUSPENSION SYSTEM SPECIFICATIONS

REAR SUSPENSION SYSTEM

REAR SUSPENSION SYSTEM SPECIFICATIONS

WHEELS AND TIRES

WHEELS AND TIRES SPECIFICATION

Items

Specification

Type

Macpherson strut

Shock

Absorber

Type

Gas

Stroke mm (in)

195.5 (7.70)

Expansion mm (in)

595.5 ± 3 (23.44 ± 0.12)

Compression mm (in)

400 + 3, -Free (15.75 + 3, -

Free)

I.D. Color

GASOLINE

RED

Damping force (0.3
m/s)

GASOLINE

Expansion N (kgf)

980 ± 220 (100 ± 15)

Compression N (kgf)

588 ± 118 (60 ± 12)

Spring

GASOLINE

Free height mm (in)

415.9 (16.37)

Load

(kg)

I.D. Color

550.0-561.2

Green 2 point

538.8-549.9

Green 1 point

Items

Specification

Type

Multi Link

Shock

Absorber

Type

Gas

Stroke mm (in)

170 (6.69)

Expansion mm (in)

478.0 ± 3 (18.82 ± 0.12)

Compression mm (in)

308 + 3, -Free (12.13 + 0.12, -

Free)

I.D. Color

GASOLINE

RED

Damping force (0.3
m/s)

GASOLINE

Expansion N (kgf)

1422 ± 206 (145 ± 21)

Compression N (kgf)

549 ± 108 (56 ± 11)

Spring

GASOLINE

Free height mm (in)

280.0 (11.02)

Load

(kg)

I.D. Color

608.2-637.6

Green 2 point

578.8-608.2

Green 1 point



2008 Kia Sedona EX

2008 SUSPENSION Suspension System - General - Sedona





2008 Kia Sedona EX

2008 SUSPENSION Suspension System - General - Sedona



Microsoft



Monday, May 24, 2010 3:46:00 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Monday, May 24, 2010 3:46:03 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

WHEEL ALIGNMENT

WHEEL ALIGNMENT

TIGHTENING TORQUE

FRONT SUSPENSION

FRONT SUSPENSION AND TIGHTENING TORQUE

REAR SUSPENSION

REAR SUSPENSION AND TIGHTENING TORQUE

Items

Specification

Tire Size

225/70 R16
235/60 R17

Wheel Size

Steel

6.5JX16

Aluminum

6.5JX16
6.5JX17

Tire Pressure kPa (kg/cm

2

 , psi)



Front

Rear

225/70 R16

2.4 (35)

2.4 (35)

235/60 R17

2.4 (35)

2.4 (35)

Items

Front

Rear

Camber

0° ± 30'

-20' ± 30'

Caster

to Ground

4°05' ± 30'

-

to Body

4°40'

-

Toe-in mm (in)

0 ± 2 (0 ± 0.0787)

3.5 ± 2 (0.1378 ± 0.0787)

King pin angle

12°27'±30'

-

Tread mm (in)

1685 (66.34)

1688 (66.46)

Items

N.m

kgf.m

lb-ft

Front strut assembly mounting nut (to body)

45-60

4.5-6.0

32.5-43.4

Front strut assembly self-locking nut

60-70

6-7

43.4-50.6

Front strut assembly mounting bolt (to knuckle)

100-120

10-12

72.3-86.8

Front lower arm ball joint mounting bolt (to knuckle)

90-120

9-12

65.1-86.8

Front lower arm bushing (A) mounting bolt (to subframe)

160-180

16-18

115.7-130.2

Front lower arm bushing (G) mounting bolt (to subframe)

160-180

16-18

115.7-130.2

Front stabilizer link self-locking nut

100-120

10-12

72.3-86.8

Front stabilizer bar bracket mounting bolt (to Subframe)

39-60

3.9-6.0

28.2-43.4

Wheel nut

90-110

9-11

65.1-79.5

Items

N.m

kgf.m

lb-ft

Rear shock absorber bracket mounting bolt (to body)

80-110

8-11

57.9-79.5



2008 Kia Sedona EX

2008 SUSPENSION Suspension System - General - Sedona



Microsoft



Monday, May 24, 2010 3:46:00 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

LUBRICANTS

LUBRICANTS

SPECIAL SERVICE TOOLS

SPECIAL SERVICE TOOLS

Rear shock absorber bracket mounting nut (to body)

90-120

9- 12

65.1-86.8

Rear shock absorber nut (to rear knuckle)

140-160

14-16

101.2-115.7

Rear upper arm ball joint nut (to rear knuckle)

90-110

9-11

65.1-79.5

Rear upper arm self-locking nut (to cross member)

160-180

16-18

115.7-130.2

Rear lower arm mounting bolt (to rear knuckle)

160-180

16-18

115.7-130.2

Rear lower arm mounting nut (to cross member)

200-270

20-27

144.7-195.3

Rear assist arm mounting bolt (to rear knuckle)

90-110

9-11

65.1-79.5

Rear assist arm mounting nut (to cross member)

90-120

9-12

65.1-86.8

Trailing arm bracket mounting nut (to body)

80-110

8-11

57.9-79.5

Trailing arm self-locking nut (to rear knuckle)

80-100

8-10

57.9-72.3

Trailing arm mounting bolt (to bracket)

160- 180

16-18

115.7-130.2

Rear stabilizer bar bracket mounting bolt (to cross member)

39-60

3.9-6.0

28.2-43.4

Rear stabilizer link self-locking nut (to trailing arm)

50-65

5.0-6.5

36.2-47.0

Wheel nut

90-110

9-11

65.1-79.5

CAUTION: Replace the self-locking nuts with new ones after removal.

Items

Recommended

Quantity

Front lower arm ball joint

Boot: CGMS03 (CMS-H006)
Ball seat: CGMS02 (CMS-H006)

As required

Rear upper arm ball joint

Boot: CGMS03 (CMS-H006)
Ball seat: CGMS01 (CMS-H006)

Rear assist arm ball joint
Stabilizer link ball joint (Front Rear)

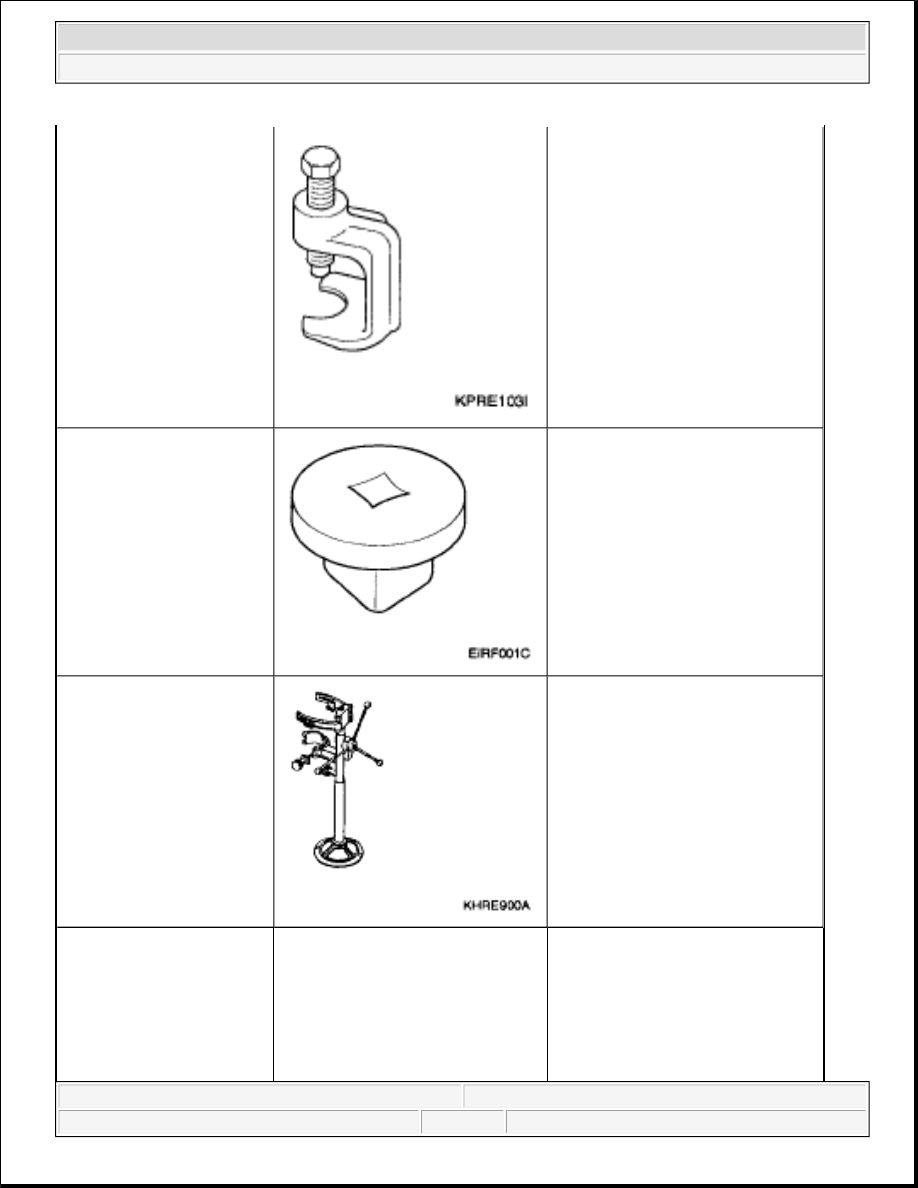

Tool (Number and Name)

Illustration

Use

09568-4A000
Ball joint remover

Removal of Ball joint
(Front upper arm/lower arm, & Rear
upper arm)



2008 Kia Sedona EX

2008 SUSPENSION Suspension System - General - Sedona



Microsoft



Monday, May 24, 2010 3:46:00 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

09532-11600
Preload socket

Measurement of the front lower arm
ball joint starting torque.
(Use with torque wrench)

09546-26000
Strut spring compressor

Compression of the coil spring

09214-32000
Mount bushing remover and
installer

Removal & installation of lower arm
bushing (G)
(Use with 09216-21100)
