Fig. 26: Turning Rack Stopper - Clockwise
Courtesy of KIA MOTORS AMERICA, INC.

14. When the end of the circlip comes out of the notched hole (A) of the housing rack cylinder, turn the rack

stopper (B) counterclockwise and remove the circlip.

Fig. 27: Turning Rack Stopper - Counterclockwise
Courtesy of KIA MOTORS AMERICA, INC.

15. Remove the rack bushing and rack from the rack housing.

16. Remove the O-ring (A) from the rack bushing (B).

CAUTION: Be careful not to damage the rack.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 14

© 2006 Mitchell Repair Information Company, LLC.

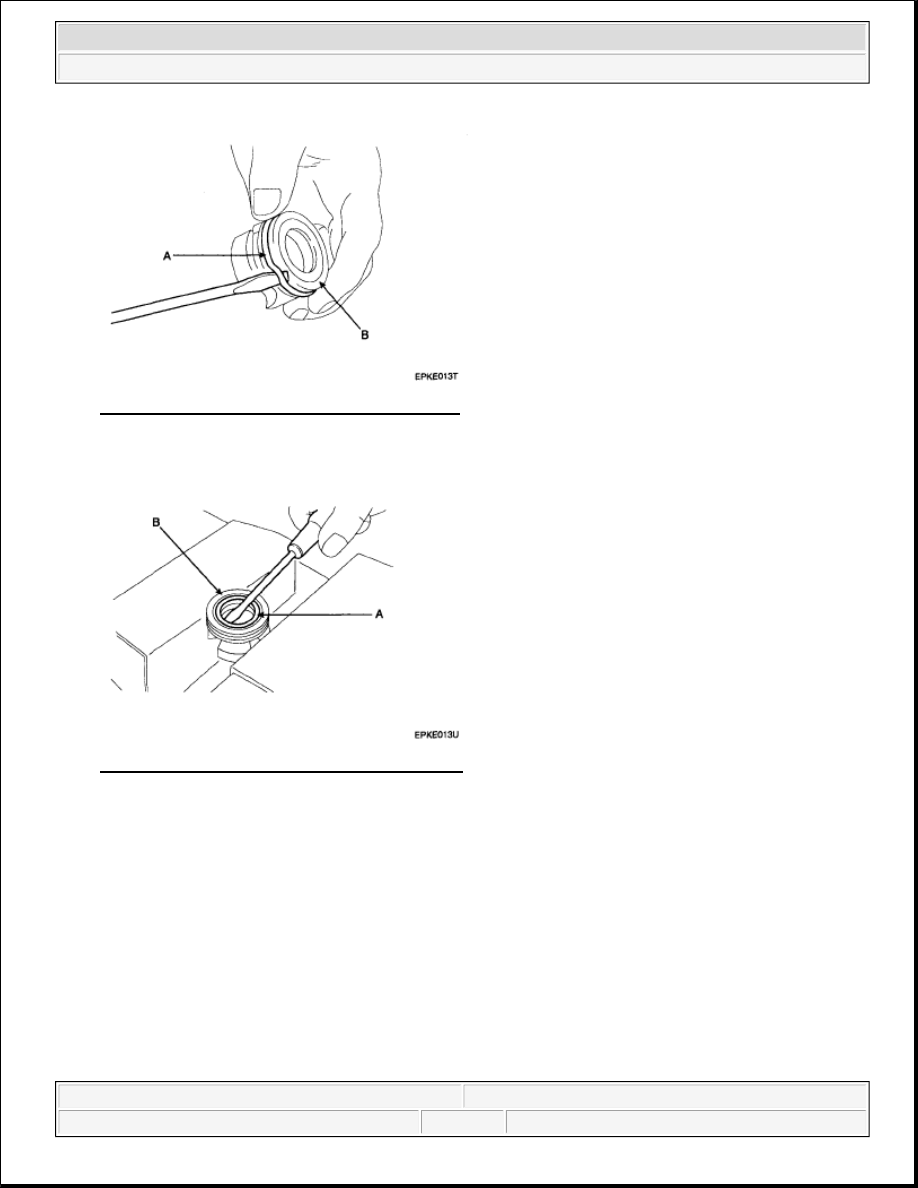

Fig. 28: Identifying O-Ring And Rack Bushing
Courtesy of KIA MOTORS AMERICA, INC.

17. Remove the oil seal (B) from the rack bushing (A).

Fig. 29: Identifying Oil Seal And Rack Bushing
Courtesy of KIA MOTORS AMERICA, INC.

18. Remove the valve body (A) from the valve body housing (B) with a soft hammer.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 15

© 2006 Mitchell Repair Information Company, LLC.

Fig. 30: Identifying Valve Body And Valve Body Housing
Courtesy of KIA MOTORS AMERICA, INC.

19. Using the special tool, remove the oil seal and ball-bearing from the valve body housing.

20. Remove the oil seal and O-ring from the rack housing.

21. Using the special tool (09573-33100, 09555-21000), remove the oil seal (A) from the rack housing.

Fig. 31: Identifying Special Tool (09573-33100, 09555-21000)
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

1. Rack

CAUTION: Be careful not to damage the pinion valve cylinder inside of the rack

housing.

CAUTION: Be careful not to damage the rack cylinder inside of the rack housing.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 16

© 2006 Mitchell Repair Information Company, LLC.

1. Check for rack tooth face damage or wear.

2. Check for oil seal contact surface damage.

3. Check for rack bending or twisting.

4. Check for oil seal ring damage or wear.

5. Check for oil seal damage or wear.

Fig. 32: Identifying Vent Hole In Rack
Courtesy of KIA MOTORS AMERICA, INC.

2. Pinion valve

1. Check for pinion gear tooth face damage or wear.

2. Check for oil seal contact surface damage.

3. Check for seal ring damage or wear.

4. Check for oil seal damage or wear.

Fig. 33: Identifying Pinion Gear
Courtesy of KIA MOTORS AMERICA, INC.

3. Bearing

1. Check for seizure or abnormal noise during a bearing rotation.

2. Check for excessive play.

3. Check for missing needle bearing rollers.

4. Others
