Fig. 9: Identifying Stabilizer Link And Strut Assembly
Courtesy of KIA MOTORS AMERICA, INC.

9. Repeat on the other side.

10. Remove the front and rear roll stopper bolts and nuts (A, B).

Fig. 10: Identifying Engine Mounting Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 11: Identifying Engine Mounting Bolts (2 Of 2)

2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona

Microsoft

Monday, May 24, 2010 3:50:03 PM

Page 6

Courtesy of KIA MOTORS AMERICA, INC.

11. Remove the sub-frame by loosening the bolts and nuts.

Fig. 12: Identifying Twelve Bolts And Nuts
Courtesy of KIA MOTORS AMERICA, INC.

12. Remove the rear roll stopper (A) from the sub-frame.

Fig. 13: Identifying Rear Roll Stopper
Courtesy of KIA MOTORS AMERICA, INC.

13. Disconnect the pressure tube (A) and return (B) from the valve body housing.

Tightening torque N.m (kgf.m, lb-ft):

12-18 (1.2-1.8, 9-13)

2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona

Microsoft

Monday, May 24, 2010 3:50:03 PM

Page 7

Fig. 14: Identifying Pressure Tube And Return Tube
Courtesy of KIA MOTORS AMERICA, INC.

14. Remove the power steering gear box (A) from the sub-frame by loosening the mounting bolts.

Tightening torque N.m (kgf.m, lb-ft):

90-110 (9.0-11.0, 65-80)

Fig. 15: Identifying Power Steering Gear Box
Courtesy of KIA MOTORS AMERICA, INC.

DISASSEMBLY

1. Remove the tie rod end (B) from the tie rod (A).

2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona

Microsoft

Monday, May 24, 2010 3:50:03 PM

Page 8

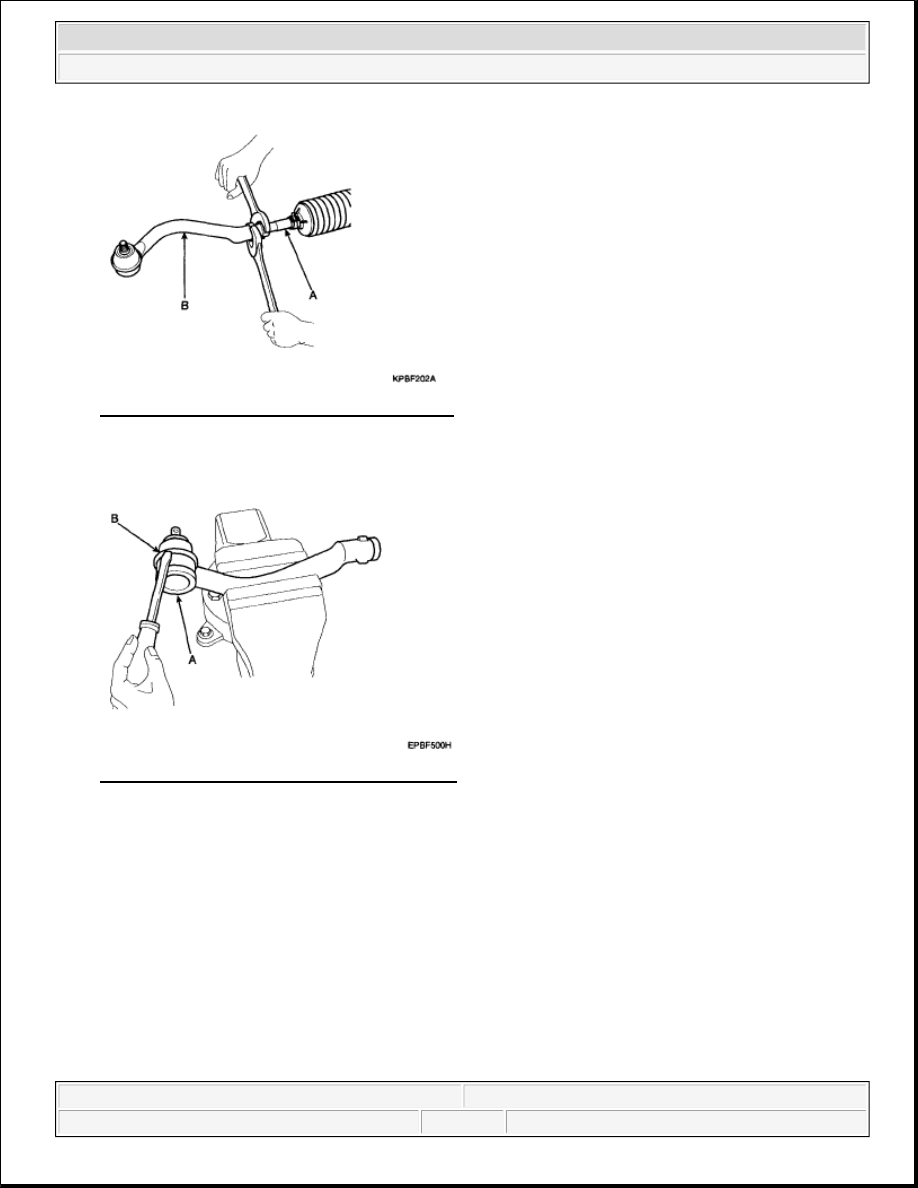

Fig. 16: Identifying Tie Rod End And Tie Rod
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the dust cover (B) from the ball joint (A).

Fig. 17: Identifying Dust Cover And Ball Joint
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove the bellows band (A).

2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona

Microsoft

Monday, May 24, 2010 3:50:04 PM

Page 9
