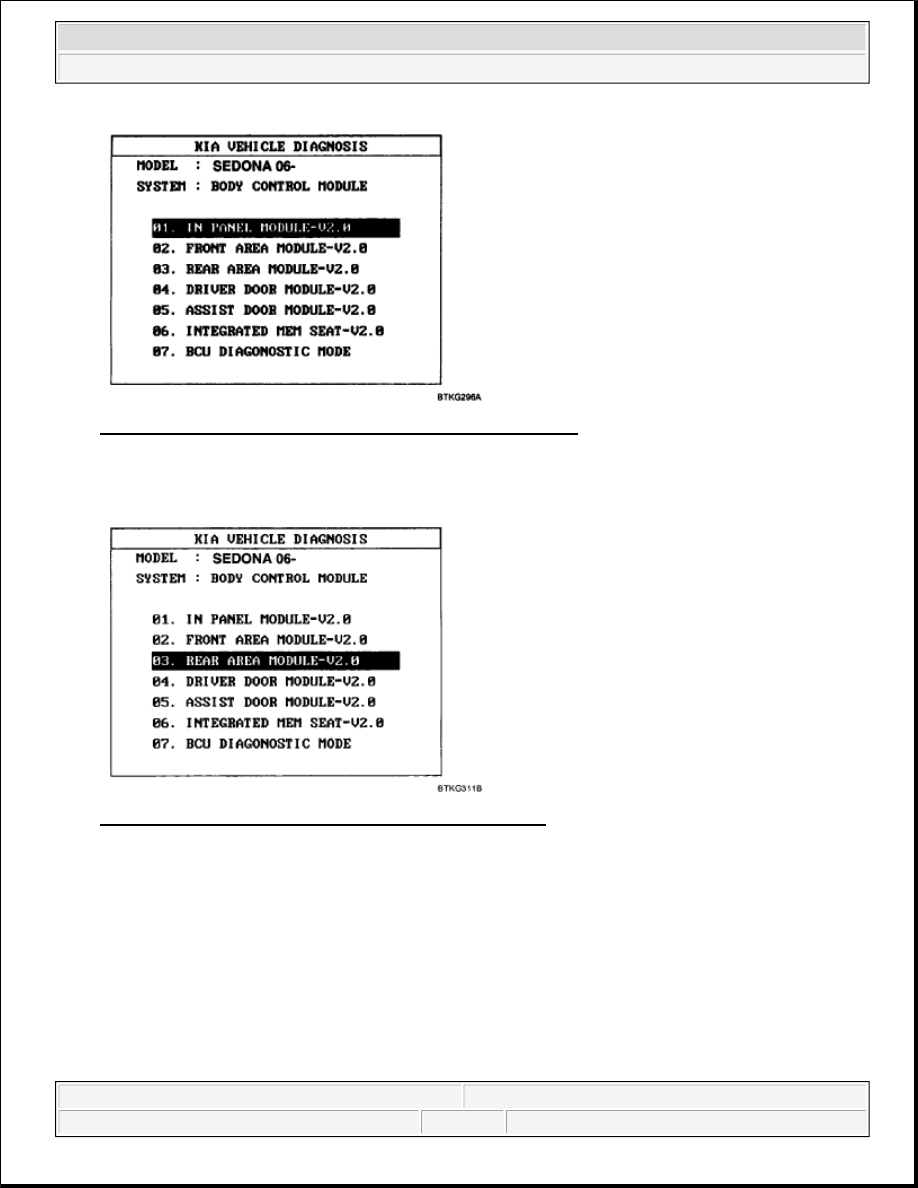

Fig. 46: Identifying Scan Tool Display - IN PANEL MODULE
Courtesy of KIA MOTORS AMERICA, INC.

3. Select a rear area module (RAM) and sensor output.

Fig. 47: Diagnosis Tool Display - REAR AREA MODULE
Courtesy of KIA MOTORS AMERICA, INC.

4. Check the value of RSD/LSD, left/right door switch.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 35

© 2006 Mitchell Repair Information Company, LLC.

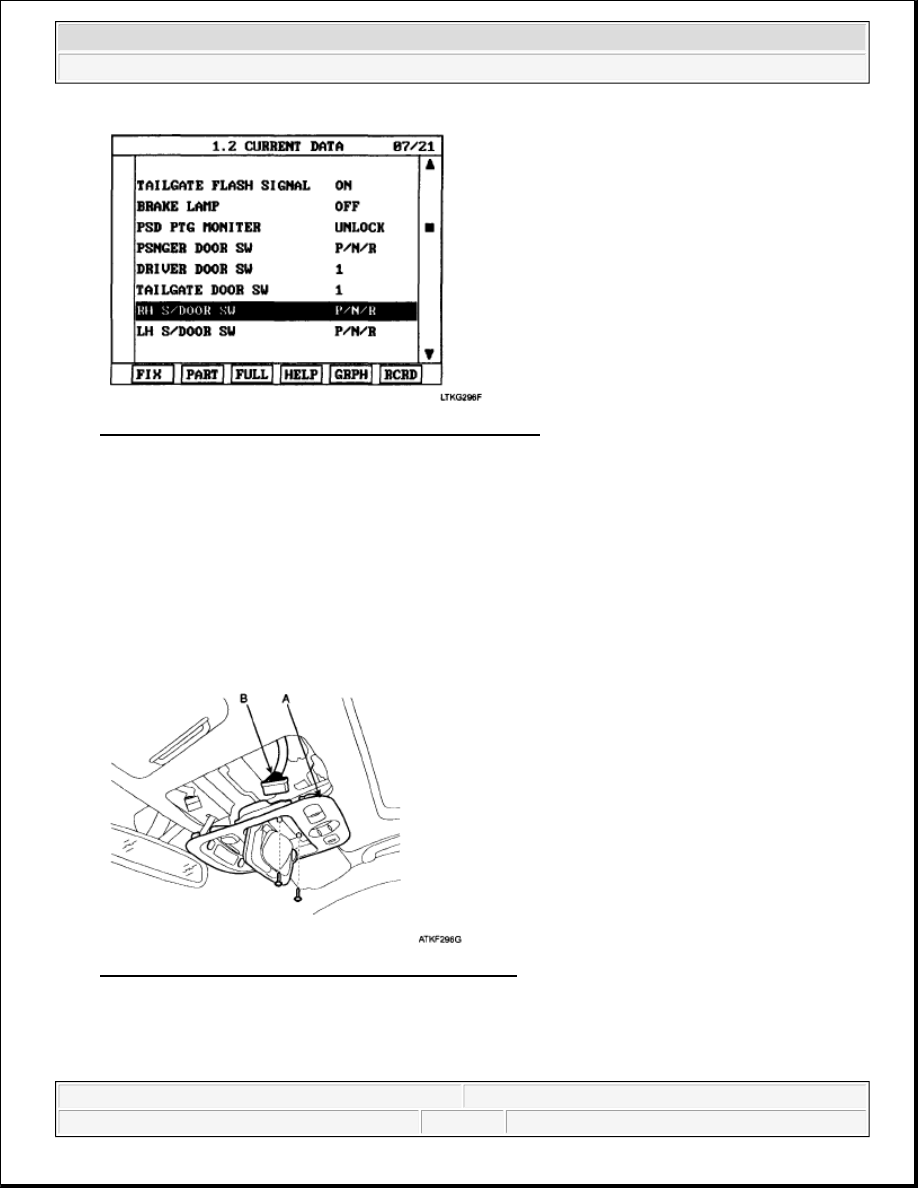

Fig. 48: Identifying Scan Tool Display - RH S/DOOR SW
Courtesy of KIA MOTORS AMERICA, INC.

5. Confirm that the door switch output is changed by the controlling ON/OFF switch on center pillar trim.

REPLACEMENT

OVERHEAD CONSOLE SWITCH

1. Disconnect the negative (-) battery terminal.

2. Open the sunglass case cover from the overhead console then remove the 2 screws holding the overhead

console (A). And then disconnect the connector (B).

Fig. 49: Identifying Overhead Console And Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.

DOOR TRIM SWITCH



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 36

© 2006 Mitchell Repair Information Company, LLC.

1. Disconnect the negative (-) battery terminal.

2. Remove the connector (B) and door trim switch (A) from the center pillar (C) by using the scraper.

Fig. 50: Identifying Door Trim Switch, Connector And Center Pillar
Courtesy of KIA MOTORS AMERICA, INC.

3. Installation is the reverse of removal.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 37

© 2006 Mitchell Repair Information Company, LLC.

2008 STEERING

Mechanical Power Steering System - Sedona

COMPONENTS

Fig. 1: Identifying Mechanical Power Steering System Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.

POWER STEERING GEAR BOX

COMPONENT
