DETENT SWITCH

INSPECTION

1. Detent switch detects the latch position within latch assembly.

Fig. 30: Identifying Detent Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.

2. Check the power sliding door control module input/output value by using the diagnostic tool.

3. When checking the detent switch, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.

CAUTION:



The PSD system initialization must start from the primary or
secondary latched position.



Obstacle detection shall be active during Sliding Door
initialization.



Work on level ground.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 27

© 2006 Mitchell Repair Information Company, LLC.

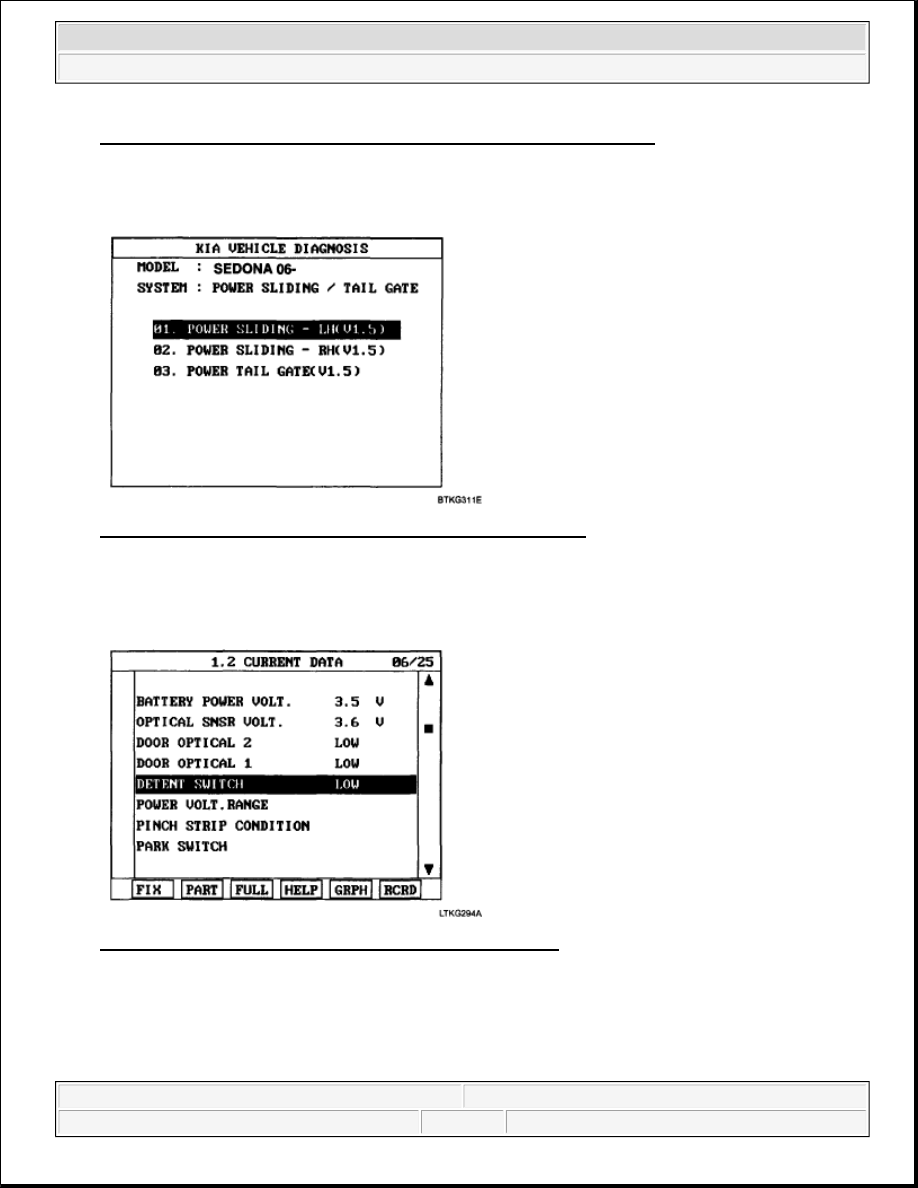

Fig. 31: Identifying Scan Tool Display - POWER SLIDING/TAILGATE
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the "POWER SLIDING DOOR".

Fig. 32: Identifying Scan Tool Display - POWER SLIDING LH
Courtesy of KIA MOTORS AMERICA, INC.

5. Select the detent sensor output. And then check the detent switch output with operating power sliding

door.

Fig. 33: Identifying Scan Tool Display - DETENT SWITCH
Courtesy of KIA MOTORS AMERICA, INC.

* Above voltage and numerical value may be different from the real value.

6. If there is no change in output, change the latch assembly.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 28

© 2006 Mitchell Repair Information Company, LLC.

LATCH SWITCH

INSPECTION

1. Check the power sliding door control module input/output value by using the diagnostic tool.

2. When checking the latch, select a vehicle type and "POWER SLIDING/TAIL GATE" menu.

Fig. 34: Identifying Scan Tool Display - POWER SLIDING/TAILGATE
Courtesy of KIA MOTORS AMERICA, INC.

3. Select the "POWER SLIDING DOOR".

Fig. 35: Identifying Scan Tool Display - POWER SLIDING LH
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the sensor output. And then check the unlatch feedback (Unlocked state) voltage while operating

power sliding door in power mode.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 29

© 2006 Mitchell Repair Information Company, LLC.

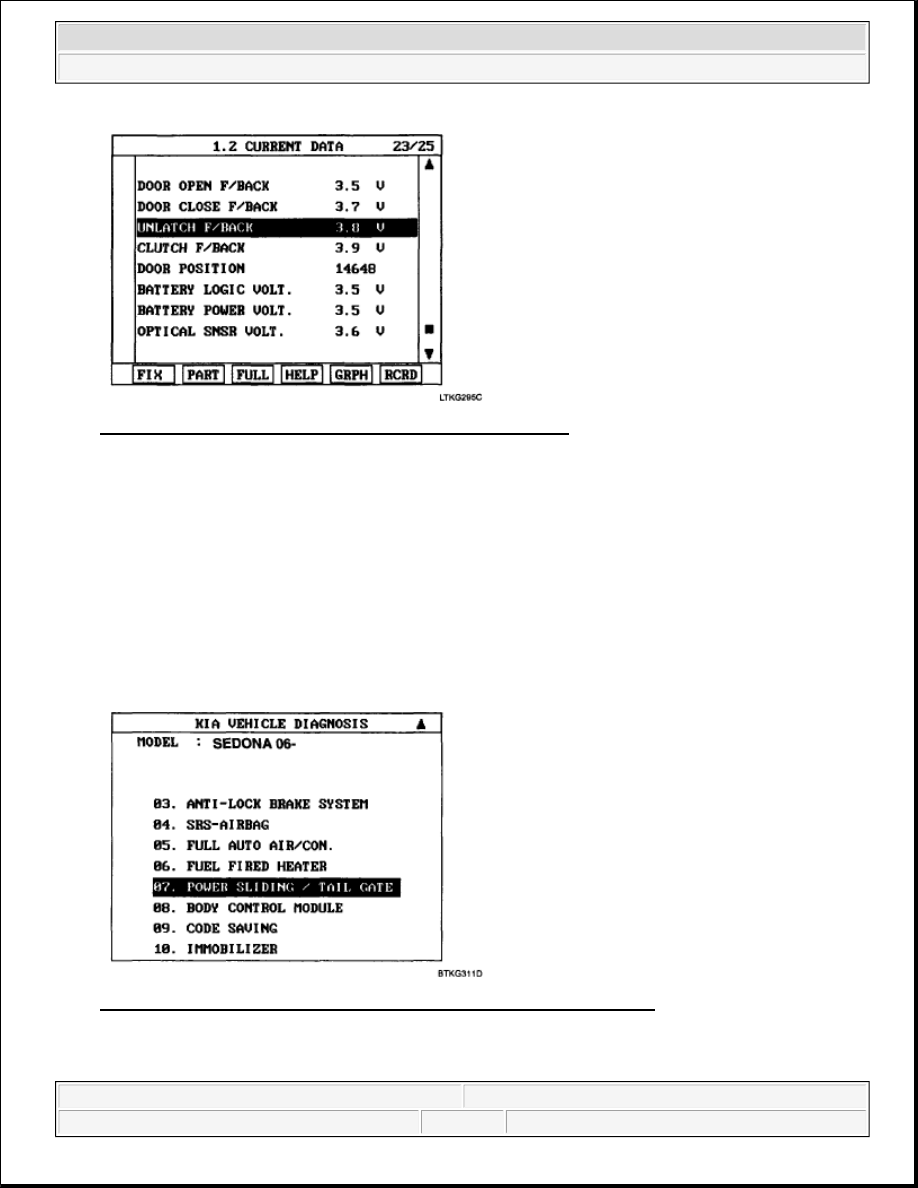

Fig. 36: Identifying Scan Tool Display - UNLATCH F/BACK
Courtesy of KIA MOTORS AMERICA, INC.

* Above voltage and numerical value may be different from the real value.

5. If there is no change in voltage, change the latch.

ANTI PINCH STRIP

1. Check the power sliding door control module input/output value by using the diagnostic tool. If the

operation of door control module is abnormal, replace anti pinch strip control module.

2. When checking the anti pinch strip operation, select a vehicle type and "POWER SLIDING/TAIL

GATE" menu.

Fig. 37: Identifying Scan Tool Display - POWER SLIDING/TAILGATE
Courtesy of KIA MOTORS AMERICA, INC.

3. Select power sliding door.
