Fig. 38: Identifying Scan Tool Display - POWER SLIDING LH
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the sensor output. And then check the anti pinch strip sensor output while operating power sliding

door in power mode.

Fig. 39: Identifying Scan Tool Display - PINCH STRIP CONDITION
Courtesy of KIA MOTORS AMERICA, INC.

* Above voltage and numerical value may be different from the real value.

5. Change the anti pinch strip sensor, if there is no change from OFF to ON during operation.

POWER SLIDING DOOR SWITCH

INSPECTION

OVERHEAD CONSOLE DOOR SWITCH INSPECTION



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 31

© 2006 Mitchell Repair Information Company, LLC.

1. Check the overhead console door switch input/output value by using the diagnostic tool. If the operation

of overhead console door switch is abnormal, check the IPM and replace.

2. When checking the overhead console switch operation, select a vehicle type and "IPM" menu.

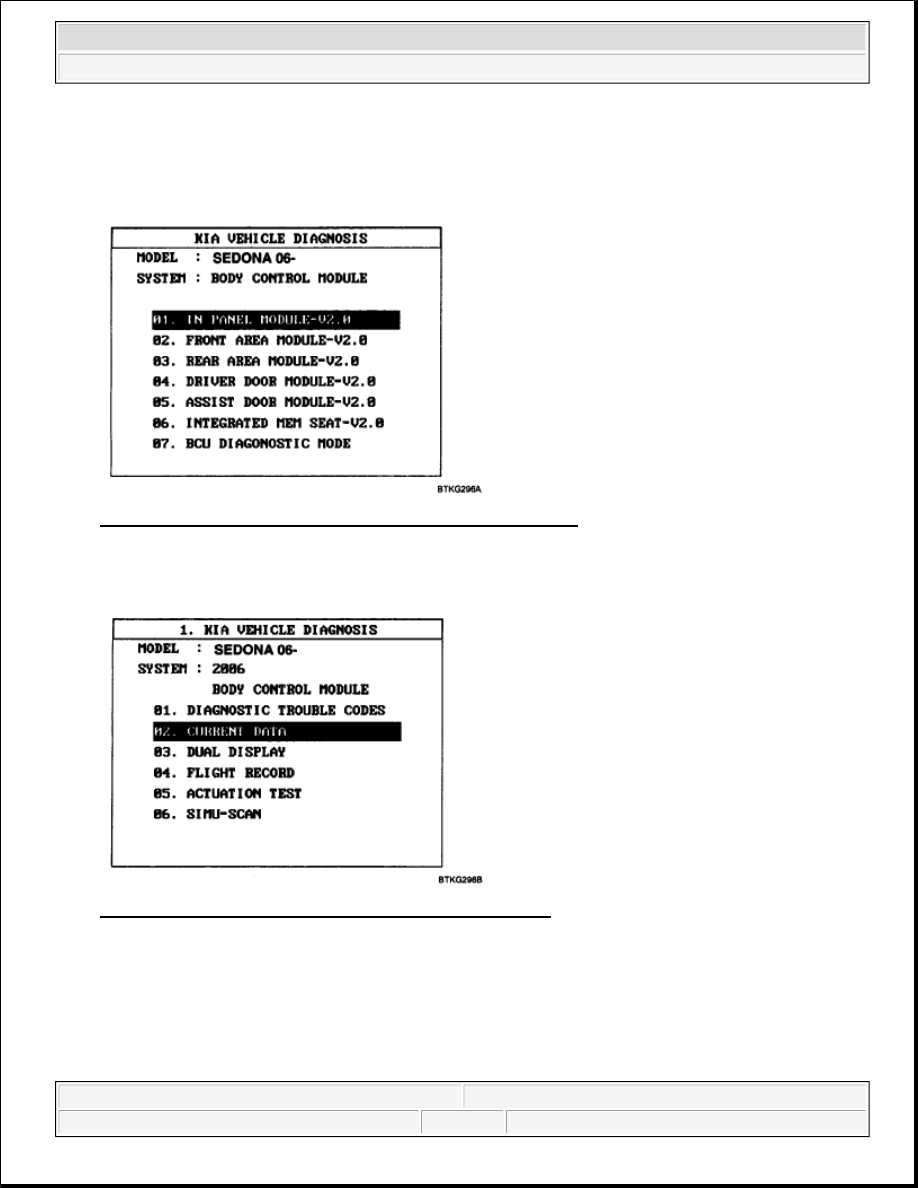

Fig. 40: Identifying Scan Tool Display - IN PANEL MODULE
Courtesy of KIA MOTORS AMERICA, INC.

3. Select a in panel module (IPM) and "CURRENT DATA".

Fig. 41: Identifying Scan Tool Display - CURRENT DATA
Courtesy of KIA MOTORS AMERICA, INC.

4. Check the PSD PTG power control switch and PSD left/right switch.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 32

© 2006 Mitchell Repair Information Company, LLC.

Fig. 42: Identifying Scan Tool Display - LH PSD OPEN/CLOSE
Courtesy of KIA MOTORS AMERICA, INC.

5. Confirm that output is changed by the controlling ON/OFF of each switch on the overhead console.

DOOR HANDLE SWITCH INSPECTION

1. Check the power sliding door control module input/output value by using the diagnostic tool. If the

operation of door control module is abnormal, replace power sliding door control module.

2. When checking handle switch operation, select a vehicle type and "POWER SLIDING/TAIL GATE"

menu.

Fig. 43: Identifying Scan Tool Display - POWER SLIDING/TAILGATE
Courtesy of KIA MOTORS AMERICA, INC.

3. Select the "POWER SLIDING DOOR" menu to check.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Sliding Door System - Sedona



Microsoft



Monday, May 24, 2010 4:16:17 PM

Page 33

© 2006 Mitchell Repair Information Company, LLC.

Fig. 44: Identifying Scan Tool Display - POWER SLIDING LH
Courtesy of KIA MOTORS AMERICA, INC.

4. Select the sensor output. And then check the handle switch output value changed by the controlling PSD

or PTG.

Fig. 45: Identifying Scan Tool Display - HANDLE SWITCH
Courtesy of KIA MOTORS AMERICA, INC.

5. Check that the handle switch output changed from OFF to ON during PSD or PTG operation.

TRIM SWITCH INSPECTION

1. Check the trim switch input/output value by using the diagnostic tool. If the operation of rear area module

(RAM) is abnormal, replace RAM.

2. When checking the trim switch operation, select a vehicle type and "IPM" menu.
