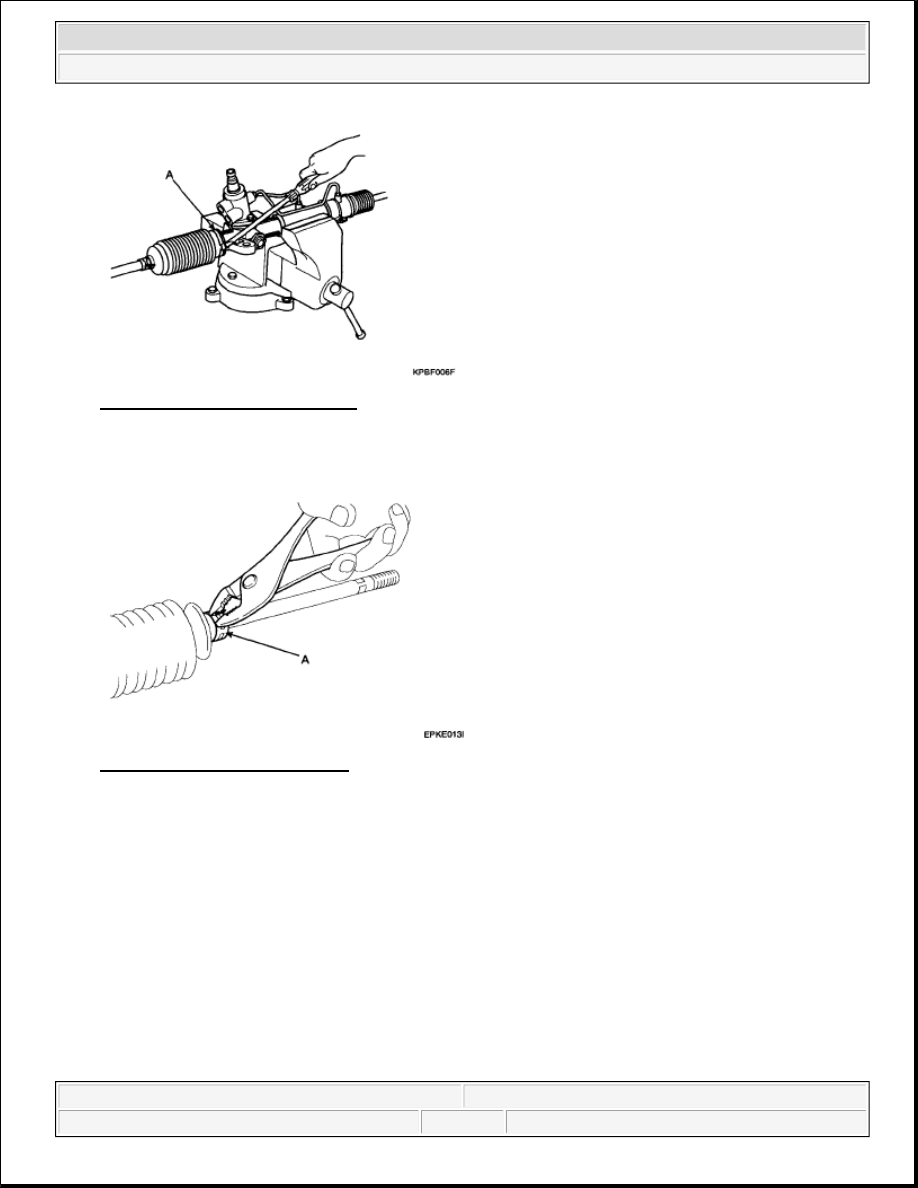

Fig. 18: Identifying Bellows Band
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the bellows clip (A).

Fig. 19: Identifying Bellows Clip
Courtesy of KIA MOTORS AMERICA, INC.

5. Pull the bellows out toward the tie rod.

6. Remove the feed tube (A) from the rack housing.

NOTE:

Check for rust on the rack when the bellows are replaced.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

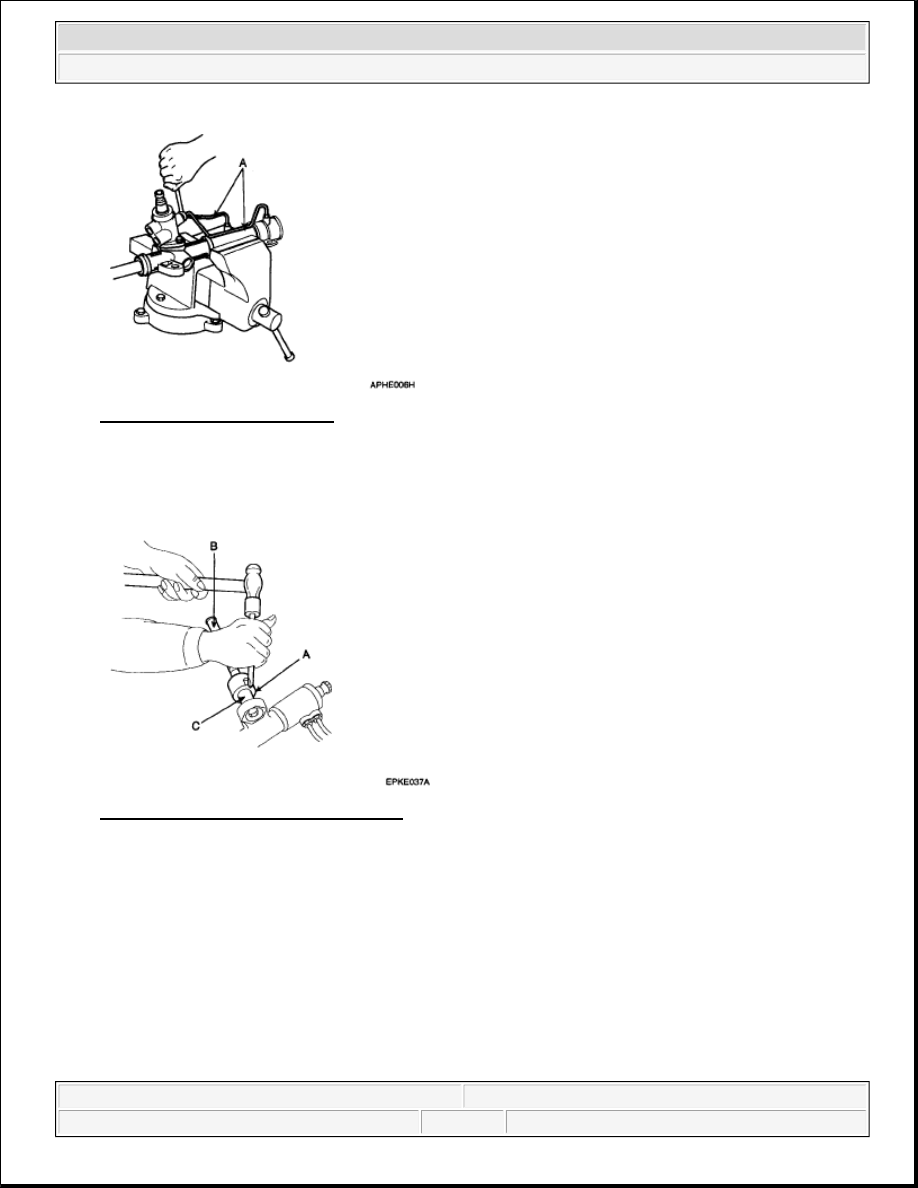

Fig. 20: Identifying Feed Tube
Courtesy of KIA MOTORS AMERICA, INC.

7. While moving the rack slowly, drain the fluid from the rack housing.

8. Unstake the tab washer (A) which fixes the tie rod (B) and rack (C) with a chisel.

Fig. 21: Unstaking Washer With Chisel
Courtesy of KIA MOTORS AMERICA, INC.

9. Remove the tie rod (B) from the rack (A).

CAUTION: Remove the tie rod (B) from the rack (A), taking care not to twist the

rack.



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

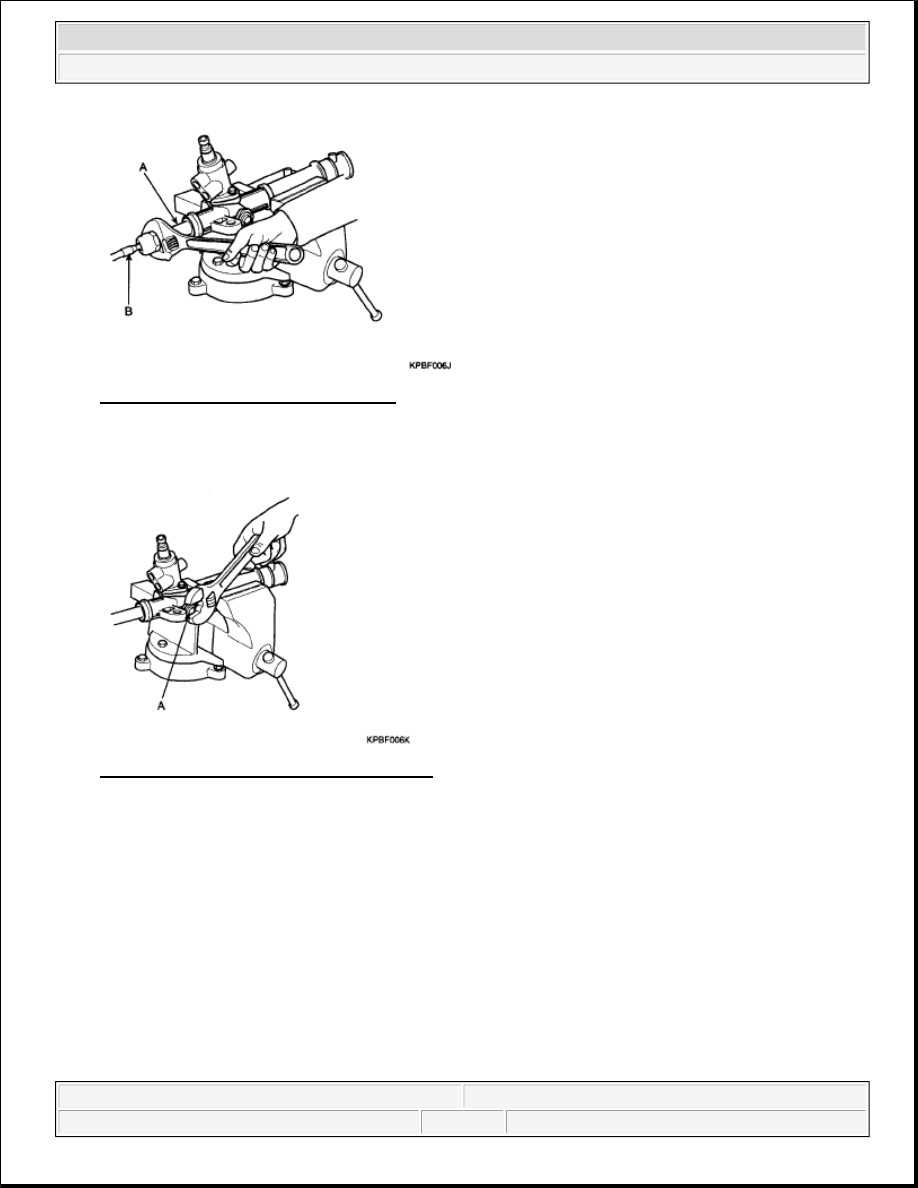

Fig. 22: Identifying Tie Rod And Rack
Courtesy of KIA MOTORS AMERICA, INC.

10. Remove the yoke plug locking nut (A).

Fig. 23: Identifying Yoke Plug Locking Nut
Courtesy of KIA MOTORS AMERICA, INC.

11. Remove the yoke plug (B) with a 14mm socket (A).



2008 Kia Sedona EX

2008 STEERING Mechanical Power Steering System - Sedona



Microsoft



Monday, May 24, 2010 3:50:04 PM

Page 12

© 2006 Mitchell Repair Information Company, LLC.

Fig. 24: Removing Yoke Plug
Courtesy of KIA MOTORS AMERICA, INC.

12. Remove the lock nut (D), yoke plug (C), rack support spring (B) and rack support yoke (A) from the gear

box.

Fig. 25: Identifying Lock Nut, Yoke Plug, Rack Support Spring And Rack Support Yoke
Courtesy of KIA MOTORS AMERICA, INC.

13. When the end of the circlip comes out of the notched-hole of the housing rack cylinder, turn the rack

stopper (A) clockwise and remove the circlip.

CAUTION: Be careful not to damage the rack.
