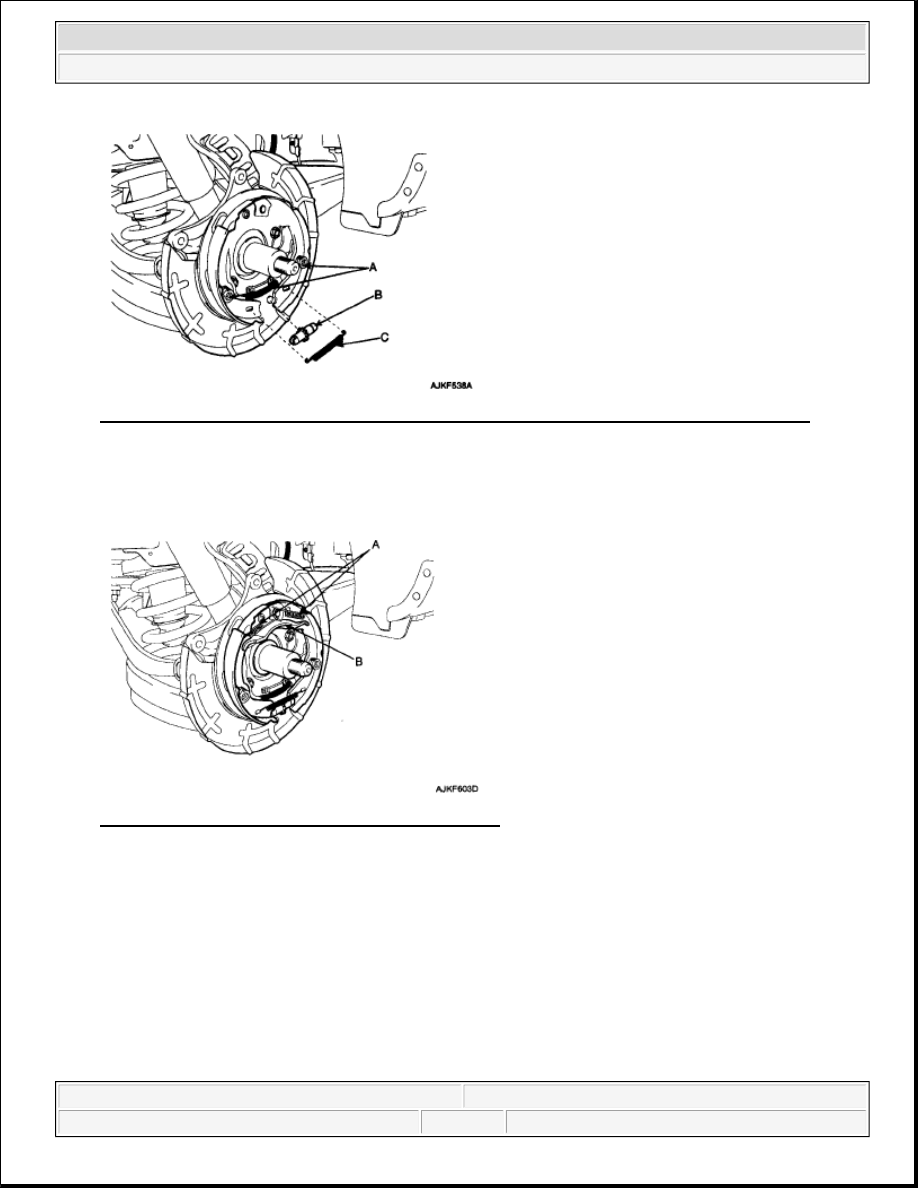

Fig. 13: Identifying Hold Down Pin & Spring, Adjuster Assembly And Lower Return Spring
Courtesy of KIA MOTORS AMERICA, INC.

16. Remove the adjuster assembly (B) and the lower return spring (C).

17. Remove the strut (B) and the upper return spring (A).

Fig. 14: Identifying Strut And Upper Return Spring
Courtesy of KIA MOTORS AMERICA, INC.

18. Remove the retaining ring (B) of the parking brake wire (A) from back of the backing plate.



2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:55:38 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

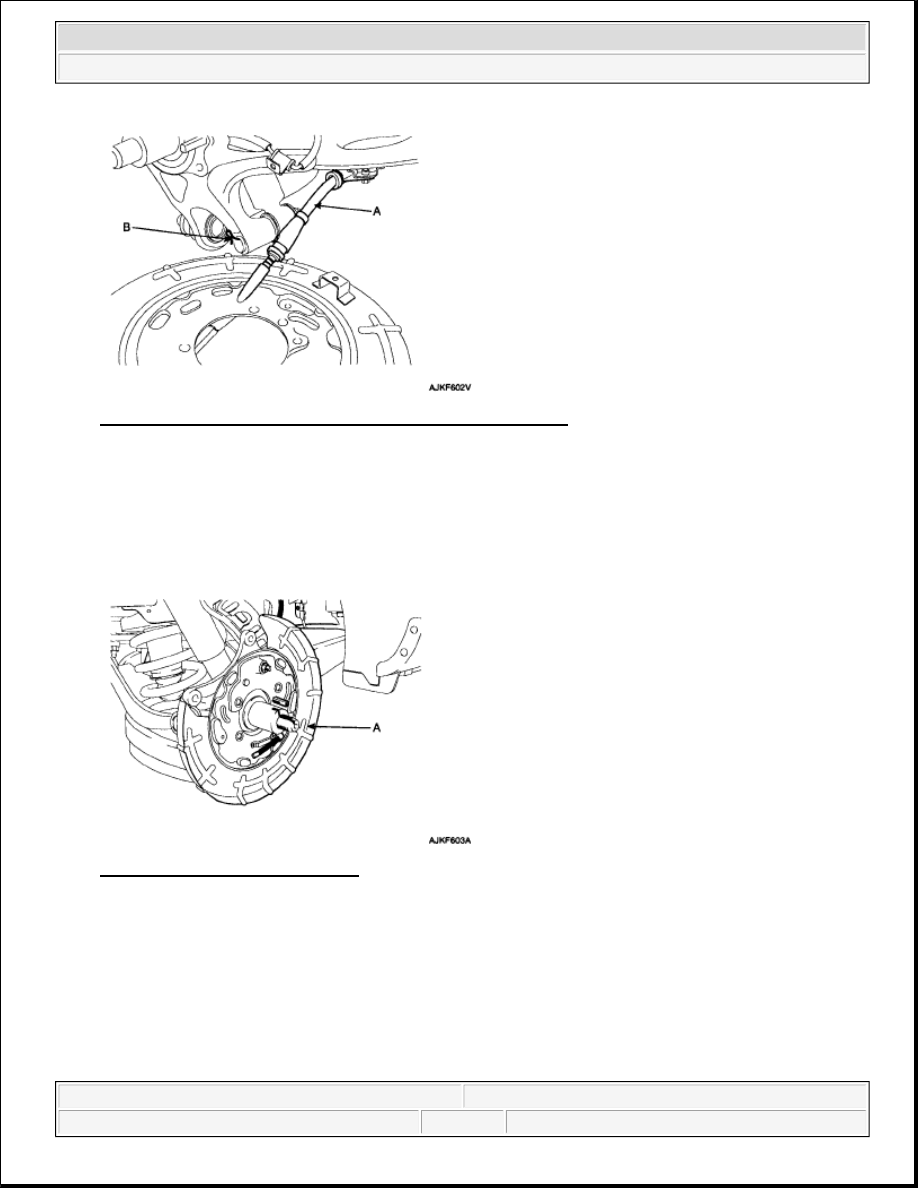

Fig. 15: Identifying Retaining Ring And Parking Brake Wire
Courtesy of KIA MOTORS AMERICA, INC.

19. Disconnect the parking brake wire from the brake shoe.

INSTALLATION

1. Install the backing plate (A).

Fig. 16: Identifying Backing Plate
Courtesy of KIA MOTORS AMERICA, INC.

2. Connect the parking brake wire (B) to the brake shoe (A).



2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:55:38 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

Fig. 17: Identifying Parking Brake Wire And Brake Shoe
Courtesy of KIA MOTORS AMERICA, INC.

3. Install the shoe hold down pin and spring (A) to hold the brake shoe (B).

Fig. 18: Identifying Hold Down Pin & Spring, Brake Shoes, Adjuster Assembly And Lower Return
Spring
Courtesy of KIA MOTORS AMERICA, INC.

4. Install the adjuster assembly (B) and the lower return spring (C).

5. Install the upper return spring (A) and strut (B).



2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:55:38 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

Fig. 19: Identifying Strut And Upper Return Spring
Courtesy of KIA MOTORS AMERICA, INC.

6. Grease where is necessary.

7. Install the rear hubs.

8. Install the hub nut (A). After installation, lock the nut to the spindle as shown in the illustration.

Fig. 20: Locking Hub Nut
Courtesy of KIA MOTORS AMERICA, INC.

9. Install the hub cap (A) and the disc (B).
