2008 BRAKES

Parking Brake System - Sedona

PARKING BRAKE

COMPONENTS

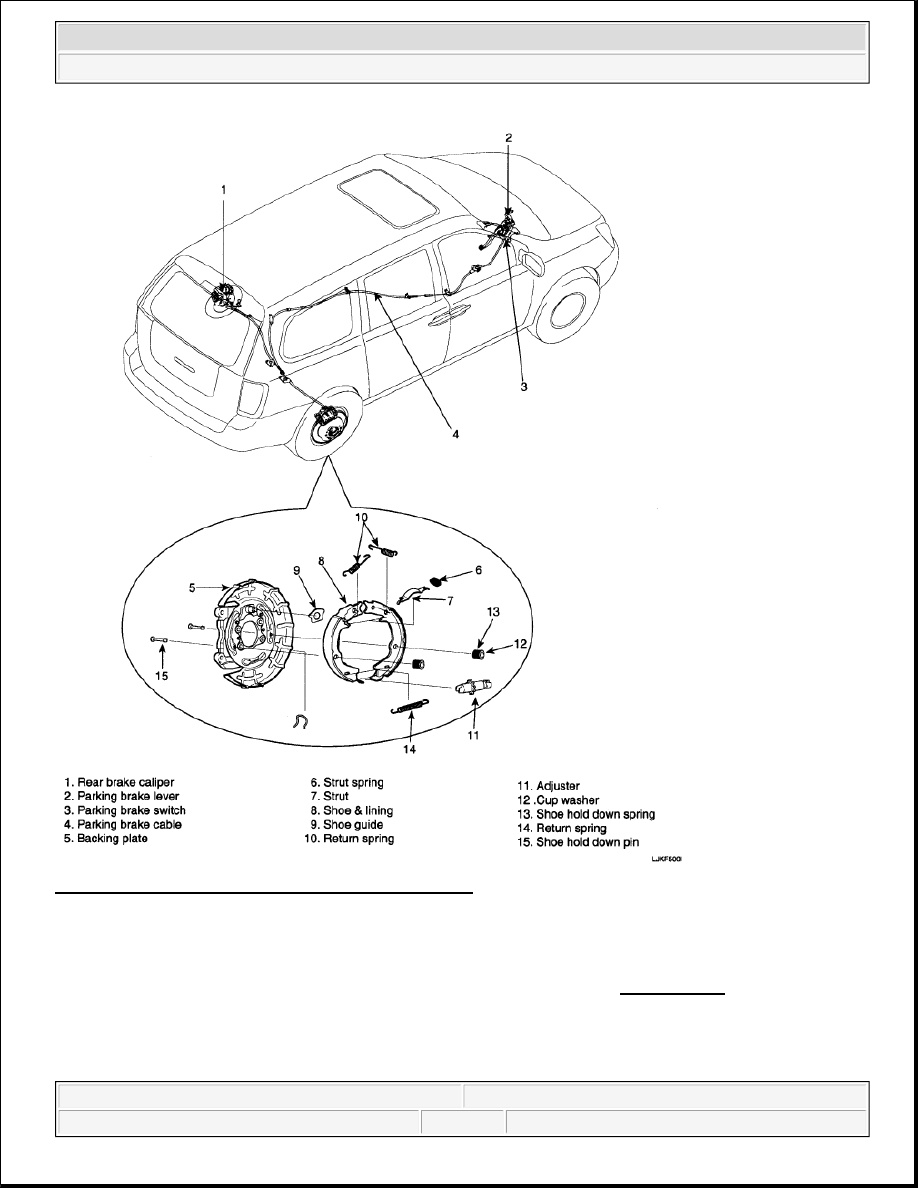

Fig. 1: Identifying Parking Brake System Components And Torque Specifications
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona





2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:55:38 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Microsoft



Saturday, May 22, 2010 6:55:41 PM

Page 1

© 2006 Mitchell Repair Information Company, LLC.

Fig. 2: Identifying Parking Brake System Components
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

1. Remove the lower panel (A), after loosening the parking lever. Refer to CRASH PAD .



2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona



Microsoft



Saturday, May 22, 2010 6:55:38 PM

Page 2

© 2006 Mitchell Repair Information Company, LLC.

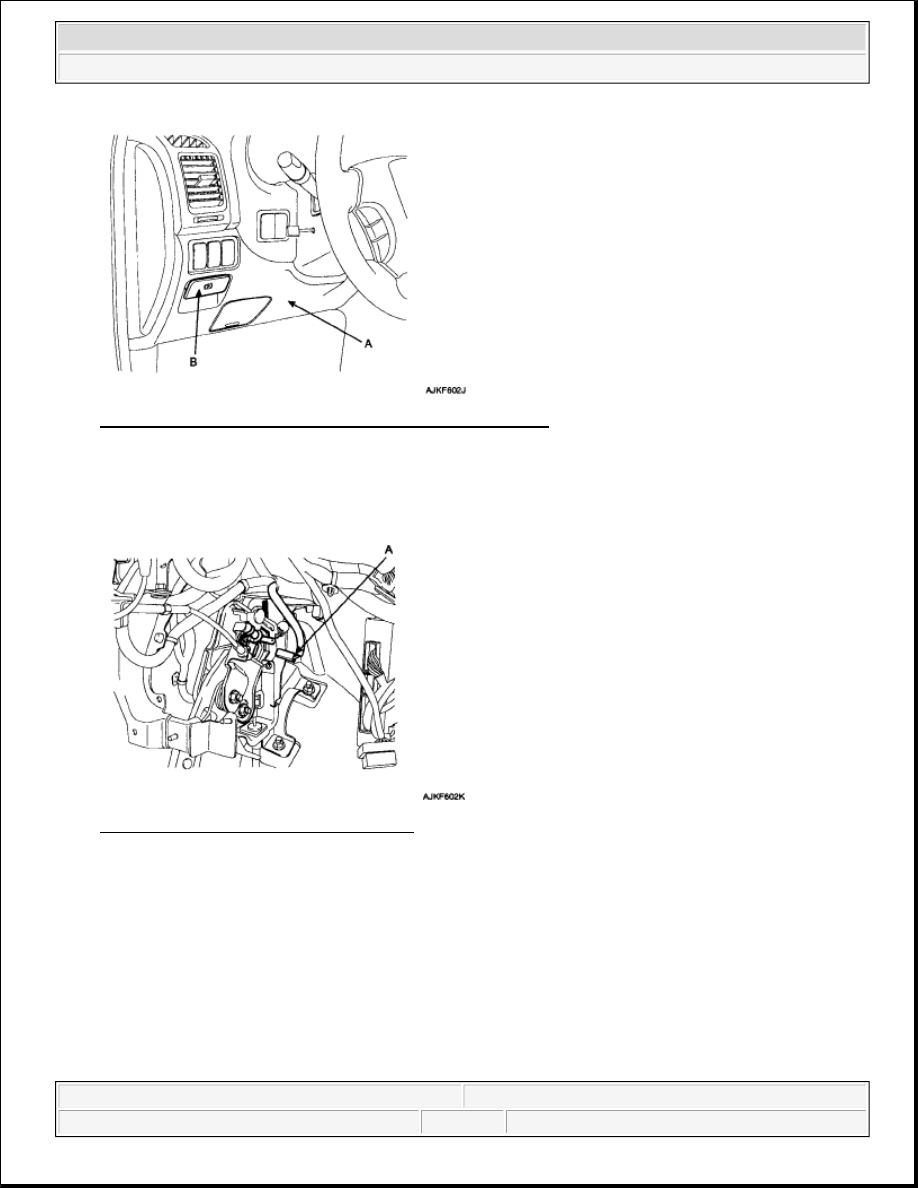

Fig. 3: Identifying Lower Panel And Parking Release Nose
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the parking release nose (B).

3. Remove the parking brake switch (A).

Fig. 4: Identifying Parking Brake Switch
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the parking brake cable (A).
