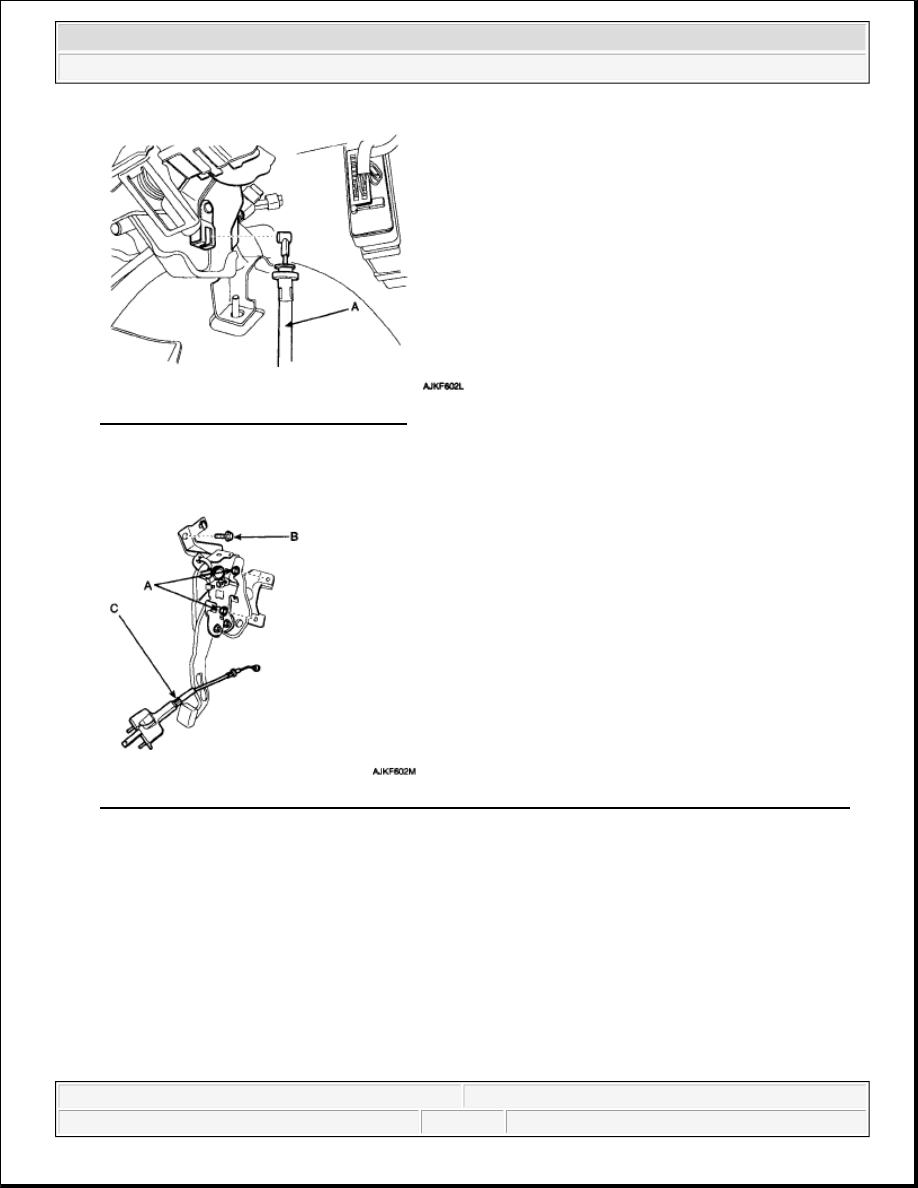

Fig. 5: Identifying Parking Brake Cable
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the mounting nuts (A) and bolt (B) of the parking brake bracket.

Fig. 6: Identifying Parking Brake Bracket Mounting Nuts And Bolt, And Release Cable Assembly
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the release cable assembly (C).

7. Remove the damper assembly (A).

2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona

Microsoft

Saturday, May 22, 2010 6:55:38 PM

Page 4

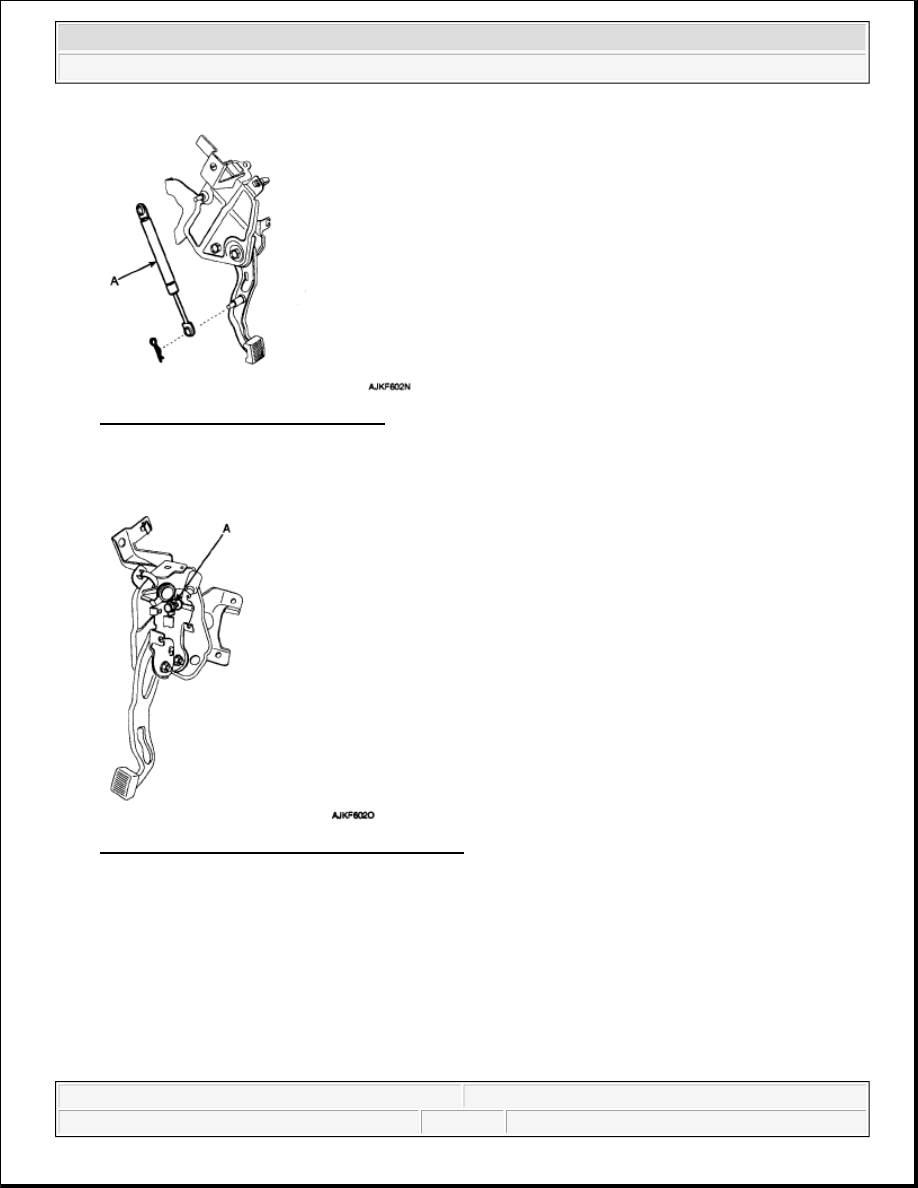

Fig. 7: Identifying Damper Assembly
Courtesy of KIA MOTORS AMERICA, INC.

8. Remove the parking brake lamp switch (A).

Fig. 8: Identifying Parking Brake Lamp Switch
Courtesy of KIA MOTORS AMERICA, INC.

9. Raise the rear of the vehicle and make sure it is securely supported.

10. Remove the mounting bolt (A) of the parking brake wire bracket from the body.

2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona

Microsoft

Saturday, May 22, 2010 6:55:38 PM

Page 5

Fig. 9: Identifying Parking Brake Wire Bracket Mounting Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

11. Remove the four mounting bolts (A) of the parking brake wire bracket from the rear cross member.

Fig. 10: Identifying Parking Brake Wire Bracket Mounting Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

12. Remove the rear wheels and tires from the rear hubs.

13. Remove the hub cap (A) and the disc (B).

2008 Kia Sedona

2008 BRAKES Parking Brake System - Sedona

Microsoft

Saturday, May 22, 2010 6:55:38 PM

Page 6

Fig. 11: Identifying Hub Cap And Disc
Courtesy of KIA MOTORS AMERICA, INC.

14. Remove the hub nut (A) and washer (B) and remove the rear hub (C).

Fig. 12: Identifying Hub Nut, Washer And Rear Hub
Courtesy of KIA MOTORS AMERICA, INC.

15. Remove the shoe hold down pin and spring (A) by pressing and rotating the spring.
