Fig. 14: Identifying RAM (Rear Area Module) Components (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ELECTRICAL Fuses & Relays - Sedona



Microsoft



Saturday, May 22, 2010 4:05:37 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

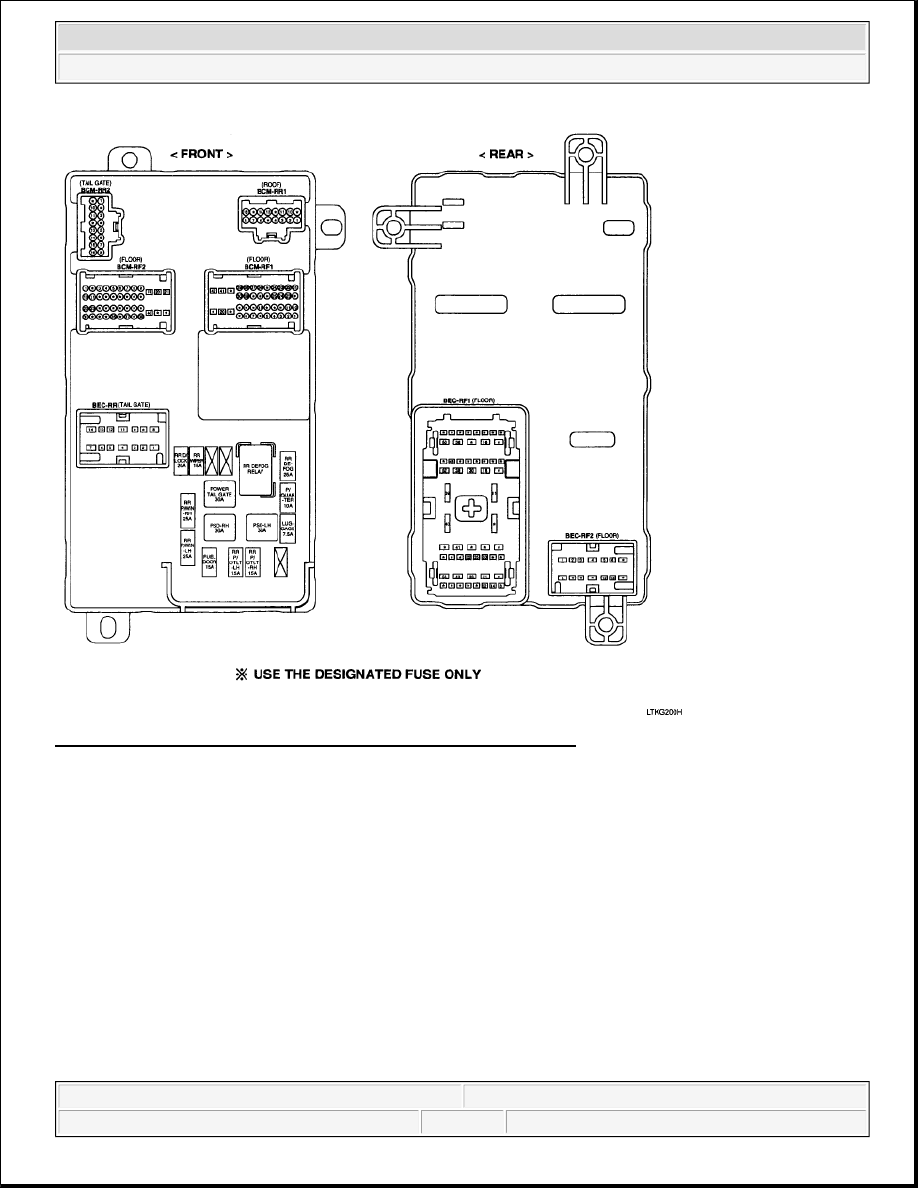

Fig. 15: Identifying RAM (Rear Area Module) Components (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

FUSE

1. Be sure there is no play in the fuse holders, and that the fuses are held securely.

2. Are the fuse capacities for each circuit correct?

3. Are there any blown fuses?

If a fuse is to be replaced, be sure to use a new fuse of the same capacity. Always determine why the fuse
blew first and completely eliminate the problem before installing a new fuse.

RELAY

1. Be sure that the relays are held the each module securely.

2. Are the relay types for each circuit correct?



2008 Kia Sedona

2008 ELECTRICAL Fuses & Relays - Sedona



Microsoft



Saturday, May 22, 2010 4:05:37 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

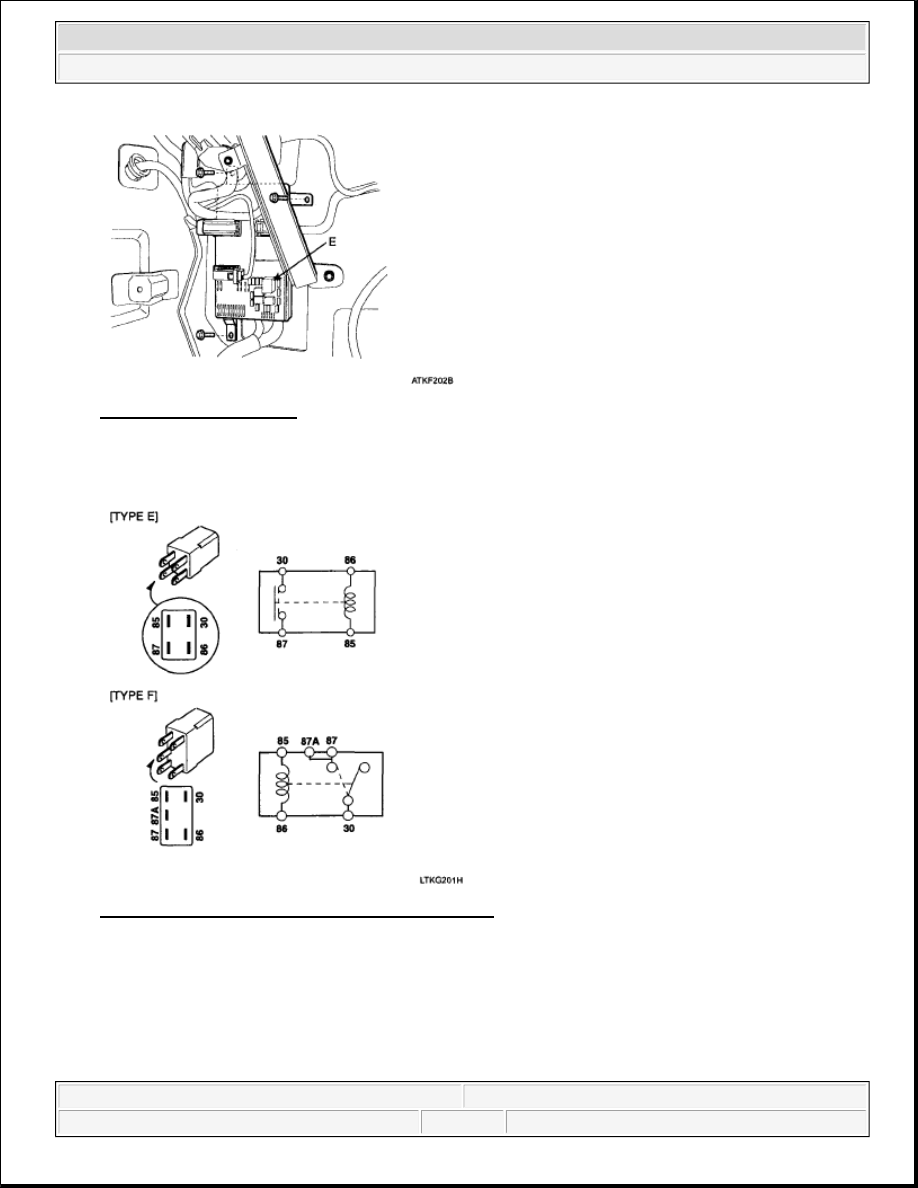

Fig. 16: Identifying Relay
Courtesy of KIA MOTORS AMERICA, INC.

3. If system of some relay is not operate accurately, replace with a new one and check the system.

Fig. 17: Identifying Relay Terminals (Types E & F)
Courtesy of KIA MOTORS AMERICA, INC.

REPLACEMENT

IPM (INSTRUMENT PANEL MODULE)

1. Disconnect the negative (-) battery terminal.

2. Remove the crash pad lower panel (A). Refer to CRASH PAD .



2008 Kia Sedona

2008 ELECTRICAL Fuses & Relays - Sedona



Microsoft



Saturday, May 22, 2010 4:05:37 PM

Page 12

© 2006 Mitchell Repair Information Company, LLC.

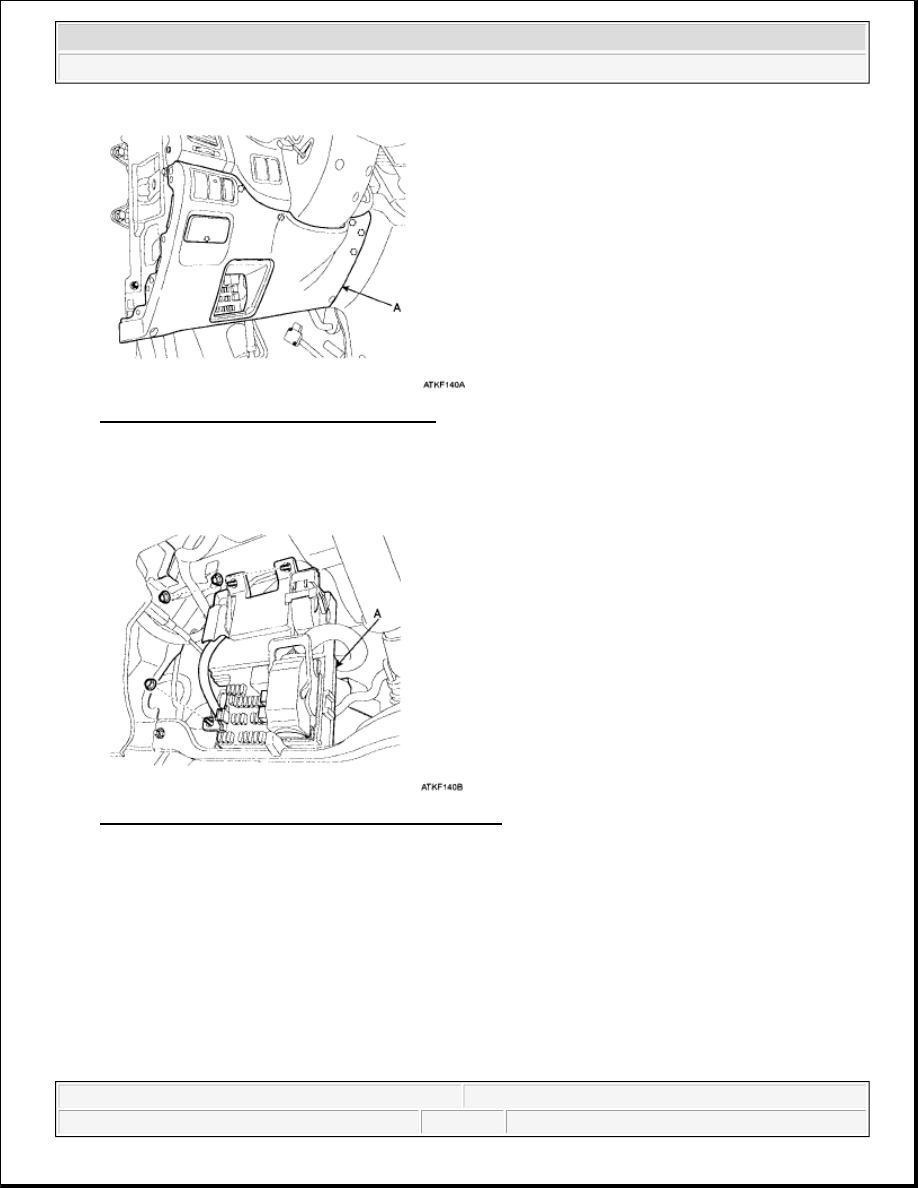

Fig. 18: Identifying Crash Pad Lower Panel
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect the receiver antenna cable and connectors (5EA). Remove IPM mounting nuts (3EA) and

IPM (A).

Fig. 19: Identifying Instrument Panel Module (IPM)
Courtesy of KIA MOTORS AMERICA, INC.

4. Installation is the reverse of removal procedures.

ICM (INTEGRATED CIRCUIT MODULE) RELAY BOX

DESCRIPTION

The ICM (Integrated circuit module) relay (A) is united with many kinds of relays and installed side of the in-
panel module.
