1. Remove the engine cover (A).

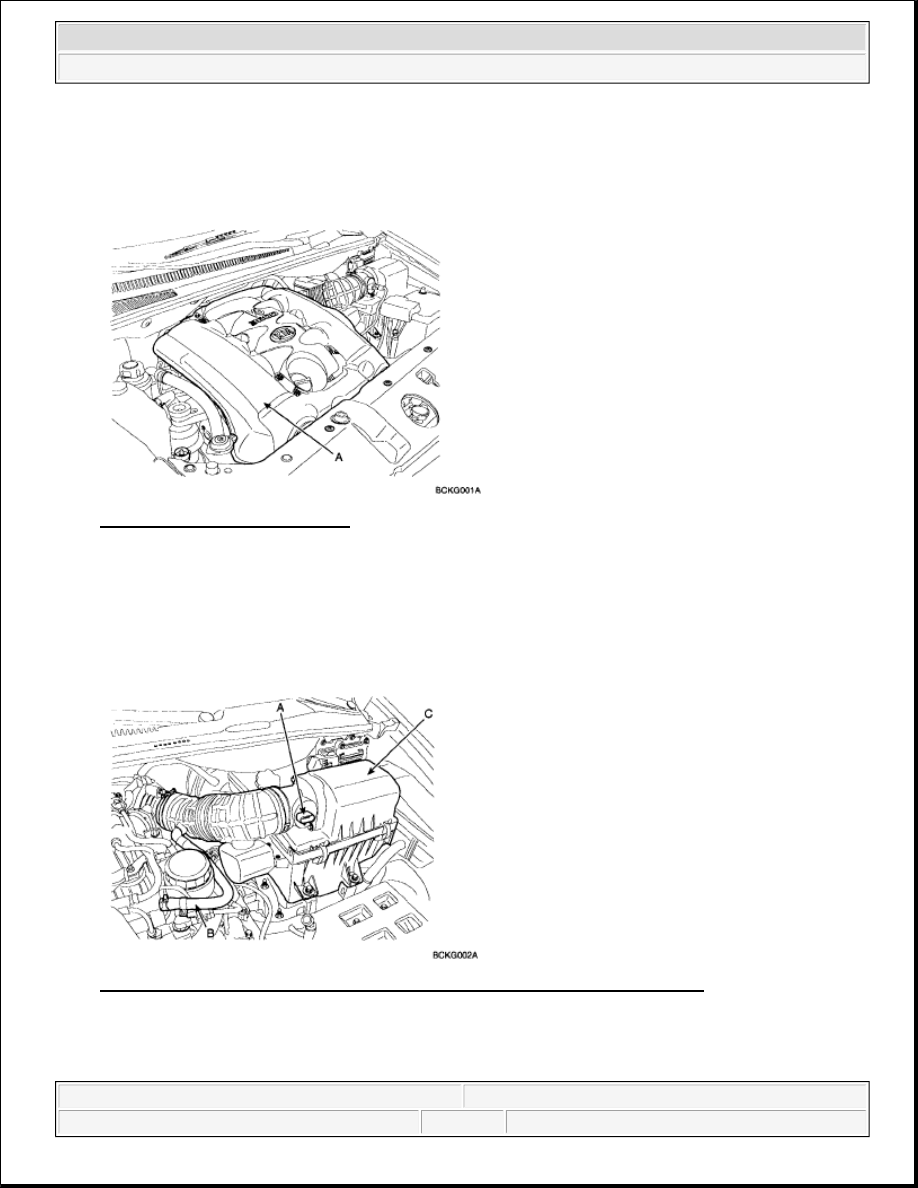

Fig. 246: Locating Engine Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove the intake air hose and air cleaner assembly.

1. Disconnect the MAF connector (A).

2. Disconnect the breather hose (B) from air cleaner hose.

3. Remove the intake air hose and air cleaner assembly (C).

Fig. 247: Locating MAF Connector, Breather Hose And Air Cleaner Assembly
Courtesy of KIA MOTORS AMERICA, INC.

3. Disconnect RH oxygen sensor connector (A).

NOTE:



Mark all wiring and hoses to avoid misconnection.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:39 PM

Page 170

© 2006 Mitchell Repair Information Company, LLC.

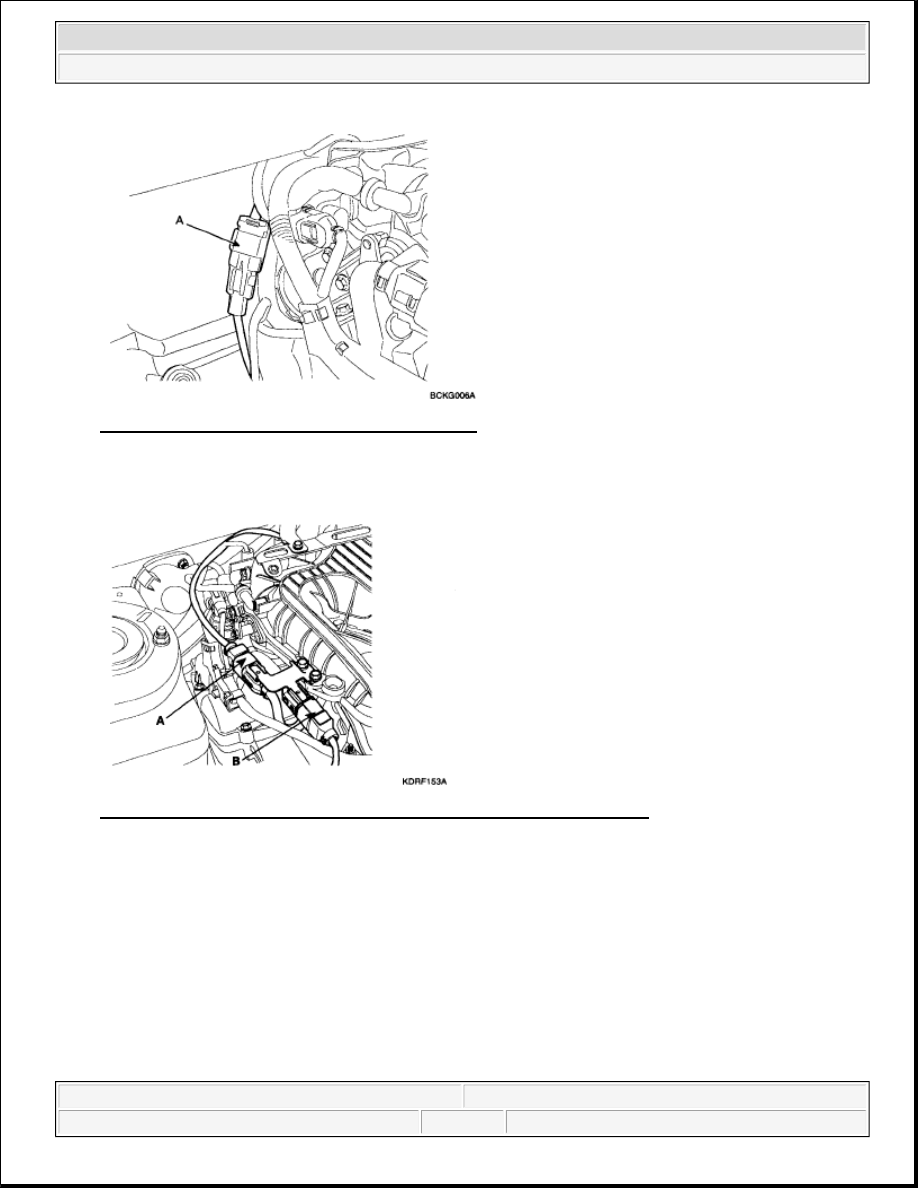

Fig. 248: Locating RH Oxygen Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

4. Disconnect RH injector connector (A) and ignition coil connector (B).

Fig. 249: Locating RH Injector Connector And Ignition Coil Connector
Courtesy of KIA MOTORS AMERICA, INC.

5. Disconnect PCSV connector (A), MAP sensor connector (B) and PCSV hose.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:39 PM

Page 171

© 2006 Mitchell Repair Information Company, LLC.

Fig. 250: Locating PCSV Connector, MAP Sensor Connector And PCSV Hose
Courtesy of KIA MOTORS AMERICA, INC.

6. Disconnect ECT connector (A) and knock sensor connector (B).

Fig. 251: Locating ECT Connector And Knock Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

7. Remove ECT bracket (A).

8. Disconnect water hoses (B) from ETC.

9. Disconnect PCV (C) hose.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:39 PM

Page 172

© 2006 Mitchell Repair Information Company, LLC.

Fig. 252: Locating ECT Bracket, Water Hose And PCV Hose
Courtesy of KIA MOTORS AMERICA, INC.

10. Disconnect brake vacuum hose.

11. Remove surge tank stay.

12. Remove connector bracket (A) from surge tank.

Fig. 253: Locating Connector Bracket
Courtesy of KIA MOTORS AMERICA, INC.

13. Remove surge tank (A).
