INSTALLATION

OIL PUMP

1. Install oil pump (A).

Tightening torque

19.6-23.5 N.m (2.0-2.4 kgf.m, 14.5-17.4 lb-ft)

Fig. 236: Identifying Oil Pump
Courtesy of KIA MOTORS AMERICA, INC.

2. Install oil pump sprocket (A) and oil pump chain on the oil pump.

Tightening torque

18.62-21.56 N.m (1.9-2.2 kgf.m, 13.74-15.91 lb-ft)

NOTE:

Always use a new O-ring (B).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 162

© 2006 Mitchell Repair Information Company, LLC.

Fig. 237: Locating Oil Pump Chain Sprocket
Courtesy of KIA MOTORS AMERICA, INC.

3. Install oil pump chain cover (A).

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

Fig. 238: Locating Oil Pump Chain Cover
Courtesy of KIA MOTORS AMERICA, INC.

4. Install lower oil pan.

a. Using a gasket scraper, remove all the old packing material from the gasket surfaces.

b. Before assembling the oil pan, the liquid sealant TB1217H should be applied on upper oil pan. The

part must be assembled within 5 minutes after the sealant was applied.

Bead width: 2.5 mm (0.1 in.)



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 163

© 2006 Mitchell Repair Information Company, LLC.

But marked area (*) to be 5.0 mm (0.2 in.)

Fig. 239: Identifying Lower Oil Pan Bead Width
Courtesy of KIA MOTORS AMERICA, INC.

Install lower oil pan.

Uniformly tighten the bolts in several passes.

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

CAUTION:



Ensure the sealing face is clean before assembling two
parts.



Remove harmful foreign matters on the sealing face before
applying sealant



When applying sealant gasket, sealant must not be
protruded into the inside of oil pan.



To prevent leakage of oil, apply sealant gasket of the inner
threads of the bolt holes.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:38 PM

Page 164

© 2006 Mitchell Repair Information Company, LLC.

Fig. 240: Locating Oil Pan
Courtesy of KIA MOTORS AMERICA, INC.

After assembly, wait at least 30 minutes before filling the engine with oil.

OIL FILTER ASSEMBLY

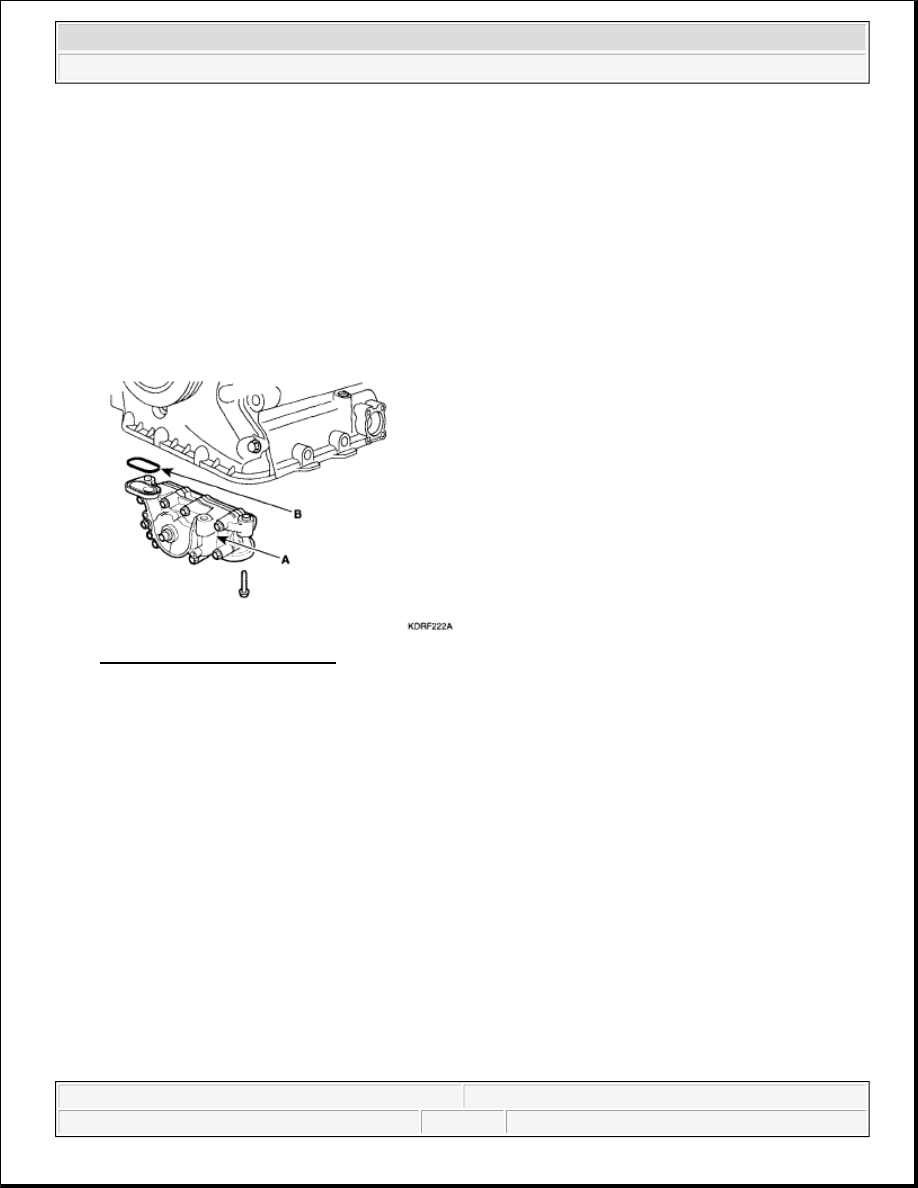

1. Install oil filter body (A) and new O-rings.

Tightening torque

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft)

Fig. 241: Identifying Oil Filter Body
Courtesy of KIA MOTORS AMERICA, INC.

NOTE:



All rubber gasket must be no damaged by assembling parts.



Be careful of the knock sensor connector.
