Kia Sedona (2008 year). Manual - part 379

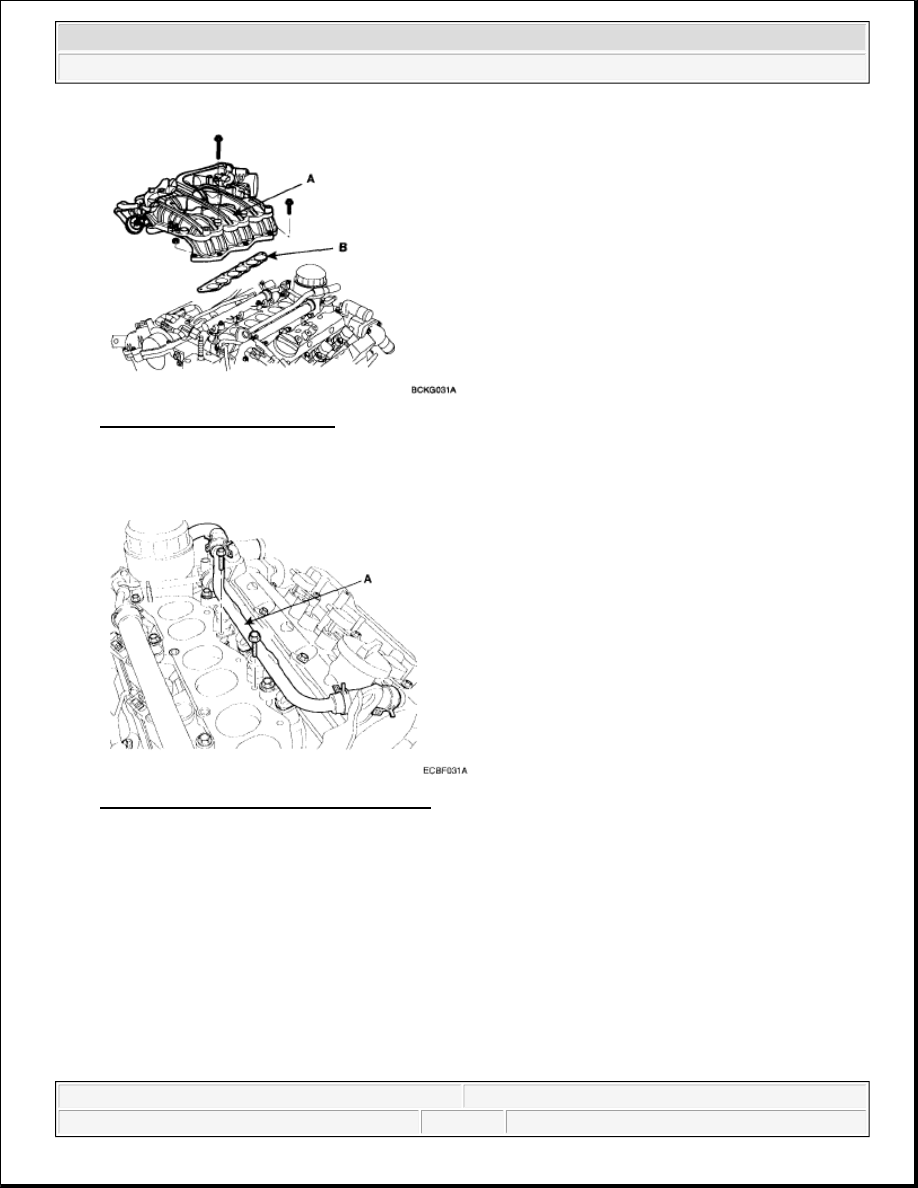

Fig. 254: Locating Surge Tank
Courtesy of KIA MOTORS AMERICA, INC.

14. Disconnect breather Pipe assembly (A).

Fig. 255: Locating Breather Pipe Assembly
Courtesy of KIA MOTORS AMERICA, INC.

15. Disconnect LH injector connector.

16. Remove the delivery pipe and intake manifold together.

EXHAUST MANIFOLD

1. Remove under cover (A).

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:39 PM

Page 174

Fig. 256: Locating Under Cover
Courtesy of KIA MOTORS AMERICA, INC.

2. Disconnect LH, RH rear oxygen sensor connector from bracket.

3. Remove front muffler (A).

Fig. 257: Locating Front Exhaust Pipe
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove oil level gauge (A).

5. Disconnect LH front oxygen sensor connector (B) from bracket.

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:39 PM

Page 175

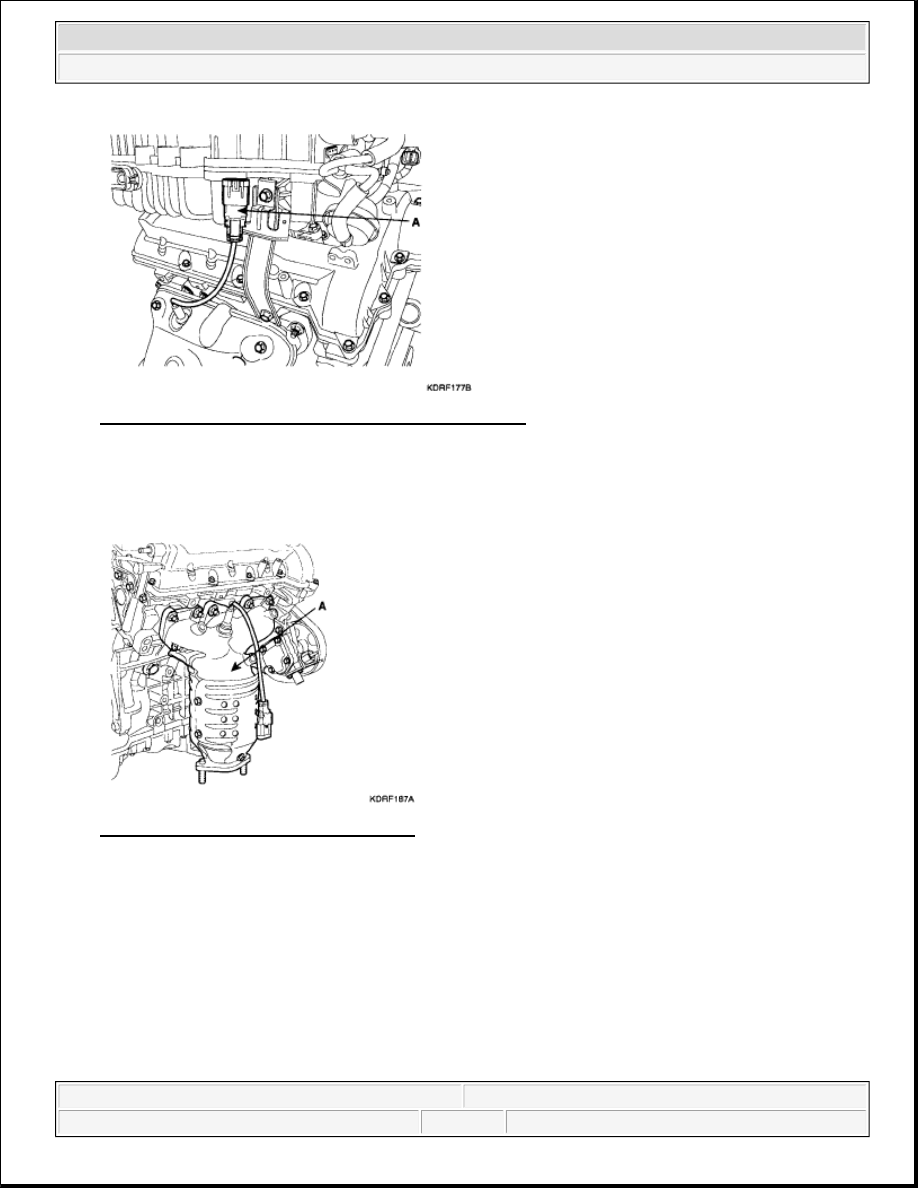

Fig. 258: Locating LH Front Oxygen Sensor Connector And Bracket
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove LH heat protector (A).

Fig. 259: Locating LH Heat Protector
Courtesy of KIA MOTORS AMERICA, INC.

7. Remove LH exhaust manifold.

8. Disconnect RH front oxygen sensor connector (A) from bracket.

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:39 PM

Page 176

Fig. 260: Locating RH Front Oxygen Sensor Connector
Courtesy of KIA MOTORS AMERICA, INC.

9. Remove RH heat protector.

10. Remove RH exhaust manifold.

Fig. 261: Locating RH Exhaust Manifold
Courtesy of KIA MOTORS AMERICA, INC.

INSTALLATION

INTAKE MANIFOLD

1. Install intake manifold and new gasket on the cylinder head.

Tightening torque

1st: 3.9-5.9 N.m (0.4-0.6 kgf.m, 2.9-4.3 lb-ft)

2008 Kia Sedona

2008 ENGINE Mechanical - Sedona

Microsoft

Saturday, May 22, 2010 3:54:39 PM

Page 177
