Fig. 142: Locating Generator
Courtesy of KIA MOTORS AMERICA, INC.

10. Remove power steering pump (A) from engine.

Fig. 143: Locating Power Steering Pump
Courtesy of KIA MOTORS AMERICA, INC.

DISASSEMBLY

1. Remove drive plate.

2. Remove knock sensor (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 98

© 2006 Mitchell Repair Information Company, LLC.

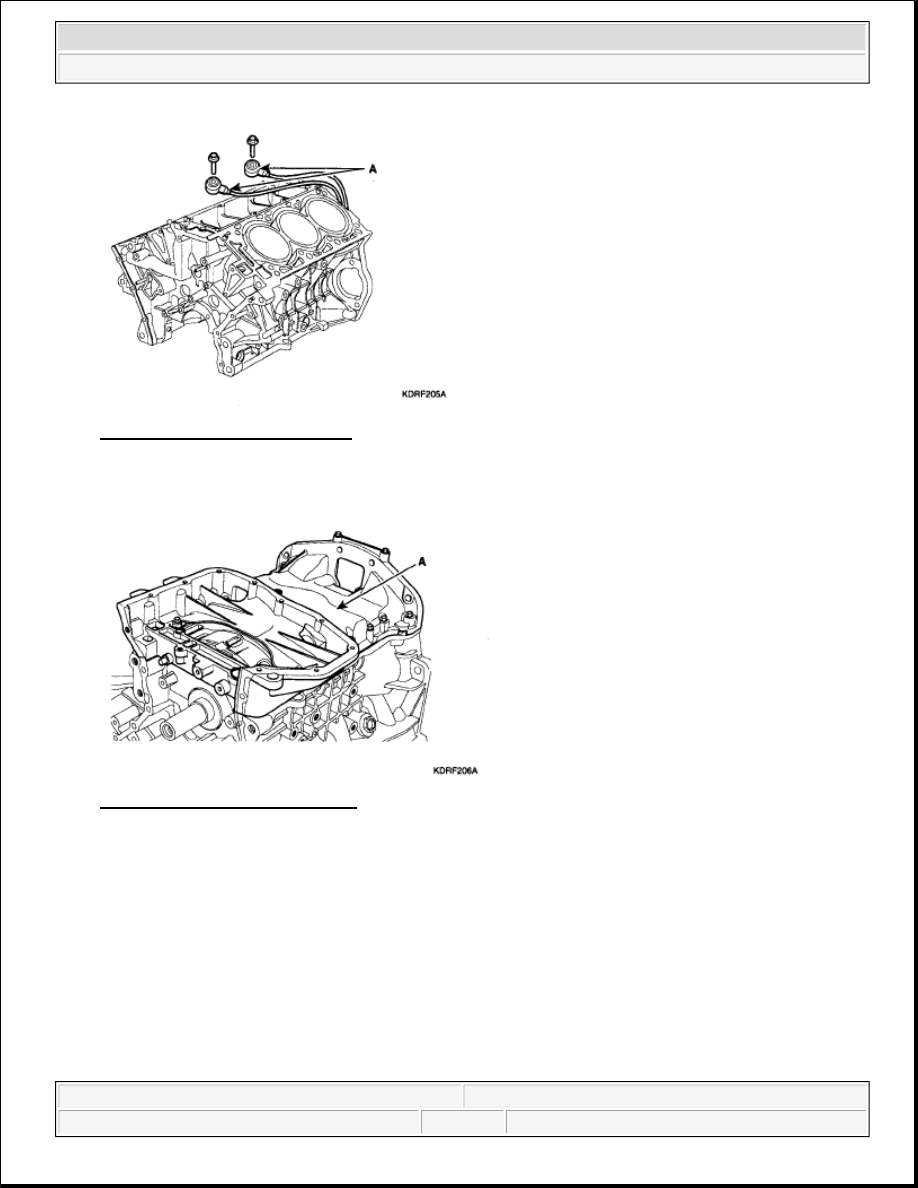

Fig. 144: Locating Knock Sensor
Courtesy of KIA MOTORS AMERICA, INC.

3. Remove upper oil pan (A).

Fig. 145: Locating Upper Oil Pan
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove baffle plate (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 99

© 2006 Mitchell Repair Information Company, LLC.

Fig. 146: Locating Baffle Plate
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove rear oil seal case (A).

Fig. 147: Locating Rear Oil Seal Case
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove oil drain cover (A).



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 100

© 2006 Mitchell Repair Information Company, LLC.

Fig. 148: Locating Oil Drain Cover
Courtesy of KIA MOTORS AMERICA, INC.

7. Check the connecting rod end play. Refer to CONNECTING ROD AND CRANKSHAFT.

8. Check the connecting rod cap oil clearance. Refer to CONNECTING ROD AND CRANKSHAFT.

9. Remove piston and connecting rod assemblies.

1. Using a ridge reamer, remove all the carbon from the top of the cylinder.

2. Push the piston, connecting rod assembly and upper bearing through the top of the cylinder block.

10. Remove crankshaft main bearing cap and check oil clearance. Refer to CONNECTING ROD AND

CRANKSHAFT.

11. Check the crankshaft end play. Refer to PISTON AND RINGS.

12. Lift the crankshaft (A) out of engine, being careful not to damage journals.

NOTE:



Keep the bearings, connecting rod and cap together.



Arrange the piston and connecting rod assemblies in the correct
order.
