Fig. 138: Identifying Cam Bearing Caps
Courtesy of KIA MOTORS AMERICA, INC.

A: L (LH), R (RH)

B: l (Intake), None (Exhaust)

C: Journal number

D: Front mark

7. Install water temperature control assembly. Refer to WATER TEMPERATURE CONTROL

ASSEMBLY.

8. Install timing chain. Refer to INSTALLATION.

9. Check and adjust valve clearance. Refer to VALVE CLEARANCE INSPECTION AND

ADJUSTMENT.

10. Install the exhaust manifold. Refer to EXHAUST MANIFOLD.

11. Install the intake manifold. Refer to INTAKE MANIFOLD.

ENGINE BLOCK

COMPONENTS

direction. Refer to the table below.

CAUTION: Rotate the crankshaft to position the pistons 10 mm (0.3937 in.) from

the top of the cylinder block.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 94

© 2006 Mitchell Repair Information Company, LLC.

Fig. 139: Identifying Engine Block Components And Torque Specifications (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 95

© 2006 Mitchell Repair Information Company, LLC.

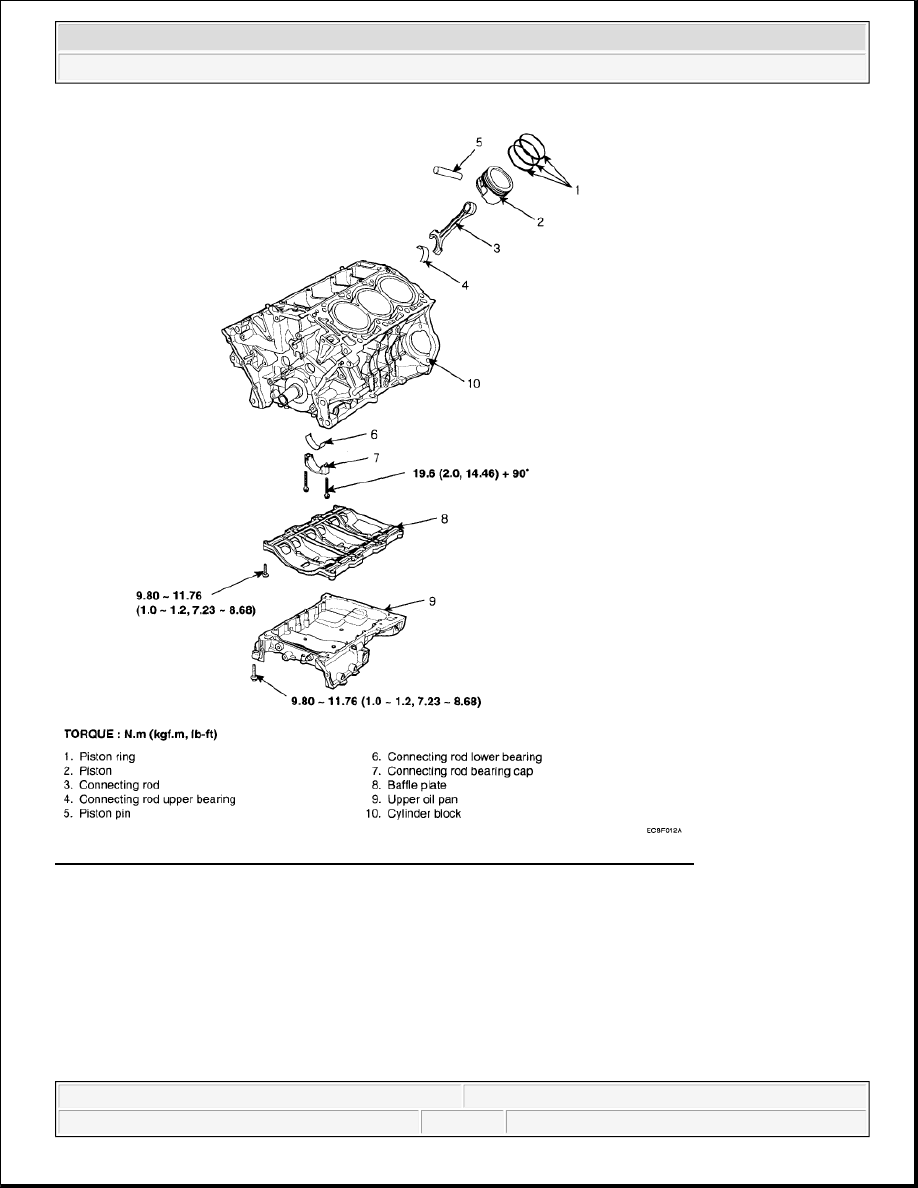

Fig. 140: Identifying Engine Block Components And Torque Specifications (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

REMOVAL

CAUTION:



Use fender covers to avoid damaging painted surfaces.



To avoid damage, unplug the wiring connectors carefully while
holding the connector portion.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 96

© 2006 Mitchell Repair Information Company, LLC.

1. Remove exhaust manifold. Refer to EXHAUST MANIFOLD.

2. Remove intake manifold. Refer to INTAKE MANIFOLD.

3. Remove timing chain. Refer to REMOVAL.

4. Remove water temperature control assembly. Refer to WATER TEMPERATURE CONTROL

ASSEMBLY.

5. Remove cylinder head. Refer to CYLINDER HEAD.

6. Remove oil pump. Refer to OIL PUMP.

7. Remove oil filter assembly. Refer to OIL FILTER ASSEMBLY.

8. Remove A/C compressor (A) from engine.

Fig. 141: Locating Air Compressor
Courtesy of KIA MOTORS AMERICA, INC.

9. Remove generator (A) from engine.

NOTE:



Mark all wiring and hoses to avoid misconnection.



Turn the crankshaft pulley so that the No. 1 piston is at top dead center.
Refer to VALVE CLEARANCE INSPECTION AND ADJUSTMENT.



Engine removal is required for this procedure.
