Kia Sedona (2008 year). Manual - part 358

Fig. 130: Identifying Cylinder Head Bolts Tightening Sequence
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 131: Identifying Cylinder Head Bolts
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 90

© 2006 Mitchell Repair Information Company, LLC.

Fig. 132: Identifying SST (09221 -4A000)
Courtesy of KIA MOTORS AMERICA, INC.

4. Install the CVVT and camshaft sprocket.

Tightening torque

64.68-76.44 N.m (6.6-7.8 kgf.m, 47.74-56.4 lb-ft)

Fig. 133: Identifying CVVT And Camshaft Sprocket
Courtesy of KIA MOTORS AMERICA, INC.

5. Install camshafts (A).

NOTE:



Install camshaft-inlet to dowel pin of CVVT assembly.

Ensure that the camshaft oil inlet is not obstructed.



Hold the hexagonal head wrench portion of the camshaft with a vise,
and install the bolt and CVVT assembly.



Do not rotate CVVT assembly when camshaft is installed to dowel pin
of CVVT assembly.

NOTE:



Apply a light coat of engine oil on camshaft journals.



Assemble the key groove of camshaft rear side to the same level of
head top surface.



Ensure that the camshaft components are installed in the correct
locations.



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 91

© 2006 Mitchell Repair Information Company, LLC.

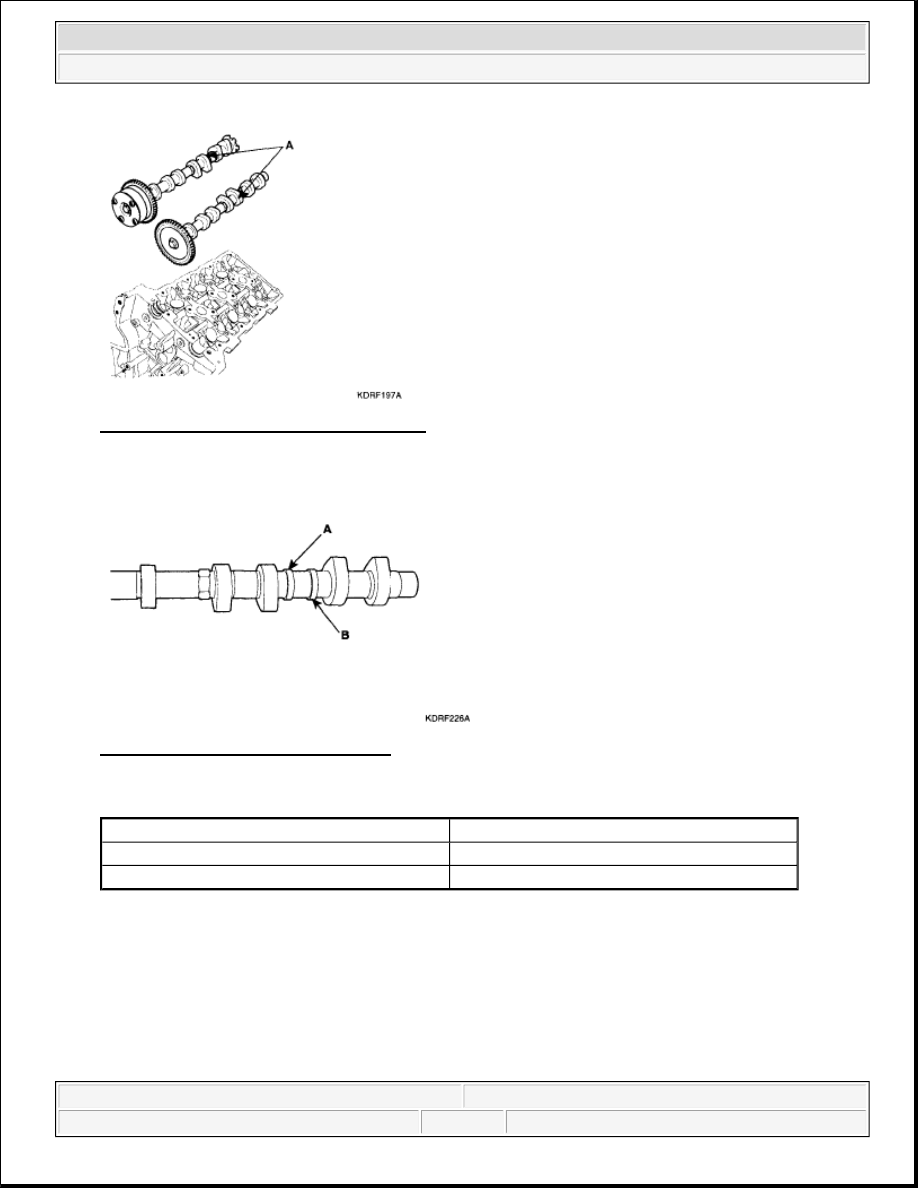

Fig. 134: Identifying Camshaft Assemblies
Courtesy of KIA MOTORS AMERICA, INC.

INTAKE CAMSHAFT

Fig. 135: Identifying Intake Camshaft
Courtesy of KIA MOTORS AMERICA, INC.

INTAKE CAMSHAFT SPECIFICATIONS

EXHAUST CAMSHAFT

LH

RH

A:30 mm (1.1811 in.)

A: 27 mm (1.0630 in.)

B: 27 mm (1.0630 in.)

B: 30 mm (1.1811 in.)



2008 Kia Sedona

2008 ENGINE Mechanical - Sedona



Microsoft



Saturday, May 22, 2010 3:54:37 PM

Page 92

© 2006 Mitchell Repair Information Company, LLC.

Fig. 136: Identifying Exhaust Camshaft
Courtesy of KIA MOTORS AMERICA, INC.

EXHAUST CAMSHAFT SPECIFICATIONS

6. Install camshaft bearing caps (A).

Assemble camshaft bearing caps as the order below.

Tightening torque

5.9 N.m (0.6 kgf.m, 4.3 lb-ft) - 1st step

9.80-11.76 N.m (1.0-1.2 kgf.m, 7.23-8.68 lb-ft) - 2nd step

Fig. 137: Locating Camshaft Bearing Caps
Courtesy of KIA MOTORS AMERICA, INC.

LH

RH

A:27 mm (1.0630 in.)

A: 30 mm (1.1811 in.)

NOTE:

Ensure that the cam bearing caps are installed in the correct location and
