Fig. 18: Identifying Front Driveshaft Components (UTJ-BJ Type)
Courtesy of KIA MOTORS AMERICA, INC.

DISASSEMBLY

1. Remove the clip (B) from drive shaft splines (A) of the transaxle side.

NOTE:



Do not disassemble the BJ assembly.



Special grease must be applied to the drive shaft joint. Do not substitute
with another type of grease.



The boot band should be replaced with a new one.



2008 Kia Sedona

2008 DRIVELINE/AXLES Driveshaft - Sedona



Microsoft



Saturday, May 22, 2010 6:49:48 PM

Page 10

© 2006 Mitchell Repair Information Company, LLC.

Fig. 19: Identifying Clip And Drive Shaft Splines Of Transaxle Side
Courtesy of KIA MOTORS AMERICA, INC.

2. Remove both boot bands from the transaxle side UTJ case.

Fig. 20: Removing Boot Bands From Transaxle Side UTJ Case
Courtesy of KIA MOTORS AMERICA, INC.

3. Pull out the boot from the transaxle side joint (UTJ).

4. When separating the joint and boot (A), remove the grease from the UTJ case (B).



2008 Kia Sedona

2008 DRIVELINE/AXLES Driveshaft - Sedona



Microsoft



Saturday, May 22, 2010 6:49:48 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

Fig. 21: Identifying Boot And UTJ Case
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 22: Identifying Alignment Marks On Spider Tool Assembly, UTJ Case And Shaft Splines
Courtesy of KIA MOTORS AMERICA, INC.

5. Using a plier or flat-tipped (-) screwdriver, remove the snap ring (A).

CAUTION:



Be careful not to damage the boot.



According to Illustration below, put alignment marks across
spider roller assembly (A), UTJ case (B), and shaft splines (C) to
aid in reassembly.



2008 Kia Sedona

2008 DRIVELINE/AXLES Driveshaft - Sedona



Microsoft



Saturday, May 22, 2010 6:49:48 PM

Page 12

© 2006 Mitchell Repair Information Company, LLC.

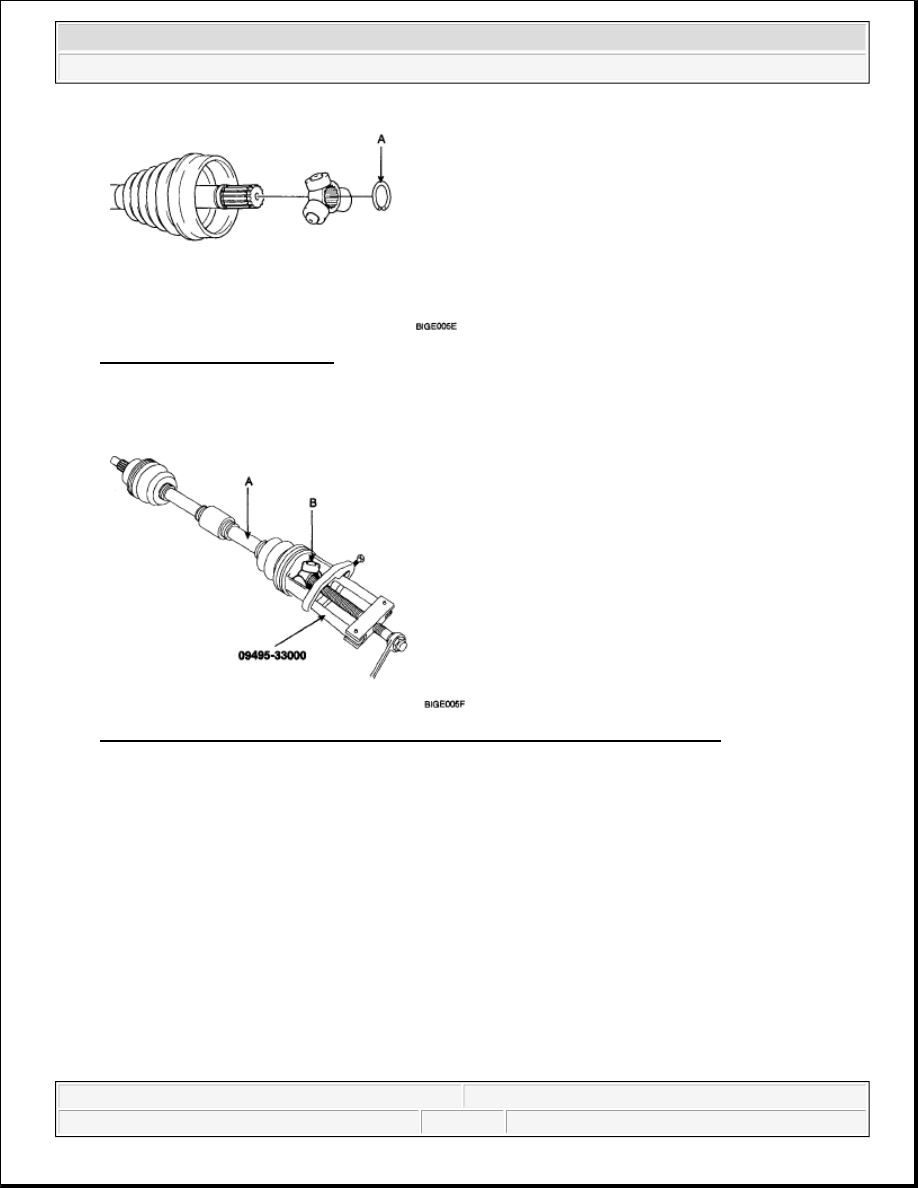

Fig. 23: Identifying Snap Ring
Courtesy of KIA MOTORS AMERICA, INC.

6. Remove the spider assembly (B) from drive shaft (A) by using the Special Tool (09495-33000).

Fig. 24: Identifying Spider Assembly, Driveshaft And Special Tool (09495-33000)
Courtesy of KIA MOTORS AMERICA, INC.

7. Clean the spider assembly.

8. Remove the boot (A), of the transaxle side joint (UTJ).

CAUTION: Wrap tape (B) around the driveshaft splines (C) to protect the boot

(A).
