90-110 (9.0-11.0, 65-80)

Fig. 2: Wheel/Tire Assembly & Front Hub Assembly
Courtesy of KIA MOTORS AMERICA, INC.

2. Loosen the drain plug and drain the ATF.

3. Unstake the driveshaft lock nut using a chisel and hammer.

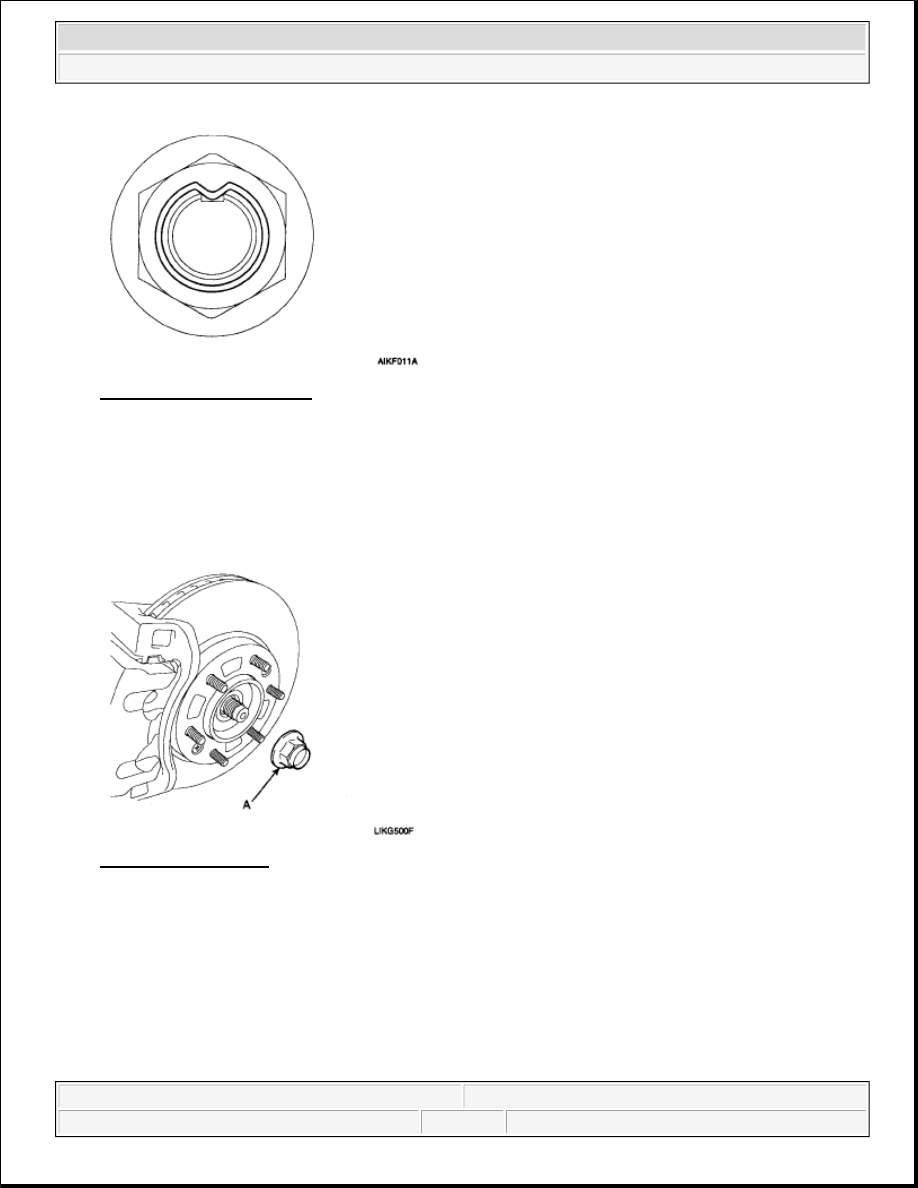

Fig. 3: Staked Driveshaft Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.

2008 Kia Sedona

2008 DRIVELINE/AXLES Driveshaft - Sedona

Microsoft

Saturday, May 22, 2010 6:49:48 PM

Page 2

Fig. 4: Driveshaft Lock Nut
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the driveshaft lock nut (A).

Tightening torque N.m (Kgf.m, lb-ft):

245-275 (24.5-27.5, 177-199)

Fig. 5: Driveshaft Nut
Courtesy of KIA MOTORS AMERICA, INC.

5. Remove the split pin and castle nut from the tie rod end ball joint.

Tightening torque N.m (Kgf.m, lb-ft):

60-80 (6.0-8.0, 43-58)

2008 Kia Sedona

2008 DRIVELINE/AXLES Driveshaft - Sedona

Microsoft

Saturday, May 22, 2010 6:49:48 PM

Page 3

Fig. 6: Tie Rod Split Pin & Castle Nut
Courtesy of KIA MOTORS AMERICA, INC.

6. Disconnect the tie rod end (A) from the knuckle using a SST (09568-4A000).

Fig. 7: Removing Tie Rod End & Knuckle Using SST (09568-4A000)
Courtesy of KIA MOTORS AMERICA, INC.

7. Remove the split pin and lower arm bolt and nut (A).

Tightening torque N.m (Kgf.m, lb-ft):

90-12 (9.0-12.0, 65-87)

2008 Kia Sedona

2008 DRIVELINE/AXLES Driveshaft - Sedona

Microsoft

Saturday, May 22, 2010 6:49:48 PM

Page 4

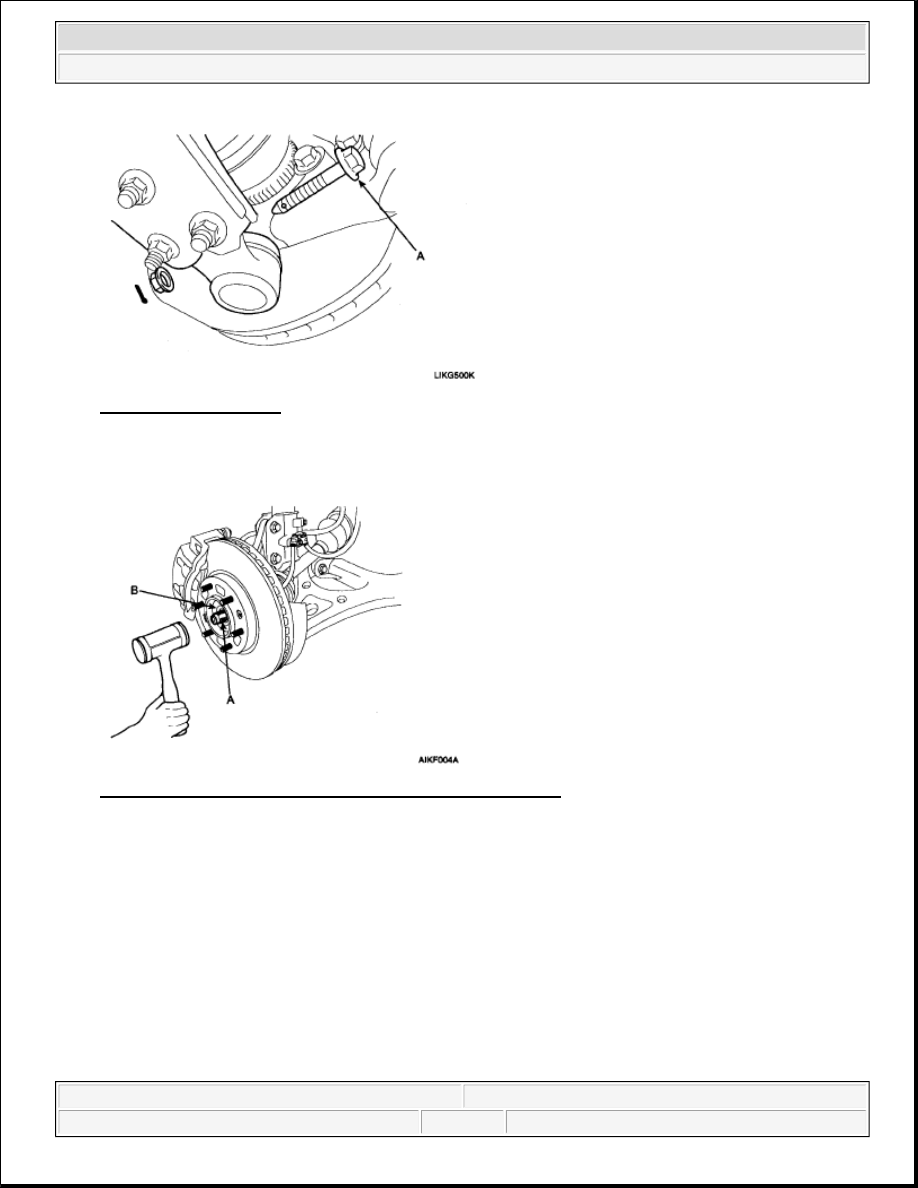

Fig. 8: Lower Arm Bolt
Courtesy of KIA MOTORS AMERICA, INC.

8. Using a plastic hammer, disconnect the driveshaft (A) from the front hub assembly (B).

Fig. 9: Disconnecting Driveshaft From Front Hub Assembly
Courtesy of KIA MOTORS AMERICA, INC.
