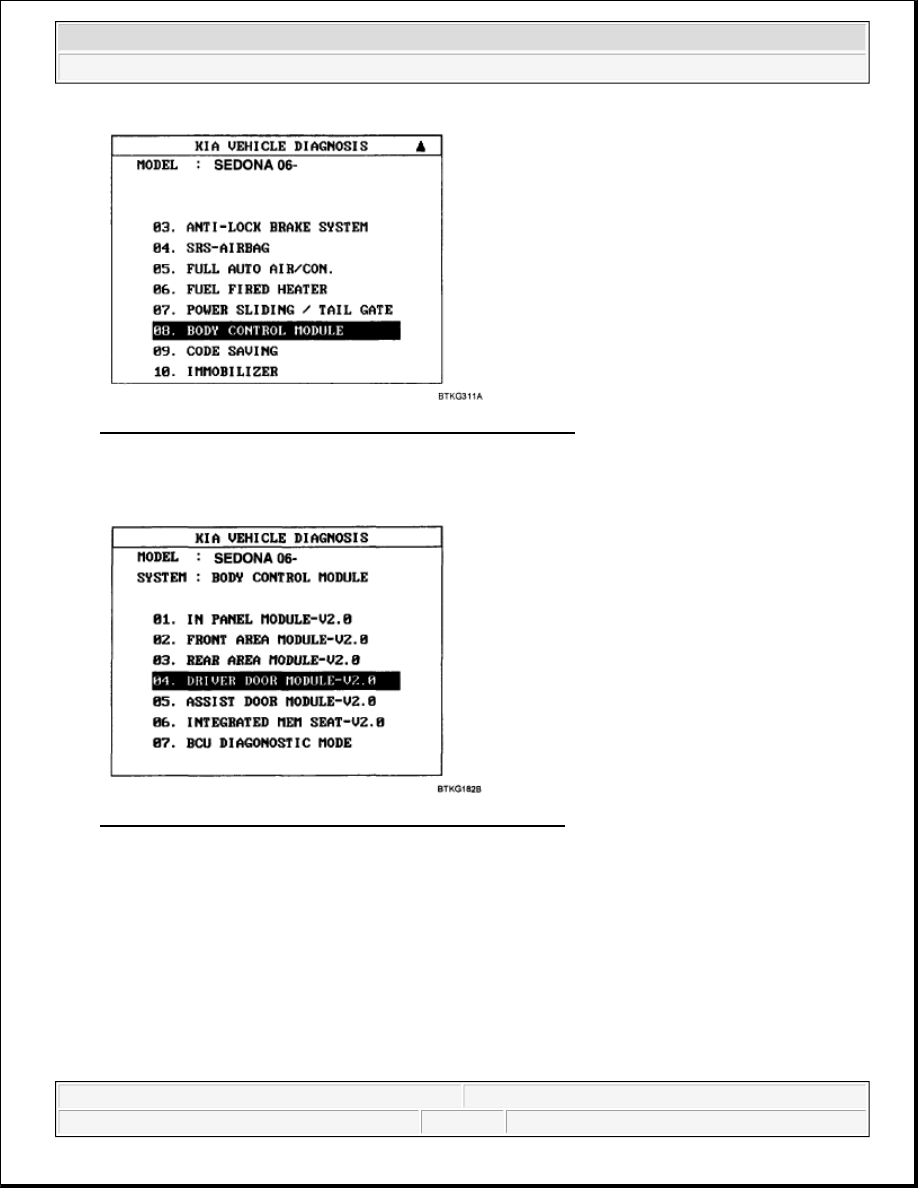

Fig. 20: Identifying Scan Tool Display - Body Control Module
Courtesy of KIA MOTORS AMERICA, INC.

3. Select option "04. DRIVER DOOR MODULE".

Fig. 21: Identifying Scan Tool Display - Driver Door Module
Courtesy of KIA MOTORS AMERICA, INC.

4. Select option "02. CURRENT DATA".



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 11

© 2006 Mitchell Repair Information Company, LLC.

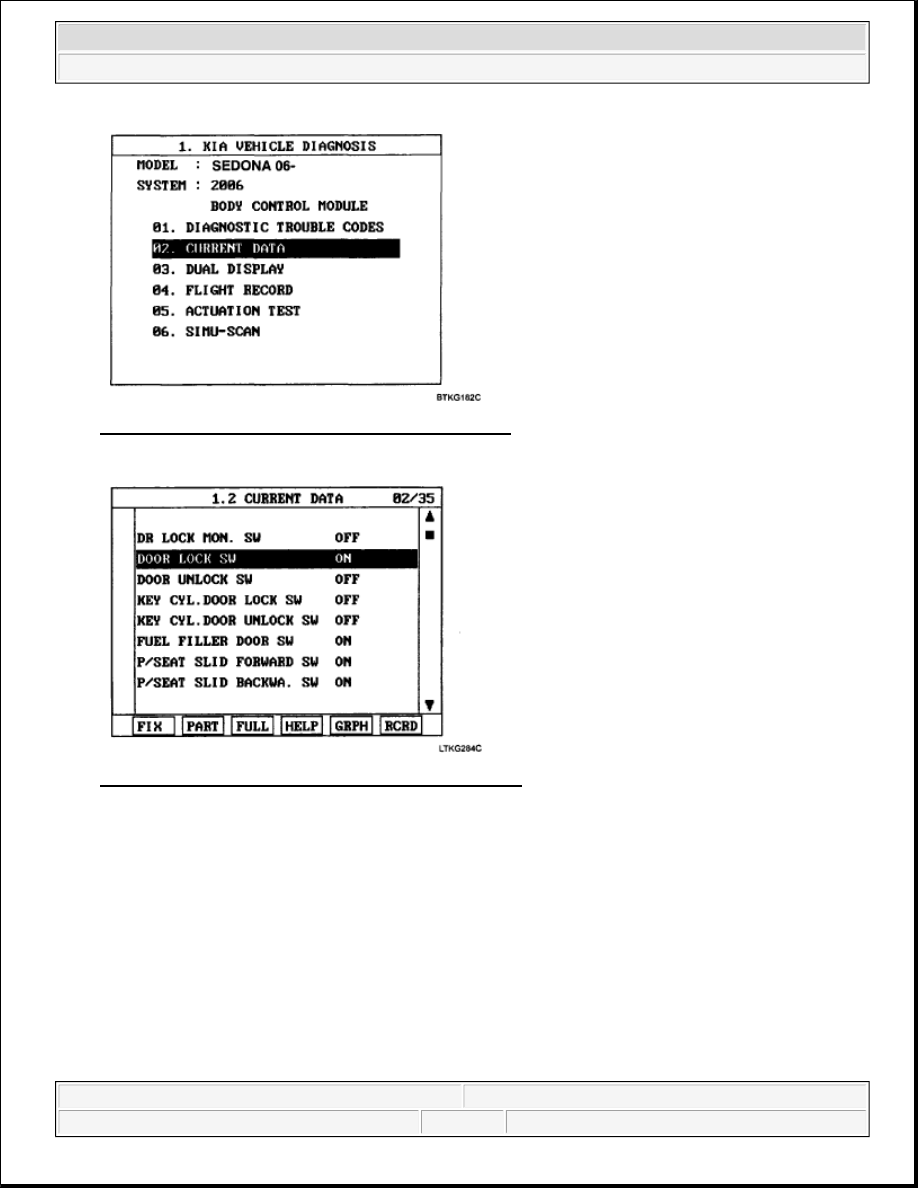

Fig. 22: Identifying Scan Tool Display - Current Data
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 23: Identifying Scan Tool Display - Door Lock SW
Courtesy of KIA MOTORS AMERICA, INC.

5. To check the Input Value of door lock switch in force mode, select option "05. ACTUATION TEST".



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 12

© 2006 Mitchell Repair Information Company, LLC.

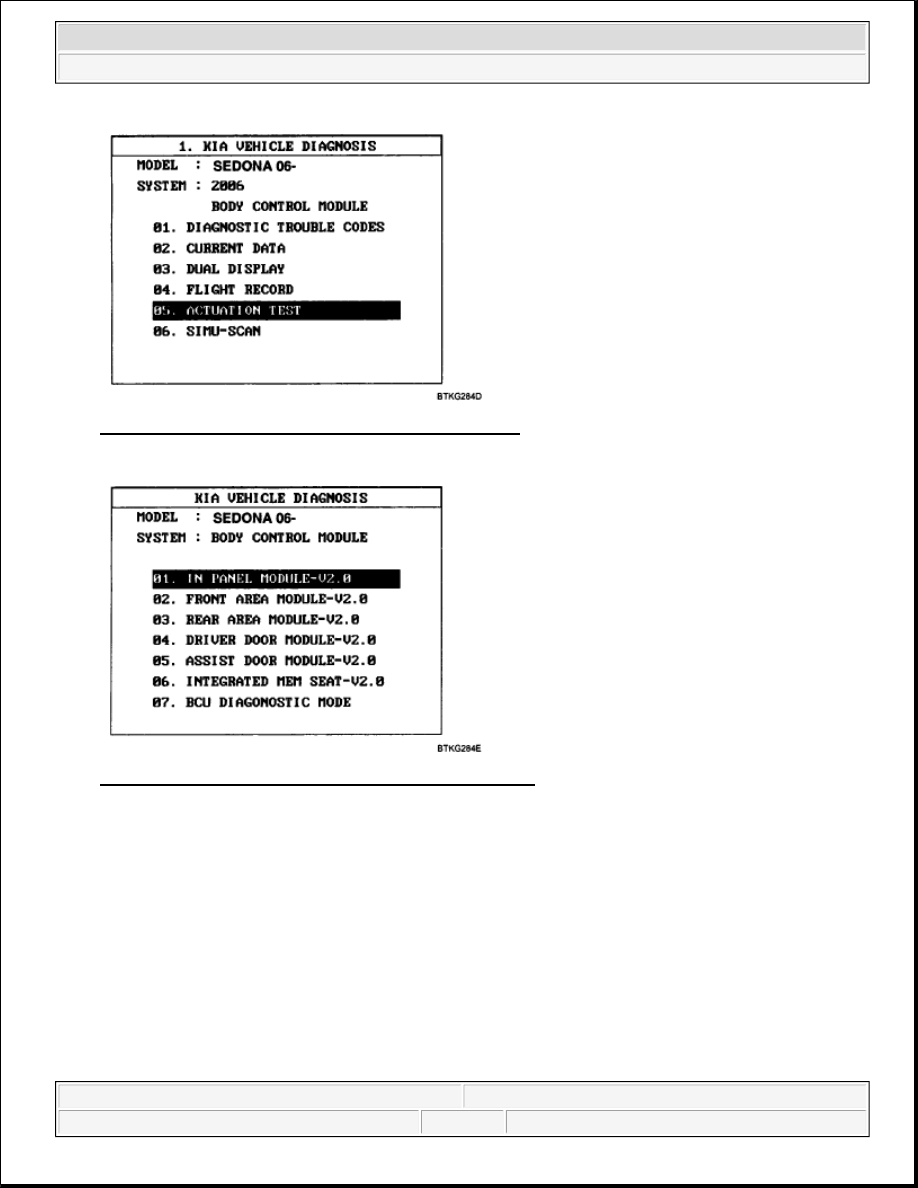

Fig. 24: Identifying Scan Tool Display - Actuation Test
Courtesy of KIA MOTORS AMERICA, INC.

Fig. 25: Identifying Scan Tool Display - In Panel Module
Courtesy of KIA MOTORS AMERICA, INC.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 13

© 2006 Mitchell Repair Information Company, LLC.

2008 DRIVELINE/AXLES

Driveshaft & Axle - General - Sedona

SPECIFICATIONS

DRIVESHAFT GENERAL SPECIFICATIONS

TIGHTENING TORQUE

TIGHTENING TORQUE

Driveshaft

Engine

Transaxle

Joint type

Max. permissible angle

Inner

Outer

Inner

Outer

3.8 MPI

A/T

UTJ-II#25

BJ#26

46.5°

23°

Front hub & bearing assembly
Starting torque

1.97 N.m (20 kgf. cm, 1.45 lb-ft)

Rear hub & bearing assembly
Starting torque

1.97 N.m (20 kgf. cm, 1.45 lb-ft)

NOTE:

Inner: On transaxle side
Outer: On tire side

Items

N.m

Kgf.m

lb-ft

Hub nut

90-110

9.0-11.0

65-80

Driveshaft lock nut

245-275

24.5-27.5

177-199

Tie rod end castle nut

60-80

6.0-8.0

43-58

Front lower arm to
knuckle bolt & nut

90-120

9.0-12.0

65-87

Inner shaft bearing &
bracket assembly bolts

50-65

5.0-6.5

36-47

Front caliper assembly to
knuckle bolts

85-100

8.5-10.0

61-72

Front strut assembly to
knuckle bolts

100-120

10.0-12.0

72-87

Front hub & bearing
assembly to knuckle bolts

160-180

16.0-18.0

116-130

Rear lower arm to carrier
bolt & nut

160-180

16.0-18.0

116-130

Rear caliper assembly to
carrier assembly bolts

50-60

5.0-6.0

36-43

Rear hub lock nut

200-260

20.0-26.0

145-188

Rear brake assembly to
carrier assembly bolts

50-60

5.0-6.0

36-43
