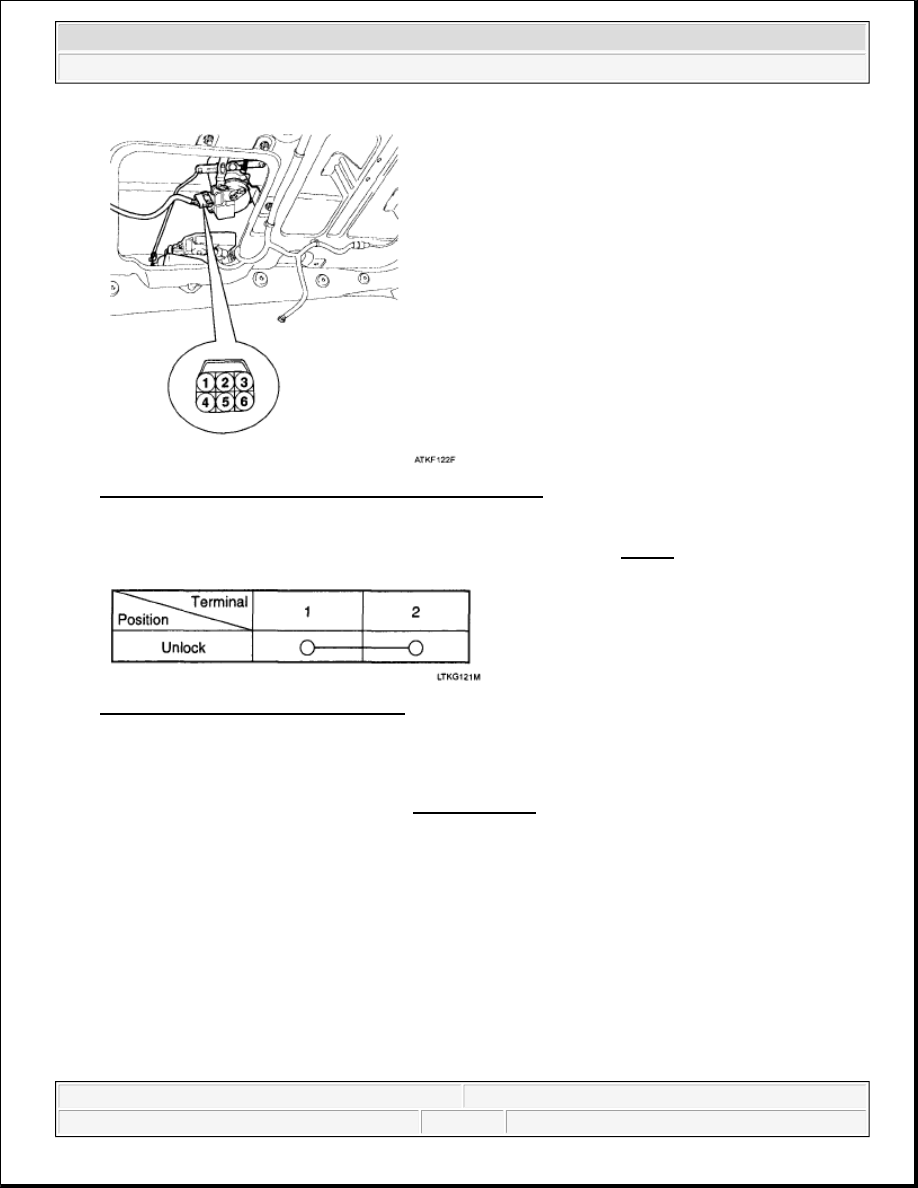

Fig. 12: Identifying Tailgate Lock Actuator 6P Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check for continuity between the terminals in each switch position. See Fig. 13.

Fig. 13: Testing Tailgate Lock Actuator
Courtesy of KIA MOTORS AMERICA, INC.

FRONT DOOR KIEV SWITCH

1. Remove the front door trim panel. Refer to FRONT DOOR .

2. Disconnect the 3P connector from the actuator.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 7

© 2006 Mitchell Repair Information Company, LLC.

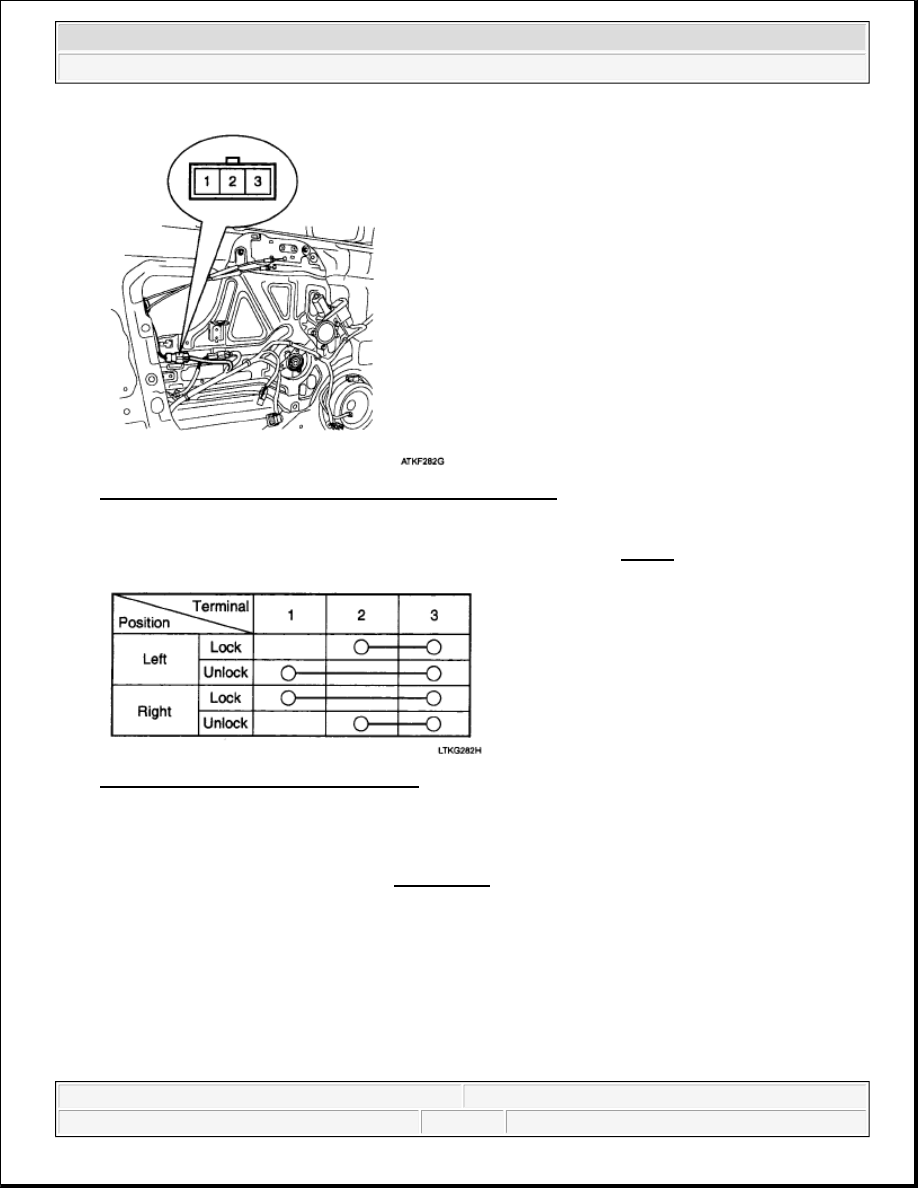

Fig. 14: Identifying Front Door KIEV Switch 3P Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check for continuity between the terminals in each switch position. See Fig. 15.

Fig. 15: Testing Front Door KIEV Switch
Courtesy of KIA MOTORS AMERICA, INC.

TAILGATE KEY SWITCH

1. Remove the tailgate trim panel. Refer to TAILGATE .

2. Disconnect the 3P connector from the actuator.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 8

© 2006 Mitchell Repair Information Company, LLC.

Fig. 16: Identifying Tailgate Key Switch 3P Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check for continuity between the terminals in each switch position. See Fig. 17.

Fig. 17: Testing Tailgate Key Switch
Courtesy of KIA MOTORS AMERICA, INC.

POWER DOOR LOCK SWITCH

REPLACEMENT

DDM/ADM

1. Disconnect the negative battery terminal.

2. Remove the front door trim panel. Refer to FRONT DOOR .

3. Remove the door module (A) mounting screws (5EA) after disconnecting the connector (3EA) from the

actuator.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 9

© 2006 Mitchell Repair Information Company, LLC.

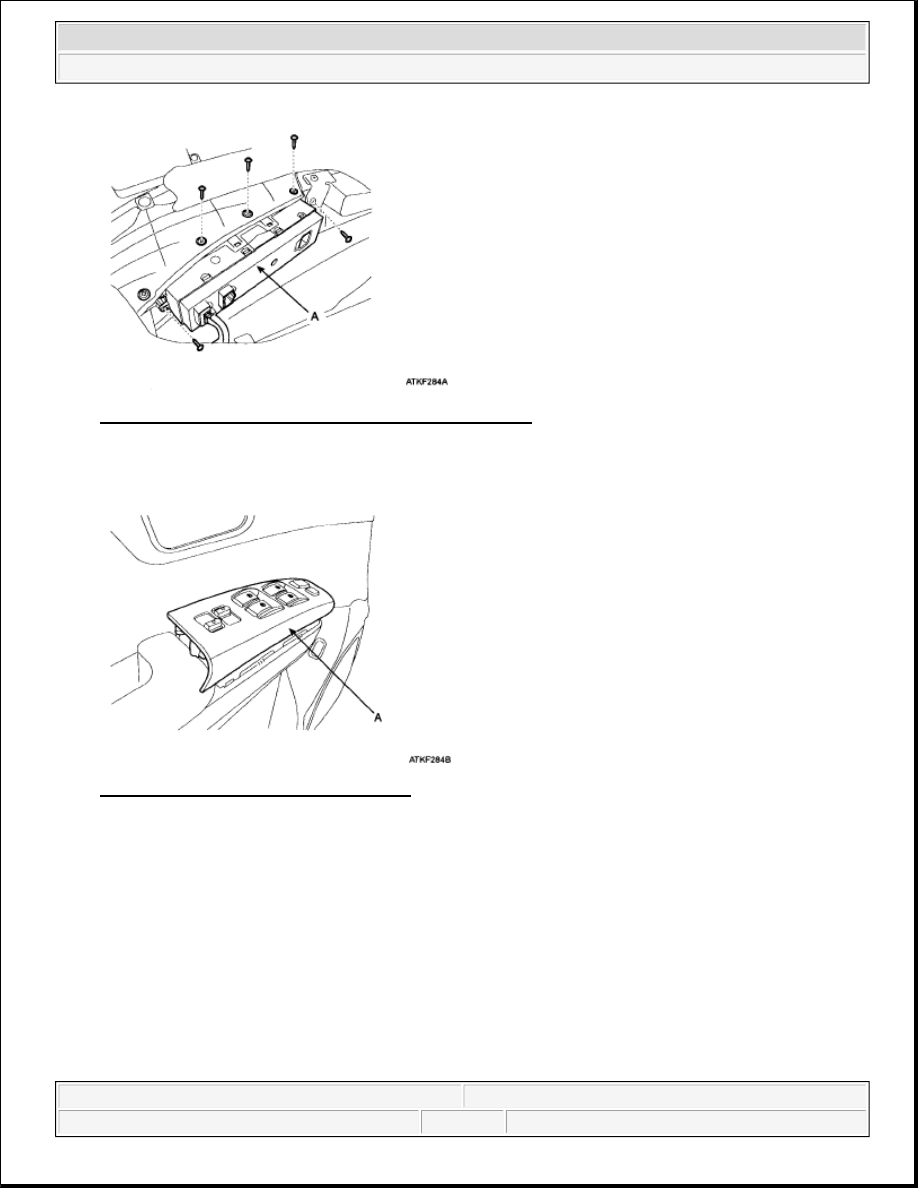

Fig. 18: Identifying Door Module And Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

4. Remove the front door modules (DDM/ADM) from the front door trim panel.

Fig. 19: Identifying Front Door Modules
Courtesy of KIA MOTORS AMERICA, INC.

INSPECTION

1. The DDM inputs can be checked using the scan tool.

2. To check the Input Value of door lock switch, select option "09. BODY CONTROL MODULE".
