Fig. 4: Identifying Tailgate Lock Actuator 6P Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check actuator operation by connecting power and ground. See Fig. 5. To prevent damage to the actuator,

apply battery voltage only momentarily.

Fig. 5: Testing Tailgate Lock Actuator
Courtesy of KIA MOTORS AMERICA, INC.

TAILGATE LOCK ACTUATOR

1. Remove the tailgate trim panel. Refer to TAILGATE .

2. Disconnect the 6P connector from the actuator.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 3

© 2006 Mitchell Repair Information Company, LLC.

Fig. 6: Identifying Tailgate Lock Actuator 6P Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check actuator operation by connecting power and ground. See Fig. 7. To prevent damage to the actuator,

apply battery voltage only momentarily.

Fig. 7: Testing Tailgate Lock Actuator
Courtesy of KIA MOTORS AMERICA, INC.

FRONT DOOR LOCK SWITCH

1. Remove the front door trim panel. Refer to FRONT DOOR .

2. Disconnect the 6P connector from the actuator.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 4

© 2006 Mitchell Repair Information Company, LLC.

Fig. 8: Identifying Front Door Lock Actuator 4P Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check for continuity between the terminals in each switch position. See Fig. 9.

Fig. 9: Testing Front Door Lock Actuator
Courtesy of KIA MOTORS AMERICA, INC.

SLIDING DOOR LOCK SWITCH

1. Remove the rear door trim panel. Refer to REAR DOOR .

2. Disconnect the 6P connector from the actuator.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB Power Door Locks - Sedona



Microsoft



Monday, May 24, 2010 4:15:42 PM

Page 5

© 2006 Mitchell Repair Information Company, LLC.

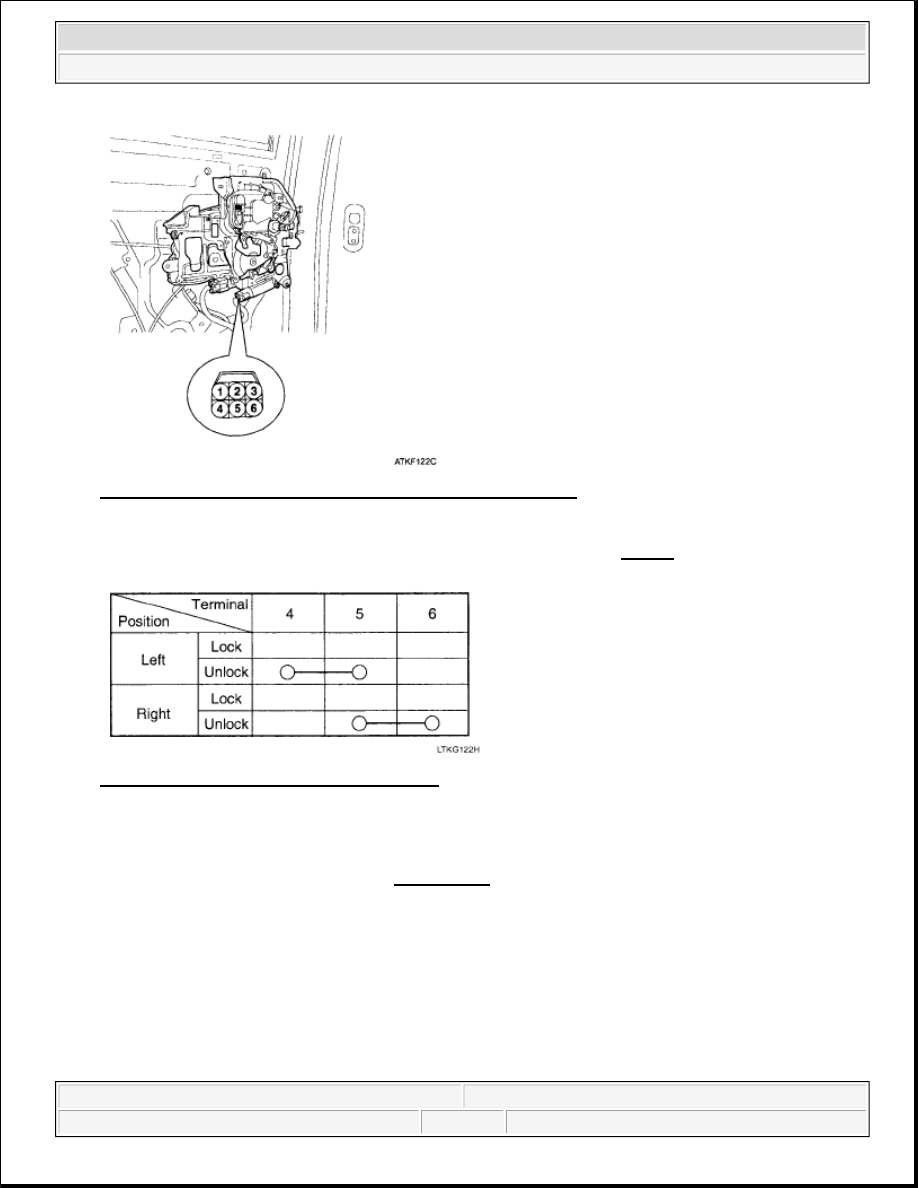

Fig. 10: Identifying Sliding Door Lock Actuator 6P Connector
Courtesy of KIA MOTORS AMERICA, INC.

3. Check for continuity between the terminals in each switch position. See Fig. 11.

Fig. 11: Testing Sliding Door Lock Actuator
Courtesy of KIA MOTORS AMERICA, INC.

TAILGATE LOCK SWITCH

1. Remove the tailgate trim panel. Refer to TAILGATE .

2. Disconnect the 6P connector from the actuator.
