Kia Sedona (2008 year). Manual - part 190

Fig. 191: Measuring Voltage Between Terminal 6 Of IMS And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured voltage within specifications?

YES

Substitute with a known-good IMS and check for proper operation.

If the problem is corrected, replace IMS and then go to "VERIFICATION OF VEHICLE
REPAIR" procedure.

NO

Go to step 2.

2. Check seat motor/sensor

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF"

3. Select "Diagnostic Trouble Codes (DTCs)" mode and monitor "DTC Status" parameter

4. Check if the DTC is erased while Substituting with a known-good seat motor (slide, recline, front

height, rear height) one after another.

5. Is the DTC erased?

YES

Substitute with a known-good seat motor and check for proper operation. If the problem is
corrected, replace seat motor and then go to "VERIFICATION OF VEHICLE REPAIR"
procedure.

NO

Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration,
or damage.

Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR"



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:19 PM

Page 229

© 2006 Mitchell Repair Information Company, LLC.

procedure.

VERIFICATION OF VEHICLE REPAIR

Refer to DTC B1954.

DTC B2457 PEDAL MOTOR OR VCC ERROR

COMPONENT LOCATION

Refer to DTC B1958.

GENERAL DESCRIPTION

Refer to DTC B1954.

DTC DESCRIPTION

The ECM sets DTC B2457 if Ref. voltage of pedal motor sensor is below 1V.

DTC DETECTING CONDITION

DTC DETECTING CONDITION

MONITOR DTC STATUS

1. Connect scan tool to Data Link Connector (DLC).

2. Ignition "ON" & engine "OFF".

3. Select "Diagnostic Trouble Codes (DTCs)" mode and monitor "DTC Status" parameter.

4. Is the DTC B1960 present?

YES

Go to TERMINAL AND CONNECTOR INSPECTION procedure.

NO

Fault is intermittent caused by poor contact in the sensor's and/or ECM's connector or was repaired and
ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending,

Item

Detecting Condition

Possible Cause

DTC Strategy



Check no. of pulse



Open or short in signal harness



Open or short in power harness



Faulty pedal motor/sensor

Enable Conditions



IGN `ON' & Engine `OFF'

Threshold value



1V

Detecting time



1 sec

FAIL SAFE

-



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:19 PM

Page 230

© 2006 Mitchell Repair Information Company, LLC.

corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to
"VERIFICATION OF VEHICLE REPAIR" procedure.

TERMINAL AND CONNECTOR INSPECTION

Refer to DTC B1954.

SIGNAL CIRCUIT INSPECTION

1. Check for open in harness

1. Ignition "OFF".

2. Measure resistance between terminal "7" of IMS and terminal "2" of brake pedal sensor.

Specification :Approx. 0 ohms

Fig. 192: Measuring Resistance Between Terminal 7 Of IMS And Terminal 2 Of Brake Pedal
Sensor
Courtesy of KIA MOTORS AMERICA, INC.

3. Is the measured resistance within specifications?

YES

Go to step 2.

NO

Check for open in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

2. Check for short in harness

1. Ignition "OFF".

2. Disconnect brake pedal motor.



2008 Kia Sedona EX

2008 ACCESSORIES & BODY, CAB BCM (Body Control Module) - Sedona



Microsoft



Monday, May 24, 2010 4:19:19 PM

Page 231

© 2006 Mitchell Repair Information Company, LLC.

3. Measure resistance between terminal "7" of IMS and chassis ground.

Specification :Approx. infinity ohms

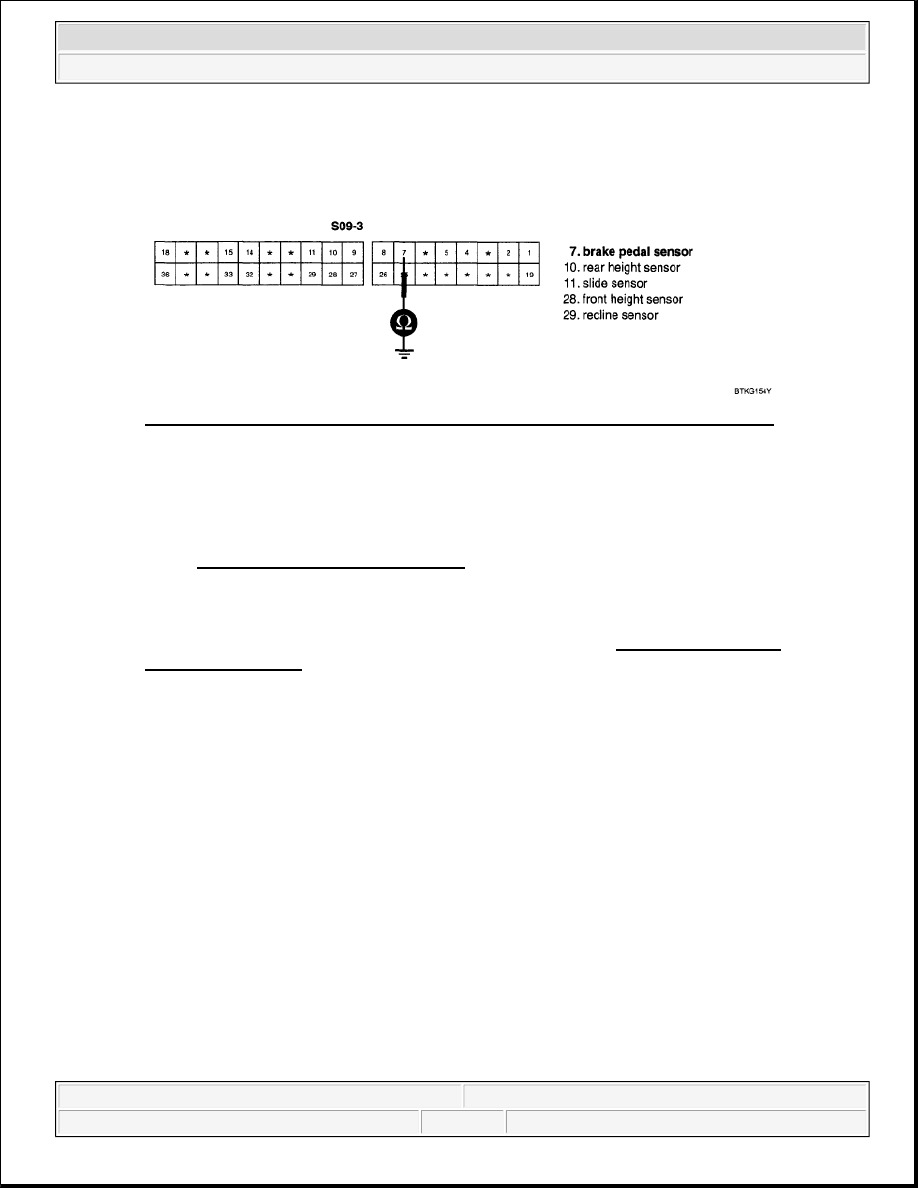

Fig. 193: Measuring Resistance Between Terminal 7 Of IMS And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.

4. Is the measured resistance within specifications?

YES

Go to "POWER CIRCUIT INSPECTION" procedure.

NO

Check for short in signal harness. Repair as necessary and go to "VERIFICATION OF
VEHICLE REPAIR" procedure.

POWER SUPPLY CIRCUIT INSPECTION

1. Check for open in harness

1. Ignition "OFF".

2. Measure resistance between terminal "27" of IMS and terminal "3" of brake pedal sensor.

Specification: Approx. 0 ohms
