Kia Carens. Manual - part 168

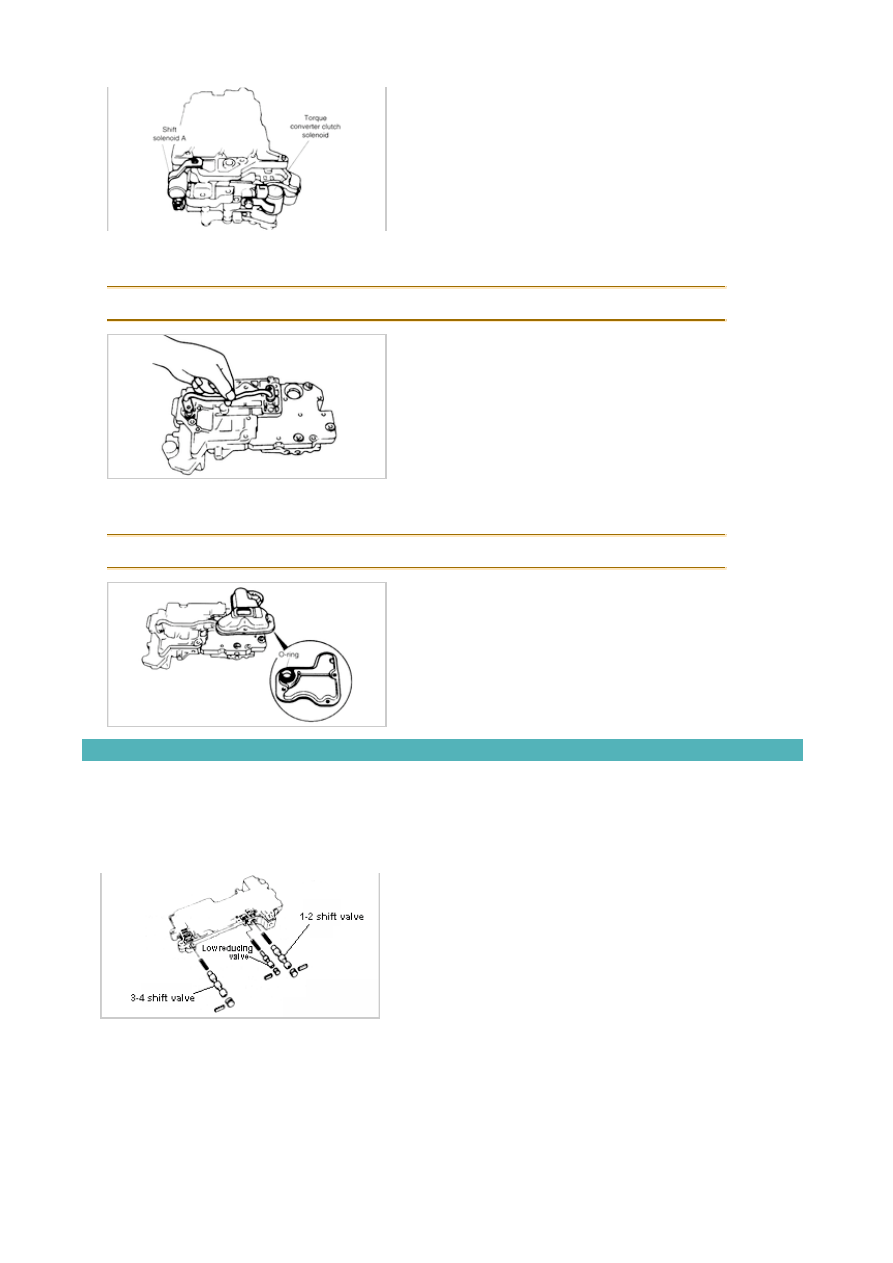

21. Apply ATF to new O-rings and install them onto oil pipe assembly.

22. Install oil pipe assembly.

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

23. Apply ATF to new O-ring and install it onto oil strainer assembly.

24. Install oil strainer onto control valve body and then tighten three bolts.

Tightening torque : 69.6~94.8 lb-in (7.9~10.7 N·m, 80~110 kg-cm)

Reassembly

1. Insert 3-4 shift spring, 3-4 shift valve, and stop plug.

Secure them with stop pin.

2. Insert low reducing spring, low reducing valve, and stop plug. Secure them with stop pin.

3. Insert 1-2 shift spring, 1-2 shift valve, and stop plug.

Secure them with stop pin.

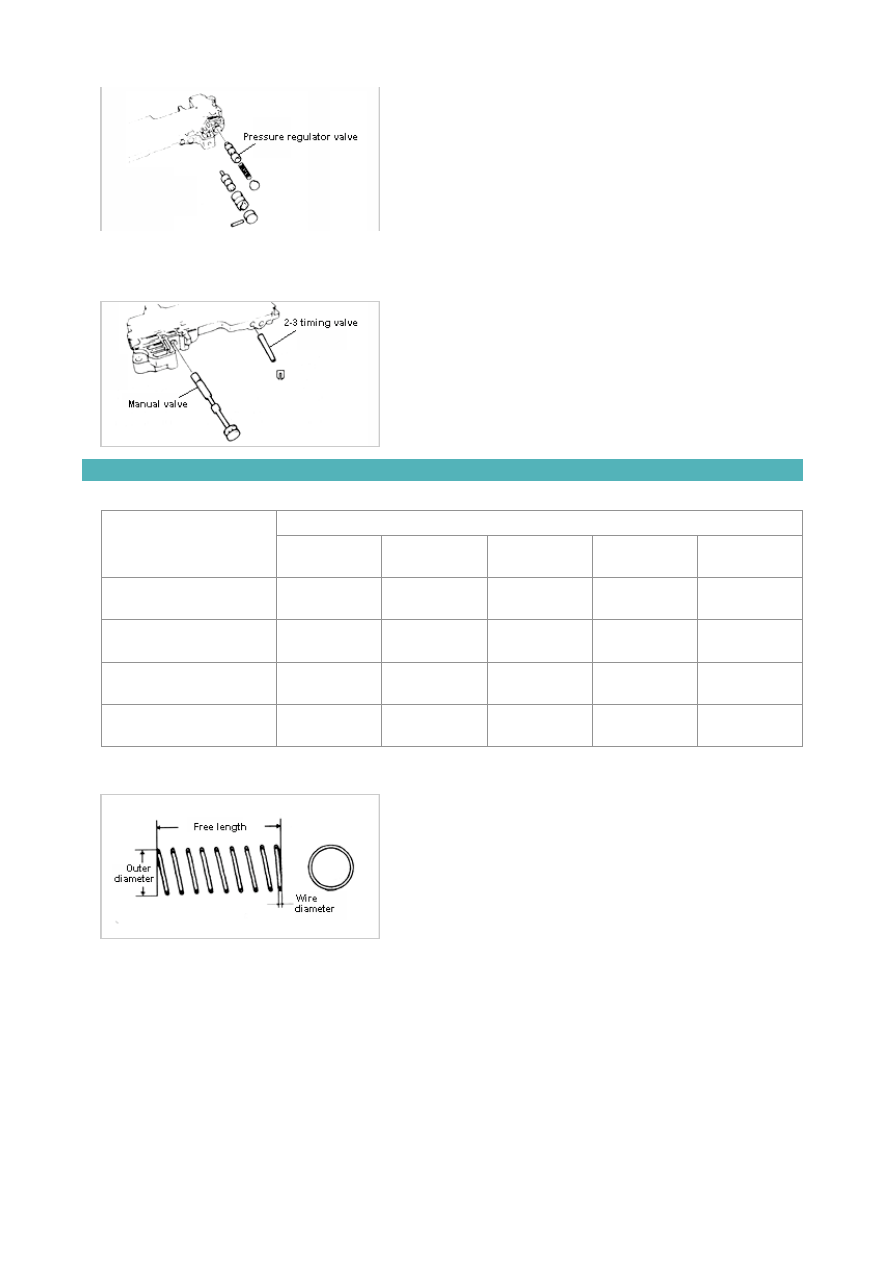

4. Insert pressure regulator valve, pressure regulator spring, pressure regulator spring seat, regulator plug sleeve,

pressure regulator plug, and stop plug.
Secure them with roll pin.

5. Insert 2-3 timing valve and 2-3 timing spring.

Secure them with spring retainer.

6. Proceed to insert manual valve.

Inspection

1. Measure spring free lengths.

Item

Spring

Outer diameter

in (mm)

Free length

in (mm)

Number of coils

Wire diameter

in (mm)

Color

Pressure regulator spring

0.453
(11.5)

1.346

(34.2)

11.5

0.039

(1.0)

Red

1-2 shift spring

0.291

(7.4)

1.441

(36.6)

14.0

0.031

(0.8)

White

Low reducing spring

0.311

(7.9)

1.358

(34.5)

13.0

0.031

(0.8)

Yellow

3-4 shift spring

0.291

(7.4)

1.441

(36.6)

14.0

0.031

(0.8)

White

2. If not within specification, replace spring (s).

Automatic Transaxle System

=HS]L)VK`:`Z[LT<WWLY*VU[YVS=HS]L)VK`

Automatic Transaxle System

  2001 > 1.8L DOHC >

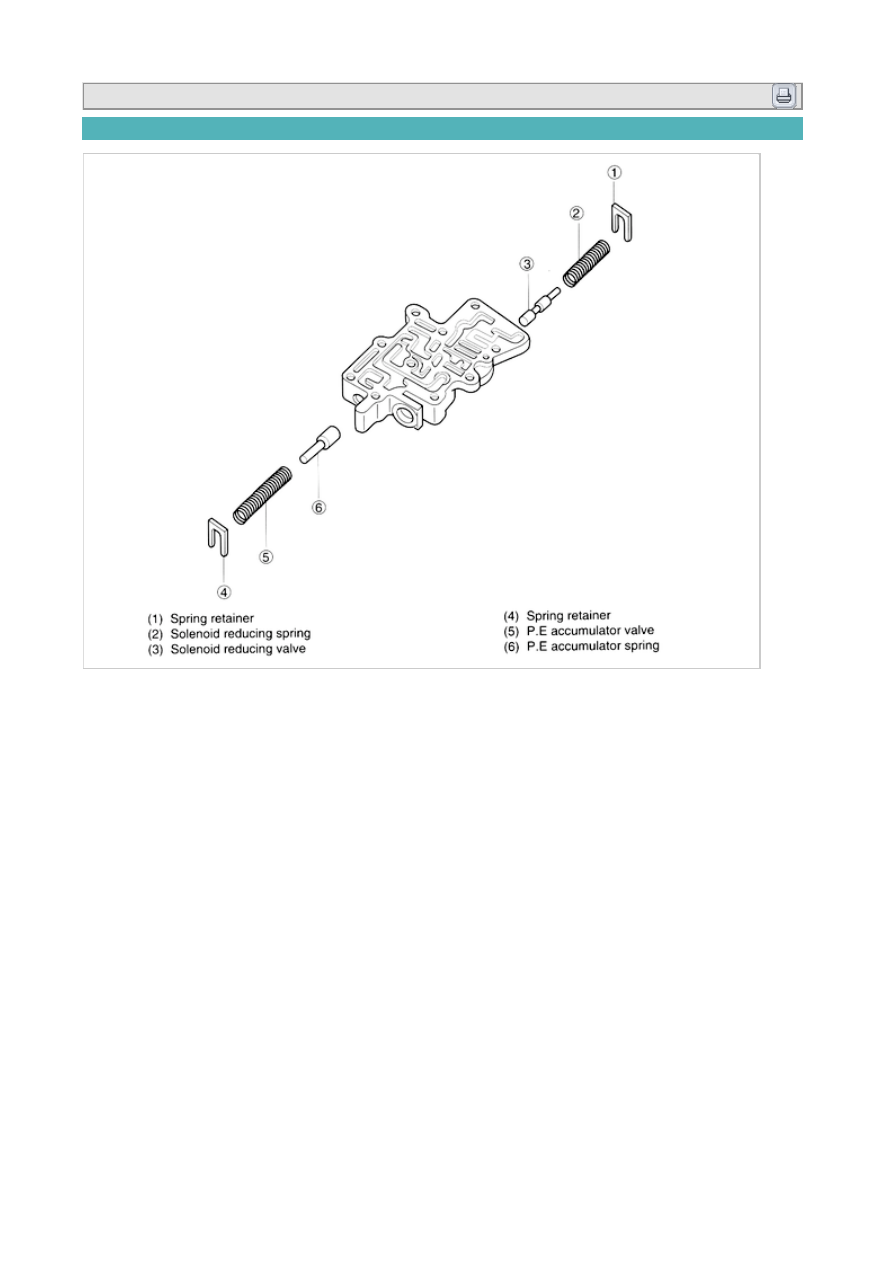

Component
