Disassembly
1) Each valve should slide in/out under its own weight.
2) When a valve will not slide in/out under its own weight, depending on valve, push it out with a wire or
replace valve body open-side down and lightly tap it with a soft hammer.
3) If a valve surface or bore is scratched or damaged, replace control valve body.
4) Do not drop or lose valves or internal parts.
5) Before assembly, make sure all parts are thoroughly clean.
6) Apply ATF to all parts and bores.
7) Note proper direction of valves and internal parts.
8) Do not reuse any part that has been dropped.
9) Wrap a screwdriver or rod with tape before using it to insert a valve.

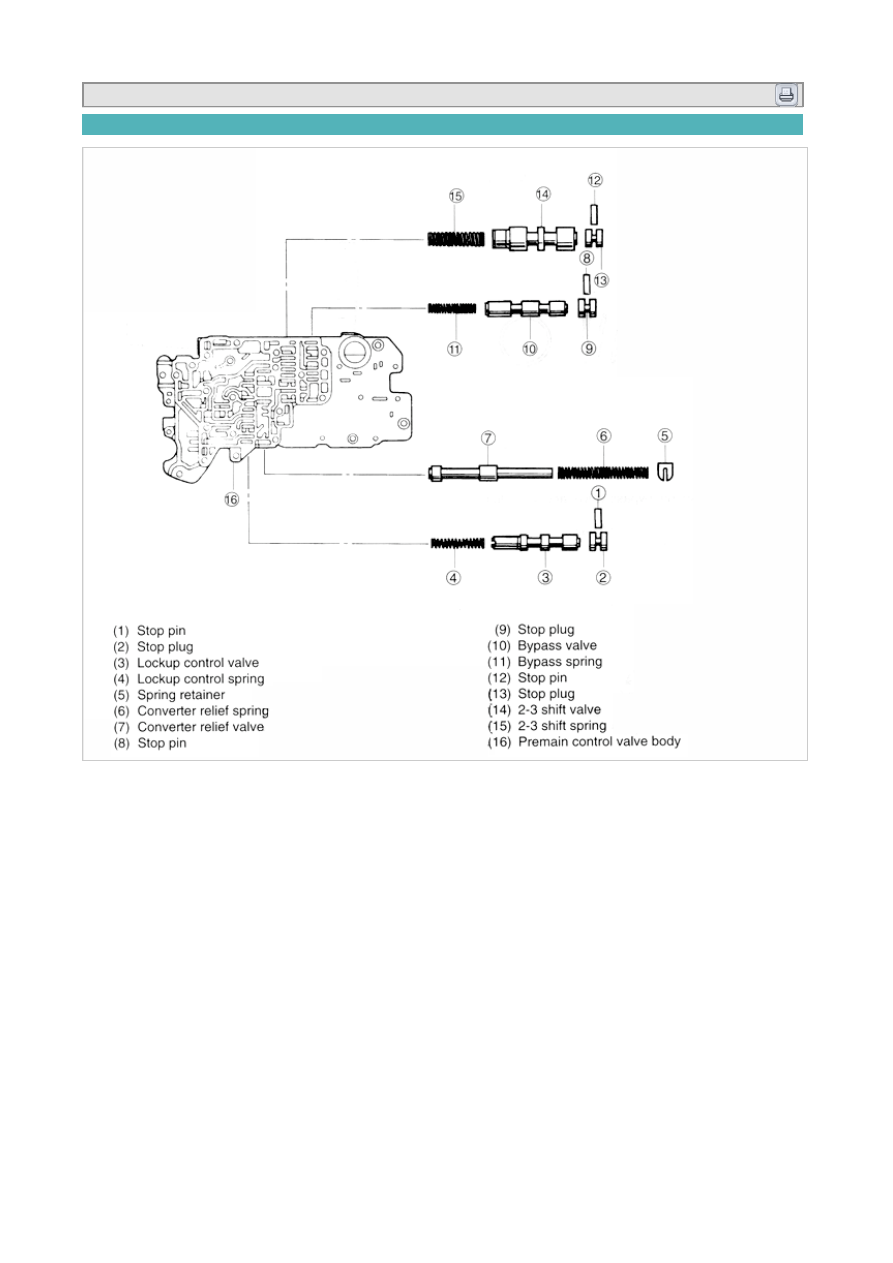

1. Disassemble in order shown in the figure.
Insepction
1. Measure spring free lengths.
2. If not within specification, replace spring(s).
Spring
Item
Solenoid reducing spring
P.E accumulator spring
Pitch diameter in (mm)
0.277 (7.0)
0.307 (7.8)
Free length in (mm)
1.531 (38.9)
2.007 (51.0)
Number of coils
11
20.5
Wire diameter in (mm)
0.035 (0.9)
0.047 (1.2)
Reassembly
1. Insert solenoid reducing valve and solenoid reducing spring then secure them with spring retainer.
2. Insert P.E accumulator valve and P.E accumulator spring then secure them with spring retainer.
