Kia Carens. Manual - part 166
14. Remove six bolts then remove premain control valve body.
15. Remove gasket E, lower separator plate, oil filter, and gasket F.
16. Remove oil strainer from lower control valve body.
Disassembly
1) Each valve should slide in/out under its own weight.
2) When a valve will not slide in/out under its own weight, depending on valve, push it out with a wire or replace
valve body open-side down and lightly tap it with a soft hammer.
3) If a valve surface or bore is scratched or damaged, replace control valve body.
4) Do not drop or lose vavles or internal parts.
5) Before assembly, make sure all parts are thoroughly clean.
6) Apply ATF to all parts and bores.
7) Note proper direction of valves and internal parts.
8) Do not reuse any part that has been dropped.
9) Wrap a screwdriver or rod with tape before using it to insert a valve.
1. Disassemble in order shown in figure.
Reassembly
Control valve body
1) Before assembly, make sure all parts are perfectly clean.
2) Apply ATF to all parts.
3) Do not reuse gaskets or O-rings.

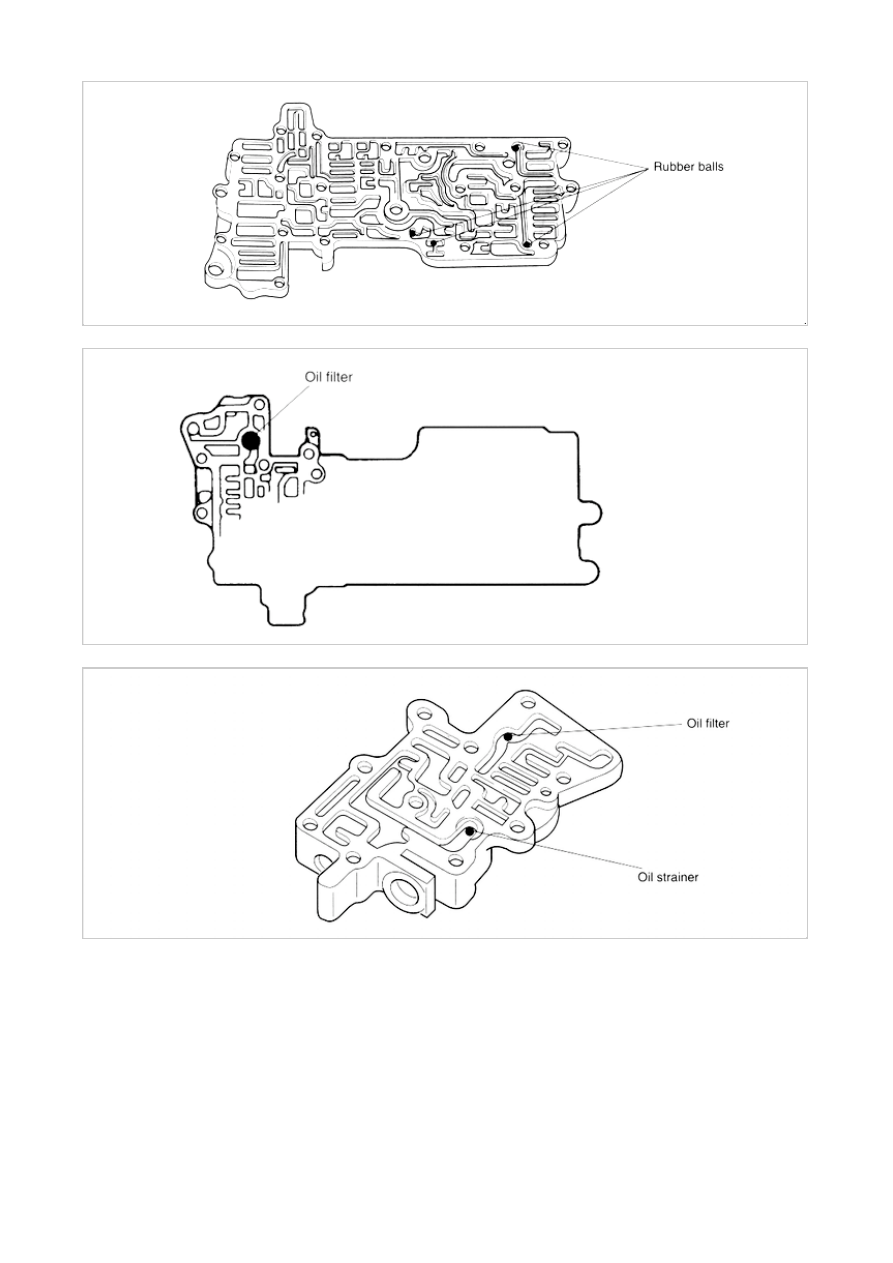

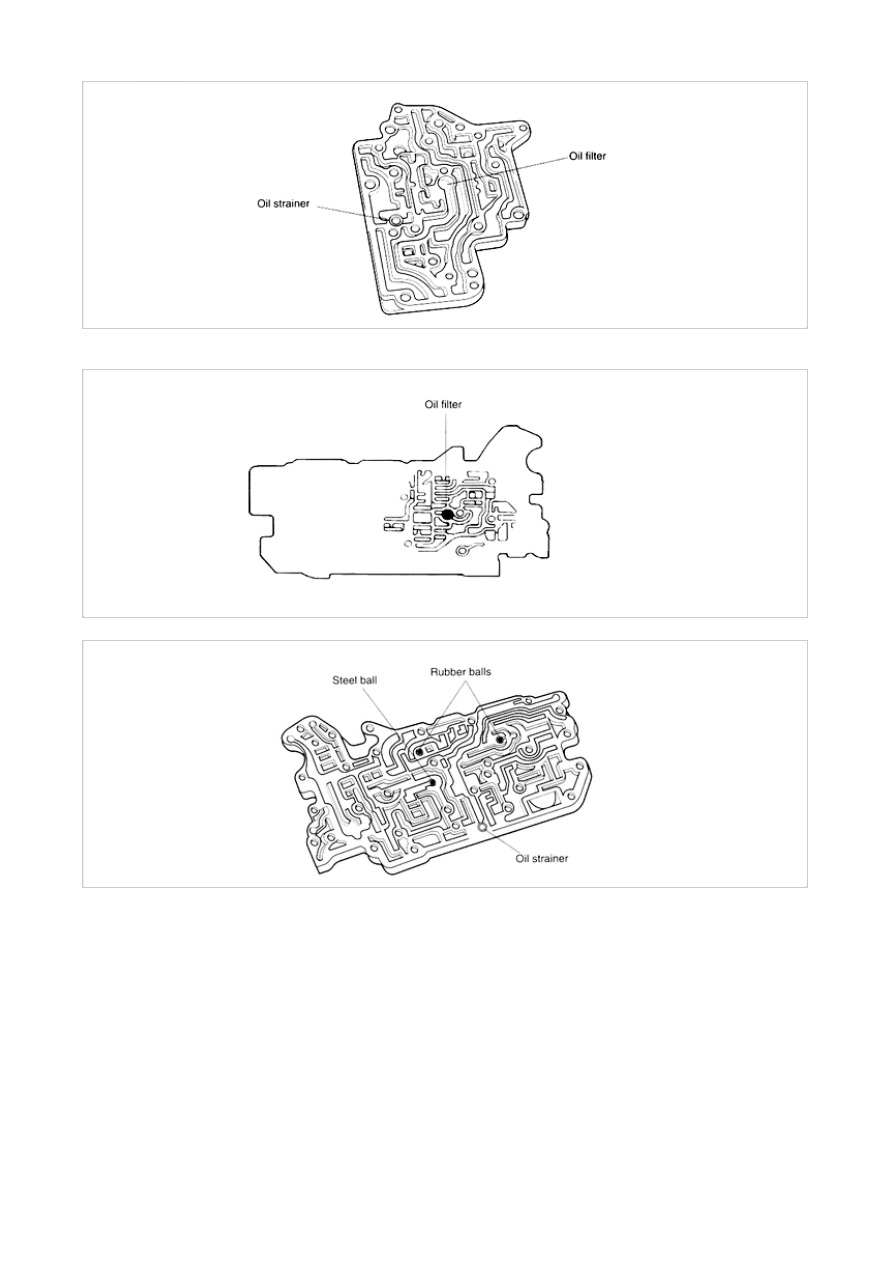

Oil strainer installation positions
Low control valve body
