6. Remove oil pressure gauge and install oil pressure switch.

Tightening torque : 8.7~13.0lb-ft (12~18N·m, 1.2~1.8kg-m)

  2001 > 1.8L DOHC >



GENERAL DESCRIPTION

The engine lubrication system consists of an oil pan, oil pump, oil filter and various oil various oil passages. A rotor-type
oil pump is driven by crankshaft. The oil pump has pump has a pressure relief valve which controls lubrication system
pressure by bypassing oil back to oil pan. The oil pump rotates and draws oil from the oil from the oil pand thorugh an oil
strainer. The oil is pressurized as it passes through the pump.

  2001 > 1.8L DOHC >



REMOVAL

Front oil seal

1. Remove oil pump.(Refer to oil pump remival)

2. Remove front oil seal. (Refer to oil pump disassembly)

REMOVAL

Rear oil seal

1. Disconnect negative battery cable.

2. Remove flywheel. (Refer to clutch removal)

In case of A/T remove drive plate.(Refer to A/T removal).

Use a flywheel locking tool or equivalent when removing flywheel or drive plate)

3. Remove rear cover.

4. Wrap a prying tool with a shop towel and slowly pry oid seal out.

INSTALLATION

Front oil seal

1. Install oil seal. (Refer to oil pump reassembly procedure.)

2. Install oil pump. (Refer to oil pump installation)

INSTALLATION

Rear oil seal

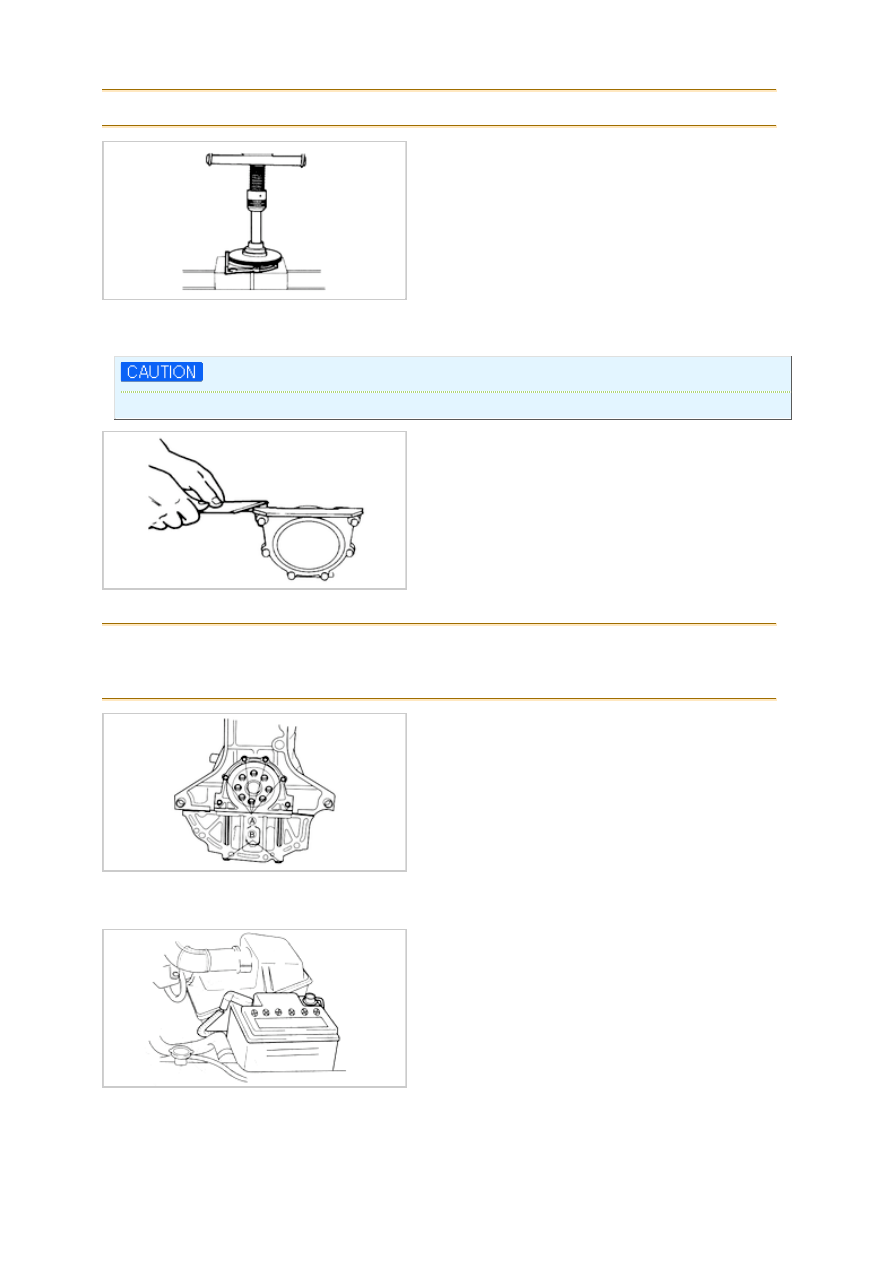

1. Apply engine oil to rear cover, oil seal and oil seal lip.

2. Press oil seal into rear cover.

Oil seal must be tapped in until is nearly flush with surface of rear cover.

Protrusion : 0~0.02in (0~0.5mm)

3. Cut away silicon sealer that has been squeezed out from rear cover assembly toward oil pan mounting

surface.

Do not scratch rear cover assembly.

4. Install rear cover.

Tightening torque :
(A) : 5.8~8.0lb·ft (7.8~10.8N·m, 0.8~1.1kg-m)
(B) : 29.7~40.5lb·ft (40.2~54.9N·m, 4.1~5.6kg-m)

5. Install flywheel and manual transaxle.

6. Connect negative battery cable.
