Kia Carens. Manual - part 55

  2001 > 1.8L DOHC >

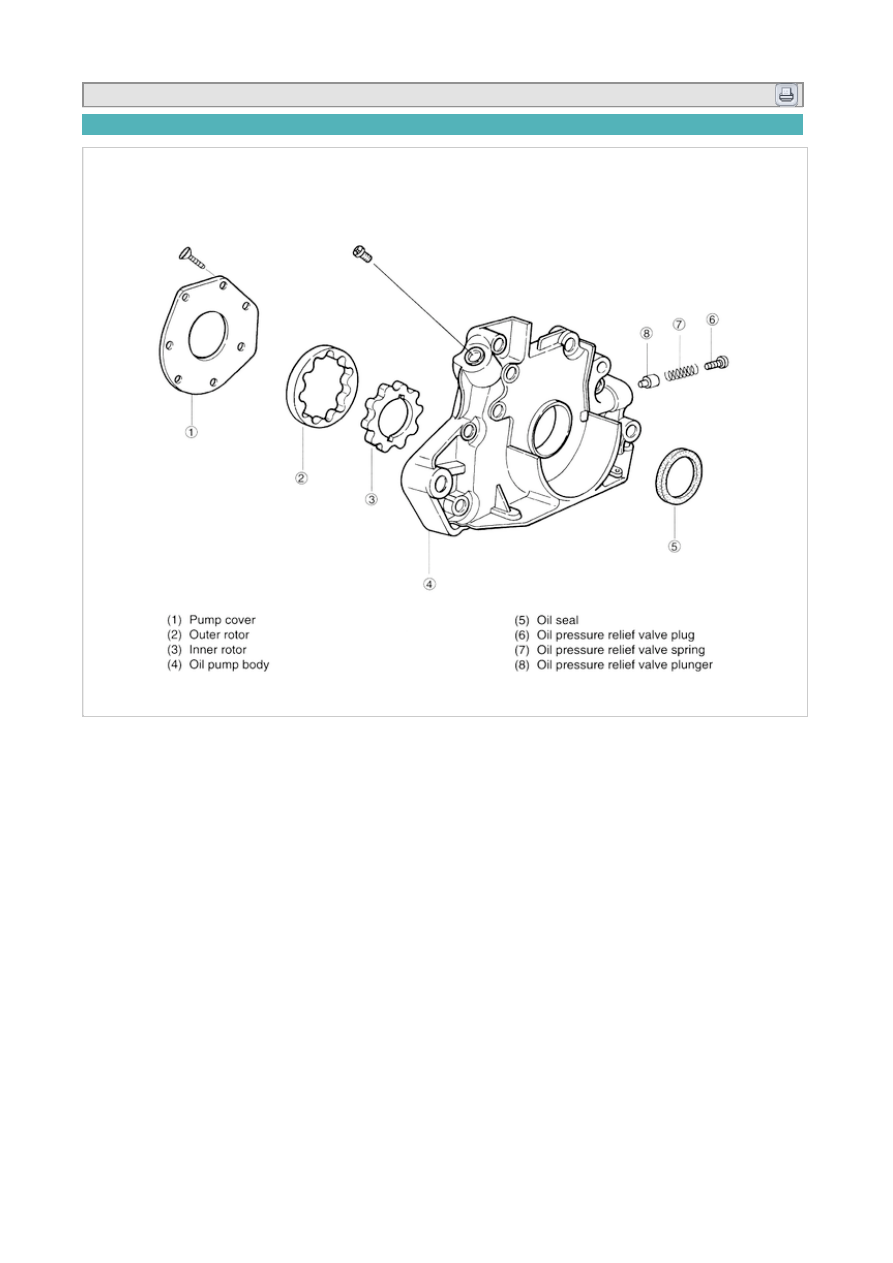

COMPONENT

  2001 > 1.8L DOHC >



REMOVAL

1. Disconnect negative battery cable.

2. Drain engine oil.

3. Remove timing belt.(Refer to timing belt removal)

4. Remove oil pan and oil strainer.

5. Remove generator.

6. Remove A/C compressor and A/C compressor bracket if equipped.

7. Remove crankshaft pulley lock bolt.

8. Remove timing belt pulley.

9. Remove oil pump mounting bolt.

10. Remove oil pump.

INSTALLATION

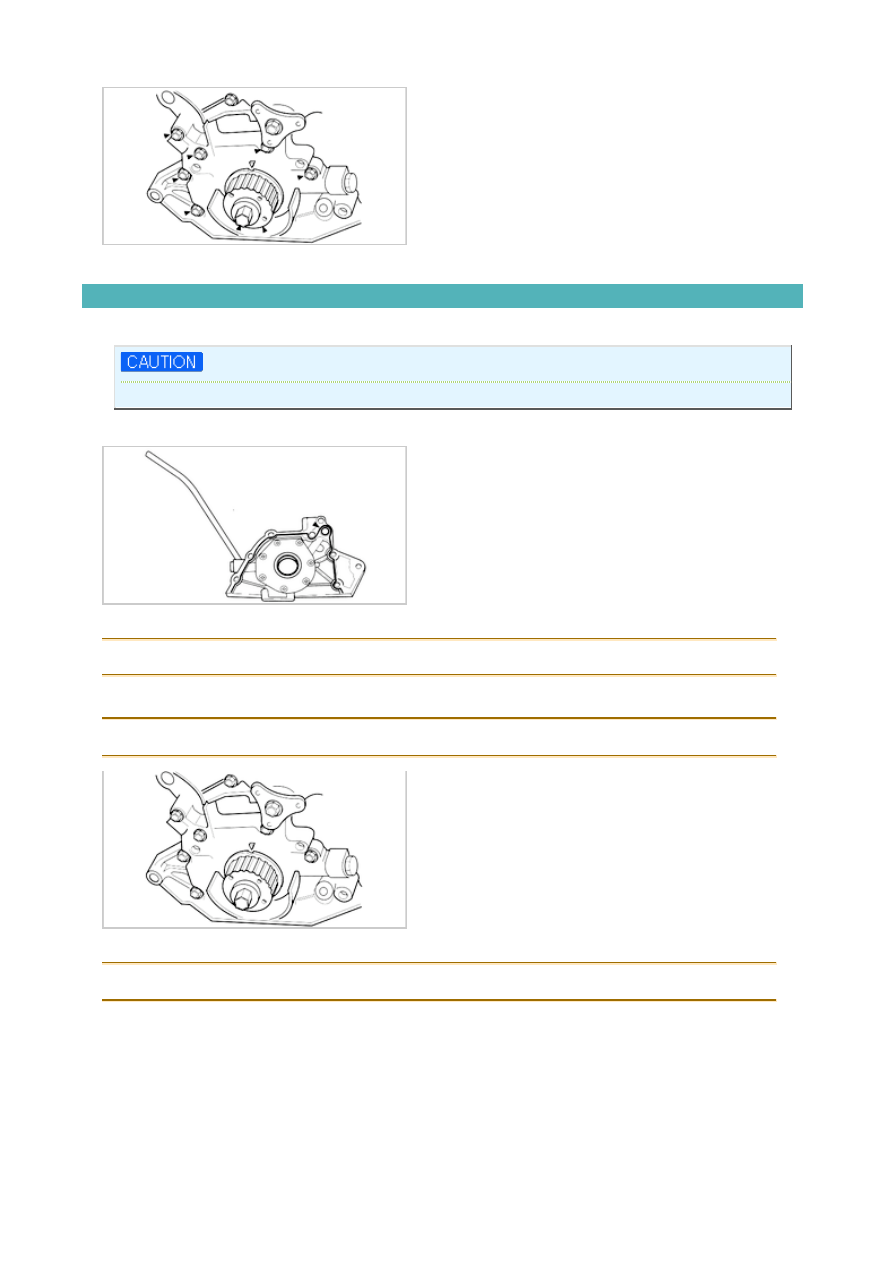

1. Apply a continuous bead of silcone sealant to oil pump sealing surface.

The oil pump must be installaed no longer than 5minutes after silicone sealant is applied.

2. Apply gease to a new O-ring and install it in oil pump.

3. Install oil pump.

Tightening torque : 14~19lb-ft (19~26N·m, 1.9~2.6kg-m)

4. Install timing belt pulley and crankshaft pulley lock bolt.

Tightening torque : 115.7~122.9lb-ft (158.8~166.6N·m, 16~17kg-m)

5. Install A/C compressor bracket and A/C compressor.

Tightening torque : A/C compressor mounting bolts : 28.2~38.3lb-ft (38.3~51.9N·m, 3.9~5.3kg-m)

6. Install generator.

Tightening torque :
(A) : 28~38lb-ft (37~52N·m, 3.8~5.3kg-m)
(B) : 14~19lb-ft (19~26N·m, 1.9~2.6kg-m)

7. Install oil strainer and oil pan. (Refer to oi pan replacement.)

8. Install timing belt.

9. Fill with specified amount and type of engine oil.

10. Connect negative battery cable.

11. Start engine and check for leaks.

12. Check oil level and add oil if necessary.

DISASSEMBLY

1. Remove oil seal using a screwdrive covered by a rag to protect sealing surface from pump cover side.

2. Remove seven screws and remove pump cover.
