3. Remove outer rotor and inner rotor.

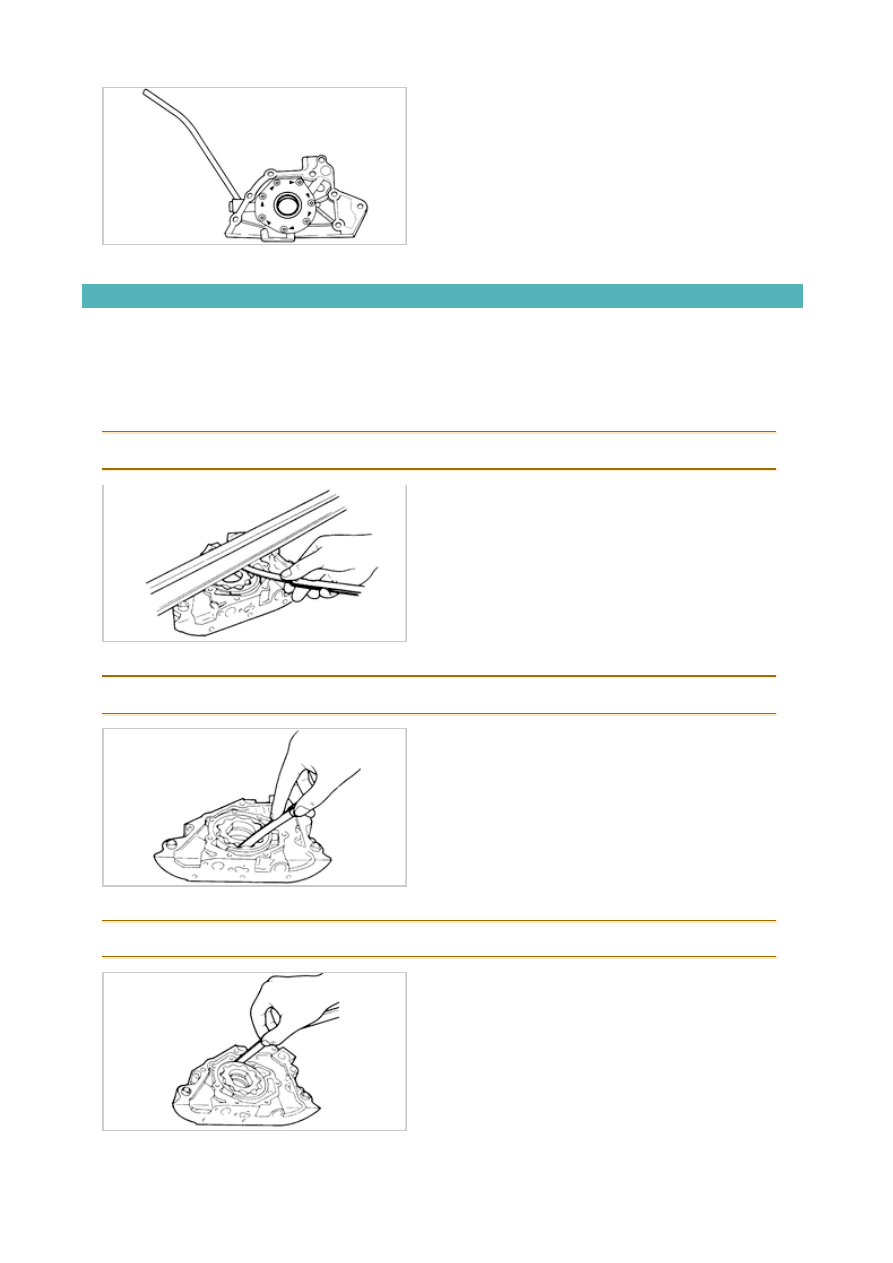

INSPECTION

1. Check the following and replace any faulty parts.

A. Distored or damaged oil punp body or cover.
B. Worn or damaged plunger.

C. Weak or broken plunger spring.

2. Measure side clearance.

Clearance : 0.0035in (0.09mm) max.

3. Measure tooth clearance.

Clearance : 0.007in (0.18mm) Max.

4. Measure outer rotor to pump body clearance.

Clearance : 0.015in (0.376mm) Max.

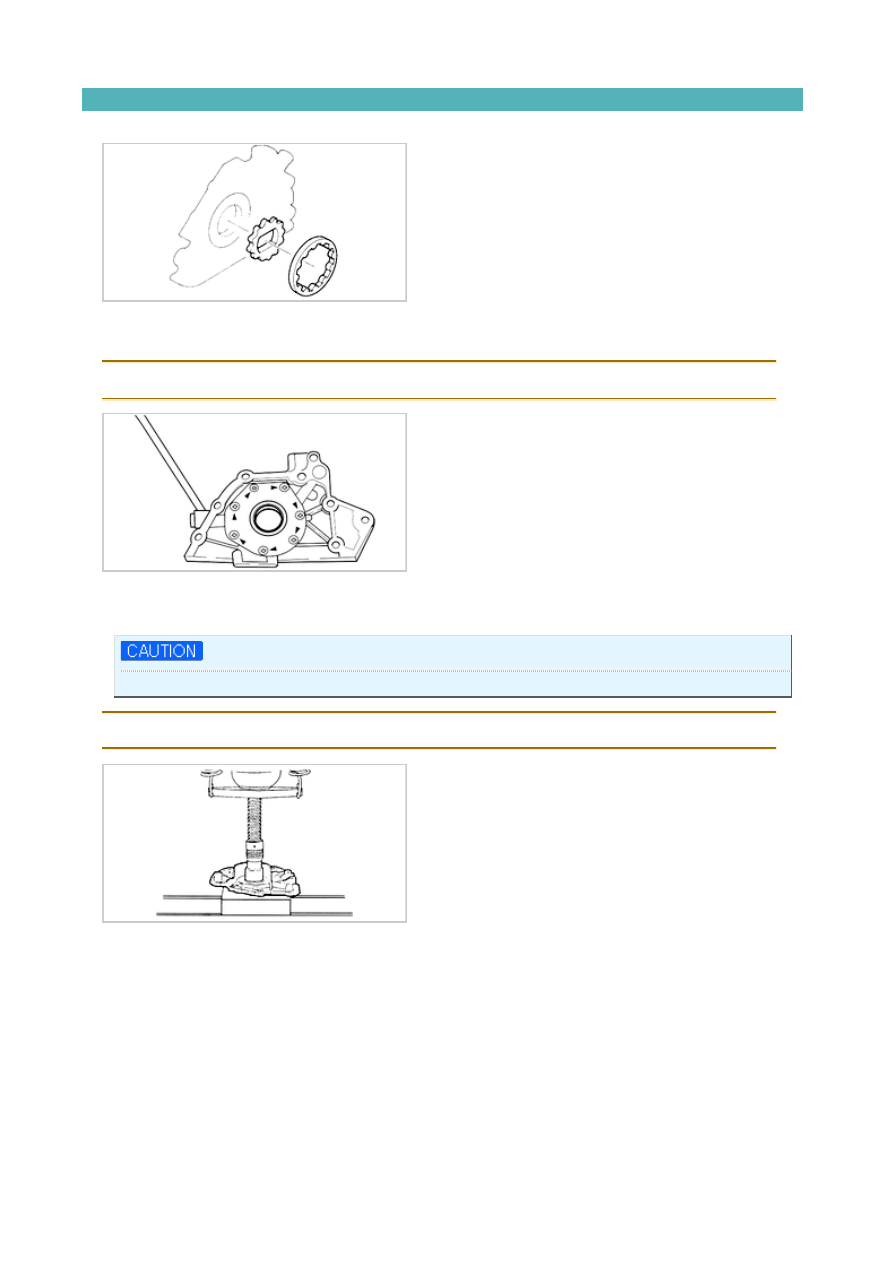

REASSEMBLY

1. Asemble outer rotor and inner rotor into oil pump body.

2. Apply thread locking compound to cover mounting screw threads.

3. Assemble oil pump cover to oil pump body.

Tightening torque : 4.3~6.5lb-ft (6~9N·m, 0.6~0.9kg-m)

4. Apply engine oil to outsode of new oil seal and oil pump body.

5. Press oil seal into pump body.

Oil seal must be pressed in until it is protruding with front face of oil pump body.

Protrusion : -0.02~0in (-0.5~0mm)

Engine Mechanical System

Lubrication System - Oil Filter

Engine Mechanical System

  2001 > 1.8L DOHC >



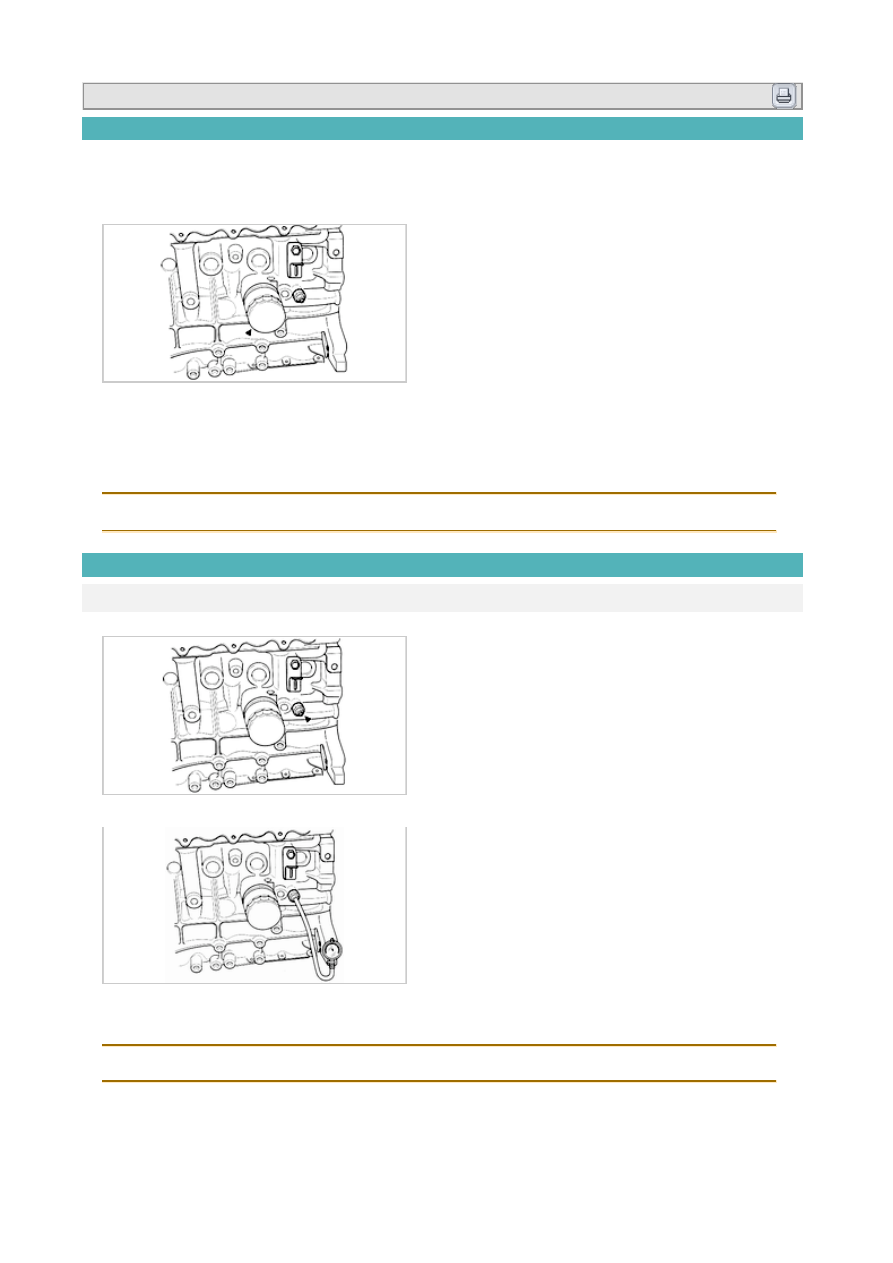

REPLACEMENT

1. Raise vehicle.

2. Remove oil filter with oil filter wrench. If rubber seal is stuck to engine remove it.

3. Apply a small amount of clean engine oil to rubber seal of new filter.

4. Install oil filter and turn it by hand until rubber seal contacts base.

5. Tighten filter 1-1/6 turns with filter wrench.

6. Start engine and check for leaks.

7. Turn engine off and wait 5 minutes. Check oil level and add oil necessary.

Oil filter capacity : 0.21US qt (0.2liters, 0.18lmp qt)

INSPECTION

Oil pressure check

1. Disconnect and remove oil pressure switch.

2. Install oil pressure gauge into oil pressure switch installation hole.

3. Warm engine to normal operating temperature.

4. Run engine at 3,000rpm and note gauge readings.

Oil pressure : 43~57psi (294~392kPa, 3.0~4.0kg/cm²)

5. If pressure is not within specification, check for cause and repair. (Refer to troubleshooting guide).
