Intel 64 and IA-32 Architectures. Software Developer’s Manual (Collection, 2023) - page 95
INSTRUCTION SET REFERENCE, V
VCVTUQQ2PD—Convert Packed Unsigned Quadword Integers to Packed Double Precision
Floating-Point Values
Opcode/
Op /
64/32
CPUID
Description
Instruction
En
bit Mode
Feature
Support
Flag
EVEX.128.F3.0F.W1 7A /r
A
V/V
AVX512VL
Convert two packed unsigned quadword integers from
VCVTUQQ2PD xmm1 {k1}{z},
AVX512DQ
xmm2/m128/m64bcst to two packed double precision
xmm2/m128/m64bcst
floating-point values in xmm1 with writemask k1.
EVEX.256.F3.0F.W1 7A /r
A
V/V
AVX512VL
Convert four packed unsigned quadword integers from
VCVTUQQ2PD ymm1 {k1}{z},
AVX512DQ
ymm2/m256/m64bcst to packed double precision floating-
ymm2/m256/m64bcst
point values in ymm1 with writemask k1.
EVEX.512.F3.0F.W1 7A /r
A
V/V
AVX512DQ
Convert eight packed unsigned quadword integers from
VCVTUQQ2PD zmm1 {k1}{z},
zmm2/m512/m64bcst to eight packed double precision
zmm2/m512/m64bcst{er}
floating-point values in zmm1 with writemask k1.
Instruction Operand Encoding
Op/En
Tuple Type
Operand 1
Operand 2
Operand 3
Operand 4
A
Full
ModRM:reg (w)
ModRM:r/m (r)
N/A
N/A
Description
Converts packed unsigned quadword integers in the source operand (second operand) to packed double precision
floating-point values in the destination operand (first operand).
The source operand is a ZMM/YMM/XMM register, a 512/256/128-bit memory location or a 512/256/128-bit vector
broadcasted from a 64-bit memory location. The destination operand is a ZMM/YMM/XMM register conditionally
updated with writemask k1.
Note: EVEX.vvvv is reserved and must be 1111b, otherwise instructions will #UD.
Operation
VCVTUQQ2PD (EVEX encoded version) when src operand is a register
(KL, VL) = (2, 128), (4, 256), (8, 512)
IF (VL == 512) AND (EVEX.b == 1)
THEN
SET_ROUNDING_MODE_FOR_THIS_INSTRUCTION(EVEX.RC);
ELSE
SET_ROUNDING_MODE_FOR_THIS_INSTRUCTION(MXCSR.RC);
FI;
FOR j := 0 TO KL-1
i := j * 64
IF k1[j] OR *no writemask*
THEN DEST[i+63:i] :=
Convert_UQuadInteger_To_Double_Precision_Floating_Point(SRC[i+63:i])
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+63:i] remains unchanged*
ELSE
; zeroing-masking
DEST[i+63:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:VL] := 0
VCVTUQQ2PD—Convert Packed Unsigned Quadword Integers to Packed Double Precision Floating-Point Values
Vol. 2C
5-127
INSTRUCTION SET REFERENCE, V
VCVTUQQ2PD (EVEX encoded version) when src operand is a memory source
(KL, VL) = (2, 128), (4, 256), (8, 512)
FOR j := 0 TO KL-1
i := j * 64
IF k1[j] OR *no writemask*
THEN
IF (EVEX.b == 1)
THEN
DEST[i+63:i] :=
Convert_UQuadInteger_To_Double_Precision_Floating_Point(SRC[63:0])
ELSE
DEST[i+63:i] :=
Convert_UQuadInteger_To_Double_Precision_Floating_Point(SRC[i+63:i])
FI;
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+63:i] remains unchanged*
ELSE
; zeroing-masking
DEST[i+63:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:VL] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VCVTUQQ2PD __m512d _mm512_cvtepu64_ps( __m512i a);
VCVTUQQ2PD __m512d _mm512_mask_cvtepu64_ps( __m512d s, __mmask8 k, __m512i a);
VCVTUQQ2PD __m512d _mm512_maskz_cvtepu64_ps( __mmask8 k, __m512i a);
VCVTUQQ2PD __m512d _mm512_cvt_roundepu64_ps( __m512i a, int r);
VCVTUQQ2PD __m512d _mm512_mask_cvt_roundepu64_ps( __m512d s, __mmask8 k, __m512i a, int r);
VCVTUQQ2PD __m512d _mm512_maskz_cvt_roundepu64_ps( __mmask8 k, __m512i a, int r);
VCVTUQQ2PD __m256d _mm256_cvtepu64_ps( __m256i a);
VCVTUQQ2PD __m256d _mm256_mask_cvtepu64_ps( __m256d s, __mmask8 k, __m256i a);
VCVTUQQ2PD __m256d _mm256_maskz_cvtepu64_ps( __mmask8 k, __m256i a);
VCVTUQQ2PD __m128d _mm_cvtepu64_ps( __m128i a);
VCVTUQQ2PD __m128d _mm_mask_cvtepu64_ps( __m128d s, __mmask8 k, __m128i a);
VCVTUQQ2PD __m128d _mm_maskz_cvtepu64_ps( __mmask8 k, __m128i a);
SIMD Floating-Point Exceptions
Precision
Other Exceptions
EVEX-encoded instructions, see Table 2-46, “Type E2 Class Exception Conditions.”
Additionally:
#UD
If EVEX.vvvv != 1111B.
5-128
Vol. 2C
VCVTUQQ2PD—Convert Packed Unsigned Quadword Integers to Packed Double Precision Floating-Point Values
INSTRUCTION SET REFERENCE, V
VCVTUQQ2PH—Convert Packed Unsigned Quadword Integers to Packed FP16 Values
Opcode/
Op/
64/32
CPUID Feature
Description
Instruction
En
bit Mode
Flag
Support
EVEX.128.F2.MAP5.W1 7A /r
A
V/V
AVX512-FP16
Convert two packed unsigned doubleword
VCVTUQQ2PH xmm1{k1}{z}, xmm2/
AVX512VL
integers from xmm2/m128/m64bcst to packed
m128/m64bcst
FP16 values, and store the result in xmm1
subject to writemask k1.
EVEX.256.F2.MAP5.W1 7A /r
A
V/V
AVX512-FP16
Convert four packed unsigned doubleword
VCVTUQQ2PH xmm1{k1}{z}, ymm2/
AVX512VL
integers from ymm2/m256/m64bcst to packed
m256/m64bcst
FP16 values, and store the result in xmm1
subject to writemask k1.
EVEX.512.F2.MAP5.W1 7A /r
A
V/V
AVX512-FP16
Convert eight packed unsigned doubleword
VCVTUQQ2PH xmm1{k1}{z}, zmm2/
integers from zmm2/m512/m64bcst to packed
m512/m64bcst {er}
FP16 values, and store the result in xmm1
subject to writemask k1.
Instruction Operand Encoding
Op/En
Tuple
Operand 1
Operand 2
Operand 3
Operand 4
A
Full
ModRM:reg (w)
ModRM:r/m (r)
N/A
N/A
Description
This instruction converts packed unsigned quadword integers in the source operand to packed FP16 values in the
destination operand. The destination elements are updated according to the writemask.
EVEX.vvvv is reserved and must be 1111b otherwise instructions will #UD.
If the result of the convert operation is overflow and MXCSR.OM=0 then a SIMD exception will be raised with OE=1,
PE=1.
Operation
VCVTUQQ2PH dest, src
VL = 128, 256 or 512
KL := VL / 64
IF *SRC is a register* and (VL = 512) AND (EVEX.b = 1):
SET_RM(EVEX.RC)
ELSE:
SET_RM(MXCSR.RC)
FOR j := 0 TO KL-1:
IF k1[j] OR *no writemask*:
IF *SRC is memory* and EVEX.b = 1:
tsrc := SRC.qword[0]
ELSE
tsrc := SRC.qword[j]
DEST.fp16[j] := Convert_unsigned_integer64_to_fp16(tsrc)
ELSE IF *zeroing*:
DEST.fp16[j] := 0
// else dest.fp16[j] remains unchanged
DEST[MAXVL-1:VL/4] := 0
VCVTUQQ2PH—Convert Packed Unsigned Quadword Integers to Packed FP16 Values
Vol. 2C
5-129
INSTRUCTION SET REFERENCE, V
Intel C/C++ Compiler Intrinsic Equivalent
VCVTUQQ2PH __m128h _mm512_cvt_roundepu64_ph (__m512i a, int rounding);
VCVTUQQ2PH __m128h _mm512_mask_cvt_roundepu64_ph (__m128h src, __mmask8 k, __m512i a, int rounding);
VCVTUQQ2PH __m128h _mm512_maskz_cvt_roundepu64_ph (__mmask8 k, __m512i a, int rounding);
VCVTUQQ2PH __m128h _mm_cvtepu64_ph (__m128i a);
VCVTUQQ2PH __m128h _mm_mask_cvtepu64_ph (__m128h src, __mmask8 k, __m128i a);
VCVTUQQ2PH __m128h _mm_maskz_cvtepu64_ph (__mmask8 k, __m128i a);
VCVTUQQ2PH __m128h _mm256_cvtepu64_ph (__m256i a);
VCVTUQQ2PH __m128h _mm256_mask_cvtepu64_ph (__m128h src, __mmask8 k, __m256i a);
VCVTUQQ2PH __m128h _mm256_maskz_cvtepu64_ph (__mmask8 k, __m256i a);
VCVTUQQ2PH __m128h _mm512_cvtepu64_ph (__m512i a);
VCVTUQQ2PH __m128h _mm512_mask_cvtepu64_ph (__m128h src, __mmask8 k, __m512i a);
VCVTUQQ2PH __m128h _mm512_maskz_cvtepu64_ph (__mmask8 k, __m512i a);
SIMD Floating-Point Exceptions
Overflow, Precision
Other Exceptions
EVEX-encoded instructions, see Table 2-46, “Type E2 Class Exception Conditions.”
5-130
Vol. 2C
VCVTUQQ2PH—Convert Packed Unsigned Quadword Integers to Packed FP16 Values
INSTRUCTION SET REFERENCE, V
VCVTUSI2SH—Convert Unsigned Doubleword Integer to an FP16 Value
Opcode/
Op/
64/32
CPUID Feature
Description
Instruction
En
bit Mode
Flag
Support
EVEX.LLIG.F3.MAP5.W0 7B /r
A
V/V1
AVX512-FP16
Convert an unsigned doubleword integer from
VCVTUSI2SH xmm1, xmm2, r32/m32
r32/m32 to an FP16 value, and store the result in
{er}
xmm1. Bits 127:16 from xmm2 are copied to
xmm1[127:16].
EVEX.LLIG.F3.MAP5.W1 7B /r
A
V/N.E.
AVX512-FP16
Convert an unsigned quadword integer from r64/
VCVTUSI2SH xmm1, xmm2, r64/m64
m64 to an FP16 value, and store the result in
{er}
xmm1. Bits 127:16 from xmm2 are copied to
xmm1[127:16].
NOTES:
1. Outside of 64b mode, the EVEX.W field is ignored. The instruction behaves as if W=0 was used.
Instruction Operand Encoding
Op/En
Tuple
Operand 1
Operand 2
Operand 3
Operand 4
A
Scalar
ModRM:reg (w)
VEX.vvvv (r)
ModRM:r/m (r)
N/A
Description
This instruction converts an unsigned doubleword integer (or unsigned quadword integer if operand size is 64 bits)
in the second source operand to a FP16 value in the destination operand. The result is stored in the low word of the
destination operand. When conversion is inexact, the value returned is rounded according to the rounding control
bits in the MXCSR register or embedded rounding controls.
The second source operand can be a general-purpose register or a 32/64-bit memory location. The first source and
destination operands are XMM registers. Bits 127:16 of the XMM register destination are copied from corre-
sponding bits in the first source operand. Bits MAXVL-1:128 of the destination register are zeroed.
If the result of the convert operation is overflow and MXCSR.OM=0 then a SIMD exception will be raised with OE=1,
PE=1.
Operation
VCVTUSI2SH dest, src1, src2
IF *SRC2 is a register* and (EVEX.b = 1):
SET_RM(EVEX.RC)
ELSE:
SET_RM(MXCSR.RC)
IF 64-mode and OperandSize == 64:
DEST.fp16[0] := Convert_unsigned_integer64_to_fp16(SRC2.qword)
ELSE:
DEST.fp16[0] := Convert_unsigned_integer32_to_fp16(SRC2.dword)
DEST[127:16] := SRC1[127:16]
DEST[MAXVL-1:128] := 0
VCVTUSI2SH—Convert Unsigned Doubleword Integer to an FP16 Value
Vol. 2C
5-131
INSTRUCTION SET REFERENCE, V
Intel C/C++ Compiler Intrinsic Equivalent
VCVTUSI2SH __m128h _mm_cvt_roundu32_sh (__m128h a, unsigned int b, int rounding);
VCVTUSI2SH __m128h _mm_cvt_roundu64_sh (__m128h a, unsigned __int64 b, int rounding);
VCVTUSI2SH __m128h _mm_cvtu32_sh (__m128h a, unsigned int b);
VCVTUSI2SH __m128h _mm_cvtu64_sh (__m128h a, unsigned __int64 b);
SIMD Floating-Point Exceptions
Overflow, Precision
Other Exceptions
EVEX-encoded instructions, see Table 2-48, “Type E3NF Class Exception Conditions.”
5-132
Vol. 2C
VCVTUSI2SH—Convert Unsigned Doubleword Integer to an FP16 Value
INSTRUCTION SET REFERENCE, V
VCVTUQQ2PS—Convert Packed Unsigned Quadword Integers to Packed Single Precision
Floating-Point Values
Opcode/
Op /
64/32
CPUID
Description
Instruction
En
bit Mode
Feature
Support
Flag
EVEX.128.F2.0F.W1 7A /r
A
V/V
AVX512VL
Convert two packed unsigned quadword integers from
VCVTUQQ2PS xmm1 {k1}{z},
AVX512DQ
xmm2/m128/m64bcst to packed single precision floating-
xmm2/m128/m64bcst
point values in zmm1 with writemask k1.
EVEX.256.F2.0F.W1 7A /r
A
V/V
AVX512VL
Convert four packed unsigned quadword integers from
VCVTUQQ2PS xmm1 {k1}{z},
AVX512DQ
ymm2/m256/m64bcst to packed single precision floating-
ymm2/m256/m64bcst
point values in xmm1 with writemask k1.
EVEX.512.F2.0F.W1 7A /r
A
V/V
AVX512DQ
Convert eight packed unsigned quadword integers from
VCVTUQQ2PS ymm1 {k1}{z},
zmm2/m512/m64bcst to eight packed single precision
zmm2/m512/m64bcst{er}
floating-point values in zmm1 with writemask k1.
Instruction Operand Encoding
Op/En
Tuple Type
Operand 1
Operand 2
Operand 3
Operand 4
A
Full
ModRM:reg (w)
ModRM:r/m (r)
N/A
N/A
Description
Converts packed unsigned quadword integers in the source operand (second operand) to single precision floating-
point values in the destination operand (first operand).
EVEX encoded versions: The source operand is a ZMM/YMM/XMM register or a 512/256/128-bit memory location.
The destination operand is a YMM/XMM/XMM (low 64 bits) register conditionally updated with writemask k1.
Note: EVEX.vvvv is reserved and must be 1111b, otherwise instructions will #UD.
Operation
VCVTUQQ2PS (EVEX encoded version) when src operand is a register
(KL, VL) = (2, 128), (4, 256), (8, 512)
IF (VL = 512) AND (EVEX.b = 1)
THEN
SET_ROUNDING_MODE_FOR_THIS_INSTRUCTION(EVEX.RC);
ELSE
SET_ROUNDING_MODE_FOR_THIS_INSTRUCTION(MXCSR.RC);
FI;
FOR j := 0 TO KL-1
i := j * 32
k := j * 64
IF k1[j] OR *no writemask*
THEN DEST[i+31:i] :=
Convert_UQuadInteger_To_Single_Precision_Floating_Point(SRC[k+63:k])
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+31:i] remains unchanged*
ELSE
; zeroing-masking
DEST[i+31:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:VL/2] := 0
VCVTUQQ2PS—Convert Packed Unsigned Quadword Integers to Packed Single Precision Floating-Point Values
Vol. 2C
5-133
INSTRUCTION SET REFERENCE, V
VCVTUQQ2PS (EVEX encoded version) when src operand is a memory source
(KL, VL) = (2, 128), (4, 256), (8, 512)
FOR j := 0 TO KL-1
i := j * 32
k := j * 64
IF k1[j] OR *no writemask*
THEN
IF (EVEX.b = 1)
THEN
DEST[i+31:i] :=
Convert_UQuadInteger_To_Single_Precision_Floating_Point(SRC[63:0])
ELSE
DEST[i+31:i] :=
Convert_UQuadInteger_To_Single_Precision_Floating_Point(SRC[k+63:k])
FI;
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+31:i] remains unchanged*
ELSE
; zeroing-masking
DEST[i+31:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:VL/2] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VCVTUQQ2PS __m256 _mm512_cvtepu64_ps( __m512i a);
VCVTUQQ2PS __m256 _mm512_mask_cvtepu64_ps( __m256 s, __mmask8 k, __m512i a);
VCVTUQQ2PS __m256 _mm512_maskz_cvtepu64_ps( __mmask8 k, __m512i a);
VCVTUQQ2PS __m256 _mm512_cvt_roundepu64_ps( __m512i a, int r);
VCVTUQQ2PS __m256 _mm512_mask_cvt_roundepu64_ps( __m256 s, __mmask8 k, __m512i a, int r);
VCVTUQQ2PS __m256 _mm512_maskz_cvt_roundepu64_ps( __mmask8 k, __m512i a, int r);
VCVTUQQ2PS __m128 _mm256_cvtepu64_ps( __m256i a);
VCVTUQQ2PS __m128 _mm256_mask_cvtepu64_ps( __m128 s, __mmask8 k, __m256i a);
VCVTUQQ2PS __m128 _mm256_maskz_cvtepu64_ps( __mmask8 k, __m256i a);
VCVTUQQ2PS __m128 _mm_cvtepu64_ps( __m128i a);
VCVTUQQ2PS __m128 _mm_mask_cvtepu64_ps( __m128 s, __mmask8 k, __m128i a);
VCVTUQQ2PS __m128 _mm_maskz_cvtepu64_ps( __mmask8 k, __m128i a);
SIMD Floating-Point Exceptions
Precision
Other Exceptions
EVEX-encoded instructions, see Table 2-46, “Type E2 Class Exception Conditions.”
Additionally:
#UD
If EVEX.vvvv != 1111B.
5-134
Vol. 2C
VCVTUQQ2PS—Convert Packed Unsigned Quadword Integers to Packed Single Precision Floating-Point Values
INSTRUCTION SET REFERENCE, V
VCVTUSI2SD—Convert Unsigned Integer to Scalar Double Precision Floating-Point Value
Opcode/
Op /
64/32
CPUID
Description
Instruction
En
bit Mode
Feature
Support
Flag
EVEX.LLIG.F2.0F.W0 7B /r
A
V/V
AVX512F
Convert one unsigned doubleword integer from
VCVTUSI2SD xmm1, xmm2, r/m32
r/m32 to one double precision floating-point value in
xmm1.
EVEX.LLIG.F2.0F.W1 7B /r
A
V/N.E.1
AVX512F
Convert one unsigned quadword integer from r/m64
VCVTUSI2SD xmm1, xmm2, r/m64{er}
to one double precision floating-point value in xmm1.
NOTES:
1. For this specific instruction, EVEX.W in non-64 bit is ignored; the instruction behaves as if the W0 version is used.
Instruction Operand Encoding
Op/En
Tuple Type
Operand 1
Operand 2
Operand 3
Operand 4
A
Tuple1 Scalar
ModRM:reg (w)
EVEX.vvvv (r)
ModRM:r/m (r)
N/A
Description
Converts an unsigned doubleword integer (or unsigned quadword integer if operand size is 64 bits) in the second
source operand to a double precision floating-point value in the destination operand. The result is stored in the low
quadword of the destination operand. When conversion is inexact, the value returned is rounded according to the
rounding control bits in the MXCSR register.
The second source operand can be a general-purpose register or a 32/64-bit memory location. The first source and
destination operands are XMM registers. Bits (127:64) of the XMM register destination are copied from corre-
sponding bits in the first source operand. Bits (MAXVL-1:128) of the destination register are zeroed.
EVEX.W1 version: promotes the instruction to use 64-bit input value in 64-bit mode.
EVEX.W0 version: attempt to encode this instruction with EVEX embedded rounding is ignored.
Operation
VCVTUSI2SD (EVEX encoded version)
IF (SRC2 *is register*) AND (EVEX.b = 1)
THEN
SET_ROUNDING_MODE_FOR_THIS_INSTRUCTION(EVEX.RC);
ELSE
SET_ROUNDING_MODE_FOR_THIS_INSTRUCTION(MXCSR.RC);
FI;
IF 64-Bit Mode And OperandSize = 64
THEN
DEST[63:0] := Convert_UInteger_To_Double_Precision_Floating_Point(SRC2[63:0]);
ELSE
DEST[63:0] := Convert_UInteger_To_Double_Precision_Floating_Point(SRC2[31:0]);
FI;
DEST[127:64] := SRC1[127:64]
DEST[MAXVL-1:128] := 0
VCVTUSI2SD—Convert Unsigned Integer to Scalar Double Precision Floating-Point Value
Vol. 2C
5-135
INSTRUCTION SET REFERENCE, V
Intel C/C++ Compiler Intrinsic Equivalent
VCVTUSI2SD __m128d _mm_cvtu32_sd( __m128d s, unsigned a);
VCVTUSI2SD __m128d _mm_cvtu64_sd( __m128d s, unsigned __int64 a);
VCVTUSI2SD __m128d _mm_cvt_roundu64_sd( __m128d s, unsigned __int64 a, int r);
SIMD Floating-Point Exceptions
Precision
Other Exceptions
See Table 2-48, “Type E3NF Class Exception Conditions” if W1; otherwise, see Table 2-59, “Type E10NF Class
Exception Conditions.”
5-136
Vol. 2C
VCVTUSI2SD—Convert Unsigned Integer to Scalar Double Precision Floating-Point Value
INSTRUCTION SET REFERENCE, V
VCVTUSI2SS—Convert Unsigned Integer to Scalar Single Precision Floating-Point Value
Opcode/
Op /
64/32
CPUID
Description
Instruction
En
bit Mode
Feature
Support
Flag
EVEX.LLIG.F3.0F.W0 7B /r
A
V/V
AVX512F
Convert one signed doubleword integer from r/m32 to
VCVTUSI2SS xmm1, xmm2, r/m32{er}
one single precision floating-point value in xmm1.
EVEX.LLIG.F3.0F.W1 7B /r
A
V/N.E.1
AVX512F
Convert one signed quadword integer from r/m64 to
VCVTUSI2SS xmm1, xmm2, r/m64{er}
one single precision floating-point value in xmm1.
NOTES:
1. For this specific instruction, EVEX.W in non-64 bit is ignored; the instruction behaves as if the W0 version is used.
Instruction Operand Encoding
Op/En
Tuple Type
Operand 1
Operand 2
Operand 3
Operand 4
A
Tuple1 Scalar
ModRM:reg (w)
VEX.vvvv (r)
ModRM:r/m (r)
N/A
Description
Converts a unsigned doubleword integer (or unsigned quadword integer if operand size is 64 bits) in the source
operand (second operand) to a single precision floating-point value in the destination operand (first operand). The
source operand can be a general-purpose register or a memory location. The destination operand is an XMM
register. The result is stored in the low doubleword of the destination operand. When a conversion is inexact, the
value returned is rounded according to the rounding control bits in the MXCSR register or the embedded rounding
control bits.
The second source operand can be a general-purpose register or a 32/64-bit memory location. The first source and
destination operands are XMM registers. Bits (127:32) of the XMM register destination are copied from corre-
sponding bits in the first source operand. Bits (MAXVL-1:128) of the destination register are zeroed.
EVEX.W1 version: promotes the instruction to use 64-bit input value in 64-bit mode.
Operation
VCVTUSI2SS (EVEX encoded version)
IF (SRC2 *is register*) AND (EVEX.b = 1)
THEN
SET_ROUNDING_MODE_FOR_THIS_INSTRUCTION(EVEX.RC);
ELSE
SET_ROUNDING_MODE_FOR_THIS_INSTRUCTION(MXCSR.RC);
FI;
IF 64-Bit Mode And OperandSize = 64
THEN
DEST[31:0] := Convert_UInteger_To_Single_Precision_Floating_Point(SRC[63:0]);
ELSE
DEST[31:0] := Convert_UInteger_To_Single_Precision_Floating_Point(SRC[31:0]);
FI;
DEST[127:32] := SRC1[127:32]
DEST[MAXVL-1:128] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VCVTUSI2SS __m128 _mm_cvtu32_ss( __m128 s, unsigned a);
VCVTUSI2SS __m128 _mm_cvt_roundu32_ss( __m128 s, unsigned a, int r);
VCVTUSI2SS __m128 _mm_cvtu64_ss( __m128 s, unsigned __int64 a);
VCVTUSI2SS __m128 _mm_cvt_roundu64_ss( __m128 s, unsigned __int64 a, int r);
VCVTUSI2SS—Convert Unsigned Integer to Scalar Single Precision Floating-Point Value
Vol. 2C
5-137
INSTRUCTION SET REFERENCE, V
SIMD Floating-Point Exceptions
Precision
Other Exceptions
See Table 2-48, “Type E3NF Class Exception Conditions.”
5-138
Vol. 2C
VCVTUSI2SS—Convert Unsigned Integer to Scalar Single Precision Floating-Point Value
INSTRUCTION SET REFERENCE, V
VCVTUW2PH—Convert Packed Unsigned Word Integers to FP16 Values
Opcode/
Op/
64/32
CPUID Feature
Description
Instruction
En
bit Mode
Flag
Support
EVEX.128.F2.MAP5.W0 7D /r
A
V/V
AVX512-FP16
Convert eight packed unsigned word integers
VCVTUW2PH xmm1{k1}{z}, xmm2/
AVX512VL
from xmm2/m128/m16bcst to FP16 values, and
m128/m16bcst
store the result in xmm1 subject to writemask k1.
EVEX.256.F2.MAP5.W0 7D /r
A
V/V
AVX512-FP16
Convert sixteen packed unsigned word integers
VCVTUW2PH ymm1{k1}{z}, ymm2/
AVX512VL
from ymm2/m256/m16bcst to FP16 values, and
m256/m16bcst
store the result in ymm1 subject to writemask k1.
EVEX.512.F2.MAP5.W0 7D /r
A
V/V
AVX512-FP16
Convert thirty-two packed unsigned word
VCVTUW2PH zmm1{k1}{z}, zmm2/
integers from zmm2/m512/m16bcst to FP16
m512/m16bcst {er}
values, and store the result in zmm1 subject to
writemask k1.
Instruction Operand Encoding
Op/En
Tuple
Operand 1
Operand 2
Operand 3
Operand 4
A
Full
ModRM:reg (w)
ModRM:r/m (r)
N/A
N/A
Description
This instruction converts packed unsigned word integers in the source operand to FP16 values in the destination
operand. When conversion is inexact, the value returned is rounded according to the rounding control bits in the
MXCSR register or embedded rounding controls.
The destination elements are updated according to the writemask.
If the result of the convert operation is overflow and MXCSR.OM=0 then a SIMD exception will be raised with OE=1,
PE=1.
Operation
VCVTUW2PH dest, src
VL = 128, 256 or 512
KL := VL / 16
IF *SRC is a register* and (VL = 512) AND (EVEX.b = 1):
SET_RM(EVEX.RC)
ELSE:
SET_RM(MXCSR.RC)
FOR j := 0 TO KL-1:
IF k1[j] OR *no writemask*:
IF *SRC is memory* and EVEX.b = 1:
tsrc := SRC.word[0]
ELSE
tsrc := SRC.word[j]
DEST.fp16[j] := Convert_unsignd_integer16_to_fp16(tsrc)
ELSE IF *zeroing*:
DEST.fp16[j] := 0
// else dest.fp16[j] remains unchanged
DEST[MAXVL-1:VL] := 0
VCVTUW2PH—Convert Packed Unsigned Word Integers to FP16 Values
Vol. 2C
5-139
INSTRUCTION SET REFERENCE, V
Intel C/C++ Compiler Intrinsic Equivalent
VCVTUW2PH __m512h _mm512_cvt_roundepu16_ph (__m512i a, int rounding);
VCVTUW2PH __m512h _mm512_mask_cvt_roundepu16_ph (__m512h src, __mmask32 k, __m512i a, int rounding);
VCVTUW2PH __m512h _mm512_maskz_cvt_roundepu16_ph (__mmask32 k, __m512i a, int rounding);
VCVTUW2PH __m128h _mm_cvtepu16_ph (__m128i a);
VCVTUW2PH __m128h _mm_mask_cvtepu16_ph (__m128h src, __mmask8 k, __m128i a);
VCVTUW2PH __m128h _mm_maskz_cvtepu16_ph (__mmask8 k, __m128i a);
VCVTUW2PH __m256h _mm256_cvtepu16_ph (__m256i a);
VCVTUW2PH __m256h _mm256_mask_cvtepu16_ph (__m256h src, __mmask16 k, __m256i a);
VCVTUW2PH __m256h _mm256_maskz_cvtepu16_ph (__mmask16 k, __m256i a);
VCVTUW2PH __m512h _mm512_cvtepu16_ph (__m512i a);
VCVTUW2PH __m512h _mm512_mask_cvtepu16_ph (__m512h src, __mmask32 k, __m512i a);
VCVTUW2PH __m512h _mm512_maskz_cvtepu16_ph (__mmask32 k, __m512i a);
SIMD Floating-Point Exceptions
Overflow, Precision
Other Exceptions
EVEX-encoded instructions, see Table 2-46, “Type E2 Class Exception Conditions.”
5-140
Vol. 2C
VCVTUW2PH—Convert Packed Unsigned Word Integers to FP16 Values
INSTRUCTION SET REFERENCE, V
VCVTW2PH—Convert Packed Signed Word Integers to FP16 Values
Opcode/
Op/
64/32
CPUID Feature
Description
Instruction
En
bit Mode
Flag
Support
EVEX.128.F3.MAP5.W0 7D /r
A
V/V
AVX512-FP16
Convert eight packed signed word integers from
VCVTW2PH xmm1{k1}{z}, xmm2/
AVX512VL
xmm2/m128/m16bcst to FP16 values, and store
m128/m16bcst
the result in xmm1 subject to writemask k1.
EVEX.256.F3.MAP5.W0 7D /r
A
V/V
AVX512-FP16
Convert sixteen packed signed word integers
VCVTW2PH ymm1{k1}{z}, ymm2/
AVX512VL
from ymm2/m256/m16bcst to FP16 values, and
m256/m16bcst
store the result in ymm1 subject to writemask k1.
EVEX.512.F3.MAP5.W0 7D /r
A
V/V
AVX512-FP16
Convert thirty-two packed signed word integers
VCVTW2PH zmm1{k1}{z}, zmm2/
from zmm2/m512/m16bcst to FP16 values, and
m512/m16bcst {er}
store the result in zmm1 subject to writemask k1.
Instruction Operand Encoding
Op/En
Tuple
Operand 1
Operand 2
Operand 3
Operand 4
A
Full
ModRM:reg (w)
ModRM:r/m (r)
N/A
N/A
Description
This instruction converts packed signed word integers in the source operand to FP16 values in the destination
operand. When conversion is inexact, the value returned is rounded according to the rounding control bits in the
MXCSR register or embedded rounding controls.
The destination elements are updated according to the writemask.
Operation
VCVTW2PH dest, src
VL = 128, 256 or 512
KL := VL / 16
IF *SRC is a register* and (VL = 512) AND (EVEX.b = 1):
SET_RM(EVEX.RC)
ELSE:
SET_RM(MXCSR.RC)
FOR j := 0 TO KL-1:
IF k1[j] OR *no writemask*:
IF *SRC is memory* and EVEX.b = 1:
tsrc := SRC.word[0]
ELSE
tsrc := SRC.word[j]
DEST.fp16[j] := Convert_integer16_to_fp16(tsrc)
ELSE IF *zeroing*:
DEST.fp16[j] := 0
// else dest.fp16[j] remains unchanged
DEST[MAXVL-1:VL] := 0
VCVTW2PH—Convert Packed Signed Word Integers to FP16 Values
Vol. 2C
5-141
INSTRUCTION SET REFERENCE, V
Intel C/C++ Compiler Intrinsic Equivalent
VCVTW2PH __m512h _mm512_cvt_roundepi16_ph (__m512i a, int rounding);
VCVTW2PH __m512h _mm512_mask_cvt_roundepi16_ph (__m512h src, __mmask32 k, __m512i a, int rounding);
VCVTW2PH __m512h _mm512_maskz_cvt_roundepi16_ph (__mmask32 k, __m512i a, int rounding);
VCVTW2PH __m128h _mm_cvtepi16_ph (__m128i a);
VCVTW2PH __m128h _mm_mask_cvtepi16_ph (__m128h src, __mmask8 k, __m128i a);
VCVTW2PH __m128h _mm_maskz_cvtepi16_ph (__mmask8 k, __m128i a);
VCVTW2PH __m256h _mm256_cvtepi16_ph (__m256i a);
VCVTW2PH __m256h _mm256_mask_cvtepi16_ph (__m256h src, __mmask16 k, __m256i a);
VCVTW2PH __m256h _mm256_maskz_cvtepi16_ph (__mmask16 k, __m256i a);
VCVTW2PH __m512h _mm512_cvtepi16_ph (__m512i a);
VCVTW2PH __m512h _mm512_mask_cvtepi16_ph (__m512h src, __mmask32 k, __m512i a);
VCVTW2PH __m512h _mm512_maskz_cvtepi16_ph (__mmask32 k, __m512i a);
SIMD Floating-Point Exceptions
Precision
Other Exceptions
EVEX-encoded instructions, see Table 2-46, “Type E2 Class Exception Conditions.”
5-142
Vol. 2C
VCVTW2PH—Convert Packed Signed Word Integers to FP16 Values
INSTRUCTION SET REFERENCE, V
VDBPSADBW—Double Block Packed Sum-Absolute-Differences (SAD) on Unsigned Bytes
Opcode/
Op /
64/32
CPUID
Description
Instruction
En
bit Mode
Feature
Support
Flag
EVEX.128.66.0F3A.W0 42 /r ib
A
V/V
AVX512VL
Compute packed SAD word results of unsigned bytes in
VDBPSADBW xmm1 {k1}{z}, xmm2,
AVX512BW
dword block from xmm2 with unsigned bytes of dword
xmm3/m128, imm8
blocks transformed from xmm3/m128 using the shuffle
controls in imm8. Results are written to xmm1 under the
writemask k1.
EVEX.256.66.0F3A.W0 42 /r ib
A
V/V
AVX512VL
Compute packed SAD word results of unsigned bytes in
VDBPSADBW ymm1 {k1}{z}, ymm2,
AVX512BW
dword block from ymm2 with unsigned bytes of dword
ymm3/m256, imm8
blocks transformed from ymm3/m256 using the shuffle
controls in imm8. Results are written to ymm1 under the
writemask k1.
EVEX.512.66.0F3A.W0 42 /r ib
A
V/V
AVX512BW
Compute packed SAD word results of unsigned bytes in
VDBPSADBW zmm1 {k1}{z}, zmm2,
dword block from zmm2 with unsigned bytes of dword
zmm3/m512, imm8
blocks transformed from zmm3/m512 using the shuffle
controls in imm8. Results are written to zmm1 under the
writemask k1.
Instruction Operand Encoding
Op/En
Tuple Type
Operand 1
Operand 2
Operand 3
Operand 4
A
Full Mem
ModRM:reg (w)
EVEX.vvvv (r)
ModRM:r/m (r)
imm8
Description
Compute packed SAD (sum of absolute differences) word results of unsigned bytes from two 32-bit dword
elements. Packed SAD word results are calculated in multiples of qword superblocks, producing 4 SAD word results
in each 64-bit superblock of the destination register.
Within each super block of packed word results, the SAD results from two 32-bit dword elements are calculated as
follows:
• The lower two word results are calculated each from the SAD operation between a sliding dword element within
a qword superblock from an intermediate vector with a stationary dword element in the corresponding qword
superblock of the first source operand. The intermediate vector, see “Tmp1” in Figure 5-8, is constructed from
the second source operand the imm8 byte as shuffle control to select dword elements within a 128-bit lane of
the second source operand. The two sliding dword elements in a qword superblock of Tmp1 are located at byte
offset 0 and 1 within the superblock, respectively. The stationary dword element in the qword superblock from
the first source operand is located at byte offset 0.
• The next two word results are calculated each from the SAD operation between a sliding dword element within
a qword superblock from the intermediate vector Tmp1 with a second stationary dword element in the corre-
sponding qword superblock of the first source operand. The two sliding dword elements in a qword superblock
of Tmp1 are located at byte offset 2and 3 within the superblock, respectively. The stationary dword element in
the qword superblock from the first source operand is located at byte offset 4.
• The intermediate vector is constructed in 128-bits lanes. Within each 128-bit lane, each dword element of the
intermediate vector is selected by a two-bit field within the imm8 byte on the corresponding 128-bits of the
second source operand. The imm8 byte serves as dword shuffle control within each 128-bit lanes of the inter-
mediate vector and the second source operand, similarly to PSHUFD.
The first source operand is a ZMM/YMM/XMM register. The second source operand is a ZMM/YMM/XMM register, or
a 512/256/128-bit memory location. The destination operand is conditionally updated based on writemask k1 at
16-bit word granularity.
VDBPSADBW—Double Block Packed Sum-Absolute-Differences (SAD) on Unsigned Bytes
Vol. 2C
5-143
INSTRUCTION SET REFERENCE, V
127+128*n
95+128*n
63+128*n
31+128*n
128*n
128-bit Lane of Src2
DW3
DW2
DW1
DW0
00B: DW0
01B: DW1
imm8 shuffle control
10B: DW2
11B: DW3
7
5
3
1
0
127+128*n
95+128*n
63+128*n
31+128*n
128*n
128-bit Lane of Tmp1
Tmp1 qword superblock
55
47
39
31
24
39
31
23
15
8
Tmp1 sliding dword
Tmp1 sliding dword
63
55
47
39
32
31
23
15
7
0
Src1 stationary dword 0
Src1 stationary dword 1
_
_
_
_
_
_
_
_
abs
abs
abs
abs
abs
abs
abs
abs
+
47
39
31
23
16
+
31
23
15
7
0
Tmp1 sliding dword
Tmp1 sliding dword
63
55
47
39
32
31
23
15
7
0
Src1 stationary dword 1
Src1 stationary dword 0
_
_
_
_
_
_
_
_
abs
abs
abs
abs
abs
abs
abs
abs
+
+
63
47
31
15
0
Destination qword superblock

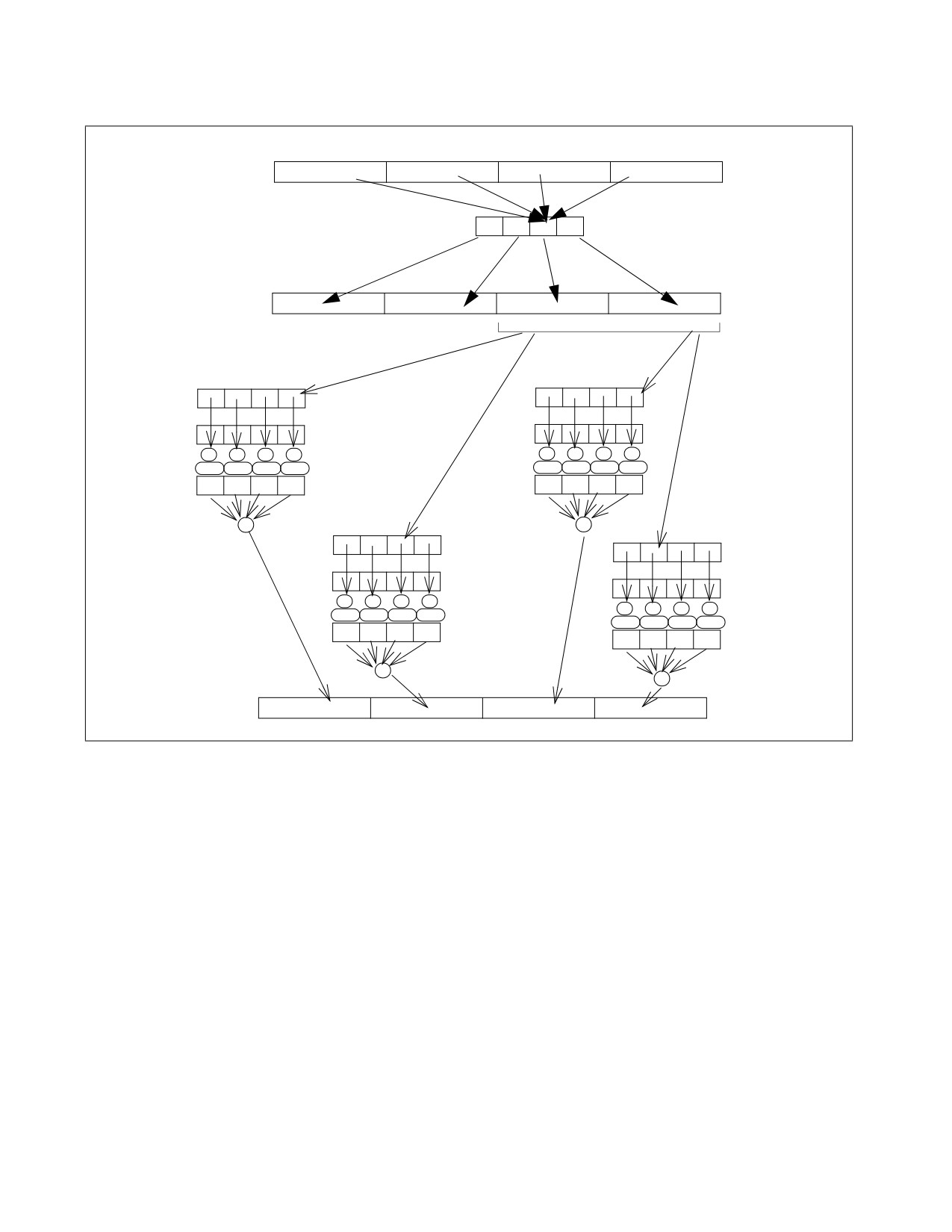

Figure 5-8. 64-bit Super Block of SAD Operation in VDBPSADBW
Operation
VDBPSADBW (EVEX encoded versions)
(KL, VL) = (8, 128), (16, 256), (32, 512)
Selection of quadruplets:
FOR I = 0 to VL step 128
TMP1[I+31:I] := select (SRC2[I+127: I], imm8[1:0])
TMP1[I+63: I+32] := select (SRC2[I+127: I], imm8[3:2])
TMP1[I+95: I+64] := select (SRC2[I+127: I], imm8[5:4])
TMP1[I+127: I+96] := select (SRC2[I+127: I], imm8[7:6])
END FOR
SAD of quadruplets:
FOR I =0 to VL step 64
TMP_DEST[I+15:I] := ABS(SRC1[I+7: I] - TMP1[I+7: I]) +
ABS(SRC1[I+15: I+8]- TMP1[I+15: I+8]) +
5-144
Vol. 2C
VDBPSADBW—Double Block Packed Sum-Absolute-Differences (SAD) on Unsigned Bytes
INSTRUCTION SET REFERENCE, V
ABS(SRC1[I+23: I+16]- TMP1[I+23: I+16]) +
ABS(SRC1[I+31: I+24]- TMP1[I+31: I+24])
TMP_DEST[I+31: I+16] := ABS(SRC1[I+7: I] - TMP1[I+15: I+8]) +
ABS(SRC1[I+15: I+8]- TMP1[I+23: I+16]) +
ABS(SRC1[I+23: I+16]- TMP1[I+31: I+24]) +
ABS(SRC1[I+31: I+24]- TMP1[I+39: I+32])
TMP_DEST[I+47: I+32] := ABS(SRC1[I+39: I+32] - TMP1[I+23: I+16]) +
ABS(SRC1[I+47: I+40]- TMP1[I+31: I+24]) +
ABS(SRC1[I+55: I+48]- TMP1[I+39: I+32]) +
ABS(SRC1[I+63: I+56]- TMP1[I+47: I+40])
TMP_DEST[I+63: I+48] := ABS(SRC1[I+39: I+32] - TMP1[I+31: I+24]) +
ABS(SRC1[I+47: I+40] - TMP1[I+39: I+32]) +
ABS(SRC1[I+55: I+48] - TMP1[I+47: I+40]) +
ABS(SRC1[I+63: I+56] - TMP1[I+55: I+48])
ENDFOR
FOR j := 0 TO KL-1
i := j * 16
IF k1[j] OR *no writemask*
THEN DEST[i+15:i] := TMP_DEST[i+15:i]
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+15:i] remains unchanged*
ELSE
; zeroing-masking
DEST[i+15:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:VL] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VDBPSADBW __m512i _mm512_dbsad_epu8(__m512i a, __m512i b int imm8);
VDBPSADBW __m512i _mm512_mask_dbsad_epu8(__m512i s, __mmask32 m, __m512i a, __m512i b int imm8);
VDBPSADBW __m512i _mm512_maskz_dbsad_epu8(__mmask32 m, __m512i a, __m512i b int imm8);
VDBPSADBW __m256i _mm256_dbsad_epu8(__m256i a, __m256i b int imm8);
VDBPSADBW __m256i _mm256_mask_dbsad_epu8(__m256i s, __mmask16 m, __m256i a, __m256i b int imm8);
VDBPSADBW __m256i _mm256_maskz_dbsad_epu8(__mmask16 m, __m256i a, __m256i b int imm8);
VDBPSADBW __m128i _mm_dbsad_epu8(__m128i a, __m128i b int imm8);
VDBPSADBW __m128i _mm_mask_dbsad_epu8(__m128i s, __mmask8 m, __m128i a, __m128i b int imm8);
VDBPSADBW __m128i _mm_maskz_dbsad_epu8(__mmask8 m, __m128i a, __m128i b int imm8);
SIMD Floating-Point Exceptions
None
Other Exceptions
See Exceptions Type E4NF.nb in Table 2-50, “Type E4NF Class Exception Conditions.”
VDBPSADBW—Double Block Packed Sum-Absolute-Differences (SAD) on Unsigned Bytes
Vol. 2C
5-145
INSTRUCTION SET REFERENCE, V
VDIVPH—Divide Packed FP16 Values
Opcode/
Op/
64/32
CPUID Feature
Description
Instruction
En
bit Mode
Flag
Support
EVEX.128.NP.MAP5.W0 5E /r
A
V/V
AVX512-FP16
Divide packed FP16 values in xmm2 by packed
VDIVPH xmm1{k1}{z}, xmm2, xmm3/
AVX512VL
FP16 values in xmm3/m128/m16bcst, and store
m128/m16bcst
the result in xmm1 subject to writemask k1.
EVEX.256.NP.MAP5.W0 5E /r
A
V/V
AVX512-FP16
Divide packed FP16 values in ymm2 by packed
VDIVPH ymm1{k1}{z}, ymm2, ymm3/
AVX512VL
FP16 values in ymm3/m256/m16bcst, and store
m256/m16bcst
the result in ymm1 subject to writemask k1.
EVEX.512.NP.MAP5.W0 5E /r
A
V/V
AVX512-FP16
Divide packed FP16 values in zmm2 by packed
VDIVPH zmm1{k1}{z}, zmm2, zmm3/
FP16 values in zmm3/m512/m16bcst, and store
m512/m16bcst {er}
the result in zmm1 subject to writemask k1.
Instruction Operand Encoding
Op/En
Tuple
Operand 1
Operand 2
Operand 3
Operand 4
A
Full
ModRM:reg (w)
VEX.vvvv (r)
ModRM:r/m (r)
N/A
Description
This instruction divides packed FP16 values from the first source operand by the corresponding elements in the
second source operand, storing the packed FP16 result in the destination operand. The destination elements are
updated according to the writemask.
Operation
VDIVPH (EVEX encoded versions) when src2 operand is a register
VL = 128, 256 or 512
KL := VL/16
IF (VL = 512) AND (EVEX.b = 1):
SET_RM(EVEX.RC)
ELSE
SET_RM(MXCSR.RC)
FOR j := 0 TO KL-1:
IF k1[j] OR *no writemask*:
DEST.fp16[j] := SRC1.fp16[j] / SRC2.fp16[j]
ELSE IF *zeroing*:
DEST.fp16[j] := 0
// else dest.fp16[j] remains unchanged
DEST[MAXVL-1:VL] := 0
5-146
Vol. 2C
VDIVPH—Divide Packed FP16 Values
INSTRUCTION SET REFERENCE, V
VDIVPH (EVEX encoded versions) when src2 operand is a memory source
VL = 128, 256 or 512
KL := VL/16
FOR j := 0 TO KL-1:
IF k1[j] OR *no writemask*:
IF EVEX.b = 1:
DEST.fp16[j] := SRC1.fp16[j] / SRC2.fp16[0]
ELSE:
DEST.fp16[j] := SRC1.fp16[j] / SRC2.fp16[j]
ELSE IF *zeroing*:
DEST.fp16[j] := 0
// else dest.fp16[j] remains unchanged
DEST[MAXVL-1:VL] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VDIVPH __m128h _mm_div_ph (__m128h a, __m128h b);
VDIVPH __m128h _mm_mask_div_ph (__m128h src, __mmask8 k, __m128h a, __m128h b);
VDIVPH __m128h _mm_maskz_div_ph (__mmask8 k, __m128h a, __m128h b);
VDIVPH __m256h _mm256_div_ph (__m256h a, __m256h b);
VDIVPH __m256h _mm256_mask_div_ph (__m256h src, __mmask16 k, __m256h a, __m256h b);
VDIVPH __m256h _mm256_maskz_div_ph (__mmask16 k, __m256h a, __m256h b);
VDIVPH __m512h _mm512_div_ph (__m512h a, __m512h b);
VDIVPH __m512h _mm512_mask_div_ph (__m512h src, __mmask32 k, __m512h a, __m512h b);
VDIVPH __m512h _mm512_maskz_div_ph (__mmask32 k, __m512h a, __m512h b);
VDIVPH __m512h _mm512_div_round_ph (__m512h a, __m512h b, int rounding);
VDIVPH __m512h _mm512_mask_div_round_ph (__m512h src, __mmask32 k, __m512h a, __m512h b, int rounding);
VDIVPH __m512h _mm512_maskz_div_round_ph (__mmask32 k, __m512h a, __m512h b, int rounding);
SIMD Floating-Point Exceptions
Invalid, Underflow, Overflow, Precision, Denormal, Zero
Other Exceptions
EVEX-encoded instructions, see Table 2-46, “Type E2 Class Exception Conditions.”
VDIVPH—Divide Packed FP16 Values
Vol. 2C
5-147
INSTRUCTION SET REFERENCE, V
VDIVSH—Divide Scalar FP16 Values
Opcode/
Op/
64/32
CPUID Feature
Description
Instruction
En
bit Mode
Flag
Support
EVEX.LLIG.F3.MAP5.W0 5E /r
A
V/V
AVX512-FP16
Divide low FP16 value in xmm2 by low FP16
VDIVSH xmm1{k1}{z}, xmm2, xmm3/
value in xmm3/m16, and store the result in xmm1
m16 {er}
subject to writemask k1. Bits 127:16 of xmm2
are copied to xmm1[127:16].
Instruction Operand Encoding
Op/En
Tuple
Operand 1
Operand 2
Operand 3
Operand 4
A
Scalar
ModRM:reg (w)
VEX.vvvv (r)
ModRM:r/m (r)
N/A
Description
This instruction divides the low FP16 value from the first source operand by the corresponding value in the second
source operand, storing the FP16 result in the destination operand. Bits 127:16 of the destination operand are
copied from the corresponding bits of the first source operand. Bits MAXVL-1:128 of the destination operand are
zeroed. The low FP16 element of the destination is updated according to the writemask.
Operation
VDIVSH (EVEX encoded versions)
IF EVEX.b = 1 and SRC2 is a register:
SET_RM(EVEX.RC)
ELSE
SET_RM(MXCSR.RC)
IF k1[0] OR *no writemask*:
DEST.fp16[0] := SRC1.fp16[0] / SRC2.fp16[0]
ELSE IF *zeroing*:
DEST.fp16[0] := 0
// else dest.fp16[0] remains unchanged
DEST[127:16] := SRC1[127:16]
DEST[MAXVL-1:128] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VDIVSH __m128h _mm_div_round_sh (__m128h a, __m128h b, int rounding);
VDIVSH __m128h _mm_mask_div_round_sh (__m128h src, __mmask8 k, __m128h a, __m128h b, int rounding);
VDIVSH __m128h _mm_maskz_div_round_sh (__mmask8 k, __m128h a, __m128h b, int rounding);
VDIVSH __m128h _mm_div_sh (__m128h a, __m128h b);
VDIVSH __m128h _mm_mask_div_sh (__m128h src, __mmask8 k, __m128h a, __m128h b);
VDIVSH __m128h _mm_maskz_div_sh (__mmask8 k, __m128h a, __m128h b);
SIMD Floating-Point Exceptions
Invalid, Underflow, Overflow, Precision, Denormal, Zero
Other Exceptions
EVEX-encoded instructions, see Table 2-47, “Type E3 Class Exception Conditions.”
5-148
Vol. 2C
VDIVSH—Divide Scalar FP16 Values
INSTRUCTION SET REFERENCE, V
VDPBF16PS—Dot Product of BF16 Pairs Accumulated Into Packed Single Precision
Opcode/
Op/
64/32
CPUID Feature
Description
Instruction
En
bit Mode
Flag
Support
EVEX.128.F3.0F38.W0 52 /r
A
V/V
AVX512VL
Multiply BF16 pairs from xmm2 and
VDPBF16PS xmm1{k1}{z}, xmm2,
AVX512_BF16
xmm3/m128, and accumulate the resulting
xmm3/m128/m32bcst
packed single precision results in xmm1 with
writemask k1.
EVEX.256.F3.0F38.W0 52 /r
A
V/V
AVX512VL
Multiply BF16 pairs from ymm2 and
VDPBF16PS ymm1{k1}{z}, ymm2,
AVX512_BF16
ymm3/m256, and accumulate the resulting
ymm3/m256/m32bcst
packed single precision results in ymm1 with
writemask k1.
EVEX.512.F3.0F38.W0 52 /r
A
V/V
AVX512F
Multiply BF16 pairs from zmm2 and
VDPBF16PS zmm1{k1}{z}, zmm2,
AVX512_BF16
zmm3/m512, and accumulate the resulting
zmm3/m512/m32bcst
packed single precision results in zmm1 with
writemask k1.
Instruction Operand Encoding
Op/En
Tuple
Operand 1
Operand 2
Operand 3
Operand 4
A
Full
ModRM:reg (w)
EVEX.vvvv (r)
ModRM:r/m (r)
N/A
Description
This instruction performs a SIMD dot-product of two BF16 pairs and accumulates into a packed single precision
register.
“Round to nearest even” rounding mode is used when doing each accumulation of the FMA. Output denormals are
always flushed to zero and input denormals are always treated as zero. MXCSR is not consulted nor updated.
NaN propagation priorities are described in Table 5-1.
Table 5-1. NaN Propagation Priorities
NaN Priority
Description
Comments
1
src1 low is NaN
Lower part has priority over upper part, i.e., it overrides the upper part.
2
src2 low is NaN
3
src1 high is NaN
Upper part may be overridden if lower has NaN.
4
src2 high is NaN
5
srcdest is NaN
Dest is propagated if no NaN is encountered by src2.
Operation
Define make_fp32(x):
// The x parameter is bfloat16. Pack it in to upper 16b of a dword. The bit pattern is a legal fp32 value. Return that bit pattern.
dword := 0
dword[31:16] := x
RETURN dword
VDPBF16PS—Dot Product of BF16 Pairs Accumulated Into Packed Single Precision
Vol. 2C
5-149
INSTRUCTION SET REFERENCE, V
VDPBF16PS srcdest, src1, src2
VL = (128, 256, 512)
KL = VL/32
origdest := srcdest
FOR i := 0 to KL-1:
IF k1[ i ] or *no writemask*:
IF src2 is memory and evex.b == 1:
t := src2.dword[0]
ELSE:
t := src2.dword[ i ]
// FP32 FMA with daz in, ftz out and RNE rounding. MXCSR neither consulted nor updated.
srcdest.fp32[ i ] += make_fp32(src1.bfloat16[2*i+1]) * make_fp32(t.bfloat[1])
srcdest.fp32[ i ] += make_fp32(src1.bfloat16[2*i+0]) * make_fp32(t.bfloat[0])
ELSE IF *zeroing*:
srcdest.dword[ i ] := 0
ELSE: // merge masking, dest element unchanged
srcdest.dword[ i ] := origdest.dword[ i ]
srcdest[MAXVL-1:VL] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VDPBF16PS __m128 _mm_dpbf16_ps(__m128, __m128bh, __m128bh);
VDPBF16PS __m128 _mm_mask_dpbf16_ps( __m128, __mmask8, __m128bh, __m128bh);
VDPBF16PS __m128 _mm_maskz_dpbf16_ps(__mmask8, __m128, __m128bh, __m128bh);
VDPBF16PS __m256 _mm256_dpbf16_ps(__m256, __m256bh, __m256bh);
VDPBF16PS __m256 _mm256_mask_dpbf16_ps(__m256, __mmask8, __m256bh, __m256bh);
VDPBF16PS __m256 _mm256_maskz_dpbf16_ps(__mmask8, __m256, __m256bh, __m256bh);
VDPBF16PS __m512 _mm512_dpbf16_ps(__m512, __m512bh, __m512bh);
VDPBF16PS __m512 _mm512_mask_dpbf16_ps(__m512, __mmask16, __m512bh, __m512bh);
VDPBF16PS __m512 _mm512_maskz_dpbf16_ps(__mmask16, __m512, __m512bh, __m512bh);
SIMD Floating-Point Exceptions
None.
Other Exceptions
See Table 2-49, “Type E4 Class Exception Conditions.”
5-150
Vol. 2C
VDPBF16PS—Dot Product of BF16 Pairs Accumulated Into Packed Single Precision
INSTRUCTION SET REFERENCE, V
VEXPANDPD—Load Sparse Packed Double Precision Floating-Point Values From Dense Memory
Opcode/
Op /
64/32
CPUID
Description
Instruction
En
bit Mode
Feature
Support
Flag
EVEX.128.66.0F38.W1 88 /r
A
V/V
AVX512VL
Expand packed double precision floating-point values
VEXPANDPD xmm1 {k1}{z},
AVX512F
from xmm2/m128 to xmm1 using writemask k1.
xmm2/m128
EVEX.256.66.0F38.W1 88 /r
A
V/V
AVX512VL
Expand packed double precision floating-point values
VEXPANDPD ymm1 {k1}{z}, ymm2/m256
AVX512F
from ymm2/m256 to ymm1 using writemask k1.
EVEX.512.66.0F38.W1 88 /r
A
V/V
AVX512F
Expand packed double precision floating-point values
VEXPANDPD zmm1 {k1}{z}, zmm2/m512
from zmm2/m512 to zmm1 using writemask k1.
Instruction Operand Encoding
Op/En
Tuple Type
Operand 1
Operand 2
Operand 3
Operand 4
A
Tuple1 Scalar
ModRM:reg (w)
ModRM:r/m (r)
N/A
N/A
Description
Expand (load) up to 8/4/2, contiguous, double precision floating-point values of the input vector in the source
operand (the second operand) to sparse elements in the destination operand (the first operand) selected by the
writemask k1.
The destination operand is a ZMM/YMM/XMM register, the source operand can be a ZMM/YMM/XMM register or a
512/256/128-bit memory location.
The input vector starts from the lowest element in the source operand. The writemask register k1 selects the desti-
nation elements (a partial vector or sparse elements if less than 8 elements) to be replaced by the ascending
elements in the input vector. Destination elements not selected by the writemask k1 are either unmodified or
zeroed, depending on EVEX.z.
EVEX.vvvv is reserved and must be 1111b otherwise instructions will #UD.
Note that the compressed displacement assumes a pre-scaling (N) corresponding to the size of one single element
instead of the size of the full vector.
Operation
VEXPANDPD (EVEX encoded versions)
(KL, VL) = (2, 128), (4, 256), (8, 512)
k := 0
FOR j := 0 TO KL-1
i := j * 64
IF k1[j] OR *no writemask*
THEN
DEST[i+63:i] := SRC[k+63:k];
k := k + 64
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+63:i] remains unchanged*
ELSE
; zeroing-masking
THEN DEST[i+63:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:VL] := 0
VEXPANDPD—Load Sparse Packed Double Precision Floating-Point Values From Dense Memory
Vol. 2C
5-151
INSTRUCTION SET REFERENCE, V
Intel C/C++ Compiler Intrinsic Equivalent
VEXPANDPD __m512d _mm512_mask_expand_pd( __m512d s, __mmask8 k, __m512d a);
VEXPANDPD __m512d _mm512_maskz_expand_pd( __mmask8 k, __m512d a);
VEXPANDPD __m512d _mm512_mask_expandloadu_pd( __m512d s, __mmask8 k, void * a);
VEXPANDPD __m512d _mm512_maskz_expandloadu_pd( __mmask8 k, void * a);
VEXPANDPD __m256d _mm256_mask_expand_pd( __m256d s, __mmask8 k, __m256d a);
VEXPANDPD __m256d _mm256_maskz_expand_pd( __mmask8 k, __m256d a);
VEXPANDPD __m256d _mm256_mask_expandloadu_pd( __m256d s, __mmask8 k, void * a);
VEXPANDPD __m256d _mm256_maskz_expandloadu_pd( __mmask8 k, void * a);
VEXPANDPD __m128d _mm_mask_expand_pd( __m128d s, __mmask8 k, __m128d a);
VEXPANDPD __m128d _mm_maskz_expand_pd( __mmask8 k, __m128d a);
VEXPANDPD __m128d _mm_mask_expandloadu_pd( __m128d s, __mmask8 k, void * a);
VEXPANDPD __m128d _mm_maskz_expandloadu_pd( __mmask8 k, void * a);
SIMD Floating-Point Exceptions
None
Other Exceptions
See Exceptions Type E4.nb in Table 2-49, “Type E4 Class Exception Conditions.”
Additionally:
#UD
If EVEX.vvvv != 1111B.
5-152
Vol. 2C
VEXPANDPD—Load Sparse Packed Double Precision Floating-Point Values From Dense Memory
INSTRUCTION SET REFERENCE, V
VEXPANDPS—Load Sparse Packed Single Precision Floating-Point Values From Dense Memory
Opcode/
Op /
64/32
CPUID
Description
Instruction
En
bit Mode
Feature
Support
Flag
EVEX.128.66.0F38.W0 88 /r
A
V/V
AVX512VL
Expand packed single precision floating-point values
VEXPANDPS xmm1 {k1}{z}, xmm2/m128
AVX512F
from xmm2/m128 to xmm1 using writemask k1.
EVEX.256.66.0F38.W0 88 /r
A
V/V
AVX512VL
Expand packed single precision floating-point values
VEXPANDPS ymm1 {k1}{z}, ymm2/m256
AVX512F
from ymm2/m256 to ymm1 using writemask k1.
EVEX.512.66.0F38.W0 88 /r
A
V/V
AVX512F
Expand packed single precision floating-point values
VEXPANDPS zmm1 {k1}{z}, zmm2/m512
from zmm2/m512 to zmm1 using writemask k1.
Instruction Operand Encoding
Op/En
Tuple Type
Operand 1
Operand 2
Operand 3
Operand 4
A
Tuple1 Scalar
ModRM:reg (w)
ModRM:r/m (r)
N/A
N/A
Description
Expand (load) up to 16/8/4, contiguous, single precision floating-point values of the input vector in the source
operand (the second operand) to sparse elements of the destination operand (the first operand) selected by the
writemask k1.
The destination operand is a ZMM/YMM/XMM register, the source operand can be a ZMM/YMM/XMM register or a
512/256/128-bit memory location.
The input vector starts from the lowest element in the source operand. The writemask k1 selects the destination
elements (a partial vector or sparse elements if less than 16 elements) to be replaced by the ascending elements
in the input vector. Destination elements not selected by the writemask k1 are either unmodified or zeroed,
depending on EVEX.z.
EVEX.vvvv is reserved and must be 1111b otherwise instructions will #UD.
Note that the compressed displacement assumes a pre-scaling (N) corresponding to the size of one single element
instead of the size of the full vector.
Operation
VEXPANDPS (EVEX encoded versions)
(KL, VL) = (4, 128), (8, 256), (16, 512)
k := 0
FOR j := 0 TO KL-1
i := j * 32
IF k1[j] OR *no writemask*
THEN
DEST[i+31:i] := SRC[k+31:k];
k := k + 32
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+31:i] remains unchanged*
ELSE
; zeroing-masking
DEST[i+31:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:VL] := 0
VEXPANDPS—Load Sparse Packed Single Precision Floating-Point Values From Dense Memory
Vol. 2C
5-153
INSTRUCTION SET REFERENCE, V
Intel C/C++ Compiler Intrinsic Equivalent
VEXPANDPS __m512 _mm512_mask_expand_ps( __m512 s, __mmask16 k, __m512 a);
VEXPANDPS __m512 _mm512_maskz_expand_ps( __mmask16 k, __m512 a);
VEXPANDPS __m512 _mm512_mask_expandloadu_ps( __m512 s, __mmask16 k, void * a);
VEXPANDPS __m512 _mm512_maskz_expandloadu_ps( __mmask16 k, void * a);
VEXPANDPD __m256 _mm256_mask_expand_ps( __m256 s, __mmask8 k, __m256 a);
VEXPANDPD __m256 _mm256_maskz_expand_ps( __mmask8 k, __m256 a);
VEXPANDPD __m256 _mm256_mask_expandloadu_ps( __m256 s, __mmask8 k, void * a);
VEXPANDPD __m256 _mm256_maskz_expandloadu_ps( __mmask8 k, void * a);
VEXPANDPD __m128 _mm_mask_expand_ps( __m128 s, __mmask8 k, __m128 a);
VEXPANDPD __m128 _mm_maskz_expand_ps( __mmask8 k, __m128 a);
VEXPANDPD __m128 _mm_mask_expandloadu_ps( __m128 s, __mmask8 k, void * a);
VEXPANDPD __m128 _mm_maskz_expandloadu_ps( __mmask8 k, void * a);
SIMD Floating-Point Exceptions
None
Other Exceptions
See Exceptions Type E4.nb in Table 2-49, “Type E4 Class Exception Conditions.”
Additionally:
#UD
If EVEX.vvvv != 1111B.
5-154
Vol. 2C
VEXPANDPS—Load Sparse Packed Single Precision Floating-Point Values From Dense Memory
INSTRUCTION SET REFERENCE, V
VERR/VERW—Verify a Segment for Reading or Writing
Opcode
Instruction
Op/
64-Bit
Compat/
Description
En
Mode
Leg Mode
0F 00 /4
VERR r/m16
M
Valid
Valid
Set ZF=1 if segment specified with r/m16 can
be read.
0F 00 /5
VERW r/m16
M
Valid
Valid
Set ZF=1 if segment specified with r/m16 can
be written.
Instruction Operand Encoding
Op/En
Operand 1
Operand 2
Operand 3
Operand 4
M
ModRM:r/m (r)
N/A
N/A
N/A
Description
Verifies whether the code or data segment specified with the source operand is readable (VERR) or writable
(VERW) from the current privilege level (CPL). The source operand is a 16-bit register or a memory location that
contains the segment selector for the segment to be verified. If the segment is accessible and readable (VERR) or
writable (VERW), the ZF flag is set; otherwise, the ZF flag is cleared. Code segments are never verified as writable.
This check cannot be performed on system segments.
To set the ZF flag, the following conditions must be met:
• The segment selector is not NULL.
• The selector must denote a descriptor within the bounds of the descriptor table (GDT or LDT).
• The selector must denote the descriptor of a code or data segment (not that of a system segment or gate).
• For the VERR instruction, the segment must be readable.
• For the VERW instruction, the segment must be a writable data segment.
• If the segment is not a conforming code segment, the segment’s DPL must be greater than or equal to (have
less or the same privilege as) both the CPL and the segment selector's RPL.
The validation performed is the same as is performed when a segment selector is loaded into the DS, ES, FS, or GS
register, and the indicated access (read or write) is performed. The segment selector's value cannot result in a
protection exception, enabling the software to anticipate possible segment access problems.
This instruction’s operation is the same in non-64-bit modes and 64-bit mode. The operand size is fixed at 16 bits.
Operation
IF SRC(Offset) > (GDTR(Limit) or (LDTR(Limit))
THEN ZF := 0; FI;
Read segment descriptor;
IF SegmentDescriptor(DescriptorType) = 0 (* System segment *)
or (SegmentDescriptor(Type) ≠ conforming code segment)
and (CPL > DPL) or (RPL > DPL)
THEN
ZF := 0;
ELSE
IF ((Instruction = VERR) and (Segment readable))
or ((Instruction = VERW) and (Segment writable))
THEN
ZF := 1;
ELSE
ZF := 0;
VERR/VERW—Verify a Segment for Reading or Writing
Vol. 2C
5-155
INSTRUCTION SET REFERENCE, V
FI;
FI;
Flags Affected
The ZF flag is set to 1 if the segment is accessible and readable (VERR) or writable (VERW); otherwise, it is set to 0.
Protected Mode Exceptions
The only exceptions generated for these instructions are those related to illegal addressing of the source operand.
#GP(0)
If a memory operand effective address is outside the CS, DS, ES, FS, or GS segment limit.
If the DS, ES, FS, or GS register is used to access memory and it contains a NULL segment
selector.
#SS(0)
If a memory operand effective address is outside the SS segment limit.
#PF(fault-code)
If a page fault occurs.
#AC(0)
If alignment checking is enabled and an unaligned memory reference is made while the
current privilege level is 3.
#UD
If the LOCK prefix is used.
Real-Address Mode Exceptions
#UD
The VERR and VERW instructions are not recognized in real-address mode.
If the LOCK prefix is used.
Virtual-8086 Mode Exceptions
#UD
The VERR and VERW instructions are not recognized in virtual-8086 mode.
If the LOCK prefix is used.
Compatibility Mode Exceptions
Same exceptions as in protected mode.
64-Bit Mode Exceptions
#SS(0)
If a memory address referencing the SS segment is in a non-canonical form.
#GP(0)
If the memory address is in a non-canonical form.
#PF(fault-code)
If a page fault occurs.
#AC(0)
If alignment checking is enabled and an unaligned memory reference is made while the
current privilege level is 3.
#UD
If the LOCK prefix is used.
5-156
Vol. 2C
VERR/VERW—Verify a Segment for Reading or Writing
INSTRUCTION SET REFERENCE, V
VEXTRACTF128/VEXTRACTF32x4/VEXTRACTF64x2/VEXTRACTF32x8/VEXTRACTF64x4—
Extract Packed Floating-Point Values
Opcode/
Op /
64/32
CPUID
Description
Instruction
En
bit Mode
Feature
Support
Flag
VEX.256.66.0F3A.W0 19 /r ib
A
V/V
AVX
Extract 128 bits of packed floating-point values
VEXTRACTF128 xmm1/m128, ymm2,
from ymm2 and store results in xmm1/m128.
imm8
EVEX.256.66.0F3A.W0 19 /r ib
C
V/V
AVX512VL
Extract 128 bits of packed single precision floating-
VEXTRACTF32X4 xmm1/m128 {k1}{z},
AVX512F
point values from ymm2 and store results in
ymm2, imm8
xmm1/m128 subject to writemask k1.
EVEX.512.66.0F3A.W0 19 /r ib
C
V/V
AVX512F
Extract 128 bits of packed single precision floating-
VEXTRACTF32x4 xmm1/m128 {k1}{z},
point values from zmm2 and store results in
zmm2, imm8
xmm1/m128 subject to writemask k1.
EVEX.256.66.0F3A.W1 19 /r ib
B
V/V
AVX512VL
Extract 128 bits of packed double precision
VEXTRACTF64X2 xmm1/m128 {k1}{z},
AVX512DQ
floating-point values from ymm2 and store results
ymm2, imm8
in xmm1/m128 subject to writemask k1.
EVEX.512.66.0F3A.W1 19 /r ib
B
V/V
AVX512DQ
Extract 128 bits of packed double precision
VEXTRACTF64X2 xmm1/m128 {k1}{z},
floating-point values from zmm2 and store results
zmm2, imm8
in xmm1/m128 subject to writemask k1.
EVEX.512.66.0F3A.W0 1B /r ib
D
V/V
AVX512DQ
Extract 256 bits of packed single precision floating-
VEXTRACTF32X8 ymm1/m256 {k1}{z},
point values from zmm2 and store results in
zmm2, imm8
ymm1/m256 subject to writemask k1.
EVEX.512.66.0F3A.W1 1B /r ib
C
V/V
AVX512F
Extract 256 bits of packed double precision
VEXTRACTF64x4 ymm1/m256 {k1}{z},
floating-point values from zmm2 and store results
zmm2, imm8
in ymm1/m256 subject to writemask k1.
Instruction Operand Encoding
Op/En
Tuple Type
Operand 1
Operand 2
Operand 3
Operand 4
A
N/A
ModRM:r/m (w)
ModRM:reg (r)
imm8
N/A
B
Tuple2
ModRM:r/m (w)
ModRM:reg (r)
imm8
N/A
C
Tuple4
ModRM:r/m (w)
ModRM:reg (r)
imm8
N/A
D
Tuple8
ModRM:r/m (w)
ModRM:reg (r)
imm8
N/A
Description
VEXTRACTF128/VEXTRACTF32x4 and VEXTRACTF64x2 extract 128-bits of single precision floating-point values
from the source operand (the second operand) and store to the low 128-bit of the destination operand (the first
operand). The 128-bit data extraction occurs at an 128-bit granular offset specified by imm8[0] (256-bit) or
imm8[1:0] as the multiply factor. The destination may be either a vector register or an 128-bit memory location.
VEXTRACTF32x4: The low 128-bit of the destination operand is updated at 32-bit granularity according to the
writemask.
VEXTRACTF32x8 and VEXTRACTF64x4 extract 256-bits of double precision floating-point values from the source
operand (second operand) and store to the low 256-bit of the destination operand (the first operand). The 256-bit
data extraction occurs at an 256-bit granular offset specified by imm8[0] (256-bit) or imm8[0] as the multiply
factor The destination may be either a vector register or a 256-bit memory location.
VEXTRACTF64x4: The low 256-bit of the destination operand is updated at 64-bit granularity according to the
writemask.
VEX.vvvv and EVEX.vvvv are reserved and must be 1111b otherwise instructions will #UD.
The high 6 bits of the immediate are ignored.
If VEXTRACTF128 is encoded with VEX.L= 0, an attempt to execute the instruction encoded with VEX.L= 0 will
cause an #UD exception.
VEXTRACTF128/VEXTRACTF32x4/VEXTRACTF64x2/VEXTRACTF32x8/VEXTRACTF64x4— Extract Packed Floating-Point Values
Vol. 2C
5-157
INSTRUCTION SET REFERENCE, V
Operation
VEXTRACTF32x4 (EVEX encoded versions) when destination is a register
VL = 256, 512
IF VL = 256
CASE (imm8[0]) OF
0: TMP_DEST[127:0] := SRC1[127:0]
1: TMP_DEST[127:0] := SRC1[255:128]
ESAC.
FI;
IF VL = 512
CASE (imm8[1:0]) OF
00: TMP_DEST[127:0] := SRC1[127:0]
01: TMP_DEST[127:0] := SRC1[255:128]
10: TMP_DEST[127:0] := SRC1[383:256]
11: TMP_DEST[127:0] := SRC1[511:384]
ESAC.
FI;
FOR j := 0 TO 3
i := j * 32
IF k1[j] OR *no writemask*
THEN DEST[i+31:i] := TMP_DEST[i+31:i]
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+31:i] remains unchanged*
ELSE *zeroing-masking*
; zeroing-masking
DEST[i+31:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:128] := 0
VEXTRACTF32x4 (EVEX encoded versions) when destination is memory
VL = 256, 512
IF VL = 256
CASE (imm8[0]) OF
0: TMP_DEST[127:0] := SRC1[127:0]
1: TMP_DEST[127:0] := SRC1[255:128]
ESAC.
FI;
IF VL = 512
CASE (imm8[1:0]) OF
00: TMP_DEST[127:0] := SRC1[127:0]
01: TMP_DEST[127:0] := SRC1[255:128]
10: TMP_DEST[127:0] := SRC1[383:256]
11: TMP_DEST[127:0] := SRC1[511:384]
ESAC.
FI;
FOR j := 0 TO 3
i := j * 32
IF k1[j] OR *no writemask*
THEN DEST[i+31:i] := TMP_DEST[i+31:i]
ELSE *DEST[i+31:i] remains unchanged*
; merging-masking
FI;
VEXTRACTF128/VEXTRACTF32x4/VEXTRACTF64x2/VEXTRACTF32x8/VEXTRACTF64x4— Extract Packed Floating-Point Values
5-158
Vol. 2C
INSTRUCTION SET REFERENCE, V
ENDFOR
VEXTRACTF64x2 (EVEX encoded versions) when destination is a register
VL = 256, 512
IF VL = 256
CASE (imm8[0]) OF
0: TMP_DEST[127:0] := SRC1[127:0]
1: TMP_DEST[127:0] := SRC1[255:128]
ESAC.
FI;
IF VL = 512
CASE (imm8[1:0]) OF
00: TMP_DEST[127:0] := SRC1[127:0]
01: TMP_DEST[127:0] := SRC1[255:128]
10: TMP_DEST[127:0] := SRC1[383:256]
11: TMP_DEST[127:0] := SRC1[511:384]
ESAC.
FI;
FOR j := 0 TO 1
i := j * 64
IF k1[j] OR *no writemask*
THEN DEST[i+63:i] := TMP_DEST[i+63:i]
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+63:i] remains unchanged*
ELSE *zeroing-masking*
; zeroing-masking
DEST[i+63:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:128] := 0
VEXTRACTF64x2 (EVEX encoded versions) when destination is memory
VL = 256, 512
IF VL = 256
CASE (imm8[0]) OF
0: TMP_DEST[127:0] := SRC1[127:0]
1: TMP_DEST[127:0] := SRC1[255:128]
ESAC.
FI;
IF VL = 512
CASE (imm8[1:0]) OF
00: TMP_DEST[127:0] := SRC1[127:0]
01: TMP_DEST[127:0] := SRC1[255:128]
10: TMP_DEST[127:0] := SRC1[383:256]
11: TMP_DEST[127:0] := SRC1[511:384]
ESAC.
FI;
FOR j := 0 TO 1
i := j * 64
IF k1[j] OR *no writemask*
THEN DEST[i+63:i] := TMP_DEST[i+63:i]
VEXTRACTF128/VEXTRACTF32x4/VEXTRACTF64x2/VEXTRACTF32x8/VEXTRACTF64x4— Extract Packed Floating-Point Values
Vol. 2C
5-159
INSTRUCTION SET REFERENCE, V
ELSE *DEST[i+63:i] remains unchanged*
; merging-masking
FI;
ENDFOR
VEXTRACTF32x8 (EVEX.U1.512 encoded version) when destination is a register
VL = 512
CASE (imm8[0]) OF
0: TMP_DEST[255:0] := SRC1[255:0]
1: TMP_DEST[255:0] := SRC1[511:256]
ESAC.
FOR j := 0 TO 7
i := j * 32
IF k1[j] OR *no writemask*
THEN DEST[i+31:i] := TMP_DEST[i+31:i]
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+31:i] remains unchanged*
ELSE *zeroing-masking*
; zeroing-masking
DEST[i+31:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:256] := 0
VEXTRACTF32x8 (EVEX.U1.512 encoded version) when destination is memory
CASE (imm8[0]) OF
0: TMP_DEST[255:0] := SRC1[255:0]
1: TMP_DEST[255:0] := SRC1[511:256]
ESAC.
FOR j := 0 TO 7
i := j * 32
IF k1[j] OR *no writemask*
THEN DEST[i+31:i] := TMP_DEST[i+31:i]
ELSE *DEST[i+31:i] remains unchanged*
; merging-masking
FI;
ENDFOR
VEXTRACTF64x4 (EVEX.512 encoded version) when destination is a register
VL = 512
CASE (imm8[0]) OF
0: TMP_DEST[255:0] := SRC1[255:0]
1: TMP_DEST[255:0] := SRC1[511:256]
ESAC.
FOR j := 0 TO 3
i := j * 64
IF k1[j] OR *no writemask*
THEN DEST[i+63:i] := TMP_DEST[i+63:i]
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+63:i] remains unchanged*
ELSE *zeroing-masking*
; zeroing-masking
VEXTRACTF128/VEXTRACTF32x4/VEXTRACTF64x2/VEXTRACTF32x8/VEXTRACTF64x4— Extract Packed Floating-Point Values
5-160
Vol. 2C
INSTRUCTION SET REFERENCE, V
DEST[i+63:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:256] := 0
VEXTRACTF64x4 (EVEX.512 encoded version) when destination is memory
CASE (imm8[0]) OF
0: TMP_DEST[255:0] := SRC1[255:0]
1: TMP_DEST[255:0] := SRC1[511:256]
ESAC.
FOR j := 0 TO 3
i := j * 64
IF k1[j] OR *no writemask*
THEN DEST[i+63:i] := TMP_DEST[i+63:i]
ELSE
; merging-masking
*DEST[i+63:i] remains unchanged*
FI;
ENDFOR
VEXTRACTF128 (memory destination form)
CASE (imm8[0]) OF
0: DEST[127:0] := SRC1[127:0]
1: DEST[127:0] := SRC1[255:128]
ESAC.
VEXTRACTF128 (register destination form)
CASE (imm8[0]) OF
0: DEST[127:0] := SRC1[127:0]
1: DEST[127:0] := SRC1[255:128]
ESAC.
DEST[MAXVL-1:128] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VEXTRACTF32x4 __m128 _mm512_extractf32x4_ps(__m512 a, const int nidx);
VEXTRACTF32x4 __m128 _mm512_mask_extractf32x4_ps(__m128 s, __mmask8 k, __m512 a, const int nidx);
VEXTRACTF32x4 __m128 _mm512_maskz_extractf32x4_ps( __mmask8 k, __m512 a, const int nidx);
VEXTRACTF32x4 __m128 _mm256_extractf32x4_ps(__m256 a, const int nidx);
VEXTRACTF32x4 __m128 _mm256_mask_extractf32x4_ps(__m128 s, __mmask8 k, __m256 a, const int nidx);
VEXTRACTF32x4 __m128 _mm256_maskz_extractf32x4_ps( __mmask8 k, __m256 a, const int nidx);
VEXTRACTF32x8 __m256 _mm512_extractf32x8_ps(__m512 a, const int nidx);
VEXTRACTF32x8 __m256 _mm512_mask_extractf32x8_ps(__m256 s, __mmask8 k, __m512 a, const int nidx);
VEXTRACTF32x8 __m256 _mm512_maskz_extractf32x8_ps( __mmask8 k, __m512 a, const int nidx);
VEXTRACTF64x2 __m128d _mm512_extractf64x2_pd(__m512d a, const int nidx);
VEXTRACTF64x2 __m128d _mm512_mask_extractf64x2_pd(__m128d s, __mmask8 k, __m512d a, const int nidx);
VEXTRACTF64x2 __m128d _mm512_maskz_extractf64x2_pd( __mmask8 k, __m512d a, const int nidx);
VEXTRACTF64x2 __m128d _mm256_extractf64x2_pd(__m256d a, const int nidx);
VEXTRACTF64x2 __m128d _mm256_mask_extractf64x2_pd(__m128d s, __mmask8 k, __m256d a, const int nidx);
VEXTRACTF64x2 __m128d _mm256_maskz_extractf64x2_pd( __mmask8 k, __m256d a, const int nidx);
VEXTRACTF64x4 __m256d _mm512_extractf64x4_pd( __m512d a, const int nidx);
VEXTRACTF64x4 __m256d _mm512_mask_extractf64x4_pd(__m256d s, __mmask8 k, __m512d a, const int nidx);
VEXTRACTF64x4 __m256d _mm512_maskz_extractf64x4_pd( __mmask8 k, __m512d a, const int nidx);
VEXTRACTF128 __m128 _mm256_extractf128_ps (__m256 a, int offset);
VEXTRACTF128/VEXTRACTF32x4/VEXTRACTF64x2/VEXTRACTF32x8/VEXTRACTF64x4— Extract Packed Floating-Point Values
Vol. 2C
5-161
INSTRUCTION SET REFERENCE, V
VEXTRACTF128 __m128d _mm256_extractf128_pd (__m256d a, int offset);
VEXTRACTF128 __m128i_mm256_extractf128_si256(__m256i a, int offset);
SIMD Floating-Point Exceptions
None
Other Exceptions
VEX-encoded instructions, see Table 2-23, “Type 6 Class Exception Conditions.”
EVEX-encoded instructions, see Table 2-54, “Type E6NF Class Exception Conditions.”
Additionally:
#UD
IF VEX.L = 0.
#UD
If VEX.vvvv != 1111B or EVEX.vvvv != 1111B.
VEXTRACTF128/VEXTRACTF32x4/VEXTRACTF64x2/VEXTRACTF32x8/VEXTRACTF64x4— Extract Packed Floating-Point Values
5-162
Vol. 2C
INSTRUCTION SET REFERENCE, V
VEXTRACTI128/VEXTRACTI32x4/VEXTRACTI64x2/VEXTRACTI32x8/VEXTRACTI64x4—Extract
Packed Integer Values
Opcode/
Op /
64/32
CPUID
Description
Instruction
En
bit Mode
Feature
Support
Flag
VEX.256.66.0F3A.W0 39 /r ib
A
V/V
AVX2
Extract 128 bits of integer data from ymm2 and
VEXTRACTI128 xmm1/m128, ymm2,
store results in xmm1/m128.
imm8
EVEX.256.66.0F3A.W0 39 /r ib
C
V/V
AVX512VL
Extract 128 bits of double-word integer values
VEXTRACTI32X4 xmm1/m128 {k1}{z},
AVX512F
from ymm2 and store results in xmm1/m128
ymm2, imm8
subject to writemask k1.
EVEX.512.66.0F3A.W0 39 /r ib
C
V/V
AVX512F
Extract 128 bits of double-word integer values
VEXTRACTI32x4 xmm1/m128 {k1}{z},
from zmm2 and store results in xmm1/m128
zmm2, imm8
subject to writemask k1.
EVEX.256.66.0F3A.W1 39 /r ib
B
V/V
AVX512VL
Extract 128 bits of quad-word integer values from
VEXTRACTI64X2 xmm1/m128 {k1}{z},
AVX512DQ
ymm2 and store results in xmm1/m128 subject to
ymm2, imm8
writemask k1.
EVEX.512.66.0F3A.W1 39 /r ib
B
V/V
AVX512DQ
Extract 128 bits of quad-word integer values from
VEXTRACTI64X2 xmm1/m128 {k1}{z},
zmm2 and store results in xmm1/m128 subject to
zmm2, imm8
writemask k1.
EVEX.512.66.0F3A.W0 3B /r ib
D
V/V
AVX512DQ
Extract 256 bits of double-word integer values
VEXTRACTI32X8 ymm1/m256 {k1}{z},
from zmm2 and store results in ymm1/m256
zmm2, imm8
subject to writemask k1.
EVEX.512.66.0F3A.W1 3B /r ib
C
V/V
AVX512F
Extract 256 bits of quad-word integer values from
VEXTRACTI64x4 ymm1/m256 {k1}{z},
zmm2 and store results in ymm1/m256 subject to
zmm2, imm8
writemask k1.
Instruction Operand Encoding
Op/En
Tuple Type
Operand 1
Operand 2
Operand 3
Operand 4
A
N/A
ModRM:r/m (w)
ModRM:reg (r)
imm8
N/A
B
Tuple2
ModRM:r/m (w)
ModRM:reg (r)
imm8
N/A
C
Tuple4
ModRM:r/m (w)
ModRM:reg (r)
imm8
N/A
D
Tuple8
ModRM:r/m (w)
ModRM:reg (r)
imm8
N/A
Description
VEXTRACTI128/VEXTRACTI32x4 and VEXTRACTI64x2 extract 128-bits of doubleword integer values from the
source operand (the second operand) and store to the low 128-bit of the destination operand (the first operand).
The 128-bit data extraction occurs at an 128-bit granular offset specified by imm8[0] (256-bit) or imm8[1:0] as
the multiply factor. The destination may be either a vector register or an 128-bit memory location.
VEXTRACTI32x4: The low 128-bit of the destination operand is updated at 32-bit granularity according to the
writemask.
VEXTRACTI64x2: The low 128-bit of the destination operand is updated at 64-bit granularity according to the
writemask.
VEXTRACTI32x8 and VEXTRACTI64x4 extract 256-bits of quadword integer values from the source operand (the
second operand) and store to the low 256-bit of the destination operand (the first operand). The 256-bit data
extraction occurs at an 256-bit granular offset specified by imm8[0] (256-bit) or imm8[0] as the multiply factor
The destination may be either a vector register or a 256-bit memory location.
VEXTRACTI32x8: The low 256-bit of the destination operand is updated at 32-bit granularity according to the
writemask.
VEXTRACTI128/VEXTRACTI32x4/VEXTRACTI64x2/VEXTRACTI32x8/VEXTRACTI64x4—Extract Packed Integer Values
Vol. 2C
5-163
INSTRUCTION SET REFERENCE, V
VEXTRACTI64x4: The low 256-bit of the destination operand is updated at 64-bit granularity according to the
writemask.
VEX.vvvv and EVEX.vvvv are reserved and must be 1111b otherwise instructions will #UD.
The high 7 bits (6 bits in EVEX.512) of the immediate are ignored.
If VEXTRACTI128 is encoded with VEX.L= 0, an attempt to execute the instruction encoded with VEX.L= 0 will
cause an #UD exception.
Operation
VEXTRACTI32x4 (EVEX encoded versions) when destination is a register
VL = 256, 512
IF VL = 256
CASE (imm8[0]) OF
0: TMP_DEST[127:0] := SRC1[127:0]
1: TMP_DEST[127:0] := SRC1[255:128]
ESAC.
FI;
IF VL = 512
CASE (imm8[1:0]) OF
00: TMP_DEST[127:0] := SRC1[127:0]
01: TMP_DEST[127:0] := SRC1[255:128]
10: TMP_DEST[127:0] := SRC1[383:256]
11: TMP_DEST[127:0] := SRC1[511:384]
ESAC.
FI;
FOR j := 0 TO 3
i := j * 32
IF k1[j] OR *no writemask*
THEN DEST[i+31:i] := TMP_DEST[i+31:i]
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+31:i] remains unchanged*
ELSE *zeroing-masking*
; zeroing-masking
DEST[i+31:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:128] := 0
VEXTRACTI32x4 (EVEX encoded versions) when destination is memory
VL = 256, 512
IF VL = 256
CASE (imm8[0]) OF
0: TMP_DEST[127:0] := SRC1[127:0]
1: TMP_DEST[127:0] := SRC1[255:128]
ESAC.
FI;
IF VL = 512
CASE (imm8[1:0]) OF
00: TMP_DEST[127:0] := SRC1[127:0]
01: TMP_DEST[127:0] := SRC1[255:128]
10: TMP_DEST[127:0] := SRC1[383:256]
11: TMP_DEST[127:0] := SRC1[511:384]
ESAC.
5-164
Vol. 2C
VEXTRACTI128/VEXTRACTI32x4/VEXTRACTI64x2/VEXTRACTI32x8/VEXTRACTI64x4—Extract Packed Integer Values
INSTRUCTION SET REFERENCE, V
FI;
FOR j := 0 TO 3
i := j * 32
IF k1[j] OR *no writemask*
THEN DEST[i+31:i] := TMP_DEST[i+31:i]
ELSE *DEST[i+31:i] remains unchanged*
; merging-masking
FI;
ENDFOR
VEXTRACTI64x2 (EVEX encoded versions) when destination is a register
VL = 256, 512
IF VL = 256
CASE (imm8[0]) OF
0: TMP_DEST[127:0] := SRC1[127:0]
1: TMP_DEST[127:0] := SRC1[255:128]
ESAC.
FI;
IF VL = 512
CASE (imm8[1:0]) OF
00: TMP_DEST[127:0] := SRC1[127:0]
01: TMP_DEST[127:0] := SRC1[255:128]
10: TMP_DEST[127:0] := SRC1[383:256]
11: TMP_DEST[127:0] := SRC1[511:384]
ESAC.
FI;
FOR j := 0 TO 1
i := j * 64
IF k1[j] OR *no writemask*
THEN DEST[i+63:i] := TMP_DEST[i+63:i]
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+63:i] remains unchanged*
ELSE *zeroing-masking*
; zeroing-masking
DEST[i+63:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:128] := 0
VEXTRACTI64x2 (EVEX encoded versions) when destination is memory
VL = 256, 512
IF VL = 256
CASE (imm8[0]) OF
0: TMP_DEST[127:0] := SRC1[127:0]
1: TMP_DEST[127:0] := SRC1[255:128]
ESAC.
FI;
IF VL = 512
CASE (imm8[1:0]) OF
00: TMP_DEST[127:0] := SRC1[127:0]
01: TMP_DEST[127:0] := SRC1[255:128]
10: TMP_DEST[127:0] := SRC1[383:256]
VEXTRACTI128/VEXTRACTI32x4/VEXTRACTI64x2/VEXTRACTI32x8/VEXTRACTI64x4—Extract Packed Integer Values
Vol. 2C
5-165
INSTRUCTION SET REFERENCE, V
11: TMP_DEST[127:0] := SRC1[511:384]
ESAC.
FI;
FOR j := 0 TO 1
i := j * 64
IF k1[j] OR *no writemask*
THEN DEST[i+63:i] := TMP_DEST[i+63:i]
ELSE *DEST[i+63:i] remains unchanged*
; merging-masking
FI;
ENDFOR
VEXTRACTI32x8 (EVEX.U1.512 encoded version) when destination is a register
VL = 512
CASE (imm8[0]) OF
0: TMP_DEST[255:0] := SRC1[255:0]
1: TMP_DEST[255:0] := SRC1[511:256]
ESAC.
FOR j := 0 TO 7
i := j * 32
IF k1[j] OR *no writemask*
THEN DEST[i+31:i] := TMP_DEST[i+31:i]
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+31:i] remains unchanged*
ELSE *zeroing-masking*
; zeroing-masking
DEST[i+31:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:256] := 0
VEXTRACTI32x8 (EVEX.U1.512 encoded version) when destination is memory
CASE (imm8[0]) OF
0: TMP_DEST[255:0] := SRC1[255:0]
1: TMP_DEST[255:0] := SRC1[511:256]
ESAC.
FOR j := 0 TO 7
i := j * 32
IF k1[j] OR *no writemask*
THEN DEST[i+31:i] := TMP_DEST[i+31:i]
ELSE *DEST[i+31:i] remains unchanged*
; merging-masking
FI;
ENDFOR
VEXTRACTI64x4 (EVEX.512 encoded version) when destination is a register
VL = 512
CASE (imm8[0]) OF
0: TMP_DEST[255:0] := SRC1[255:0]
1: TMP_DEST[255:0] := SRC1[511:256]
ESAC.
5-166
Vol. 2C
VEXTRACTI128/VEXTRACTI32x4/VEXTRACTI64x2/VEXTRACTI32x8/VEXTRACTI64x4—Extract Packed Integer Values
INSTRUCTION SET REFERENCE, V
FOR j := 0 TO 3
i := j * 64
IF k1[j] OR *no writemask*
THEN DEST[i+63:i] := TMP_DEST[i+63:i]
ELSE
IF *merging-masking*
; merging-masking
THEN *DEST[i+63:i] remains unchanged*
ELSE *zeroing-masking*
; zeroing-masking
DEST[i+63:i] := 0
FI
FI;
ENDFOR
DEST[MAXVL-1:256] := 0
VEXTRACTI64x4 (EVEX.512 encoded version) when destination is memory
CASE (imm8[0]) OF
0: TMP_DEST[255:0] := SRC1[255:0]
1: TMP_DEST[255:0] := SRC1[511:256]
ESAC.
FOR j := 0 TO 3
i := j * 64
IF k1[j] OR *no writemask*
THEN DEST[i+63:i] := TMP_DEST[i+63:i]
ELSE *DEST[i+63:i] remains unchanged*
; merging-masking
FI;
ENDFOR
VEXTRACTI128 (memory destination form)
CASE (imm8[0]) OF
0: DEST[127:0] := SRC1[127:0]
1: DEST[127:0] := SRC1[255:128]
ESAC.
VEXTRACTI128 (register destination form)
CASE (imm8[0]) OF
0: DEST[127:0] := SRC1[127:0]
1: DEST[127:0] := SRC1[255:128]
ESAC.
DEST[MAXVL-1:128] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VEXTRACTI32x4 __m128i _mm512_extracti32x4_epi32(__m512i a, const int nidx);
VEXTRACTI32x4 __m128i _mm512_mask_extracti32x4_epi32(__m128i s, __mmask8 k, __m512i a, const int nidx);
VEXTRACTI32x4 __m128i _mm512_maskz_extracti32x4_epi32( __mmask8 k, __m512i a, const int nidx);
VEXTRACTI32x4 __m128i _mm256_extracti32x4_epi32(__m256i a, const int nidx);
VEXTRACTI32x4 __m128i _mm256_mask_extracti32x4_epi32(__m128i s, __mmask8 k, __m256i a, const int nidx);
VEXTRACTI32x4 __m128i _mm256_maskz_extracti32x4_epi32( __mmask8 k, __m256i a, const int nidx);
VEXTRACTI32x8 __m256i _mm512_extracti32x8_epi32(__m512i a, const int nidx);
VEXTRACTI32x8 __m256i _mm512_mask_extracti32x8_epi32(__m256i s, __mmask8 k, __m512i a, const int nidx);
VEXTRACTI32x8 __m256i _mm512_maskz_extracti32x8_epi32( __mmask8 k, __m512i a, const int nidx);
VEXTRACTI64x2 __m128i _mm512_extracti64x2_epi64(__m512i a, const int nidx);
VEXTRACTI64x2 __m128i _mm512_mask_extracti64x2_epi64(__m128i s, __mmask8 k, __m512i a, const int nidx);
VEXTRACTI64x2 __m128i _mm512_maskz_extracti64x2_epi64( __mmask8 k, __m512i a, const int nidx);
VEXTRACTI64x2 __m128i _mm256_extracti64x2_epi64(__m256i a, const int nidx);
VEXTRACTI128/VEXTRACTI32x4/VEXTRACTI64x2/VEXTRACTI32x8/VEXTRACTI64x4—Extract Packed Integer Values
Vol. 2C
5-167
INSTRUCTION SET REFERENCE, V
VEXTRACTI64x2 __m128i _mm256_mask_extracti64x2_epi64(__m128i s, __mmask8 k, __m256i a, const int nidx);
VEXTRACTI64x2 __m128i _mm256_maskz_extracti64x2_epi64( __mmask8 k, __m256i a, const int nidx);
VEXTRACTI64x4 __m256i _mm512_extracti64x4_epi64(__m512i a, const int nidx);
VEXTRACTI64x4 __m256i _mm512_mask_extracti64x4_epi64(__m256i s, __mmask8 k, __m512i a, const int nidx);
VEXTRACTI64x4 __m256i _mm512_maskz_extracti64x4_epi64( __mmask8 k, __m512i a, const int nidx);
VEXTRACTI128 __m128i _mm256_extracti128_si256(__m256i a, int offset);
SIMD Floating-Point Exceptions
None
Other Exceptions
VEX-encoded instructions, see Table 2-23, “Type 6 Class Exception Conditions.”
EVEX-encoded instructions, see Table 2-54, “Type E6NF Class Exception Conditions.”
Additionally:
#UD
IF VEX.L = 0.
#UD
If VEX.vvvv != 1111B or EVEX.vvvv != 1111B.
5-168
Vol. 2C
VEXTRACTI128/VEXTRACTI32x4/VEXTRACTI64x2/VEXTRACTI32x8/VEXTRACTI64x4—Extract Packed Integer Values
INSTRUCTION SET REFERENCE, V
VFCMADDCPH/VFMADDCPH—Complex Multiply and Accumulate FP16 Values
Opcode/
Op/
64/32
CPUID Feature
Description
Instruction
En
bit Mode
Flag
Support
EVEX.128.F2.MAP6.W0 56 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFCMADDCPH xmm1{k1}{z}, xmm2,
AVX512VL
xmm2 and xmm3/m128/m32bcst, add to xmm1
xmm3/m128/m32bcst
and store the result in xmm1 subject to
writemask k1.
EVEX.256.F2.MAP6.W0 56 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFCMADDCPH ymm1{k1}{z}, ymm2,
AVX512VL
ymm2 and ymm3/m256/m32bcst, add to ymm1
ymm3/m256/m32bcst
and store the result in ymm1 subject to
writemask k1.
EVEX.512.F2.MAP6.W0 56 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFCMADDCPH zmm1{k1}{z}, zmm2,
zmm2 and zmm3/m512/m32bcst, add to zmm1
zmm3/m512/m32bcst {er}
and store the result in zmm1 subject to
writemask k1.
EVEX.128.F3.MAP6.W0 56 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFMADDCPH xmm1{k1}{z}, xmm2,
AVX512VL
xmm2 and the complex conjugate of xmm3/
xmm3/m128/m32bcst
m128/m32bcst, add to xmm1 and store the
result in xmm1 subject to writemask k1.
EVEX.256.F3.MAP6.W0 56 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFMADDCPH ymm1{k1}{z}, ymm2,
AVX512VL
ymm2 and the complex conjugate of ymm3/
ymm3/m256/m32bcst
m256/m32bcst, add to ymm1 and store the
result in ymm1 subject to writemask k1.
EVEX.512.F3.MAP6.W0 56 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFMADDCPH zmm1{k1}{z}, zmm2,
zmm2 and the complex conjugate of zmm3/
zmm3/m512/m32bcst {er}
m512/m32bcst, add to zmm1 and store the
result in zmm1 subject to writemask k1.
Instruction Operand Encoding
Op/En
Tuple
Operand 1
Operand 2
Operand 3
Operand 4
A
Full
ModRM:reg (r, w)
VEX.vvvv (r)
ModRM:r/m (r)
N/A
Description
This instruction performs a complex multiply and accumulate operation. There are normal and complex conjugate
forms of the operation.
The broadcasting and masking for this operation is done on 32-bit quantities representing a pair of FP16 values.
Rounding is performed at every FMA (fused multiply and add) boundary. Execution occurs as if all MXCSR excep-
tions are masked. MXCSR status bits are updated to reflect exceptional conditions.
VFCMADDCPH/VFMADDCPH—Complex Multiply and Accumulate FP16 Values
Vol. 2C
5-169
INSTRUCTION SET REFERENCE, V
Operation
VFMADDCPH dest{k1}, src1, src2 (AVX512)
VL = 128, 256, 512
KL := VL / 32
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
IF broadcasting and src2 is memory:
tsrc2.fp16[2*i+0] := src2.fp16[0]
tsrc2.fp16[2*i+1] := src2.fp16[1]
ELSE:
tsrc2.fp16[2*i+0] := src2.fp16[2*i+0]
tsrc2.fp16[2*i+1] := src2.fp16[2*i+1]
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
tmp[2*i+0] := dest.fp16[2*i+0] + src1.fp16[2*i+0] * tsrc2.fp16[2*i+0]
tmp[2*i+1] := dest.fp16[2*i+1] + src1.fp16[2*i+1] * tsrc2.fp16[2*i+0]
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
// non-conjugate version subtracts even term
dest.fp16[2*i+0] := tmp[2*i+0] - src1.fp16[2*i+1] * tsrc2.fp16[2*i+1]
dest.fp16[2*i+1] := tmp[2*i+1] + src1.fp16[2*i+0] * tsrc2.fp16[2*i+1]
ELSE IF *zeroing*:
dest.fp16[2*i+0] := 0
dest.fp16[2*i+1] := 0
DEST[MAXVL-1:VL] := 0
VFMADDCPH dest{k1}, src1, src2 (AVX512)
VL = 128, 256, 512
KL := VL / 32
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
IF broadcasting and src2 is memory:
tsrc2.fp16[2*i+0] := src2.fp16[0]
tsrc2.fp16[2*i+1] := src2.fp16[1]
ELSE:
tsrc2.fp16[2*i+0] := src2.fp16[2*i+0]
tsrc2.fp16[2*i+1] := src2.fp16[2*i+1]
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
tmp[2*i+0] := dest.fp16[2*i+0] + src1.fp16[2*i+0] * tsrc2.fp16[2*i+0]
tmp[2*i+1] := dest.fp16[2*i+1] + src1.fp16[2*i+1] * tsrc2.fp16[2*i+0]
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
// conjugate version subtracts odd final term
dest.fp16[2*i+0] := tmp[2*i+0] + src1.fp16[2*i+1] * tsrc2.fp16[2*i+1]
dest.fp16[2*i+1] := tmp[2*i+1] - src1.fp16[2*i+0] * tsrc2.fp16[2*i+1]
ELSE IF *zeroing*:
5-170
Vol. 2C
VFCMADDCPH/VFMADDCPH—Complex Multiply and Accumulate FP16 Values
INSTRUCTION SET REFERENCE, V
dest.fp16[2*i+0] := 0
dest.fp16[2*i+1] := 0
DEST[MAXVL-1:VL] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VFCMADDCPH __m128h _mm_fcmadd_pch (__m128h a, __m128h b, __m128h c);
VFCMADDCPH __m128h _mm_mask_fcmadd_pch (__m128h a, __mmask8 k, __m128h b, __m128h c);
VFCMADDCPH __m128h _mm_mask3_fcmadd_pch (__m128h a, __m128h b, __m128h c, __mmask8 k);
VFCMADDCPH __m128h _mm_maskz_fcmadd_pch (__mmask8 k, __m128h a, __m128h b, __m128h c);
VFCMADDCPH __m256h _mm256_fcmadd_pch (__m256h a, __m256h b, __m256h c);
VFCMADDCPH __m256h _mm256_mask_fcmadd_pch (__m256h a, __mmask8 k, __m256h b, __m256h c);
VFCMADDCPH __m256h _mm256_mask3_fcmadd_pch (__m256h a, __m256h b, __m256h c, __mmask8 k);
VFCMADDCPH __m256h _mm256_maskz_fcmadd_pch (__mmask8 k, __m256h a, __m256h b, __m256h c);
VFCMADDCPH __m512h _mm512_fcmadd_pch (__m512h a, __m512h b, __m512h c);
VFCMADDCPH __m512h _mm512_mask_fcmadd_pch (__m512h a, __mmask16 k, __m512h b, __m512h c);
VFCMADDCPH __m512h _mm512_mask3_fcmadd_pch (__m512h a, __m512h b, __m512h c, __mmask16 k);
VFCMADDCPH __m512h _mm512_maskz_fcmadd_pch (__mmask16 k, __m512h a, __m512h b, __m512h c);
VFCMADDCPH __m512h _mm512_fcmadd_round_pch (__m512h a, __m512h b, __m512h c, const int rounding);
VFCMADDCPH __m512h _mm512_mask_fcmadd_round_pch (__m512h a, __mmask16 k, __m512h b, __m512h c, const int rounding);
VFCMADDCPH __m512h _mm512_mask3_fcmadd_round_pch (__m512h a, __m512h b, __m512h c, __mmask16 k, const int rounding);
VFCMADDCPH __m512h _mm512_maskz_fcmadd_round_pch (__mmask16 k, __m512h a, __m512h b, __m512h c, const int rounding);
VFMADDCPH __m128h _mm_fmadd_pch (__m128h a, __m128h b, __m128h c);
VFMADDCPH __m128h _mm_mask_fmadd_pch (__m128h a, __mmask8 k, __m128h b, __m128h c);
VFMADDCPH __m128h _mm_mask3_fmadd_pch (__m128h a, __m128h b, __m128h c, __mmask8 k);
VFMADDCPH __m128h _mm_maskz_fmadd_pch (__mmask8 k, __m128h a, __m128h b, __m128h c);
VFMADDCPH __m256h _mm256_fmadd_pch (__m256h a, __m256h b, __m256h c);
VFMADDCPH __m256h _mm256_mask_fmadd_pch (__m256h a, __mmask8 k, __m256h b, __m256h c);
VFMADDCPH __m256h _mm256_mask3_fmadd_pch (__m256h a, __m256h b, __m256h c, __mmask8 k);
VFMADDCPH __m256h _mm256_maskz_fmadd_pch (__mmask8 k, __m256h a, __m256h b, __m256h c);
VFMADDCPH __m512h _mm512_fmadd_pch (__m512h a, __m512h b, __m512h c);
VFMADDCPH __m512h _mm512_mask_fmadd_pch (__m512h a, __mmask16 k, __m512h b, __m512h c);
VFMADDCPH __m512h _mm512_mask3_fmadd_pch (__m512h a, __m512h b, __m512h c, __mmask16 k);
VFMADDCPH __m512h _mm512_maskz_fmadd_pch (__mmask16 k, __m512h a, __m512h b, __m512h c);
VFMADDCPH __m512h _mm512_fmadd_round_pch (__m512h a, __m512h b, __m512h c, const int rounding);
VFMADDCPH __m512h _mm512_mask_fmadd_round_pch (__m512h a, __mmask16 k, __m512h b, __m512h c, const int rounding);
VFMADDCPH __m512h _mm512_mask3_fmadd_round_pch (__m512h a, __m512h b, __m512h c, __mmask16 k, const int rounding);
VFMADDCPH __m512h _mm512_maskz_fmadd_round_pch (__mmask16 k, __m512h a, __m512h b, __m512h c, const int rounding);
SIMD Floating-Point Exceptions
Invalid, Underflow, Overflow, Precision, Denormal
Other Exceptions
EVEX-encoded instructions, see Table 2-49, “Type E4 Class Exception Conditions.”
Additionally:
#UD
If (dest_reg == src1_reg) or (dest_reg == src2_reg).
VFCMADDCPH/VFMADDCPH—Complex Multiply and Accumulate FP16 Values
Vol. 2C
5-171
INSTRUCTION SET REFERENCE, V
VFCMADDCSH/VFMADDCSH—Complex Multiply and Accumulate Scalar FP16 Values
Opcode/
Op/
64/32
CPUID Feature
Description
Instruction
En
bit Mode
Flag
Support
EVEX.LLIG.F2.MAP6.W0 57 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFCMADDCSH xmm1{k1}{z}, xmm2,
xmm2 and xmm3/m32, add to xmm1 and store
xmm3/m32 {er}
the result in xmm1 subject to writemask k1. Bits
127:32 of xmm2 are copied to xmm1[127:32].
EVEX.LLIG.F3.MAP6.W0 57 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFMADDCSH xmm1{k1}{z}, xmm2,
xmm2 and the complex conjugate of xmm3/m32,
xmm3/m32 {er}
add to xmm1 and store the result in xmm1
subject to writemask k1. Bits 127:32 of xmm2
are copied to xmm1[127:32].
Instruction Operand Encoding
Op/En
Tuple
Operand 1
Operand 2
Operand 3
Operand 4
A
Scalar
ModRM:reg (r, w)
VEX.vvvv (r)
ModRM:r/m (r)
N/A
Description
This instruction performs a complex multiply and accumulate operation. There are normal and complex conjugate
forms of the operation.
The masking for this operation is done on 32-bit quantities representing a pair of FP16 values.
Bits 127:32 of the destination operand are copied from the corresponding bits of the first source operand. Bits
MAXVL-1:128 of the destination operand are zeroed. The low FP16 element of the destination is updated according
to the writemask.
Rounding is performed at every FMA (fused multiply and add) boundary. Execution occurs as if all MXCSR excep-
tions are masked. MXCSR status bits are updated to reflect exceptional conditions.
Operation
VFMADDCSH dest{k1}, src1, src2 (AVX512)
IF k1[0] or *no writemask*:
tmp[0] := dest.fp16[0] + src1.fp16[0] * src2.fp16[0]
tmp[1] := dest.fp16[1] + src1.fp16[1] * src2.fp16[0]
// non-conjugate version subtracts last even term
dest.fp16[0] := tmp[0] - src1.fp16[1] * src2.fp16[1]
dest.fp16[1] := tmp[1] + src1.fp16[0] * src2.fp16[1]
ELSE IF *zeroing*:
dest.fp16[0] := 0
dest.fp16[1] := 0
DEST[127:32] := src1[127:32] // copy upper part of src1
DEST[MAXVL-1:128] := 0
5-172
Vol. 2C
VFCMADDCSH/VFMADDCSH—Complex Multiply and Accumulate Scalar FP16 Values
INSTRUCTION SET REFERENCE, V
VFCMADDCSH dest{k1}, src1, src2 (AVX512)
IF k1[0] or *no writemask*:
tmp[0] := dest.fp16[0] + src1.fp16[0] * src2.fp16[0]
tmp[1] := dest.fp16[1] + src1.fp16[1] * src2.fp16[0]
// conjugate version subtracts odd final term
dest.fp16[0] := tmp[0] + src1.fp16[1] * src2.fp16[1]
dest.fp16[1] := tmp[1] - src1.fp16[0] * src2.fp16[1]
ELSE IF *zeroing*:
dest.fp16[0] := 0
dest.fp16[1] := 0
DEST[127:32] := src1[127:32] // copy upper part of src1
DEST[MAXVL-1:128] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VFCMADDCSH __m128h _mm_fcmadd_round_sch (__m128h a, __m128h b, __m128h c, const int rounding);
VFCMADDCSH __m128h _mm_mask_fcmadd_round_sch (__m128h a, __mmask8 k, __m128h b, __m128h c, const int rounding);
VFCMADDCSH __m128h _mm_mask3_fcmadd_round_sch (__m128h a, __m128h b, __m128h c, __mmask8 k, const int rounding);
VFCMADDCSH __m128h _mm_maskz_fcmadd_round_sch (__mmask8 k, __m128h a, __m128h b, __m128h c, const int rounding);
VFCMADDCSH __m128h _mm_fcmadd_sch (__m128h a, __m128h b, __m128h c);
VFCMADDCSH __m128h _mm_mask_fcmadd_sch (__m128h a, __mmask8 k, __m128h b, __m128h c);
VFCMADDCSH __m128h _mm_mask3_fcmadd_sch (__m128h a, __m128h b, __m128h c, __mmask8 k);
VFCMADDCSH __m128h _mm_maskz_fcmadd_sch (__mmask8 k, __m128h a, __m128h b, __m128h c);
VFCMADDCSH __m128h _mm_mask3_fmadd_round_sch (__m128h a, __m128h b, __m128h c, __mmask8 k, const int rounding);
VFCMADDCSH __m128h _mm_mask3_fmadd_sch (__m128h a, __m128h b, __m128h c, __mmask8 k);
VFMADDCSH __m128h _mm_fmadd_round_sch (__m128h a, __m128h b, __m128h c, const int rounding);
VFMADDCSH __m128h _mm_mask_fmadd_round_sch (__m128h a, __mmask8 k, __m128h b, __m128h c, const int rounding);
VFMADDCSH __m128h _mm_maskz_fmadd_round_sch (__mmask8 k, __m128h a, __m128h b, __m128h c, const int rounding);
VFMADDCSH __m128h _mm_fmadd_sch (__m128h a, __m128h b, __m128h c);
VFMADDCSH __m128h _mm_mask_fmadd_sch (__m128h a, __mmask8 k, __m128h b, __m128h c);
VFMADDCSH __m128h _mm_maskz_fmadd_sch (__mmask8 k, __m128h a, __m128h b, __m128h c);
SIMD Floating-Point Exceptions
Invalid, Underflow, Overflow, Precision, Denormal
Other Exceptions
EVEX-encoded instructions, see Table 2-58, “Type E10 Class Exception Conditions.”
Additionally:
#UD
If (dest_reg == src1_reg) or (dest_reg == src2_reg).
VFCMADDCSH/VFMADDCSH—Complex Multiply and Accumulate Scalar FP16 Values
Vol. 2C
5-173
INSTRUCTION SET REFERENCE, V
VFCMULCPH/VFMULCPH—Complex Multiply FP16 Values
Opcode/
Op/
64/32
CPUID Feature
Description
Instruction
En
bit Mode
Flag
Support
EVEX.128.F2.MAP6.W0 D6 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFCMULCPH xmm1{k1}{z}, xmm2,
AVX512VL
xmm2 and xmm3/m128/m32bcst, and store the
xmm3/m128/m32bcst
result in xmm1 subject to writemask k1.
EVEX.256.F2.MAP6.W0 D6 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFCMULCPH ymm1{k1}{z}, ymm2,
AVX512VL
ymm2 and ymm3/m256/m32bcst, and store the
ymm3/m256/m32bcst
result in ymm1 subject to writemask k1.
EVEX.512.F2.MAP6.W0 D6 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFCMULCPH zmm1{k1}{z}, zmm2,
zmm2 and zmm3/m512/m32bcst, and store the
zmm3/m512/m32bcst {er}
result in zmm1 subject to writemask k1.
EVEX.128.F3.MAP6.W0 D6 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFMULCPH xmm1{k1}{z}, xmm2,
AVX512VL
xmm2 and the complex conjugate of xmm3/
xmm3/m128/m32bcst
m128/m32bcst, and store the result in xmm1
subject to writemask k1.
EVEX.256.F3.MAP6.W0 D6 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFMULCPH ymm1{k1}{z}, ymm2,
AVX512VL
ymm2 and the complex conjugate of ymm3/
ymm3/m256/m32bcst
m256/m32bcst, and store the result in ymm1
subject to writemask k1.
EVEX.512.F3.MAP6.W0 D6 /r
A
V/V
AVX512-FP16
Complex multiply a pair of FP16 values from
VFMULCPH zmm1{k1}{z}, zmm2,
zmm2 and the complex conjugate of zmm3/m512/
zmm3/m512/m32bcst {er}
m32bcst, and store the result in zmm1 subject to
writemask k1.
Instruction Operand Encoding
Op/En
Tuple
Operand 1
Operand 2
Operand 3
Operand 4
A
Full
ModRM:reg (w)
VEX.vvvv (r)
ModRM:r/m (r)
N/A
Description
This instruction performs a complex multiply operation. There are normal and complex conjugate forms of the oper-
ation. The broadcasting and masking for this operation is done on 32-bit quantities representing a pair of FP16
values.
Rounding is performed at every FMA (fused multiply and add) boundary. Execution occurs as if all MXCSR excep-
tions are masked. MXCSR status bits are updated to reflect exceptional conditions.
Operation
VFMULCPH dest{k1}, src1, src2 (AVX512)
VL = 128, 256 or 512
KL := VL/32
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
IF broadcasting and src2 is memory:
tsrc2.fp16[2*i+0] := src2.fp16[0]
tsrc2.fp16[2*i+1] := src2.fp16[1]
ELSE:
tsrc2.fp16[2*i+0] := src2.fp16[2*i+0]
tsrc2.fp16[2*i+1] := src2.fp16[2*i+1]
FOR i := 0 to kl-1:
5-174
Vol. 2C
VFCMULCPH/VFMULCPH—Complex Multiply FP16 Values
INSTRUCTION SET REFERENCE, V
IF k1[i] or *no writemask*:
tmp.fp16[2*i+0] := src1.fp16[2*i+0] * tsrc2.fp16[2*i+0]
tmp.fp16[2*i+1] := src1.fp16[2*i+1] * tsrc2.fp16[2*i+0]
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
// non-conjugate version subtracts last even term
dest.fp16[2*i+0] := tmp.fp16[2*i+0] - src1.fp16[2*i+1] * tsrc2.fp16[2*i+1]
dest.fp16[2*i+1] := tmp.fp16[2*i+1] + src1.fp16[2*i+0] * tsrc2.fp16[2*i+1]
ELSE IF *zeroing*:
dest.fp16[2*i+0] := 0
dest.fp16[2*i+1] := 0
DEST[MAXVL-1:VL] := 0
VFCMULCPH dest{k1}, src1, src2 (AVX512)
VL = 128, 256 or 512
KL := VL/32
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
IF broadcasting and src2 is memory:
tsrc2.fp16[2*i+0] := src2.fp16[0]
tsrc2.fp16[2*i+1] := src2.fp16[1]
ELSE:
tsrc2.fp16[2*i+0] := src2.fp16[2*i+0]
tsrc2.fp16[2*i+1] := src2.fp16[2*i+1]
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
tmp.fp16[2*i+0] := src1.fp16[2*i+0] * tsrc2.fp16[2*i+0]
tmp.fp16[2*i+1] := src1.fp16[2*i+1] * tsrc2.fp16[2*i+0]
FOR i := 0 to KL-1:
IF k1[i] or *no writemask*:
// conjugate version subtracts odd final term
dest.fp16[2*i] := tmp.fp16[2*i+0] +src1.fp16[2*i+1] * tsrc2.fp16[2*i+1]
dest.fp16[2*i+1] := tmp.fp16[2*i+1] - src1.fp16[2*i+0] * tsrc2.fp16[2*i+1]
ELSE IF *zeroing*:
dest.fp16[2*i+0] := 0
dest.fp16[2*i+1] := 0
DEST[MAXVL-1:VL] := 0
Intel C/C++ Compiler Intrinsic Equivalent
VFCMULCPH __m128h _mm_cmul_pch (__m128h a, __m128h b);
VFCMULCPH __m128h _mm_mask_cmul_pch (__m128h src, __mmask8 k, __m128h a, __m128h b);
VFCMULCPH __m128h _mm_maskz_cmul_pch (__mmask8 k, __m128h a, __m128h b);
VFCMULCPH __m256h _mm256_cmul_pch (__m256h a, __m256h b);
VFCMULCPH __m256h _mm256_mask_cmul_pch (__m256h src, __mmask8 k, __m256h a, __m256h b);
VFCMULCPH __m256h _mm256_maskz_cmul_pch (__mmask8 k, __m256h a, __m256h b);
VFCMULCPH __m512h _mm512_cmul_pch (__m512h a, __m512h b);
VFCMULCPH __m512h _mm512_mask_cmul_pch (__m512h src, __mmask16 k, __m512h a, __m512h b);
VFCMULCPH __m512h _mm512_maskz_cmul_pch (__mmask16 k, __m512h a, __m512h b);
VFCMULCPH/VFMULCPH—Complex Multiply FP16 Values
Vol. 2C
5-175
INSTRUCTION SET REFERENCE, V
VFCMULCPH __m512h _mm512_cmul_round_pch (__m512h a, __m512h b, const int rounding);
VFCMULCPH __m512h _mm512_mask_cmul_round_pch (__m512h src, __mmask16 k, __m512h a, __m512h b, const int rounding);
VFCMULCPH __m512h _mm512_maskz_cmul_round_pch (__mmask16 k, __m512h a, __m512h b, const int rounding);
VFCMULCPH __m128h _mm_fcmul_pch (__m128h a, __m128h b);
VFCMULCPH __m128h _mm_mask_fcmul_pch (__m128h src, __mmask8 k, __m128h a, __m128h b);
VFCMULCPH __m128h _mm_maskz_fcmul_pch (__mmask8 k, __m128h a, __m128h b);
VFCMULCPH __m256h _mm256_fcmul_pch (__m256h a, __m256h b);
VFCMULCPH __m256h _mm256_mask_fcmul_pch (__m256h src, __mmask8 k, __m256h a, __m256h b);
VFCMULCPH __m256h _mm256_maskz_fcmul_pch (__mmask8 k, __m256h a, __m256h b);
VFCMULCPH __m512h _mm512_fcmul_pch (__m512h a, __m512h b);
VFCMULCPH __m512h _mm512_mask_fcmul_pch (__m512h src, __mmask16 k, __m512h a, __m512h b);
VFCMULCPH __m512h _mm512_maskz_fcmul_pch (__mmask16 k, __m512h a, __m512h b);
VFCMULCPH __m512h _mm512_fcmul_round_pch (__m512h a, __m512h b, const int rounding);
VFCMULCPH __m512h _mm512_mask_fcmul_round_pch (__m512h src, __mmask16 k, __m512h a, __m512h b, const int rounding);
VFCMULCPH __m512h _mm512_maskz_fcmul_round_pch (__mmask16 k, __m512h a, __m512h b, const int rounding);
VFMULCPH __m128h _mm_fmul_pch (__m128h a, __m128h b);
VFMULCPH __m128h _mm_mask_fmul_pch (__m128h src, __mmask8 k, __m128h a, __m128h b);
VFMULCPH __m128h _mm_maskz_fmul_pch (__mmask8 k, __m128h a, __m128h b);
VFMULCPH __m256h _mm256_fmul_pch (__m256h a, __m256h b);
VFMULCPH __m256h _mm256_mask_fmul_pch (__m256h src, __mmask8 k, __m256h a, __m256h b);
VFMULCPH __m256h _mm256_maskz_fmul_pch (__mmask8 k, __m256h a, __m256h b);
VFMULCPH __m512h _mm512_fmul_pch (__m512h a, __m512h b);
VFMULCPH __m512h _mm512_mask_fmul_pch (__m512h src, __mmask16 k, __m512h a, __m512h b);
VFMULCPH __m512h _mm512_maskz_fmul_pch (__mmask16 k, __m512h a, __m512h b);
VFMULCPH __m512h _mm512_fmul_round_pch (__m512h a, __m512h b, const int rounding);
VFMULCPH __m512h _mm512_mask_fmul_round_pch (__m512h src, __mmask16 k, __m512h a, __m512h b, const int rounding);
VFMULCPH __m512h _mm512_maskz_fmul_round_pch (__mmask16 k, __m512h a, __m512h b, const int rounding);
VFMULCPH __m128h _mm_mask_mul_pch (__m128h src, __mmask8 k, __m128h a, __m128h b);
VFMULCPH __m128h _mm_maskz_mul_pch (__mmask8 k, __m128h a, __m128h b);
VFMULCPH __m128h _mm_mul_pch (__m128h a, __m128h b);
VFMULCPH __m256h _mm256_mask_mul_pch (__m256h src, __mmask8 k, __m256h a, __m256h b);
VFMULCPH __m256h _mm256_maskz_mul_pch (__mmask8 k, __m256h a, __m256h b);
VFMULCPH __m256h _mm256_mul_pch (__m256h a, __m256h b);
VFMULCPH __m512h _mm512_mask_mul_pch (__m512h src, __mmask16 k, __m512h a, __m512h b);
VFMULCPH __m512h _mm512_maskz_mul_pch (__mmask16 k, __m512h a, __m512h b);
VFMULCPH __m512h _mm512_mul_pch (__m512h a, __m512h b);
VFMULCPH __m512h _mm512_mask_mul_round_pch (__m512h src, __mmask16 k, __m512h a, __m512h b, const int rounding);
VFMULCPH __m512h _mm512_maskz_mul_round_pch (__mmask16 k, __m512h a, __m512h b, const int rounding);
VFMULCPH __m512h _mm512_mul_round_pch (__m512h a, __m512h b, const int rounding);
SIMD Floating-Point Exceptions
Invalid, Underflow, Overflow, Precision, Denormal
Other Exceptions
EVEX-encoded instructions, see Table 2-49, “Type E4 Class Exception Conditions.”
Additionally:
#UD
If (dest_reg == src1_reg) or (dest_reg == src2_reg).
5-176
Vol. 2C
VFCMULCPH/VFMULCPH—Complex Multiply FP16 Values
