12.1

SCREENS DISPLAYED BY FUNCTION KEY

Section 12.1, "SCREENS DISPLAYED BY FUNCTION KEY

", consists of the following subsections:

------ Screens of a 7.2/8.4/10.4-inch display unit ------
12.1.1  Position Display in the Workpiece Coordinate System .....1431
12.1.2  Position Display in the Relative Coordinate System .........1433
12.1.3  Overall Position Display ....................................................1436
12.1.4  Workpiece Coordinate System Preset................................1438
12.1.5  Actual Feedrate Display.....................................................1439
12.1.6  Display of Run Time and Parts Count ...............................1441
12.1.7  Setting the Floating Reference Position.............................1443
12.1.8  Operating Monitor Display ................................................1444
12.1.9  Display of Three-dimensional Manual Feed

(Tool Tip Coordinates, Number of Pulses, Machine
Axis Move Amount) ..........................................................1447

------ Screens of a 15-inch display unit ------
12.1.10 Overall Position Display (15-inch Display Unit)...............1451
12.1.11 Workpiece Coordinate System Preset (15-Inch Display

Unit) ...................................................................................1454

12.1.12 Actual Feedrate Display (15-inch Display Unit) ...............1455
12.1.13 Display of Run Time and Parts Count (15-Inch Display

Unit) ...................................................................................1457

12.1.14 Setting the Floating Reference Position (15-Inch

Display Unit)......................................................................1459

12.1.15 Operating Monitor Display (15-inch Display Unit)...........1460
12.1.16 Display of Three-dimensional Manual Feed

(Tool Tip Coordinates, Number of Pulses, Machine
Axis Move Amount) (15-inch Display Unit).....................1463

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1430 -

Screens of a 7.2/8.4/10.4-inch display unit

Press function key

to display the current position of the tool.

The following three screens are used to display the current position of
the tool:

•

Current position display screen for the workpiece coordinate

system.

•

Current position display screen for the relative coordinate

system.

•

Current overall position display screen.

The above screens can also display the feedrate, run time, and the
number of parts. In addition, a floating reference position can be set
on these screens.
Function key

can also be used to display the load on the servo

motor and spindle motor and the rotation speed of the spindle motor
(operating monitor display).
Function key

can also be used to display the screen for

displaying the distance moved by handle interruption. See III- 4.6 for
details on this screen.
On any of the position display screens, the status (such as D, I, L, S, *,
or M) of an axis is indicated on the left of the axis name to prevent
wrong operations. See "Axis status display" in III-6.5, "WRONG
OPERATION PREVENTION FUNCTIONS" for details.

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1431 -

12.1.1

Position Display in the Workpiece Coordinate System

Displays the current position of the tool in the workpiece coordinate
system. The current position changes as the tool moves. The least
input increment is used as the unit for numeric values. The title at the
top of the screen indicates that absolute coordinates are used.

Display procedure for the current position screen in the workpiece coordinate

Procedure

Press function key

Press soft key [ABSOLUTE].

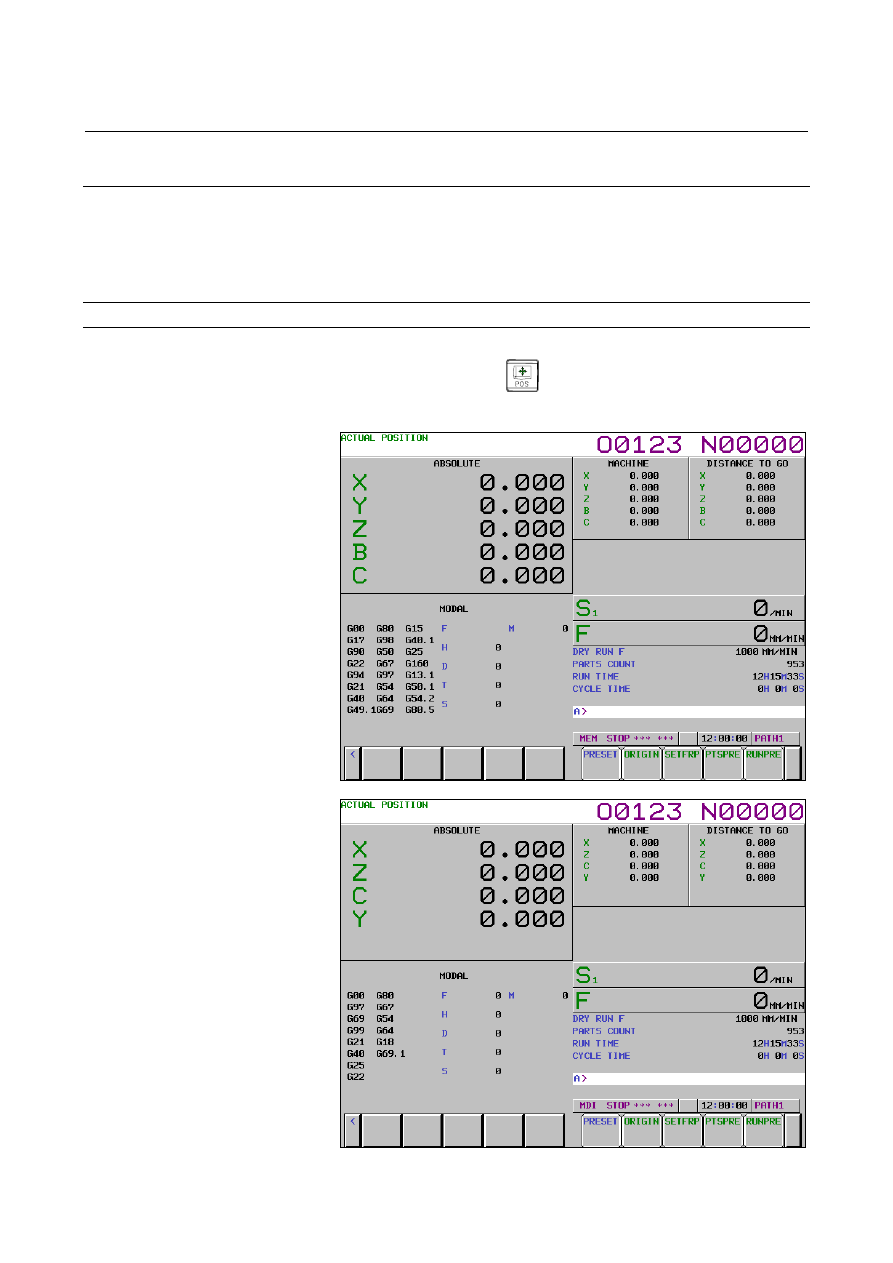

Fig. 12.1.1 (a) Current position (absolute) screen (M series)(10.4-inch)

Fig. 12.1.1 (b) Current position (absolute) screen (T series)(10.4-inch)

B-63944EN/03

OPERATION

12.SETTING AND DISPLAYING DATA

- 1433 -

12.1.2

Position Display in the Relative Coordinate System

Displays the current position of the tool in a relative coordinate
system based on the coordinates (see Explanation) set by the operator.
The current position changes as the tool moves. The increment system
is used as the unit for numeric values.
The title at the top of the screen indicates that relative coordinates are
used.

Display procedure for the current position screen with the relative coordinate
system

Procedure

Press function key

Press soft key [RELATIVE].

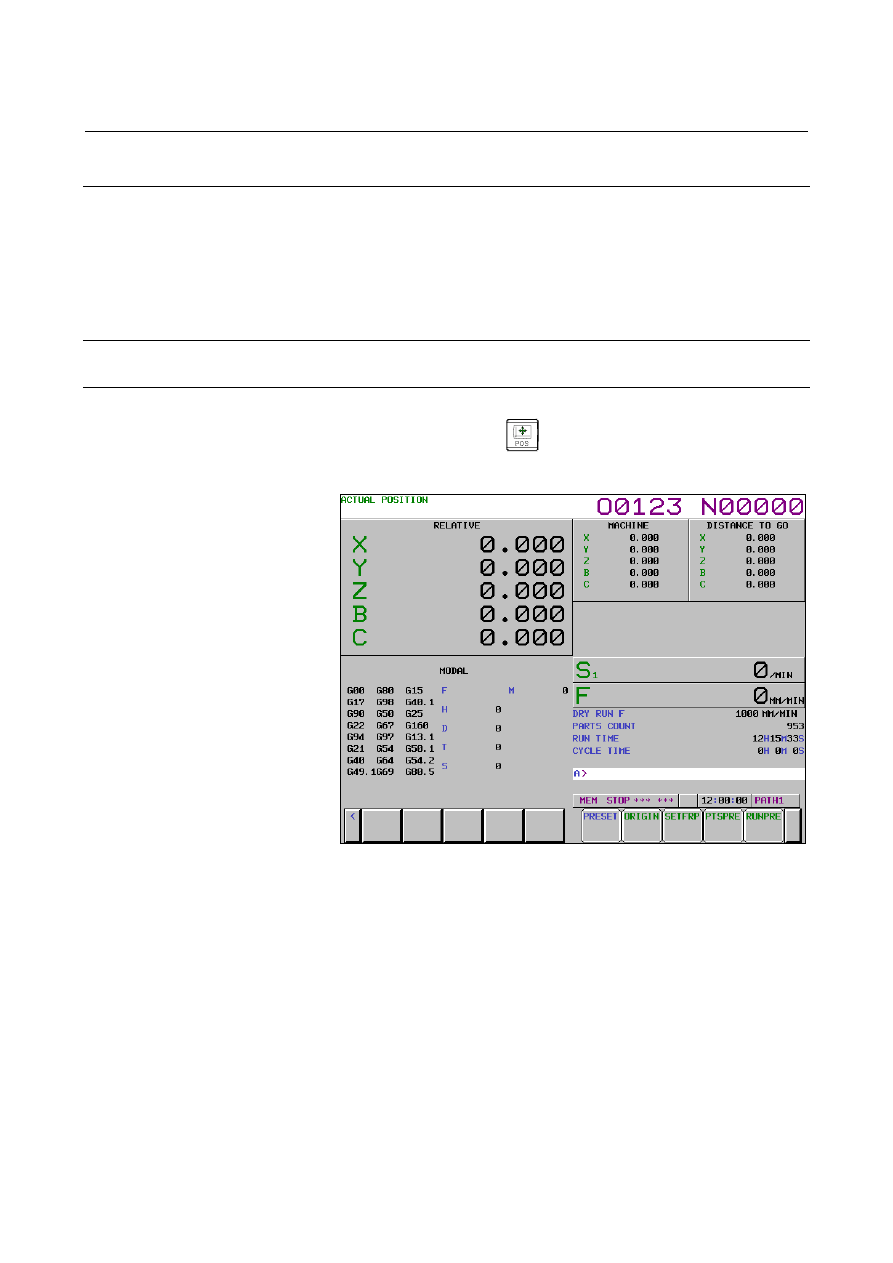

Fig. 12.1.2 (a) Current position (relative) screen (M series)(10.4-inch)

12.SETTING AND DISPLAYING DATA

OPERATION

B-63944EN/03

- 1434 -

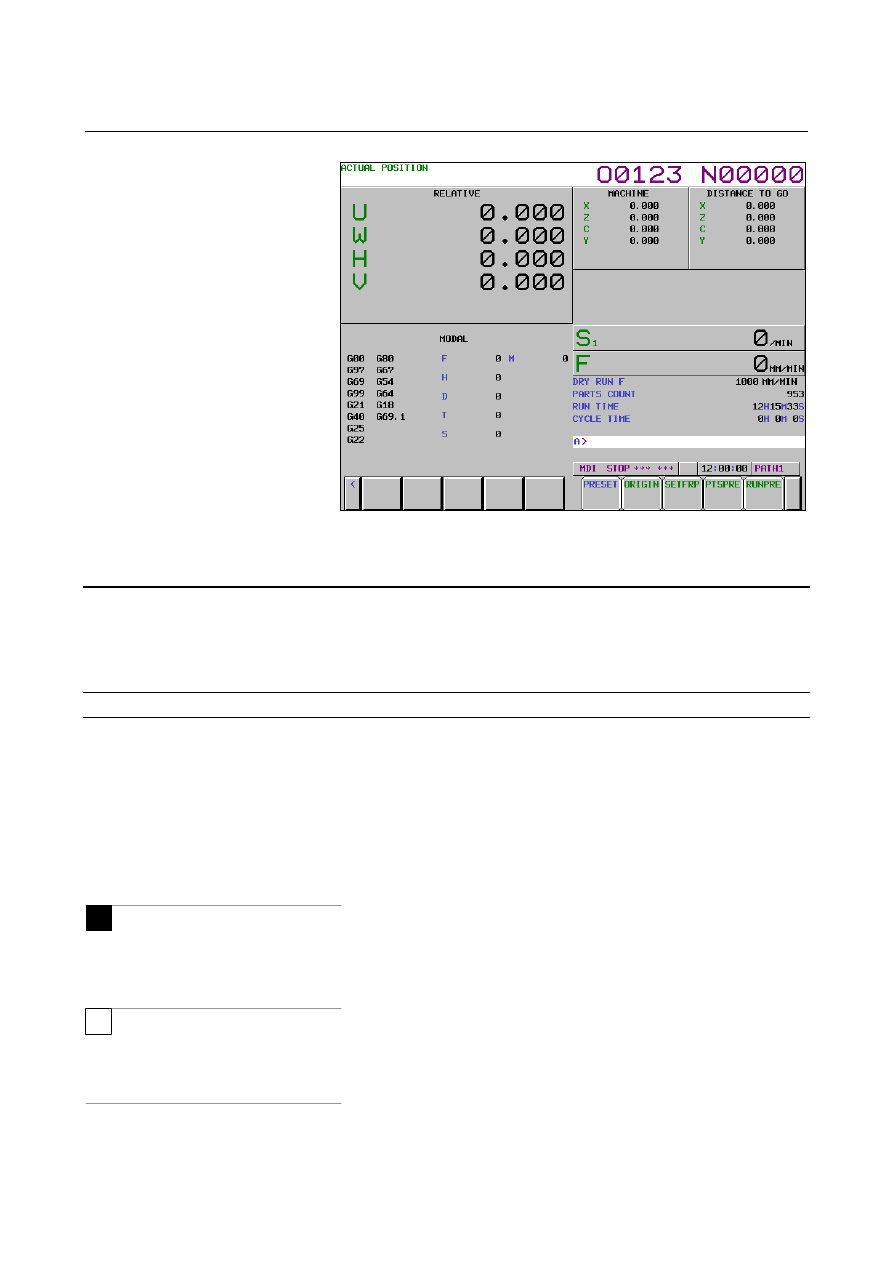

Fig. 12.1.2 (b) Current position (relative) screen (T series) (10.4-inch)

See Explanation for the procedure for setting the coordinates.

Explanation

- Setting the relative coordinates

The current position of the tool in the relative coordinate system can
be reset to 0 or preset to a specified value as follows:

Procedure to set the axis coordinate to a specified value

Procedure

To reset the coordinate to 0, press soft key [ORGIN].
Key in an axis name to be reset (such as X or Y), then press soft
key [EXEC].

For presetting to a specified value, key in an axis name to be
preset and a preset value (such as X100.000), then press soft key
[PRESET].

- Display including compensation values

Bits 4 (DRL) and 5 (DRC) of parameter No. 3104 can be used to
select whether the displayed values include tool length compensation
and cutter compensation.

Bit 0 (DRP) parameter No. 3129 and bit 5 (DRC) of parameter No.
3104 can be used to select whether the displayed values include tool
offset and tool nose radius compensation.
