4.5

EXTERNAL SUBPROGRAM CALL (M198)


During memory operation, you can call and execute a subprogram
registered in an external device (such as a Memory Card, Handy File,
or Data Server) connected to the CNC.


Format

M198 Pxxxxxxxx Lyyyyyyyy ;





↑











↑



Pxxxxxxxx :  Program number (or file number)
Lyyyyyyyy :  Number of repetitive calls
When address L is omitted, the number of repetitive calls is
assumed to be 1.



FS16 compatible command format
(The following command format is valid only when a 4-digit
program number is used.)

M198 Pxxxx yyyy ;







↑





↑



xxxx :  Number of repetitive calls
yyyy :  Program number (or file number)
When the number of repetitive calls is omitted, it is assumed
to be 1.



Explanation

M code M198 specifies an external subprogram call.    You can also
call an external subprogram using an M code set in parameter No.
6030.    (When an M code other than M198 is set as an M code for
calling an external subprogram, M198 is executed as a normal M
code.)

Specify a program number (file number) registered in an external
device at address P.    If the specified program number (file number) is
not registered in the connected external device, an alarm (PS1079) is
issued.


B-63944EN/03

 OPERATION

4.AUTOMATIC OPERATION





- 1125 -

Example)

M198 P0123 L3;

This command specifies that the subprogram having
external subprogram number O0123 is to be called three
times repeatedly.
The subprogram is called from the main program and
executed as follows:

Main program



Sub program





1 2

3

N0010 ... ;
N0020 ... ;
N0030 M198 P0123 L3 ;
N0040 ... ;
N0050   ;
N0060 ... ;

0123 ... ;
N1020 ... ;
N1030 ... ;
N1040 ... ;
N0050 ... ;
N1060 ... M99 ;





  - Program number call

You can also specify a subprogram call with its program number
instead of the file number by the setting of bit 2 (SBP) of parameter
No. 3404.


NOTE

1  An external subprogram call can be specified only

during program operation in the MEM mode and
cannot be specified in the MDI mode.

2  An external subprogram call is available for the

following external devices:

External device name

Program

number call

File number call

Handy File

Available

Available

FLOPPY CASSTTE

Available

Available

Memory Card

Available

Unavailable

Data Server

Available

Unavailable

3  To perform a subprogram call using a Memory

Card as the external device, set bit 7 (MNC) of
parameter No. 138 to 1 and I/O channel (parameter
No. 0020) to 4.



A program number call is always enabled
regardless of the setting of bit 2 (SBP) of
parameter No. 3404.

4.AUTOMATIC OPERATION

 OPERATION

B-63944EN/03





- 1126 -

NOTE

4  An external device subprogram call cannot be

performed from a subprogram called using another
external device subprogram call.    (An alarm
(PS1080) is issued.)




Main program
 (internal memory)


M198

Sub program
(External device)


M198

Sub program
(External device)




Cannot be
called.
(Alarm)

Can be called.



5  A subprogram registered in internal memory can be

called from a subprogram called using an external
device subprogram call.    From the called
subprogram in internal memory, another external
device subprogram call cannot be performed.    (An
alarm (PS1080) is issued.)



Main program
 (internal memory)


M198

Sub program
(External
device)


M98

Can be called.

Sub program
 (internal
memory)


M198

Sub program
(External
device)




Cannot be called.
(Alarm)



Can be called.



6  A call using the external device subprogram call

function is counted as one level of subprogram
nesting.

7  In a multipath system, an external device

subprogram call cannot be performed
simultaneously from multiple paths.



B-63944EN/03

 OPERATION

4.AUTOMATIC OPERATION





- 1127 -

4.6

MANUAL HANDLE INTERRUPTION


By rotating the manual pulse generator in the automatic operation
mode (manual data input, DNC operation, or memory operation) or in
the memory editing mode, handle feed can be superimposed on
movement by automatic operation.  A handle interruption axis is
selected using the manual handle interruption axis selection signal.
The minimum unit of travel distance per scale division is the least
input increment.    One of four types of magnifiers selected with MP1
and MP2 <G019.4 and 5> can be applied.  With bit 3 (HIT) of
parameter No. 7103, the minimum unit of travel distance can be
further 10 times greater.    A handle feed magnifier is selected using
the manual handle feed amount selection signal.  (See "MANUAL
HANDLE FEED".)

Programmed

depth of cut

Z

X

Tool position after

handle interruption

Tool position
during automatic
operation

Depth of cut
by handle

interruption

Workpiece



Fig. 4.6(a)    Manual handle interruption



 WARNING



The travel distance per scale division by manual
handle interruption is the least input increment as
with manual handle feed.    With a machine of
metric input and inch output, for example, the travel
distance per 254 scale divisions is 0.01 inch.    With
a machine of inch input and metric output, the
travel distance per 100 scale divisions is 0.254
mm.



4.AUTOMATIC OPERATION

 OPERATION

B-63944EN/03





- 1128 -

Explanation
 - Interruption operation

1  When the handle interruption axis selection signal for a handle

interruption axis is set to 1 in the automatic operation mode
(manual data input, DNC operation, or memory operation) or in the
memory editing mode, manual handle interruption can be
performed by rotating the handle of the manual pulse generator.



NOTE



Even when the feedrate override signal sets 0%,
manual handle interruption can be accepted.


2  For the method of selecting a manual handle interruption axis, refer

to the relevant manual of the machine tool builder.

3  The feedrate during manual handle interruption is the sum of

feedrate used for automatic operation and the feedrate used for
movement by manual handle interruption.    However, the feedrate
during manual handle interruption is controlled so that it does not
exceed the maximum allowable cutting feedrate for the axis.



Example



Suppose that the maximum allowable cutting
feedrate for an axis is 5 m/min, and that a
movement is made in the + direction at 2 m/min
along the axis.    In this case, manual handle
interruption can be accepted even when the manual
pulse generator is rotated up to a speed equivalent
to 3 m/min.    Manual handle interruption by rotation
in one direction can be accepted even when the
manual pulse generator is rotated to a speed
equivalent to 7 m/min.



If the manual pulse generator is rotated to a speed
beyond the upper limits, those pulses from the
manual pulse generator that correspond to the
excess are lost, resulting in a mismatch between the
scale mark of the manual pulse generator and the
actually interrupted travel distance.


4  For a magnifier for manual handle interruption, refer to the

relevant manual of the machine tool builder.

5

If the travel direction is reversed as a result of manual handle
interruption, backlash compensation is performed.  Pitch error
compensation is performed for the position after interruption.

6

In manual handle interruption, only acceleration/deceleration for
cutting feed is enabled.    By setting bit 0 (MNJ) of parameter No.
1606 to 1, acceleration/deceleration for both of cutting feed and
jog feed can be applied to manual handle interruption.



B-63944EN/03

 OPERATION

4.AUTOMATIC OPERATION





- 1129 -

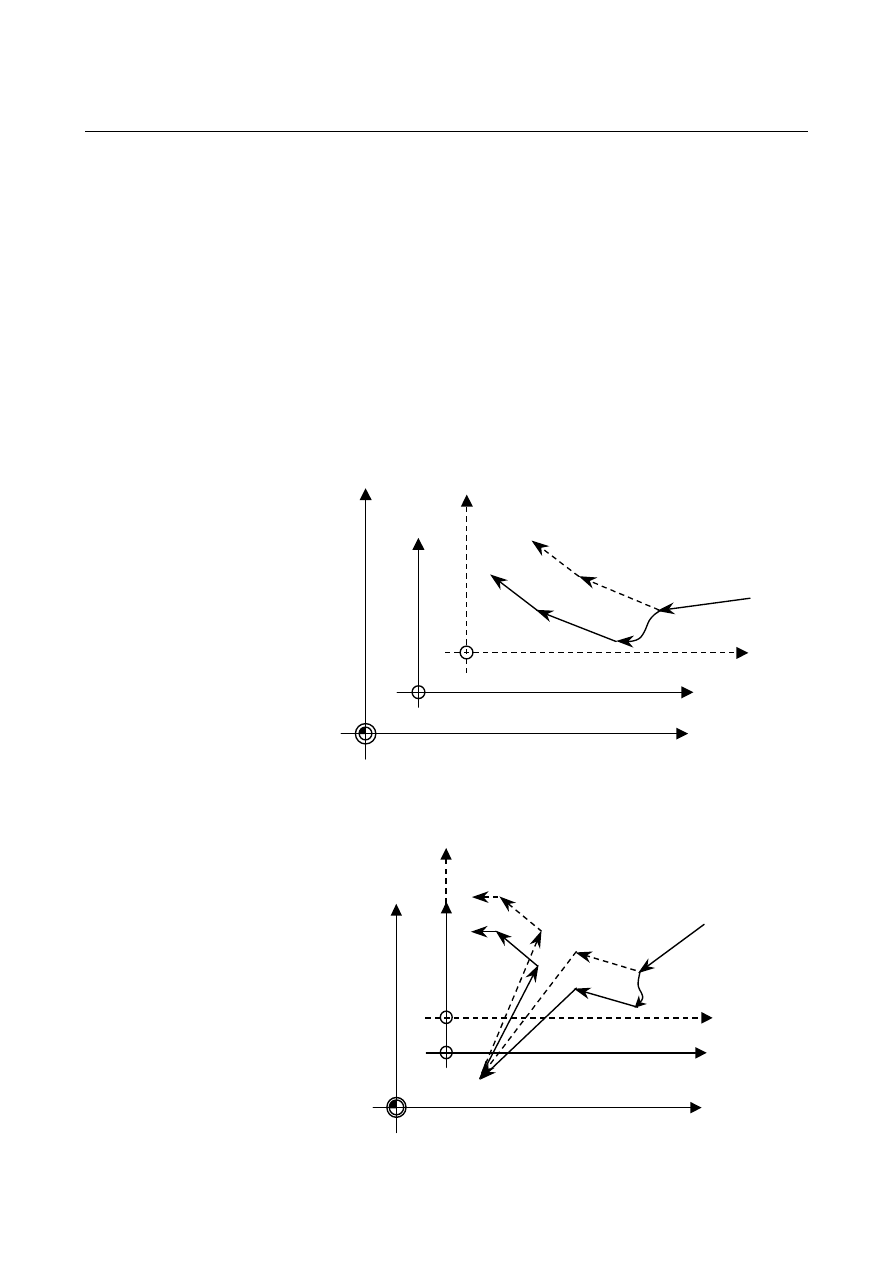

  - Manual handle interruption and coordinate system

1

The amount of manual handle interruption shifts the workpiece
coordinate systems and the local coordinate system.  So, the
machine moves, but the coordinates in the workpiece coordinate
systems and the local coordinate system remain unchanged.
Regardless of which coordinate system is selected, all workpiece
coordinate systems and the local coordinate system shift by the
same amount.



•

 Absolute

coordinates



→

 Remain unchanged by handle interruption.

•

 Relative

coordinates



→

 Change by the amount of handle interruption.

•

 Machine

coordinates



→

 Change by the amount of handle interruption.



(Machine coordinate system)

(Workpiece coordinate system after

 interruption)

(Workpiece coordinate system before

interruption)

 Path after
 interruption

Programmed path

Shift by manual handle
interruption



2

Even when manual handle interruption is performed, the machine
coordinate system remains unchanged.    The absolute command
(G53) in the machine coordinate system is not affected by
manual handle interruption.



(G90G54****)

(G90G53****)

(Machine coordinate system)

(Workpiece coordinate system after

interruption)



(Workpiece coordinate system before

interruption)



Path after
interruption

Programmed path

Shift by manual handle
interruption



4.AUTOMATIC OPERATION

 OPERATION

B-63944EN/03





- 1130 -

3  In automatic reference position return (G28), the end point

(reference position) is not affected by manual handle interruption.
However, the midpoint is in the workpiece coordinate system, so
that the position shifted by the amount of interruption becomes
the midpoint.



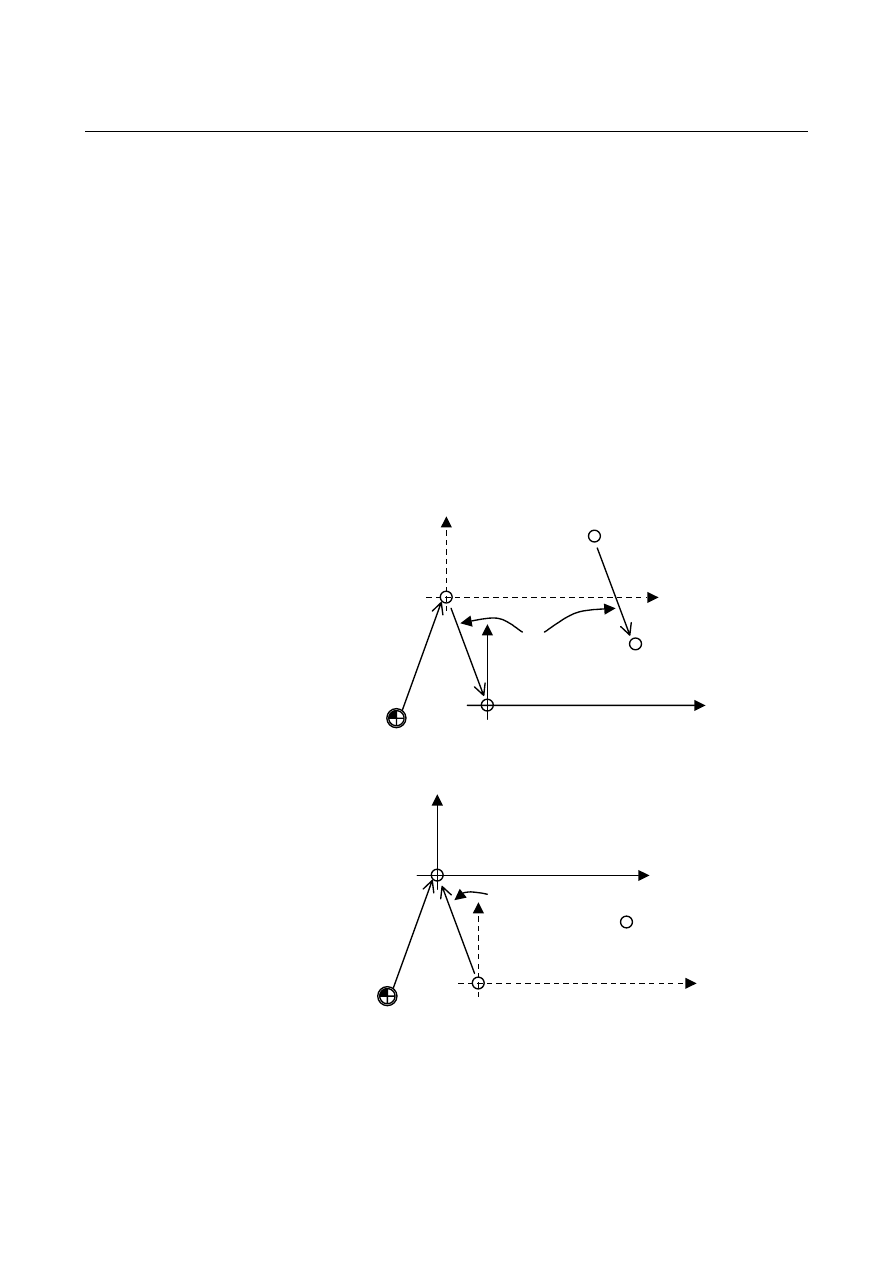

  - Cancellation of the amount of interruption

Operation by which the workpiece coordinate system shifted by
manual handle interruption from the machine coordinate system is
returned to the original workpiece coordinate system is referred to
cancellation of the amount of interruption.
When the amount of interruption is canceled, the workpiece
coordinate system is shifted by the amount of manual handle
interruption, and the amount of interruption is reflected in the absolute
coordinates.

Interruption shifts the workpiece coordinate system from the machine
coordinate system.

(Machine zero point)

Workpiece

coordinate system

before interruption

Workpiece

coordinate

system after

interruption

Position before interruption

Position after

interruption

Interruption

Workpiece

origin offset



By cancellation, the workpiece coordinate system returns to the state
present before handle interruption.

(Machine zero point)

Workpiece

coordinate system

after cancellation

Workpiece

coordinate

system before

cancellation

Position after

cancellation

Interruption amount

cancellation

Workpiece

origin

offset





In the following cases, the amount of interruption is canceled:

•



When a reset is made (when bit 1 (RTH) of parameter No. 7103
is set to 1)

•



When emergency stop state is canceled (when bit 1 (RTH) of
parameter No. 7103 is set to 1)

B-63944EN/03

 OPERATION

4.AUTOMATIC OPERATION





- 1131 -

•



When a manual reference position return operation is performed
(when G28 is specified before a reference position is established)

•



When a reference position is set without dogs

•



When the workpiece coordinate system is preset



NOTE



When the amount of interruption is cleared using
soft keys, only the indication of the amount of
interruption becomes 0, and the workpiece
coordinate system remains unchanged.



  -   Clearing the amount of interruption by soft keys

Clearing of the amount of interruption means that the indication of the
amount of interruption by manual handle interruption is set to 0.    The
workpiece coordinate system does not change.
"Clearing all axes" or "Clearing any axis" is performed on the path for
which the amount of manual handle interruption is indicated.
When bit 3 (HLC) of parameter No. 7100 is enabled, soft key
[INTRPT CANCEL], which is used for this operation, appears.
When HLC is disabled, soft key [INTRPT CANCEL] does not appear.

To select "Clearing all axes" or "Clearing any axis", follow the
procedure below.

1

Press function key

  on the MDI panel.

2

Press function key [HANDLE].




3

Press function key [(OPRT)].




4

To prepare for "Clearing all axes" or "Clearing any axis", press
soft key [INTRPT CANCEL].



To prepare for "Clearing all axes" or "Clearing any axis", perform one
of the following.


•



Clearing all axes
Press [INTRPT CANCEL] and then press [ALL AXIS].


•



Clearing any axis
-

Enter the axis name and then press [INTRPT CANCEL].

-

Press [INTRPT CANCEL], enter the axis name, and press
[EXEC].




If an incorrect axis name is entered, a warning message stating
"FORMAT ERROR" appears.
