FANUC Series 30i/300i/300is-MODEL A. Machining Center System. User's manual - page 21

4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 124 -

 - NURBS curve

Using these variables:

k

 :

Rank

P

i

  : Control point

Wi

  : Weight

Xi

    : Knot (

X

i



<

X

i

+1

)



 Knot vector  [

X

0

,



X

1

, . . . ,

 X

m

] (

m

 =

n

+

k

)

t    : Spline parameter,
the spline basis function N can be expressed with the de Boor-Cox
recursive formula, as indicated below:







<

+

<

+

<

<

=

)

1

,

(

0

)

1

1

(

1

)

(

1

,

t

i

x

i

x

t

i

x

t

i

x

t

i

N



1

)

(

1

,

1

)

(

1

)

(

1

,

)

(

)

(

,

+

−

+

−

+

−

+

+

−

−

+

−

−

=

i

x

k

i

x

t

k

i

N

t

k

i

x

i

x

k

i

x

t

k

i

N

i

x

t

t

k

i

N




The NURBS curve P(t) of interpolation can be expressed as follows:

∑

∑

=

=

=

n

0

i

1

k

,

i

n

0

i

i

i

k

,

i

w

)

t

(

N

p

w

)

t

(

N

)

t

(

P



(

X0<t

<

Xm

)



 - Reset

A reset during NURBS interpolation results in the clear state. The
modal code of group 1 enters the state specified in bit 0 (G01) of
parameter No. 3402.



B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 125 -

Limitation
 - Controlled axes

NURBS interpolation can be performed on up to five axes (including
two rotary axes). The axes of NURBS interpolation must be specified
in the first block. A new axis cannot be specified before the beginning
of the next NURBS curve or before NURBS interpolation mode ends.


  - Command in NURBS interpolation mode

In NURBS interpolation mode, any command other than the NURBS
interpolation command (miscellaneous function and others) cannot be
specified.


 - Manual intervention

If manual intervention is attempted while manual absolute mode is set,
alarm PS5118 is issued.


  - Tool radius compensation

Tool radius compensation cannot be simultaneously executed.
NURBS interpolation can only be specified after tool radius
compensation has been canceled.


  - 3-dimensional cutter compensation

3-dimensional cutter compensation cannot be simultaneously executed.
NURBS interpolation can only be specified after 3-dimensional cutter
compensation has been canceled.


  - Tool centerpoint control

Tool center point control (type 1 (G43.4)) can be simultaneously
executed, but tool center point control (type 2 (G43.5)) and tool
posture control cannot be simultaneously executed. If an attempt is
made to execute tool center point control (type 2 (G43.5) or tool
posture control simultaneously with NURBS interpolation, alarm
PS5421 is issued.


4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 126 -

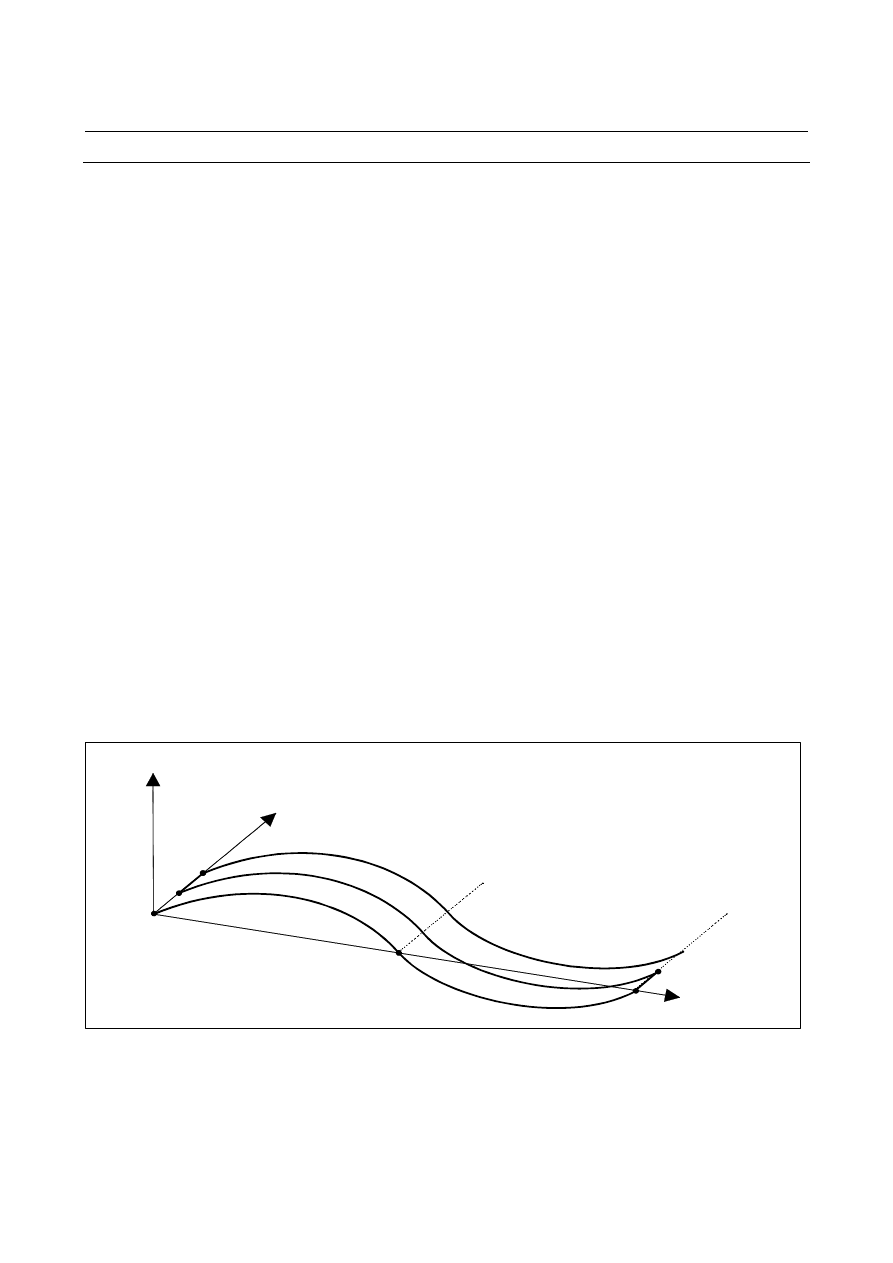

Example

<Sample NURBS interpolation program>
G90;
...
G06.2   K0.     X0.

Z0.;



  K0.

X300.   Z100.;



  K0.

X700.   Z100.;

  K0.

  X1300.



Z-100.;



  K0.5    X1700.  Z-100.;



  K0.5    X2000.  Z0.;

  K1.0;
  K1.0;
  K1.0;
  K1.0;
G01    Y0.5;
G06.2   K0.

X2000.  Z0.;

  K0.

  X1700.



Z-100.;

  K0.

  X1300.



Z-100.;



  K0.

X700.   Z100.;



  K0.5    X300.   Z100.;



  K0.5    X0.

Z0.;

  K1.0;
  K1.0;
  K1.0;
  K1.0;
G01    Y0.5;
G06.2 ...
...
G01 ...


Y

Z

X

1000.

2000.





B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 127 -

4.14.1

NURBS Interpolation Additional Functions


In the FANUC Series 30

i

/31

i

, NURBS interpolation provides the

following additional functions:


  - Parametric feedrate control

The maximum feedrate of each segment is determined according to a
specified feedrate and acceleration. For a series of segments, the
feedrates at the start point and end point of the segments are
determined as described below. During a movement from the start
point to end point, the feedrate changes continuously. This function
can be used only for NURBS interpolation when bit 5 (FDI) of
parameter No. 8412 is set to 1.

1.  Start point speed

(1)  At the start of NURBS interpolation


If the amount of travel in the previous block is 0, the
maximum speed in the first segment is regarded as the start
point speed. If the amount of travel in the previous block is
not 0, whichever is smaller of the specified speed in the
previous block and the maximum speed in the first segment
is regarded as the start point speed.



Previous block: Block immediately preceding the block in
which NURBS interpolation is specified.

(2)  Second and subsequent segments


Whichever is smaller of the maximum speed in the previous
segment and the maximum speed in this segment is
regarded as the start point speed.



2.  End point speed

(1)  In a segment other than the last


Whichever is smaller of the maximum speed in this segment
and the maximum speed in the next segment is regarded as
the end point speed.

(2)  At the end of NURBS interpolation


If the amount of travel in the next block is 0, the maximum
speed in this segment is regarded as the end point speed. If
the amount of travel in the next block is not 0, whichever is
smaller of the maximum speed in this segment and the
specified speed in the next block is regarded as the end
point speed.



After the stop of a single block, the start point speed at a restart will be
the maximum speed in this segment.

After the stop of a feed hold, the speed at a restart will be the same as
the speed at the stop of the feed hold.

4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 128 -

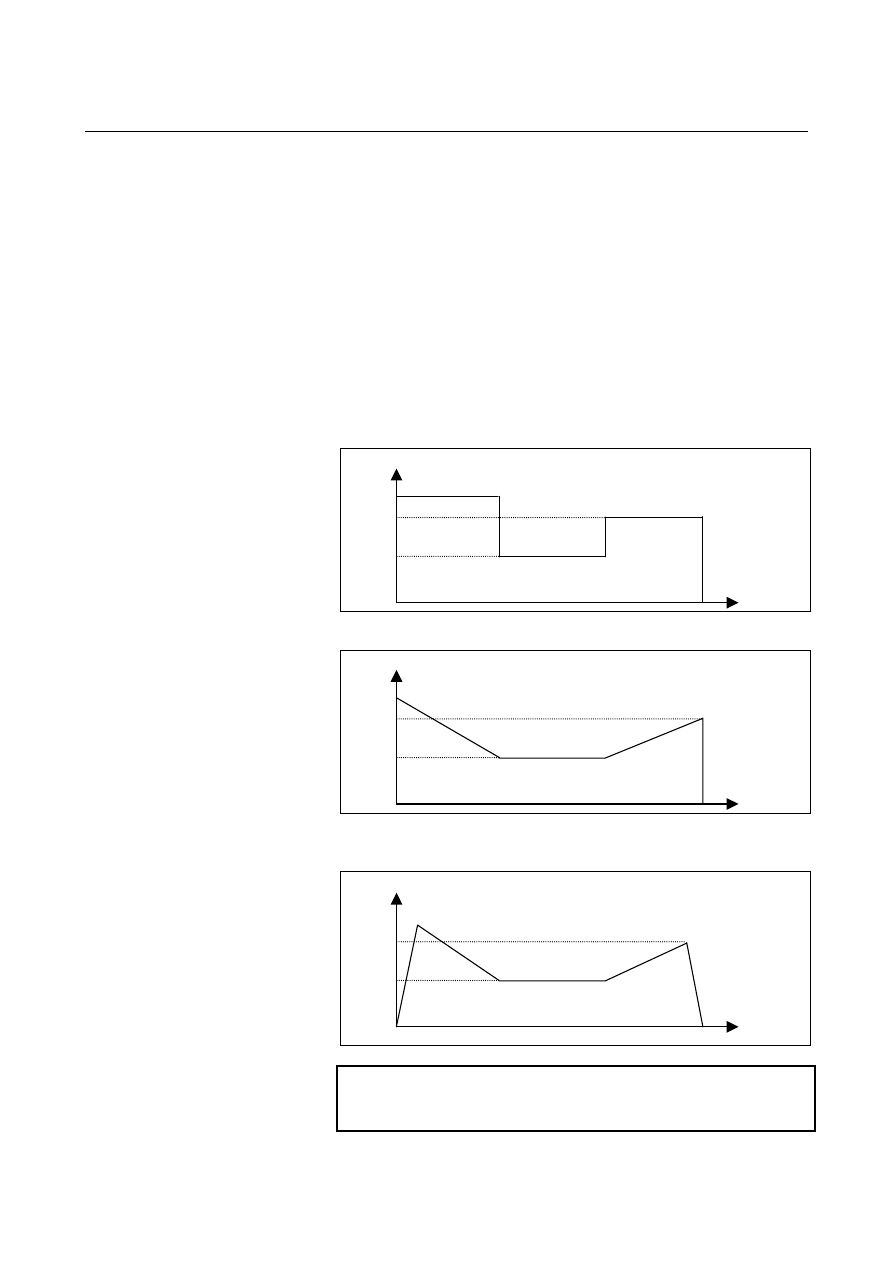

Example

1. Specified

program



G90 G06.2 X0. Y0. K0. F2000 ;



X10. Y10. K0. F1500 ;



X20. Y20. K0. F1800 ;



X30. Y30. K0. ;



X40. Y40. K1.



X50. Y50. K2.

 K3.
 K3.
 K3.
 K3.

2. Specified

speed



Speed

Time

1500

1800

2000


3.  Parametric speed control



Speed

Time

1500

1800

2000


4.  Because of the addition of acceleration/deceleration before

interpolation, the actual cutting feedrate is as shown below.



Speed

Time

1500

1800

2000



NOTE



The actual acceleration/deceleration method is
bell-shaped acceleration/deceleration.



B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 129 -

  - High-precision knot command

If bit 1 (HIK) of parameter No. 8412 is set to 1, knot commands with a
whole number of up to 12 digits and a decimal fraction of up to 12
digits can be specified. This function can be used only for knot
commands (address K) with a decimal point which are specified
during NURBS interpolation.

If a high precision knot command is used, the knot command format is
as shown below.


K (Number of A digits) . (Number of B digits)


where A + B must be 12 or less. The address K and the
numbers including the decimal point must be 14 characters
or less.

(Example)

Valid
K.999999999999
K1234.56789012
K999999999999.

Invalid (causing alarm PS0012 to be issued)
K0.999999999999
K1234.567891230
K1234.567891234
K999999999999.0



4.INTERPOLATION FUNCTIONS

 PROGRAMMING

B-63944EN/03





- 130 -

  - Simple start command

If bit 0 (EST) of parameter No. 8412 is set to 1, a control command
may be omitted at the first control point. Because the same value is set
for the knot in the first block and the knot in the second block, the
knot command may also be omitted in the first bock

.




The format of a NURBS interpolation command using this function is
as shown below.


G06.2 [P



 ] [K



 ] [IP



 ] [R



 ] [F



 ] ;



K



 IP



 [R



 ] ;



K



 IP



 [R



 ] ;



K



 IP



 [R



 ] ;



…





K



 IP



 [R



 ] ;



K



 ;



…





K



 ;

G01…

…




G06.2  : NURBS interpolation mode ON
P

: Rank of the NURBS curve

IP :

Control

point

R :

Weight

K :

Knot

F :

Speed


Words enclosed in [    ] are optional.


If a control point command is omitted in the first block, the current
position as determined when NURBS interpolation is started is
regarded as the first control point. Also, only the axis specified for the
control point in the second block is handled as a NURBS interpolation
axis and, therefore, in the second block, specify all axes subject to
NURBS interpolation.

If a knot command is omitted in the first block, the knot is regarded as
the same as the knot specified in the second block.


B-63944EN/03

 PROGRAMMING

4.INTERPOLATION FUNCTIONS





- 131 -

4.15

HYPOTHETICAL AXIS INTERPOLATION (G07)


In helical interpolation, when pulses are distributed with one of the
circular interpolation axes set to a hypothetical axis, sine interpolation
is enabled.
When one of the circular interpolation axes is set to a hypothetical
axis, pulse distribution causes the speed of movement along the
remaining axis to change sinusoidally. If the major axis for threading
(the axis along which the machine travels the longest distance) is set
to a hypothetical axis, threading with a fractional lead is enabled. The
axis to be set as the hypothetical axis is specified with G07.


Format

G07

α

0 ;

: Hypothetical axis setting

      :
G07

α

1 ;

: Hypothetical axis cancel



Where,

α

 is any one of the addresses of the controlled axes.



Explanation
 - Sine interpolation

The a axis is regarded as a hypothetical axis for the period of time
from the G07

α

0 command until the G07

α

1 command appears.

Suppose sine interpolation is performed for one cycle in the YZ plane.
The hypothetical axis is then the X axis.
X

2

+Y

2

 = r

2

 (r is the radius of an arc.)

Y = rSIN (

1

2

π

Z)  (1 is the distance traveled along the Z-axis in one

cycle.)

Y

r

O

Z

1

π

2

2

π

π



  - Interlock, stroke limit, and external deceleration

Interlock, stroke limit, and external deceleration can also apply to the
hypothetical axis.


 - Handle interruption

An interrupt caused by the handle also applies to the hypothetical axis.
This means that movement for a handle interrupt is performed.
