Gearshift Mechanism

 1J-1



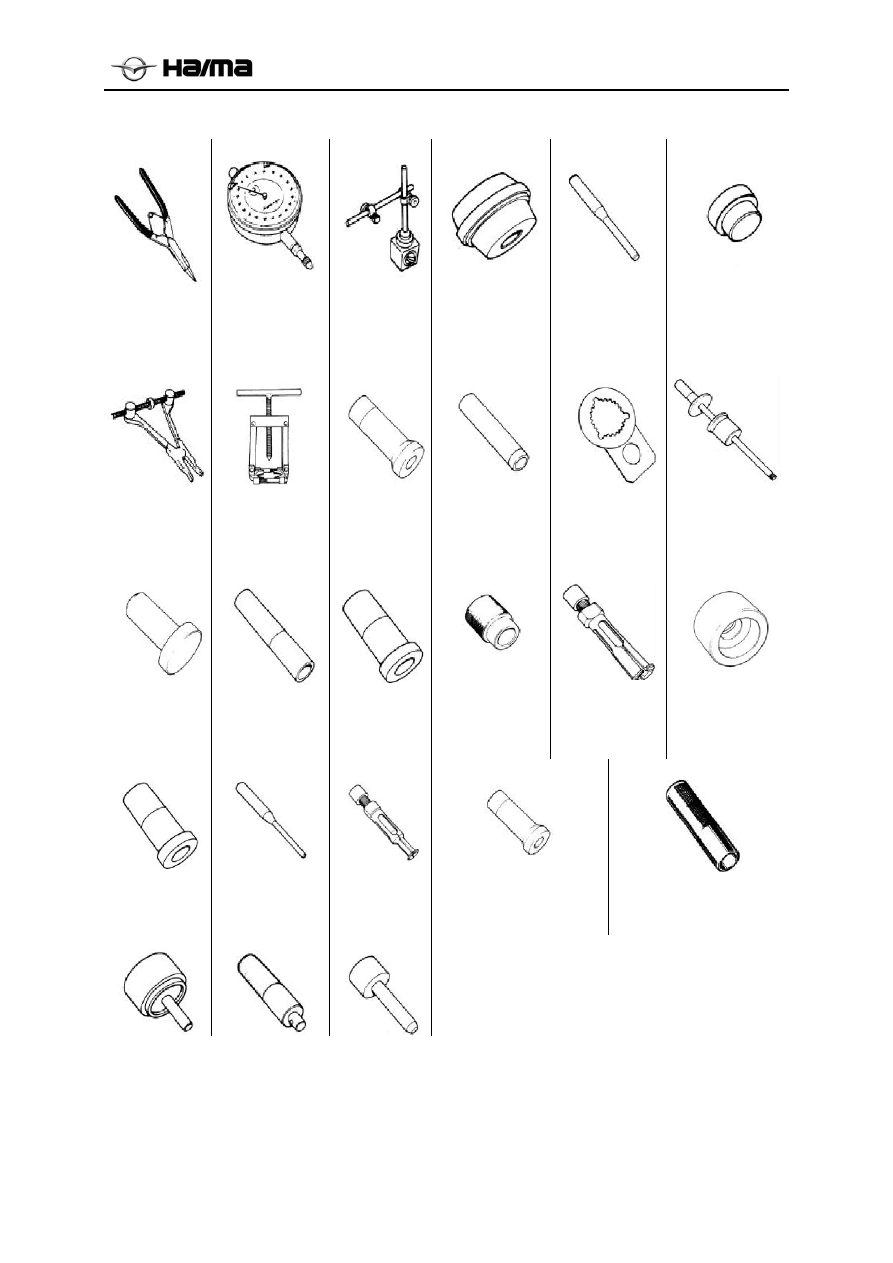

Attached Table 1: Special Tools









Snap ring plier

Dial gauge

Magnet base

Bearing outer ring

erector

Spring pin ejector

(6.0mm)

Bearing puller

accessories









Box splitter

Bearing puller

Oil seal    erector1

Bearing

erector4

Gear fixer

Slide shaft











Oil seal

erector2

Bearing erector1

Bearing erector2

Bearing

erector5

Bearing ejector

Bush ejector









Bearing erector2

Spring pin

ejector(4.5mm)

Oil seal ejector

Bearing erector6

Bearing erector7











Bearing erector3

Mounting connection

rod

Seal ring erector









-------------------------------------------------------------------------------------------------------------------------------------------------------------



Gearshift Mechanism

 1J-2





Chapter 9  Gearshift Mechanism

Table of Contents

Gearshift Mechanism ························································································1J-2
Manual Gearshift Mechanism Dismantling/Mounting················································· 1J-2

CVT Automatic Gearshift Mechanism Dismantling/Mounting

······································· 1J-2























































-------------------------------------------------------------------------------------------------------------------------------------------------------------



Gearshift Mechanism

 1J-3



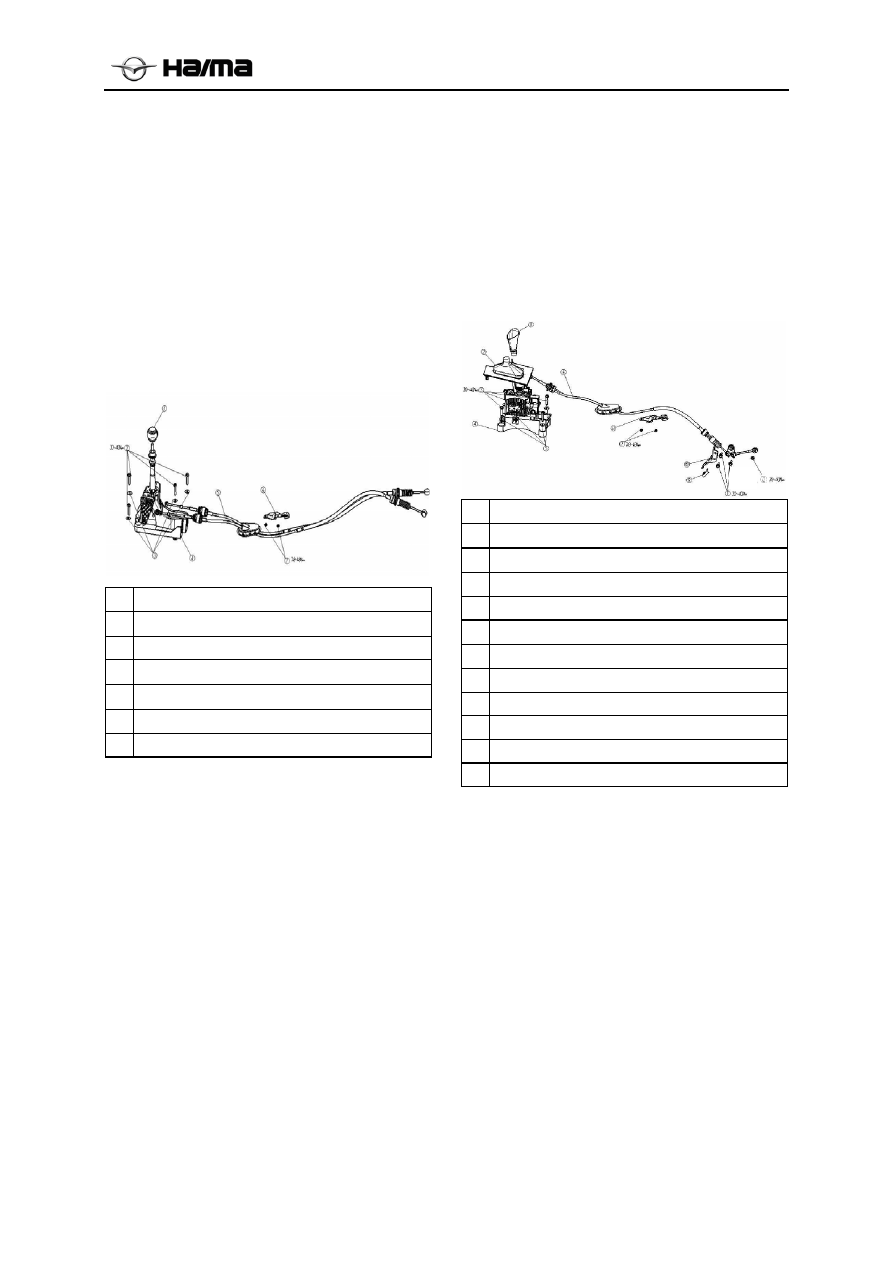

1. Gearshift Mechanism

1.1 Manual Gearshift Mechanism
Dismantling/Mounting

1.  Firstly, dismantle the assistant instrument

platform assembly;

2.  Then remove them as illustrated shift

mechanism, contrary installation and removal
order.

3.  After the mounting, confirm if the mechanism

is fixed and can run stably.



1 Gearshift

handle

2 Flange

bolt

3 Flat

washer

4  Manual gearshift lever assembly
5 Cable

assembly



6 Cable

bracket

7 Flange

nut

Notice

1.   Control the cable and connect it with

the transmission correctly (no reverse mounting in
gear selection and shift)

2.  During the dismantling process, keep

cautious and do not injure the cable buckle. After
the assembly be sure to check whether the card slot
into place.















1.2 CVT

Automatic

 Gearshift Mechanism

Dismantling/Mounting

1.  Firstly, dismantle the assistant instrument

platform assembly;

2.  Then remove them as illustrated shift

mechanism, contrary installation and removal
order.

3.  After the mounting, confirm if the mechanism

is fixed and can run stably.



1

Gearshift handle

2

Gear display cover

3

Flange  bolt

4

Automatic gearshift lever assembly

5

Flat washer

6

Cable assembly

7

Flange nut

8

Cable bracket

9

Spring clamp

10 Shift cable mounting bracket
11 Flange bolt
12 Flange nut

Notice

1.   Control the cable and connect it with

the transmission correctly.

2.  During the dismantling process, keep

cautious and do not injure the cable buckle. After
the assembly be sure to check whether the card slot
into place.



-------------------------------------------------------------------------------------------------------------------------------------------------------------
