Haima S5 1.5T. Service Manual - part 7



Fuel System 1C-13









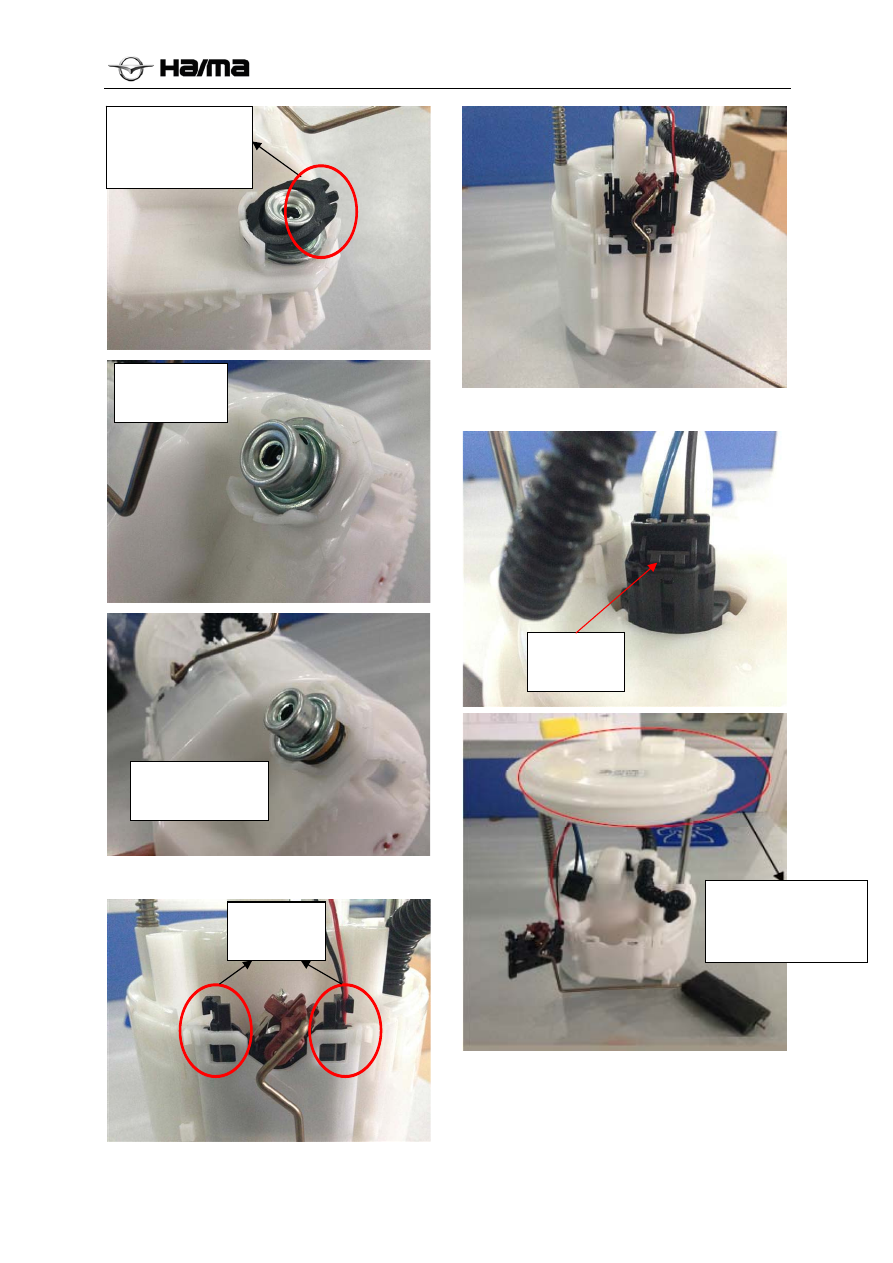

3.2 Demolition Fuel quantity sensor





3.3 Demolition pump plug





3.4



Demolition of the fuel hose fixed

widget

Remove the bracket
spring, pull out the
fuel pump gland.



Use a screwdriver or a

special tool to open

end of the buckle.

Demolition ends

snap.

Demolition pressure

relief valve.

Inwards, and

then pull up.

Inwards, and

then pull up.



Fuel System 1C-14







3.5 Demolition fuel pump at the bottom
case.





3.6 Demolition prefilter, pump core, fine
filter.











Note:



1. the fuel filter assembly refers to the fine filter,
fine filter assembly UMC's part number F 01R
02S9B6. I only fuel pump assembly part number
for SA12-13-35Z.

2. the use of fine filter fuel pump assembly time of
2 years or 20,000 kilometers.



Use a screwdriver to

open the plug-in.

Remove the pump

core and fine filter.

Bottom snaps open.

Bottom snaps open.

Fuel pump prefilter.

Fuel pump core



Fuel pump fine filter

After all the components apart..



Intake and Exhaust System

1D-1



Chapter 4  Intake and Exhaust System

Table of Contents



1. Intake system ······························································································1D-2

    1.1 Intake System Dismantling/Mounting ·····························································1D-2

2. Exhaust System····························································································1D-3

    2.1 Inspection of Exhaust System ·····································································1D-3

























































Intake and Exhaust System

1D-2



1. Intake system

1.1 Intake System Dismantling/Mounting

Warning

  When the engine and intake system stay at high

temperature, they can easily lead to personnel
injury. Before mounting or dismantling the intake
system, operation shall not be conducted until the
engine has stopped and cooled down.

  Fuel vapor is dangerous and combustible, which

may lead to serious injury and damage. Due to this,
avoid spark or naked flame at the place where there
is fuel.

  Fuel overflow or leakage is dangerous, which may

lead to personnel injury and property loss. In
addition, the fuel can irritate the skin and eye. Due
to this, Oil Circuit Safety Procedure shall be
always observed during the operation process.

1.  Disconnect the accumulator’s negative cable.

2.  Dismantle parts according to the sequence

illustrated in the table.

3.  Mount parts according to the sequence reverse to

the dismantling process.





1

Intake duct

7

Intake hose bracket

2

Intake hose

8

Intercooler intake hose

3 Muffler

tubes

9 Intercooler outlet hose

4

Air flow sensor

10

Intercooler assembly

5

O-ring

11

Turbocharger outlet rigid pipe

6

Air filter

12

Turbocharger outlet hose



Intake and Exhaust System

1D-3



2. Exhaust System

2.1 Inspection of Exhaust System

1.  Start the engine, and inspect if the exhaust

pipeline suffers air leakage (If there is air
leakage, overhaul the exhaust pipeline, or
replace it if necessary).

Exhaust System Dismantling/Mounting

Warning

  When the engine and exhaust system have yet to

cool down, they may scald the skin. Due to this,
dismantling work shall not be started until the
engine has stopped and cooled down.

1.  Loosen the accumulator’s negative cable.

2.  Dismantle parts according to the sequence

illustrated in the figure.

3.  Mount parts according to sequence reverse to the

dismantling process.



1

Front oxygen sensor

2

Front three-way catalyst converter

3 Front

hanging

bracket

4

Rear three-way catalyst converter

5

Rear oxygen sensor

6

Front muffler assembly



Cooling System

 1E-1



Chapter 5    Cooling System

Table of Contents



1. Cooling System ··························································································1E-2

  1.1 Engine Coolant ·························································································1E-2
   1.1.1  Inspection of Engine Coolant’s Liquid Level·············································· 1E-2
   1.1.2  Replace Engine Coolant ······································································ 1E-2
 1.2  Vice radiator cap ···················································································· 1E-3

1.2. 1 Inspe

ction of vice radiator cap

···························································· 1E-3

1.3  Radiator ·······························································································1E-4
1.4  Vice water tank ······················································································ 1E-4

 1.5  Thermostat ··························································································· 1E-4

1.5.1  Thermostat Dismantling/Mounting …………………………………………………. 1E-4

1.5.2  Instructions for installing the thermostat······················································1E-5

1.6 Water Pump  ····························································································1E-5

   1.6.1  Water Pump Dismantling/Mounting ·························································1E-5

   1.6.2  Fan Motor························································································1E-5

  1.7 Fan Relay································································································1E-6

1.7.1 Inspection of Fan Relay ··········································································1E-6





































Cooling System

 1E-2



1. Cooling System

Warning on Cooling System Maintenance

When the engine is running or the engine and heat
sink are hot, do not dismantle the heat sink lid or
loosen the heat sink’s drain valve because hot
coolant and vapor may spout, which will result in
serious casualties and damage to the engine and
cooling system

Turn off the engine, and conduct further operation
after the engine cools down. Then, keep mindful
when removing the heat sink’s filler lid, and wrap
the filler lid with thick cloth and slowly turn it to the
first stop position along the anticlockwise direction.
When the pressure declines, turn it along the reverse
direction;

If there is not pressure, press the heat sink lid with
cloth and dismantle it.

1.1 Engine Coolant

1.1.1 Inspection of Engine Coolant’s
Liquid Level

1.  Confirm if the coolant’s liquid level in
subsidiary water tank ranges between MAX and
MIN.

If the engine coolant’s liquid level stays below
MIN, open the subsidiary water tank’s lid and add
the coolant near to the MAX mark.

If there is no coolant in the subsidiary water tank,
wait till the engine cools down, and open the heat
sink’s filler lid to add coolant from the heat sink
filler port till the coolant’s liquid level can be seen
from the filler port. Then, mount the heat sink’s
filler lid, and continue adding the coolant near to
the MAX mark.

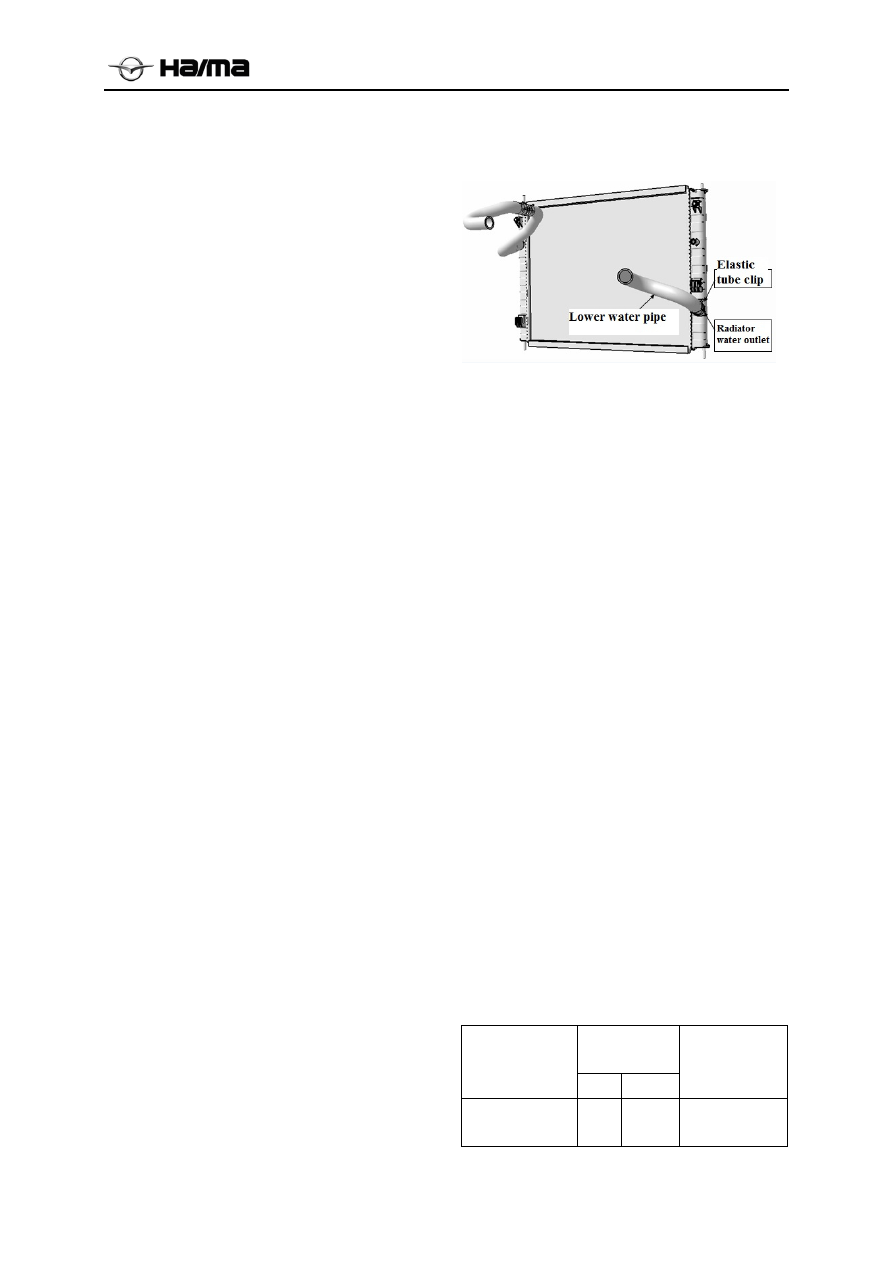

1.1.2 Replace Engine Coolant

◆

Turn off the engine, and wait for the engine

coolant completely cool down, removed fixed the
plumbing and radiator assembly of elastic tube
outlet folder under the water from the radiator
assembly out of the outlet to unplug, let go of the
engine and radiator the coolant assembly. When
unplug the pipes, be careful not to let the coolant
splash to humans.

◆

Wait outlet pipes and radiator coolant outflow

no longer have to re-set in under the water in
the radiator outlet, and assembled in place and
re-fix the elastic hose clamp in its original
location.



◆

After the assembly ended, the reserve tank

filler injected into the designated coolant, when
manually add, after the filling is completed, the
idling operation of the engine a few minutes,
after the coolant level in the tank drops to be
deputy, no further exhaust gas cooling system,
continue to inject cooling fluid, the sub-coolant
level in the tank to the vicinity of the following
MAX.



Warning

Alcohol or methanol antifreeze may damage
aluminum parts on the engine, and so alcohol or
methanol shall not be used in the cooling system,
and only the glycol-based coolant can be used.

Only the softening (demineralization) water can
be used to mix with the coolant, and water
containing minerals will compromise the coolant’s
effect.

Engine coolant will result in damage to the
lacquer surface, and so the engine coolant shall be
rinsed out in no time when it touches the lacquer
surface.

◆

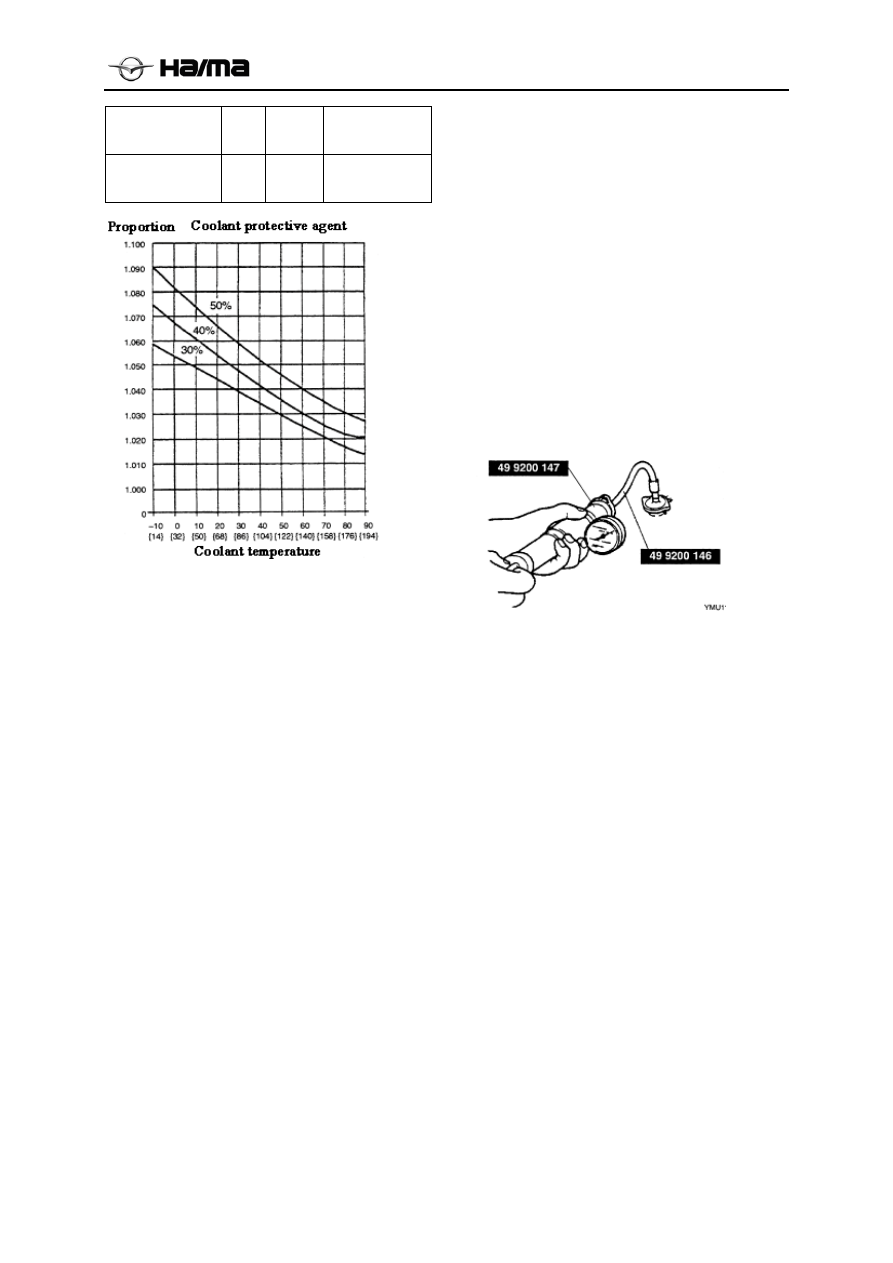

  Refer to table below to select appropriate

volume percentage for mixture of water and
coolant. Add slowly the coolant into the
water tank till the coolant reaches the filler
port.

Filling speed:1.0L(1.1USqt 、 0.9impqt)/min.
[Maximum Value]

Volume

percentage

Coolant

protective agent

Water Coolant

Proportion at

20 {68ºF}

℃



Higher than

-16 {3ºF}

℃



65 35

1.054



Cooling System

 1E-3



Higher than

-26 {

℃

-15ºF}

55 45

1.066

Higher than

-40 {

℃

-40ºF}

45 55

1.078



◆

  Start the engine and maintain the idling speed

till the cooling fan begins to work.

Notice

  If the coolant temperature is over high, stop the

engine to prevent the coolant from being
overheated.

◆

  Conduct the following operations after the

engine temperature rises:

(1)  Make the engine run for one minute at the

rotating speed of 4000rpm;

(2)  Make the engine run for one minute at the

idling speed;

(3)  Repeat Step 1 and Step 2 for several times;

(4)  Turn on the front/rear heater unit (if has), and

confirm if there is hot air exhausted from the
heater unit’s ventilation opening.

11.  Stop the engine and wait till it cools down.

12.  Confirm if there is coolant leakage.

13.  Inspect the coolant’s liquid level. If the level

is relatively low, add the coolant into the
subsidiary water tank till it reaches the MAX
mark.

1.1.3 Inspection of Engine Coolant
Leakage

1.  Inspect the coolant’s liquid level.

2.  Take off the heat sink lid.

3.  Connect the heat sink lid tester and SST

special maintenance tool with the heat sink’s
filler port.

Notice

  If the pressure surpasses 123kPa {1.25kgf/cm2,

17.8psi}, hose joint and other parts will be
damaged, which will in turn lead to leakage.

4.  Make the heat sink reach specified

pressure:

Pressure:123kPa{1.25kgf/cm2, 17.8psi}



4.  Inspect if the pressure can be maintained. If

cannot, inspect if the system suffers coolant
leakage.

1.2

Vice radiator cap



1.2.1 Inspection of vice radiator cap

Warning

  When the engine is running or the engine and

heat sink are hot, do not dismantle the heat sink
lid because hot coolant and vapor may spout,
which will result in serious casualties and
damage to the engine and cooling system

  Turn off the engine, and conduct further

operation after the engine cools down. Then,
wrap the vice radiator cap with thick cloth
carefully, and slowly turn it to the first stop
position along the anticlockwise direction.
When the pressure declines, turn it along the
reverse direction;

  If there is not pressure, press the heat sink lid

with cloth and dismantle it.

1.  Use the SST special service tool to connect

the vice radiator cap with the tester.

2.  Increase the pressure little by little.



Cooling System

 1E-4



3.  Inspect if the pressure stays within the

specified range. If the pressure can keep for
10s, it indicates that the vice radiator cap is
normal.

Pressure range:94-122kPa{0.95-1.25kgf/cm2,
13.5-17.7psi}



1.3 Radiator

Radiator Dismantling/Mounting

Fan Parts Dismantling/Mounting

1.  Disconnect the accumulator’s negative cable;

2.  Drain the engine coolant;

3.  Dismantle the front grille and air intake duct.;

4.  Remove the radiator and condenser mounting

bracket bolts bolts; remove the fan mounting
bolts;

5.  Remove the engine Water pipe, remove the

expansion tank hose. (connect with the heat
sink end);

6.  Dismantle parts according to the sequence

illustrated in the table;

7.  Mount parts according to the sequence

reverse to the dismantling process.



1 Lower

water

pipe



2  Upper water pipe

3  Fan wiring harness connector
4 Fan

assembly



5  Vice-water tank hose I
6  Vice-water tank hose II
7  Radiator mounting bracket

1.4 Vice water tank

◆

Vice

 water tank

removal / installation

1. Vice

 water tank

drained



coolant

.



2. Dismantle parts according to the sequence

illustrated in the table;

3. Mount parts according to the sequ

ence reverse

to the dismantling process.



1.5 Thermostat

1.5.1 Thermostat Dismantling/Mounting

1.  Drain the engine coolant.

2.  Dismantle parts according to the sequence

illustrated in the table.

3.  Mount parts according to the sequence

reverse to the dismantling process.

1  Vice-water tank hose I

2

Vice-water tank hose III

3

Vice-water tank hose II

4

Vice-water tank bolt 1

5

Vice-water tank bolt 2



Cooling System

 1E-5





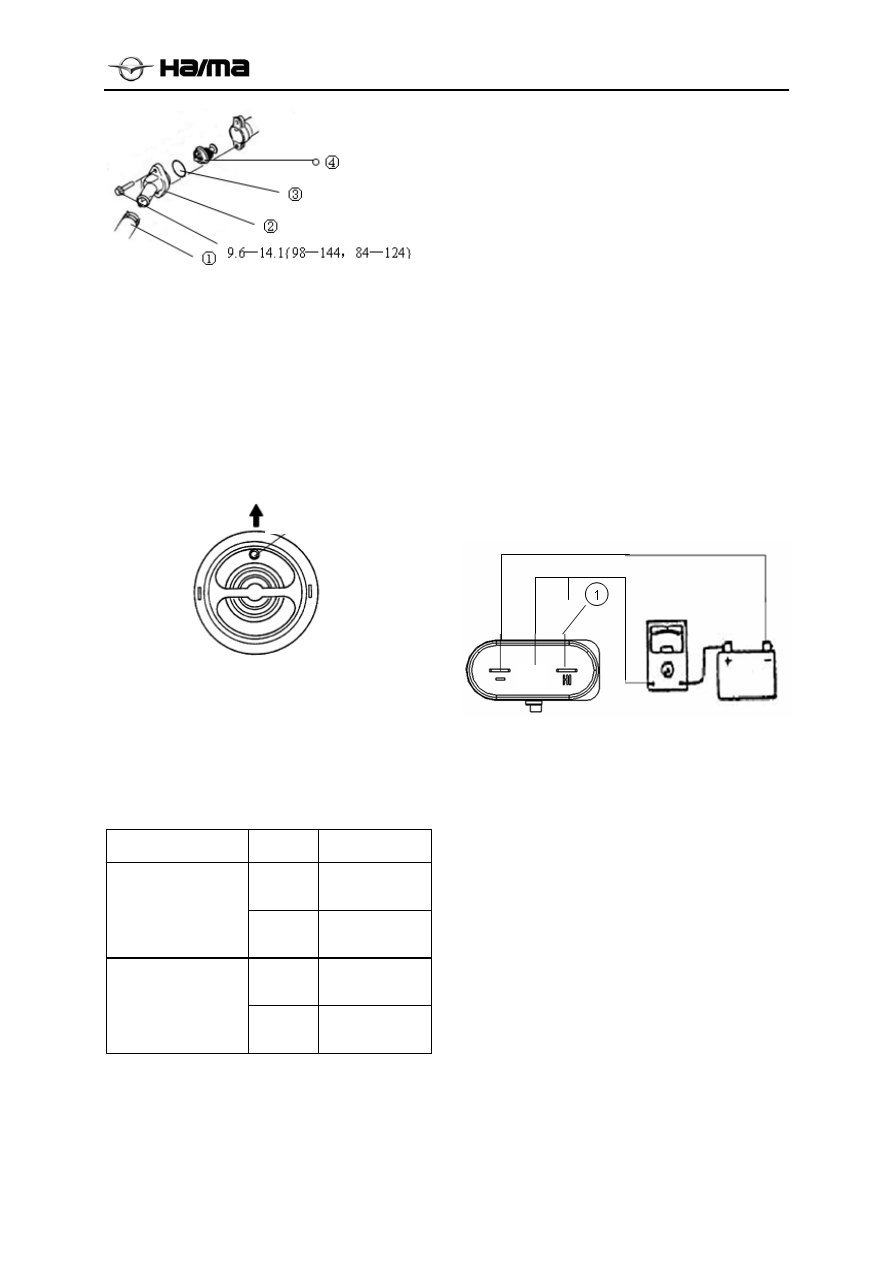

①

 Upper heat sink hose

②

 Thermostat lid

③

 O-ring

④

 Thermostat Mounting Attentions

1.5.2 Instructions for installing the thermostat

1.  Mount the thermostat onto the thermostat

housing, pay attention to the thermostat’s
direction, with clamping pin facing upward.



Thermostat Inspection

1.  Inspect thermostat according to items below.

—Valve temperature when being turned on or off.

—Valve’s critical temperature in full opening or

full closing state. If technical requirements
cannot be met, replace the thermostat.

Condition Action

Temperature℃

Initial
opening

81

Temperature rising
process

Full
opening

93

Start
closing

90

Temperature
decline process

Full
closing

79

1.6 Water pump

1.6.1

Water Pump

Dismantling/Mounting

See Engine Water Pump Dismantling/ Mounting
for the water pump dismantling/ mounting.

1.6.2

Fan Motor



◆

Fan Motor Inspection

1.  Confirm if the accumulator has been fully

charged.

2.  Connect the accumulator’s positive electrode

and amperemeter with the fan motor plug.

3.  Confirm if the fan motor runs stably while

being driven by standard current. Replace fan
motor if it fails to meet technical
requirements.



Standard Current:

①

Connected, High-speed Action 11-12.5A [12V]

①

Disconnected, Low-speed Action 9-10.5A [12V]

◆

Fan Motor Dismantling/Mounting

1.  Dismantle the cooling fan.

2.  Dismantle parts according to the sequence

illustrated in the table.

3.  Mount parts according to the sequence reverse

to the dismantling process.

Clamping pin

①





Cooling System

 1E-6





1

Cooling fan heat shielding cover

2 Cooling

fan

blade



3

Fan motor assembly

1.7 Fan Relay

1.7.1 Inspection of Fan Relay

1.  Disconnect the accumulator’s negative cable

2.  Dismantle the fan relay from the relay box.



Use the ohmmeter and 12V power supply to
inspect the fan relay’s quality. If the relay is unable
to run normally or meet technical requirements,
replace the fan relay. See table below for the relay
inspection:

Step

Port

Compliance

standard

1

Ohmmeter tests
resistance at both ends of
Pin 30 and Pin 87

Infinite
resistance

2

Both ends of Pin 85 and
Pin 86 directly link with
12V power supply

Hear the
relay’s
actuation
voice

3

Keep the relay’s
actuation state, and again
use the ohmmeter to test
resistance at both ends of
Pin 30 and Pin 87

Resistance is
zero

Remark

High/low-speed relay pins have the
same definition



Relay Diagram

































Accessory-Belt

 1F-1





Chapter 6  Engine Accessory-Belt

Table of Contents

1. Driving Belt ································································································1F-2

1.1 Inspection of Driving Belt ············································································1F-2

1.1.1 Inspection of Driving Belt’s Distortion ························································1F-2

1.1.2 Inspection of Driving Belt Tension·····························································1F-2

1.2 Adjusting the drive belt ···············································································1F-2

1.2.1 A/C Compressor Multi-wedge V Belt Adjustment ···········································1F-2

1.2.2 Power Steering Pump Belt Adjustment ························································1F-3



















































Accessory-Belt

 1F-2



1. Driving Belt

1.1 Inspection of Driving Belt

If necessary, inspect the driving belt’s distortion
and tension.

1.1.1 Inspection of Driving Belt’s Distortion

Notice:

  After 30 minutes since the automobile engine

stops, inspect the belt distortion with a belt
tensiometer, in order to confirm if the belt
tension stays within the standard value.

  If the belt tension goes beyond the specified

range, adjust the driving belt (see Adjustment
of Driving Belt)







1.1.2 Inspection of Driving Belt Tension

Notice

  The inspection shall be conducted after the

engine cools down

Use SST to inspect the tension of belt between two
driving wheels.

  If the tension goes beyond the specified range,

make adjustment (see Adjustment of Driving
Belt)

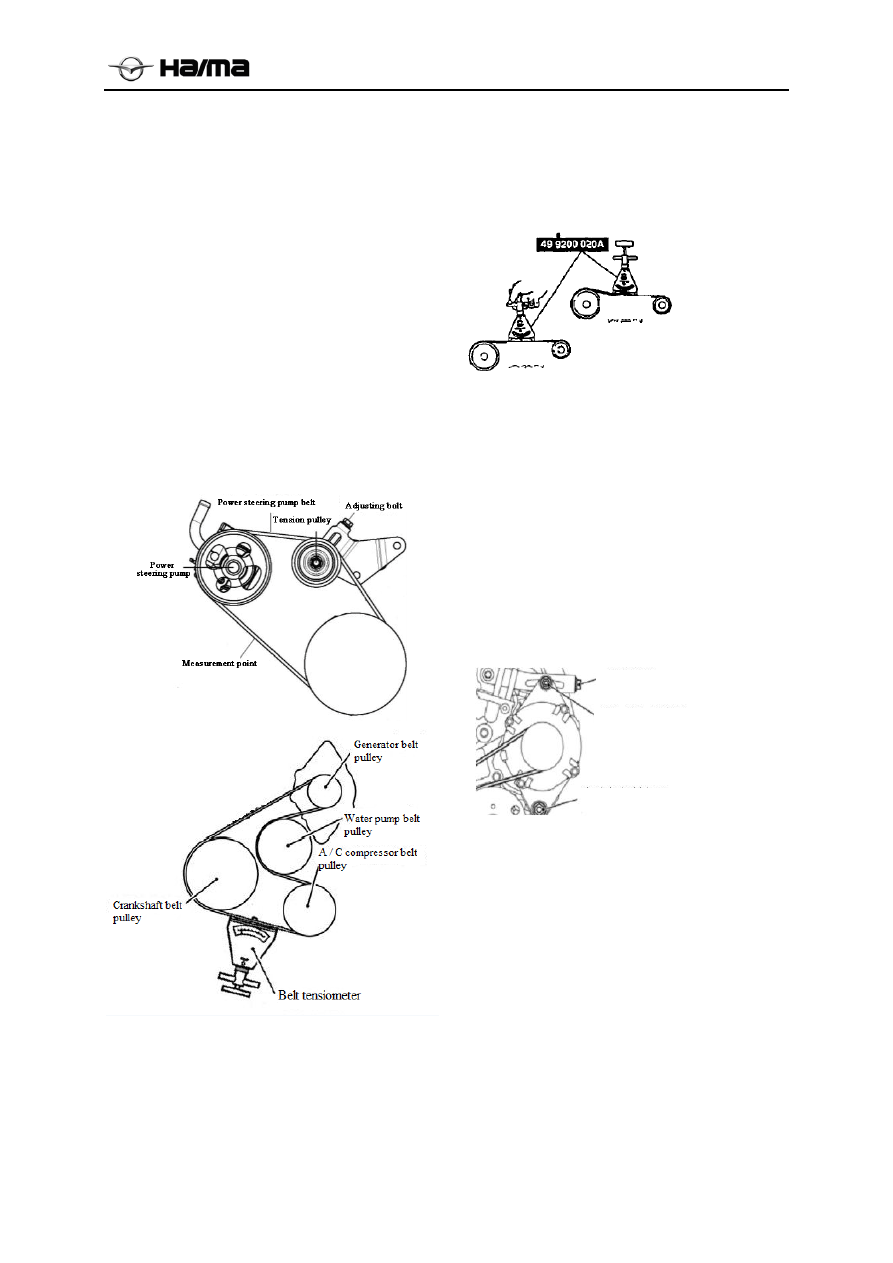

1.2 Adjusting the drive belt

1.2.1 A/C Compressor Multi-wedge V Belt
Adjustment

1.  Loosen appropriately the nut on the power

generator’s pivot bolt.

2.  Loosen the power generator’s fixing bolt, and

then tighten it for about 5N.m, in order to
avoid the pulley’s deflection.





3.  Use the adjusting bolt to adjust the belt

tension and belt deflection to the standard
value.

4.  Tighten the power generator’s pivot nut.

Tightening torque:  43 ±4N·m

5.  Tighten the power generator’s fixing bolt.

Tightening torque: 20±2N·m





When measuring

When mounting

Adjust bolt

Fix power generator bolt

Power generator pivot nut



Accessory-Belt

 1F-3





1.2.2 Power Steering Pump Belt
Adjustment

1.  First, loosen the tension pulley’s nut B, and

then tighten it for about 5N.m, in order to
avoid the pulley deflection.





2.  Adjust the stud bolt A to drive the tension

pulley’s location change in the tension pulley
bracket’s slot, so as to adjust the belt tension.

3.  After the tension meets requirements, tighten

the tension pulley nut B, Tightening

torque:40～48N.m

Notice

  If mounting new driving belt or running

driving belt for not greater than 5minutes,
adjustment shall be made according to the new
part’s standard value.

  If running the driving belt for more than 5

minutes, adjustment shall be made according
to the old part’s standard value.





Distortion (mm/98N)

Driving Belt

New

Old

A/C Compressor Belt

900N-950N

(1.5T

600N-700N)

500N-600N

Power Steering Pump

Belt (With Tensioner

pulley)

400N-500N 300N-350N

Power Steering Pump

Belt (Without Tensioner

pulley)

300N-500N



Engine Suspension

 1G-1



Chapter 7  Engine Suspension

Table of Contents



1.Engine Dismantling/Mounting ·········································································· 1G-2

1.1 Complete the dismantling work ····································································· 1G-2

1.1.1 Engine1# Suspension Bracket Dismantling/ Mounting ··································· 1G-3

1.1.2 Engine3# Suspension Bracket Dismantling/ Mounting ····································1G-4

1.1.3 Engine4# Suspension Bracket Dismantling/ Mounting ····································1G-4





















































Engine Suspension

 1G-2



1.

 Engine Dismantling/Mounting



Warning

  Fuel vapor is combustible, and keep away the spark and naked flame.

Fuel leakage and splash are dangerous, which will irritate the skin and eye. Due to this, follow the “Oil

Circuit Safety Inspection Procedure” (see Fuel System, Preparatory Work before Repair).

1.1 Complete the dismantling work

Respectively discharge A/C refrigerant, power steering liquid, gearbox oil, and engine coolant:

1.  Disconnect the accumulator’s negative cable.

2.    Dismantle the engine under the fender (see the engine under the fender removal / installation).

3.  Dismantle the left/right driving axles (see Driving Axle Dismantling/Mounting).

4.    Dismantle the engine trim cover (see engine trim cover removal / installation).

5.  Dismantle the front suspension cross member assembly (see the front subframe of removal /

installation).

6.  Dismantle heat sink(see Heat Sink, Heat Sink Dismantling/Mounting).

7.  Dismantle three-way catalyst converter assembly (see Exhaust System, Exhaust System

Mounting/Dismantling).

8.  Dismantle the accumulator and accumulator tray (see Engine Electrical System, Accumulator

Dismantling/Mounting).

9. Dismantle PM wiring harness and engine’s connector (see PM Wiring Harness

Dismantling/Mounting).

10.  Dismantle the reverse switch joint and gear shift cable that are connected with the gearbox.

11.  Dismantle the power steering pump hose on the engine, the intake hose connection.

12.  Dismantle A/C compressor’s pipeline connection.

13.  Dismantle the engine and engine suspension according to the sequence illustrated in the figure.

14.  Mount parts according to the sequence reverse to the dismantling process.

15.   Inject A/C refrigerant and discharge the power steering liquid, gearbox oil, and engine coolant.

16.  Correct the driving belt’s tension (see Driving Belt, Driving Belt Dismantling/Mounting).

17.  Star the engine and conduct the following inspection work:

(1) Inspect the belt pulley and driving belt’s deflection and interference.

(2) Inspect if there is engine oil, engine coolant, gearbox oil, and fuel leakage.

(3) Inspect the idling speed (see Engine Running, Idling Speed Inspection).

18.  Confirm the road test.

19.  Inspect the engine oil, engine coolant, gearbox oil and power steering liquid’s level again.
