Electronic Fuel Injection Control System 1B

-

32



sensor

Yes Fault

replacement

8

Dismantle the fuel injector, and use the dedicated fuel injector
cleaning analyzer to inspect if the fuel injector suffers leakage or
blockage.

No Next

step

Yes Fault

replacement

9

Step on the accelerator lightly and observe if the engine can be
easily started.

No Next

step

Yes Next

step

10

Inspect if the engine’s ignition sequence and ignition timing
accord with specification.

No

Overhaul the
ignition system

Yes Next

step

11

Inspect if the exhaust pipe can efficiently exhaust the air.

No

Repair or replace
the exhaust pipe



14.  Idle start/stop function ineffective

Ordinary faulted parts: 1. Engine compartment cover signal;2. Driver door signal;3. Clutch switch
signal;4.Neutral position signal;5. Accelerator pedal;6. Brake vacuum degree signal;7. Accumulator sensor.

Note: If the engine has been started, start/stop indicator blinks in yellow color and turns into yellow,
indicating the system has located relevant part faults, and the faults shall be diagnosed and repaired in the
repair factory.

Ordinary Troubleshooting Flow:

1.  Start/stop indicator is green, but the engine cannot stop automatically

No. Operation

Steps

Test

Results

Follow-up Steps

Yes

System is right staying in the
normal “Automatic Stop
Prohibited” condition.

1

If it is in green indicator blinking state or turns into
yellow lamp now and then.

No Next

step

Yes

Inspect the accelerator pedal

2

Inspect if the idling speed is a little bit high after the
accelerator has been released, and the normal idling
speed should be 700 rpm(depending on specific
project).

No Next

step

Yes Next

step

3

After the engine stops, the gearbox stays in the
gear-engaging state, and then floor the clutch and turn
the key to observe if the engine can be started.

No

Overhaul the clutch switch

2.  After a period of driving (coolant temperature surpasses 75 ), start/stop indicator remains yellow,

℃

and inspect if the accumulator temperature (ambient temperature) is excessively low (below 0 , specific

℃

temperature)





Electronic Fuel Injection Control System 1B

-

33





5 Functional Requirements on ME7 System’s Diagnostic Unit

Functions required:

I. Self-diagnosis



Mostly including: read fault code, and clear fault code;

II.  System Parameter Display

Mostly including: including: water temperature, air intake temperature, throttle opening, engine rotating
speed, ignition angle, A/F ratio short-term modification, A/F ratio long-term plus and multiplication
modification, intake pressure, intake flow, oxygen sensor signal, system voltage, and torque demand value
etc;

III. System Modes

Mostly including: display of 10 modes like programming, cooling system, stable working condition,
dynamic working condition, emission control, oxygen sensor, idling speed, fault indicator, emergency
operation, and air conditioning etc.

IV. Actuator Test

Mostly including: six function tests on fault indicator, fuel pump, air conditioning relay, fan control,
ignition test, and single-cylinder oil interruption;

V.  System Initialization Resetting (self-adaption stop resetting)

After being stalled, engine will send the initialization directive, and the system will stop resetting previous
self-adaption.

VI. Speedometer

Mostly including: display of vehicle driving mileage and driving time;

VII. Version Information

Mainly including: display of car frame number (optional), ECU hardware number, and ECU software
number

5.1 Parts Mounting Torque Specification Table

No. Part

Name  Mounting Torque (N·m)

1

Intake air pressure and

temperature sensor

3.3

2 Coolant

temperature

sensor

20

 (Max)

3 Knock

sensor

20±5

4 Oxygen

sensor

50±10

5

Rotating speed sensor

8±2

6 Phase

sensor

8±0.5

7 Magnetic

fuel

injector

6









Electronic Fuel Injection Control System 1B

-

34



5.2 Electronic Fuel Injection System Maintenance Specification

5.2.1 Family Vehicle

Note:

1.  This maintenance specification is only tailored to family vehicles;

2.  Maintenance interval depends on the speedometer reading or time interval, and the one that expires first

shall prevail.

3.  Maintenance specification is based on the presumption that the automobile is used according to the

normal design, and so it shall be strictly observed.

Mileage

x1000km

10 20 30 40 50 60 70 80

Items

Month

3  6  9  12 15 18 21 24

Ignition

Coil

 I  I  I  I

Ignition

Cam

 I  I  I  I

Ignition

Cap

 I  I  I  I

Ignition

Wire

 I  I  I  I

Spark

Plug

 I  I  I  R

Ignition

Timing

 I  I  I  I

Engine

Idling

Speed

 I  I  I  I

Fuel Tank







I







C

Fuel

Filter

 R  R  R  R

Fuel

Injector

 C*  C*  C*  C*

Air

Filter

 I  R  I  R

EWD or Stepper Air Bypass



C



C



C



C

Throttle

Body

 C  C  C  C

Emission

Check

 I  I  I  I

Check

by

Diagnostic

Tool  I  I  I  I









Electronic Fuel Injection Control System 1B

-

35



5.2.2 Vehicle for Lease

Explanation:

1.  This maintenance specification is applicable to the vehicle for lease;

2.  Maintenance interval depends on the speedometer reading or time interval, and the one that expires

first shall prevail.

3.  Maintenance specification is based on the presumption that the automobile is used according to the

normal design, and so it shall be strictly observed.

Mileage

x1000km

20 40 60 80 100 120 140 160

Items

Month

3 6 9 12 15 18 21 24

Ignition

Coil

I I I I I I I I

Ignition

Cam

I I I I I I I I

Ignition

Cap

I I I I I I I I

Ignition

Wire

I I I I I I I I

Spark

Plug

 I  R  I  R

Ignition

Timing

 I  I  I  I

Engine

Idling

Speed

 I  I  I  I

Fuel

Tank

   C    C

Fuel

Filter

R R R R R R R R

Fuel

Injector

C* C* C* C* C* C* C* C*

Air

Filter

I R I R I R I R

EWD or Stepper Air Bypass

I

C

I

C

I

C

I

C

Throttle

Body

I C I C I C I C

Emission

Check

 I  I  I  I

Check

by

Diagnostic

Tool

 I  I  I  I

Note:  R-Replace

C-Clean

I- Inspect (Replace the spare parts when find out failure in inspection.)

C- The maintenance of fuel injector had better clean by a special tool -- fuel injector cleaner





Fuel System 1C-1



Chapter 3  Fuel System

Table of Contents

1. Fuel System ································································································1C-2
  1.1 Preparatory Work before Repair ··································································· 1C-2
     1.1.1 Work Safety Steps ············································································ 1C-2
  1.2 Inspection to Fuel Leakage········································································· 1C-2
     1.2.1Fuel Hose Mounting··········································································· 1C-2
    1.3 Cylinder Dismantling /Mounting·································································· 1C-3
     1.3.1Cylinder Air Tightness Test ·································································· 1C-4
     1.3.2 Inspection of Check Valve ··································································· 1C-5
     1.3.3 Inspection of Fuel Cylinder Pipeline Pressure ············································ 1C-5
     1.3.4 Inspection of Fuel Pressure Maintenance·················································· 1C-6
    1.4 Fuel Pump Assembly Dismantling /Mounting··················································· 1C-8
     1.4.1 Fuel pump cover removal instructions····················································· 1C-8
     1.4.2

Fuel pump cover installation instructions

················································· 1C-8

     1.4.3 Split fuel pump parts / assembly···························································· 1C-8
    1.5 Spray Nozzle Dismantling /Mounting ···························································· 1C-11
     1.5.1 Inspection of Spray Nozzle·································································· 1C-11

2. Fuel Vaporation and Absorption System ·······························································1C-11
    2.1 Inspection of Carbon Canister Assembly························································· 1C-11
     2.1.1 Inspection of Carbon Canister’s Electromagnetic Valve ································ 1C-11
  2.2 Inspection of Ventilation Condition ······························································· 1C-12

2.3 Inspection of Open/Short Circuit·································································· 1C-12

3.



Dismantling the fuel pump assembly diagram

····················································1C-12

3.1 Demolition relief valve assembly

································································· 1C-12

3.2



Demolition Fuel quantity sensor

·································································· 1C-13

3.3 Demolition pump plug

·············································································· 1C-13

3.4



Demolition of the fuel hose fixed widget

 ······················································· 1C-13

3.5



Demolition fuel pump at the bottom case

························································ 1C-14

3.6 Demolition prefilter, pump core, fine filter

······················································ 1C-14















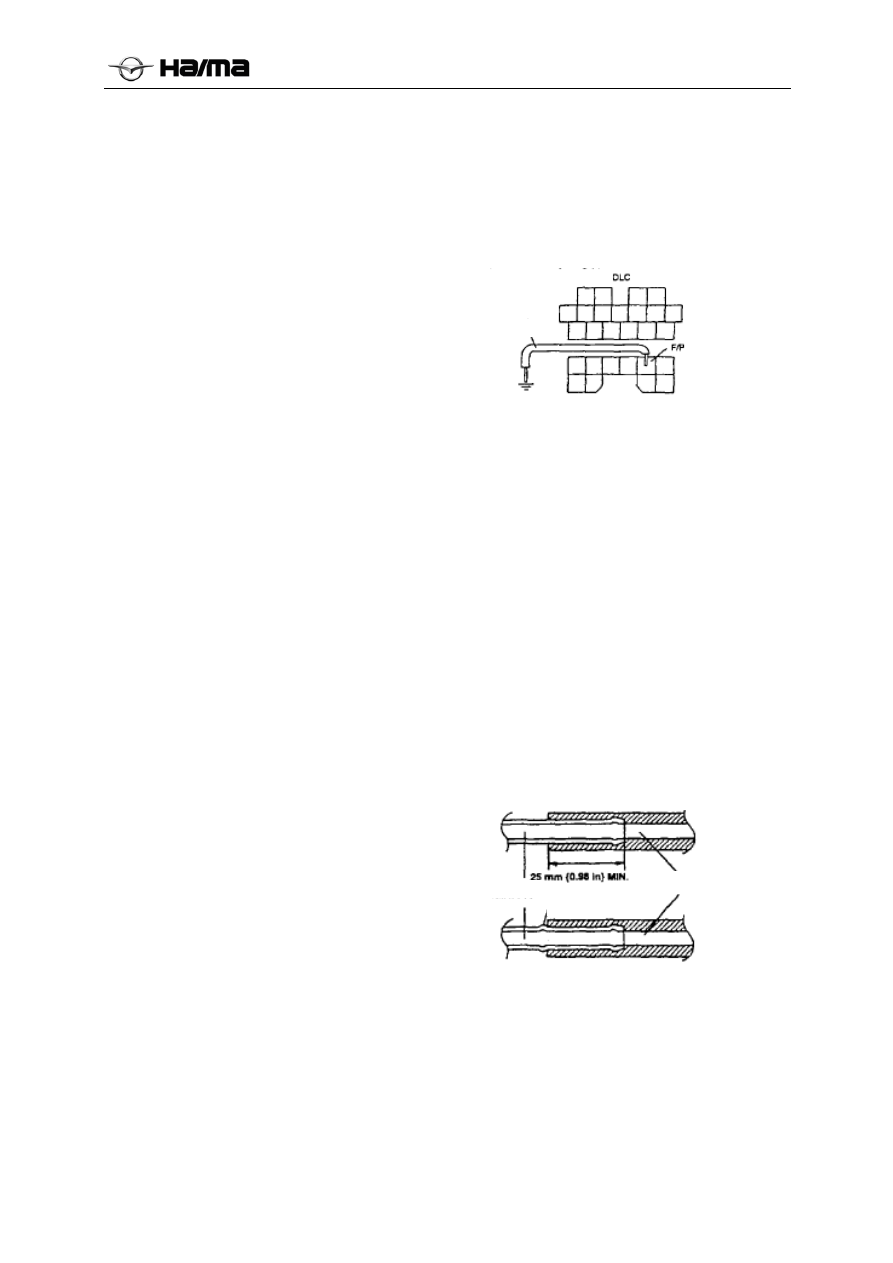

Fuel System 1C-2



1. Fuel System

1.1 Preparatory Work before Repair

Warning

  Fuel vapor is dangerous and combustible,

which may lead to personnel injury and
property loss. Due to this, avoid spark or naked
flame at the place where there is fuel.

  Fuel overflow or leakage is dangerous, and the

fuel is combustible, which may lead to
personnel injury and property loss. In addition,
the fuel has side effect on the skin and eye.
Due to this, work safety rules shall be observed
during the working process.

Notice:

  Even if the engine does not run, fuel in the fuel

system still stays within the high pressure
state.

1.1.1 Work Safety Steps

1.  Dismantle the oil cylinder head, and release

the pressure from the oil cylinder.

2.  Pull out the fuel pump relay (located in the

electrical box at the centre of the engine
compartment).

3. Start

the

engine.



4.  Restart the engine several times after the

engine stalls.

5.  Turn the ignition switch to the “OFF” position.

6.  Reload the fuel pump relay.

1.2 Inspection Work after Maintenance

Warning

  Fuel overflow or leakage is dangerous, and

also the fuel is combustible, which may lead to
personnel injury and property loss. Due to this,
follow the under-mentioned “Fuel Leakage
Inspection” to conduct inspection after
remounting the fuel hose.

Inspection to Fuel Leakage

Warning

  Fuel overflow or leakage is dangerous, and

also the fuel is combustible, which may lead to
personnel injury and property loss. Due to this,
fuel leakage shall be inspected frequently after
the engine stops.

Caution

  Wrong connection with other wiring terminals

may lead to fault, and so caution is needed
during the connection process.

1.  Connect the DLC’s wiring terminal F/P with

the vehicle body (as the ground) with a
jumper wire.



2.  Turn the ignition switch to the “ON” position

to run the oil pump.

3.  Pressurize the oil circuit for at least five

minutes according to preceding method, so as
to inspect if there is leakage.

4.  In the event that there is fuel leakage, inspect

if fuel hose and fuel pipe’s sealing faces
suffer damage. If necessary, replace them.

5.  After the overhaul and remounting, repeat

Step 1 to Step 3.

1.2.1 Fuel Hose Mounting

1.  Replace the damaged and distorted fuel hose,

fuel pipe, and pipe clamp.

2.  Fuel hose shall be mounted 25mm {0.98in}

above the fuel pipe, and if the fuel pipe has
limit device, mount the hose till it contacts the
limit device.





3.  Use the pipe clamp to clamp the hose within

the mounting range (see the figure below),
and prevent the clamp from nipping previous
nipping place.

Jumper Wire

Fuel Pipe

Limit Device

Fuel Hose



Fuel System 1C-3





Warning on Plastic Fuel Pipe (fuel supply
pipe assembly, fuel supply pipe, and fuel
return pipe assembly)

Dismantling

  When dismantling the fuel pipe, pressure in the

fuel system will lead to ejection of fuel from
the fuel pipeline, and so oil cylinder head shall
be dismantled in advance according to
requirements while dismantling the fuel
pipeline, in order to release the pressure in the
oil cylinder and avoid personnel injury and
property loss.

Caution

  While dismantling the fuel pipeline, necessary

sheltering measures shall be adopted, in order
to avoid the fuel’s ejection onto your body.

1.  If the quick plug assembly is equipped with

double-lock mechanism, loosen the quick
plug assembly’s double locks along the
direction illustrated in the figure.



2.  Pinch locking devices on both sides of the quick

plug with fingers to remove the quick plug.

3.  Repeat Step 1 and Step 2, and dismantle the

quick plug at the other end of the fuel pipeline
from the supporting pipeline.

Explanations on Plastic Fuel Pipe (Fuel
Supply Pipe Assembly, Fuel Supply Pipe,
and Fuel Return Pipe) Mounting

Notice

When mounting the new fuel supply pipe
assembly, assemble properly double locks on the
quick plug assembly.



1.  Inspect the fuel pipeline and supporting

pipeline joint’s sealing faces and avoid their
damage and distortion. If necessary, replace
them.

2.  If the quick plug O-ring is damaged or

disengaged, mount the new fuel pipeline.

3.  Push the fuel pipeline quick plug into the

loading part till the pipe joint makes the
“click” sound.

4.  If the fuel pipeline quick plug is equipped

with double-lock mechanism, mount the
double locks till there is “click” sound.

5.  Pull the quick plug with hands to confirm if it

has been secured mounted.

Explanations on fuel filter dismantling
/mounting

Warning :

The fuel filter is integrated in the fuel pump
assembly, disassembly, repair shop to replace
HAIMA.

1.3 Cylinder Dismantling /Mounting

Warning

  Unwashed cylinder is dangerous and may lead

to combustion or explosion, which will further
result in serious casualties. Due to this,
cylinder shall be cleaned with vapor before the
overhaul.

  Fuel overflow or leakage is dangerous, and the

fuel is combustible, which may lead to
personnel injury and property loss. Due to this,
do not damage the sealing face while
dismantling/ mounting the oil pump assembly.

Caution

  Dismantling/mounting quick connector before

cleaning will lead to damage of the fuel pipe
and quick connector. Due to this, cleaning is a
must before dismantling /mounting, in order to
make sure that no foreign objects enter the fuel
pipe and connector.

1.  Park the vehicle stably on the lifting machine.

2.  Complete preparatory work before repair (see

Preparatory Work before Repair).

3.  Loosen the accumulator’s negative cable.

4. Dismantle

the

second-row seats (see Part S,

Avoid nipping previous nipping place



Fuel System 1C-4



Seat, Second-row Seats Dismantling
/Mounting).

5.  Dismantle the cylinder repair cover plate.

6.  Dismantle all fuel pipes that connect with the

oil pump.

7.  Drain fuel in the cylinder.

8.  Life the vehicle with lifting machine and

dismantle parts according to sequence
illustrated in the figure.

9.  Mount parts according to the sequence reverse

to the dismantling process.

10.  Complete inspection work after the repair (see

Inspection Work after Repair)





No.  Part name

Part No.

Torq
ue

R
e
m
ar
k

1

Bolt HQ90786-1030

36.3-
53.9



2

Fuelsupply pipe

SA12-42-61X





3

Fuel pump
gasket

SA12-42-166

4

Fuel pump

SA12-13-35Z





5

Fuel pump cover

SA12-42-161





6 Hose

clamp



S05B-42-239L1





7

Refueling hose

SA12-42-231





8

Fuel tank straps
(R)

SA12-42-720

9

Refueling pipe

SA12-42-211





11

Dust cover

SA12-42-240





10

Cap-filler FA1A-42-250





12

Bolt HQ99786-0816

20.0-
32.0



13

Elastical clamp

HQ99283-1900





14

Breather hose

SA12-42-232





15

Canister bracket

SA12-13-960





16

Canister SA12-13-96Z





17

Bolt HQ99786-0820





18

Elastical clamp

HQ99283-1100





19

Snorkel SA12-13-963





20

Desorption
canister hose

SA12-20-374

21

Pipe clip

SA12-45-914





22

Fuel tank

SA12-42-111





23

Fuel tank tie
(left)

SA12-42-710

24

Fuel tank
insulation panels

SA12-42-741

25

Screw HQ99845-0510





26

Hose SA12-20-377





27

Fuel supply pipe
assembly

SA12-13-49X



28

Hose SA12-20-376





29

Clip SA12-45-911





30

Fuel hard tube

SA12-45-110





31

Hard tube
evaporator

SA12-45-711

32

Elastical clamp

HQ99283-1300









Fuel System 1C-5



1.3.1 Cylinder Air Tightness Test

Notice

  Cylinder air tightness test is used to test the

welding quality between parts (like the upper oil
filling port, exhaust port, and gravity valve) and
the cylinder body.

1.  Dismantle the cylinder mounting assembly

(see the Cylinder Dismantling/Mounting).

2.  Block the special blanking plug (dedicated to

main fuel pipe) on the fuel pump assembly.

3.  Use special blanking plug to block the gravity

valve vapor hose’s joint on the cylinder body.

4.  Connect the special air pressure test tool with

the cylinder’s oil filling port and exhaust port.

5.  Put the cylinder horizontally into the special

water tank dedicated to cylinder test (the total
cylinder shall be immersed 100mm below the
water surface).

6.  Charge compressed air into the cylinder’s oil

filling port, and pressurize the cylinder to
(30～50)kPa. Then, maintain the pressure for
1min.

7.  Inspect if there is air bubble between the parts

(like oil filling port, exhaust port, and gravity
valve) and the cylinder’s welding face.

  If there is air bubble on the welding face,

replace the cylinder (see Cylinder
Dismantling/Mounting)







1.3.2 Inspection of Check Valve

1. Check the direction of welding welding

direction ICV logo on the body with the fuel
tank logo are aligned, if not aligned, then
weld failed.

2.    The role of the baffle is to prevent anti-jet fuel,

while the pressure drop is not too large, to
avoid early to jump the gun, and therefore
whether the rebound pressure baffle is
designed to reflect the performance by
refueling. ICV welded to the tank, can not
repair.

1.3.3 Inspection of Fuel Cylinder Pipeline

Pressure

Warning

  Fuel overflow or leakage is dangerous, and the

fuel is combustible, which may lead to
personnel injury and property loss. In addition,
the fuel has side effect on the skin and eye.

Caution

  Dismantling/mounting quick connector before

cleaning will lead to damage of the fuel pipe
and quick connector. Due to this, cleaning to
the quick connector’s contacting zone is a must
before dismantling /mounting, in order to make
sure that no foreign objects enter the fuel pipe
and connector.

Notice:

  The following tests can be conducted if

necessary

1. Complete

preparatory

work before repair (see

Preparatory Work before Repair)

2.  Loosen the accumulator’s negative cable.

Caution

  To avoid the quick connector’s damage or oil

leakage, follow the “Explanations on plastic



Fuel System 1C-6



fuel pipe dismantling” to complete the
under-mentioned work (see the Fuel System,
Explanations on Plastic Fuel Pipe Dismantling)

3.  Dismantle the main fuel hose (fuel supply

pipe assembly) from the main pipe (fuel rigid
pipe).

4.  Connect the special tool’s quick connector

with the fuel distributor(fuel rail), and insert
the fuel supply pipe assembly onto the special
tool’s interface.



5.  Remount the accumulator’s negative cable.

Caution

  Wrong connection with other wiring terminals

may lead to fault, and so caution is needed
during the connection process.

6.  Connect the DLC’s wiring terminal F/P with

the Vehicle body’s earthing point GND with a
jumper wire.



7.  Turn the ignition switch to “ON” position to

make fuel pump run, and measure the
pipeline’s maximum oil pressure.

Standard value

390～410kpa

8.  Turn the ignition switch to the “OFF”

position and loosen the jumper wire.

  If the pressure is higher than the standard value,

inspect the fuel pump’s maximum pressure

  If the pressure is normal, inspect if the oil

return pipe and pressure regulator suffer
blockage.

  If the pressure is lower than standard value,

turn the switch handle and measure the oil
pressure’s variation (see the figure).

—If the oil pressure rises speedily, inspect the
pressure regulator.

—If the oil pressure rises slowly, inspect the oil
pressure’s maximum value.

  If the oil pump’s maximum pressure is normal,

inspect if the oil circuit between the oil pump
and pressure regulator suffers blockage.



9.  Dismantle the special tool unit.

Caution

  To avoid the quick connector’s damage or oil

leakage, follow the “Explanations on plastic
fuel pipe dismantling” to complete the
under-mentioned work (see the Cylinder
Dismantling/Mounting, Explanations on
Plastic Fuel Pipe Dismantling)

10.  Connect the main fuel hose (fuel supply pipe

assembly) and the main pipe (fuel rigid pipe)

11.  Complete the inspection work after repair (see

Inspection Work after Repair).

1.3.4 Inspection of Fuel Pressure
Maintenance

Warning

  Fuel overflow or leakage is dangerous, and

the fuel is combustible, which may lead to
personnel injury. In addition, the fuel has side
effect on the skin and eye.

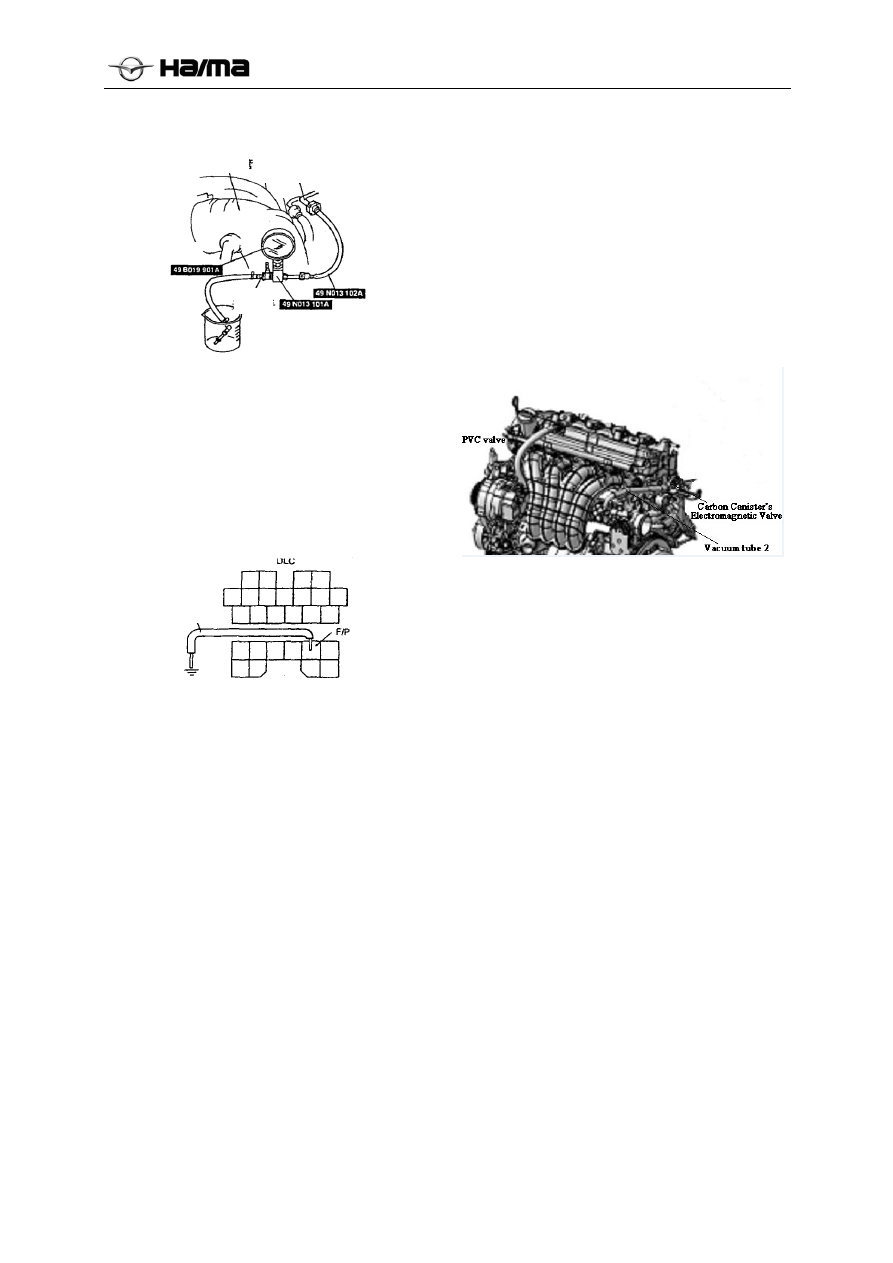

Switch handle

To main pipe

Fuel distributor

Earthing
jumper

Switch handle

To main pipe

Fuel distributor



Fuel System 1C-7



Caution

  Dismantling/mounting quick connector before

cleaning will lead to damage of the fuel pipe
and quick connector. Due to this, cleaning to
the quick connector’s contacting zone is a
must before dismantling /mounting, in order
to make sure that no foreign objects enter the
fuel pipe and connector.

Notice:

  The following tests can be conducted if

necessary

1. Complete

preparatory

work before repair (see

Preparatory Work before Repair)

2.  Loosen the accumulator’s negative cable.

Caution

  To avoid the quick connector’s damage or oil

leakage, follow the “Explanations on plastic
fuel pipe dismantling” to complete the
under-mentioned work (see the Fuel System,
Explanations on Plastic Fuel Pipe
Dismantling)

3.  Dismantle the main fuel hose (fuel supply pipe

assembly) from the main pipe (fuel rigid pipe).

4.  Connect the special tool’s quick connector

with the fuel distributor (fuel rail), and insert
the main fuel hose (fuel supply pipe assembly)
onto the special tool’s interface.

5.  Rotate the switch handle along the direction

illustrated in the figure.



6.  Remount the accumulator’s negative cable.

Caution

  Wrong connection with other wiring terminals

may lead to fault, and so caution is needed
during the connection process.

7.  Connect the DLC’s wiring terminal F/P with

the Vehicle body’s earthing point GND with a
jumper wire.



8.  Turn the ignition switch to the “ON” position

for about 10s, in order to make the fuel pump
run.

9.  Turn the ignition switch to the “OFF”

position and loosen the jumper wire.

10.  Observe the oil pressure after 60 minutes.

  If the oil pressure is lower than the standard

value, observe the oil pressure’s variation
while rotating the switch handle

—If the oil pressure maintains unchanged, replace
the pressure regulator (see Pressure Regulator
Dismantling/Mounting)

—If the oil pressure is changed, inspect if the oil
circuit and spray nozzle suffer oil leakage.

Standard value:

≥250kpa(2.5kgf/cm2, 36psi)



11.  Loosen the special tool unit.

12.  Connect the main fuel hose with main fuel

pipe.

13.  Complete the inspection work after repair

(see Inspection Work after Repair).

Switch handle

To main pipe

Fuel distributor

Earthing
jumper

Switch handle

To main pipe

Fuel distributor



Fuel System 1C-8



1.4 Fuel Pump Assembly Dismantling
/Mounting

Warning
Fuel is a combustible liquid is very strong, and if
the fuel spilled from the pressurized fuel system
will result in serious injury or death, while also
causing facilities were destroyed, oil can irritate
the skin and eyes, in order to avoid this case, be
sure to perform "Fuel pipeline safety program,"
while referring to "maintenance precautions."
Fuel is a very strong combustible liquids, if spilled
or leaked from the fuel pressure in the fuel system,
it will cause serious injury or death, while also
causing facilities were destroyed, oil can irritate
the skin and eyes, in order to To avoid this
situation, the fuel pump components prior removal
/ installation, be sure to perform "After the
installation of the fuel pump assembly fuel leak
check."
1.  Before performing any operations, comply
with "maintenance before precautions" to avoid
spilling fuel from the fuel system.
2. Disconnect the negative battery cable.
3. Remove the fuel tank.
4. In the order shown in the table to be demolished.









5. According to the order the demolition phase side
installation.

6. Through the implementation of
"post-maintenance considerations" to check all
relevant components.

 1.4.1

 Fuel pump cover removal instructions



Notice:

In using the SST time, if there is a gap between the
fuel pump cover and SST, then the fuel pump
cover may be damaged, the SST fixed so that the
SST tabs with no gap between the fuel pump side
cover.

Removing the fuel pump cover using the SST.







1.4.2

Fuel pump cover installation instructions



1.



Fuel tank and the fuel pump so that the

alignment marks in the alignment member, as
shown in Fig.









2.  As shown in FIG. Fixed SST.

Using SST accordance with the provisions of the
tightening torque to tighten the fuel pump cover,
but can not move the alignment mark.

4 .  If you can not achieve the required tightening
torque, replace the fuel pump cover.

5 .  If after replacing the fuel pump cover can not
achieve the required tightening torque, replace the
tank.

1.4.3 Split fuel pump parts / assembly

Explanation：

  Can not be split fuel pump components.

Inspection of Fuel Pump Assembly

Simulation Test

Inspect the fuel pump’s working condition (see
Fault Diagnosis, Inspection of Engine Control
System’s Working Condition, Inspection of Fuel
Pump’s Working Condition).

1 Quick

release

connectors

2 Fuel

pump

cover

3 Fuel

pump

parts



Fuel System 1C-9



  If the condition is abnormal, conduct further

inspection to the fuel pump assembly.

Inspection of Conducting/Non-conducting
State

Notice

  Inspection below can be conducted if

necessary

1.  Loosen the accumulator’s negative cable.

2.  Remove the second-row seats (see Seats,

Second-row Seats Dismantling /Mounting).

3.  Dismantle the oil tank’s repair cover plate.

4.  Loosen the fuel pump assembly’s connector.

5.  Inspect the conducting/non-conducting state

between fuel pump or connector’s wiring
terminal B and wiring terminal D. If it is in
conducting state but the simulation test is
abnormal, inspect if the circuit suffers
short/open circuit. If it is in non-conducting
state, replace the fuel pump assembly.



Inspection of Open/Short Circuit

1.  Inspect if there is open/short circuit on the

following wiring harnesses. If there is, repair
or replace corresponding wiring harness:

Open Circuit

  Earting circuit (between fuel pump assembly’s

connector D and the vehicle body GND)

  Power circuit (between the fuel pump relay

connector A and fuel pump assembly
connector B, and there is public connector)



Short Circuit

  The circuit between the fuel pump assembly

connector B and fuel pump relay connector E,
in which there is public connector and ground
short circuit (electrical ground)

2.  Remount the fuel pump assembly connector.

3.  Remount the oil tank’s repair cover plate.

4.  Remount the second-row seats (see Seats,

Second-row Seats Dismantling /Mounting).

5.  Remount the accumulator’s negative cable.

Inspection of Fuel Pump’s Maximum
Pressure

Warning

  Fuel overflow or leakage is dangerous, and the

fuel is combustible, which may lead to personnel
injury and property loss. Due to this,
under-mentioned operations shall not be started
until the engine stops.

Caution

  Dismantling/mounting quick connector before

cleaning will lead to damage of the fuel pipe
and quick connector. Due to this, cleaning to
the quick connector’s contacting zone is a must
before dismantling /mounting, in order to make
sure that no foreign objects enter the oil pipe
and connector.

Notice

  The following tests can be conducted if

necessary

1. Complete

preparatory

work before repair (see

Preparatory Work before Repair)

2.  Loosen the accumulator’s negative cable.

Caution

  To avoid the quick connector’s damage or oil

leakage, follow the “Explanations on plastic
fuel pipe dismantling/ mounting” to complete
the under-mentioned work (see the Fuel
System, Explanations on Plastic Fuel Pipe
Dismantling)

3.  Dismantle the main fuel hose (fuel supply

pipe assembly) from the main pipe
(vaporation rigid pipe).

4.  Turn the switch handle to the position

illustrated in the figure to block the special
tool’s port.

Fuel pump relay



Fuel System 1C-10



5.  Push the special tool’s quick connector into

the main pipe (fuel rigid pipe) till there is a
“click” sound.

6.  Put the hose into a vessel in order to avoid the

fuel overflow.



7.  Remount the accumulator’s negative cable.

Caution

  Wrong connection with other wiring terminals

may lead to fault, and so caution is needed
during the connection process.

8.  Connect the DLC’s wiring terminal F/P with

the vehicle body’s earthing point GND with a
jumper wire.



9.  Turn the ignition switch to the “ON” position to

make the fuel pump run, and measure the fuel
pump’s maximum output oil pressure.

Fuel pump’s maximum output oil pressure: 650～
900kpa

10. Turn the ignition switch to the “OFF”

position and loosen the jumper wire.

If the maximum output oil pressure goes
beyond the specified range, inspect items below:

—Fuel pump relay (see Inspection of Fuel Pump
Relay)

—If the fuel filter (LV, HV) suffers blockage.

—If the fuel pipeline suffers blockage or leakage.

11.  Dismantle the special tool.

Caution

  To avoid the quick connector’s damage or oil

leakage, follow the “Explanations on plastic
fuel pipe dismantling” to complete the
under-mentioned work (see the Fuel System,
Explanations on Plastic Fuel Pipe Dismantling)

12.  Remount the main fuel hose (fuel supply pipe

assembly).

13.  Complete the inspection work after repair (see

Inspection Work after Repair)

Inspection of Fuel Pump Oil Pressure
Maintenance

Warning

  Fuel overflow or leakage is dangerous, and the

fuel is combustible, which may lead to
personnel injury and property loss. Due to this,
under-mentioned operations shall not be
started until the engine stops.

Caution

  Dismantling/mounting quick connector before

cleaning will lead to damage of the fuel pipe
and quick connector. Due to this, cleaning to
the quick connector’s contacting zone is a must
before dismantling /mounting, in order to make
sure that no foreign objects enter the oil pipe
and connector.

Notice

  The following tests can be conducted if

necessary

1. Complete

preparatory

work before repair (see

Preparatory Work before Repair).

2.  Loosen the accumulator’s negative cable.

Caution

  To avoid the quick connector’s damage or oil

leakage, follow the “Explanations on plastic
fuel pipe dismantling” to complete the
under-mentioned work (see the Fuel System,
Explanations on Plastic Fuel Pipe Dismantling)

3.  Dismantle the main fuel hose (fuel supply

pipe assembly) from the main pipe (fuel rigid
pipe).

4.  Turn the switch handle along the direction

illustrated in the figure to block the special
tool’s port.

5.  Push the special tool’s quick connector into

the main pipe (fuel rigid pipe) till there is a
“click” sound.

Jumper wire



Fuel System 1C-11



6.  Put the hose into a vessel in order to avoid the

fuel overflow.



7.  Remount the accumulator’s negative cable.

Caution

  Wrong connection with other wiring terminals

may lead to fault, and so caution is needed
during the connection process.

8.  Connect the DLC’s wiring terminal F/P with

the vehicle body’s earthing point GND with a
jumper wire.



9.  Turn the ignition switch to the “ON” position

to make fuel pump run for 10s or so.

10. Turn the ignition switch to the “OFF”

position. After 5 minutes, inspect the fuel
pump’s oil pressure maintenance.

Fuel pump’s oil pressure maintenance: ＞
410kpa(4.1kgf/cm2, 59psi)

11.  Loosen the jumper wire.

12.  Remove the special tool.

13.  Connect the main fuel hose (fuel supply pipe

assembly) with the main pipe(fuel rigid pipe).

If the oil pressure maintenance fails to accord
with standard, replace the fuel pump assembly
(see Fuel Pump Assembly
Dismantling/Mounting)

14.  Confirm if around the quick plug’s bonding

zone there is not oil leakage.

15. Complete the inspection work after

repair(see Inspection Work after Repair)

1.5 Spray Nozzle Dismantling /Mounting

(see the Control System)

1.5.1 Inspection of Spray Nozzle

(see the Control System)

2 Fuel Vaporation and Absorption
System

Location of Combustion Vaporation &
Absorption System’s Components (in Engine
Compartment)



2.1 Inspection of Carbon Canister
Assembly

1.  Remove the carbon canister.

2.  Block the interface on the carbon canister’s

ventilation side and the interface on the
carbon canister’s electromagnetic valve side.

3.  Blow air into the carbon canister’s oil tank

interface, and Confirm if there is no air
leakage (If there is air leakage, replace carbon
canister).

2.1.1 Inspection of Carbon Canister’s
Electromagnetic Valve

Conduct simulation test

Inspect the carbon canister’s electromagnetic
valve (see Fault Diagnosis, Inspection of Engine
Control System’s Working Condition, Inspection
of Carbon Canister’s Electromagnetic Valve); if it
is abnormal, conduct further inspection to the
carbon canister’s electromagnetic valve.



Earthing
jumper

Air hose  Main fuel pipe

Switch
handle



Fuel System 1C-12





2.2 Inspection of Ventilation Condition

Notice

  The following tests can be conducted if

necessary

1.  Loosen the accumulator’s negative cable.

2.

Dismantle the carbon canister’s
electromagnetic valve .

3.  Inspect ventilation condition of the carbon

canister’s electromagnetic valve

(If normal, inspect if there is open /short circuit,
and if the vacuum hose is correctly arranged or
suffers distortion and air leakage. If abnormal,
replace the carbon canister’s electromagnetic
valve ).





2.3 Inspection of Open/Short Circuit

1.  Inspect if there is open/short circuit on the

following wiring harnesses (If there is,
overhaul or replace corresponding wiring
harness).

Open Circuit

  Earthing circuit (the circuit between the carbon

canister’s electromagnetic valve connector 1
and ECU connector terminal 46, in which there
is public connector)

  Power circuit (the circuit between the carbon

canister’s electromagnetic valve connector
terminal 2 and main circuit breaker connector
terminal D, in which there is public connector)



Short Circuit

  Electrical ground between carbon canister’s

electromagnetic valve connector terminal 2 and
ECU connector terminal 46, in which there is
public connector.

2.

Remount the carbon canister’s
electromagnetic valve.

3.  Remount the accumulator’s negative cable.



3  Dismantling the fuel pump

assembly diagram

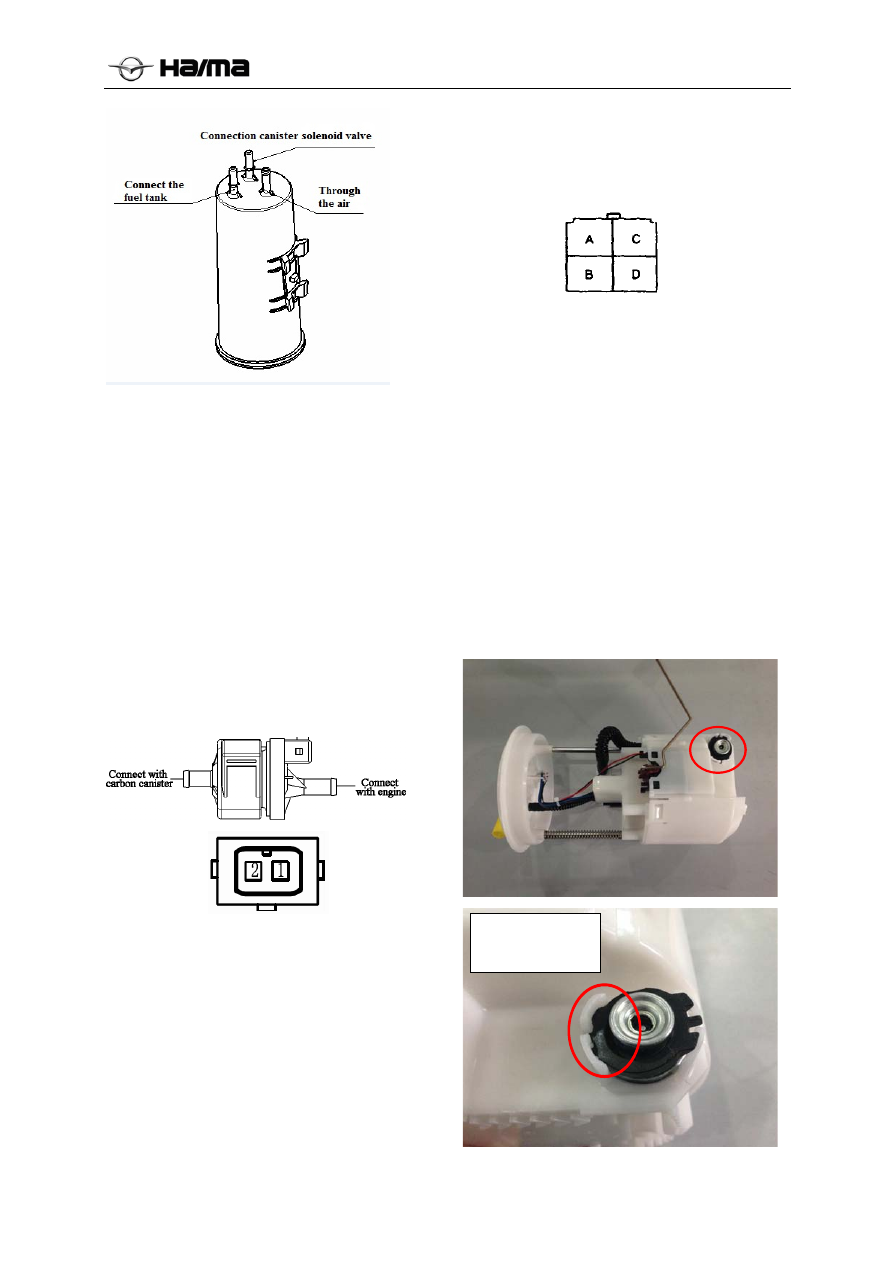

3.1 Demolition relief valve assembly





Main relay

Connector on wiring harness’s side

  (viewing from the electrode terminal side)

With a screwdriver

inserted from here..
