WARNING: Keys with remote control
that are not provided to the Dealer,
for the new code storage procedure,
will automatically be deactivated. This
is to prevent any lost or stolen keys
with remote control from being used
to deactivate the electronic alarm
system.

Replacing remote operated
control battery

If you press one of the three buttons
and this does not activate the
corresponding function, before
replacing the batteries, check for
correct operation of the alarm system
functions using the other remote
control.

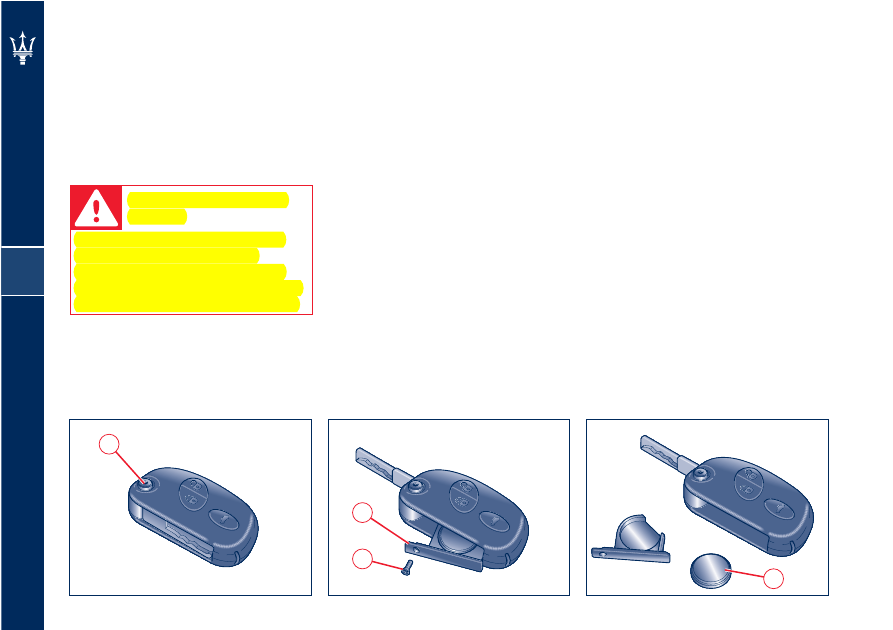

To replace the remote control battery:
-  extract the key by pushing the

button E

-  undo the screw F
-  extract the battery holder G
-  remove the battery H from its

retaining ring

-  fit a new battery of the same type,

observing the indicated polarity

-  fit the battery support G into the

remote control and secure it by
tightening the screw F.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

A

B

4

105

Front seats

Adjust the seat only when
the vehicle is stationary.
You could lose control of

the vehicle while driving. Moving
the seat could distract you or make
you press a pedal unintentionally.
Adjust the driver’s seat only when the
vehicle is stationary.

The seats can only be adjusted with
the ignition key in position MAR (ON).
It is however possible, when the
door is closed, to adjust the seat for
approx. 15 seconds after turning the
ignition key to STOP (OFF) and then
for other 15 seconds after the last
operation.

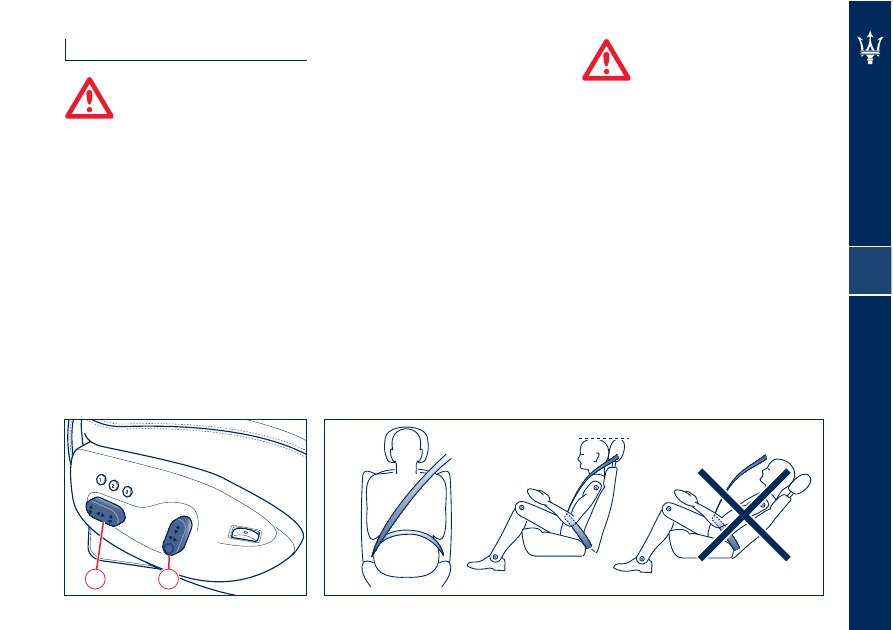

Back/forward adjustment

Push control A on the outer side of
the seat, forward or backward.

Height adjustment

Grip lever A at the center and push it
down or up.

Seat angle adjustment

-  Front of seat: move the front end

of control A.

-  Rear of seat: move the rear end of

control A.

Seatback inclination adjustment

Push lever B forward or backward to
raise or lower the seatback.

Sitting in a reclined position
while the vehicle is in motion
could be dangerous. The

seatback should not be tilted back
too far.
The 3-point shoulder/lap belt must be
firmly secured against the occupant’s
body in order to function properly.
Therefore, both the driver’s and
passenger’s reclining seatbacks must
always be in an upright position
while the vehicle is in motion;
otherwise the 3-point shoulder/
lap belt would not remain firmly
positioned against the occupant’s
body. Serious injury could result!

Lumbar support adjustment

This system is fitted on the passenger
and driver’s seat. Push lever B up
or down to the most comfortable
position.

E

D

C

4

106

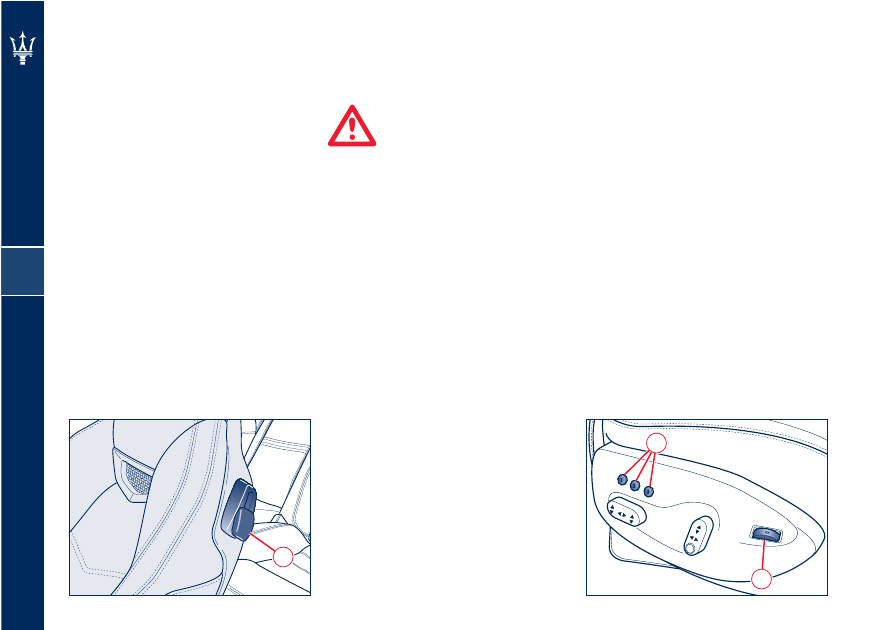

Seatback tilt

To tilt the front seatback, lift lever C
and move the backrest forward.
To facilitate access to the rear seats
or exiting the vehicle, the front seats
are fitted with the “Easy Entry”
device (only active when the door is
open), which moves the seats forward
automatically when the seatback is
reclined forwards, and returns them
to their original position when the
seatback is tilted back again.

WARNING: The system (excluding
the seat with position memory)
incorporates a safety device which
stops the seat travel and then moves
it forward slightly when the seatback
comes in contact with any passengers
seated in the rear seats.

To stop the seat when it is
automatically moving forward or
backward, operate any control.

The seat cannot be occupied
when reclining the seatback
or moving it to the upright

position.
Passengers shall get in or out of the
rear seats only when the front seat
is stopped. Take the greatest care to
avoid that passengers on the rear
seats (especially children) touch the
seat and its guides when it is moving.

Heating system

Heating is activated by turning
control D. Two heating pads are used
to heat the seat. When this function
is active for one or more seats, the
relative warning light illuminates on
the display.
Using control D, heating can be
adjusted to 3 different levels.
When the heating system is activated,
the relative function will appear on
the instrument panel display.

WARNING: Turn off the heating
system when not required, to prevent
unnecessary power usage.

Storing the positions of the seats
and external rear-view mirrors

The system allows you to store and
recall 3 different positions for the
driver’s seat and the external rear-
view mirrors (buttons E).

The storage procedure is only possible
with the ignition key in position
MAR (ON). Adjust the position of
the seat, the external rear-view
mirrors and the steering wheel, then
engage reverse gear and position
the external passenger’s mirror again
to help ensure the best possible
visibility for reversing, then disengage
reverse gear. Next press one of the
three buttons “1”, “2” or “3”, each
corresponding to a memorizable
position, for more than 3 seconds
until you hear a confirmation tone.
Lumbar support adjustment is not

4

107

included in the seat position storage
procedure.
The memorization of a new seat
position erases the one previously
stored with the same button.
To recall one of the stored positions
with the door open, press the relative
button “1”, “2” or “3” briefly.
To recall the a stored position
with the door closed, press the
corresponding button until hearing
a tone that confirms the seat has
stopped.

WARNING: To stop the seat, press one
of the buttons - “1”, “2” or “3” -, or
one of the adjustment controls.

WARNING: Malfunctioning of the seat
control unit is indicated by a sequence
of 5 tones emitted when the ignition
key is turned to STOP (OFF): contact
your Authorized Maserati Dealer to
have the malfunction corrected.

Each system is independent of the
others and can be operated separately
using specific buttons for each seat.

System initialization

Following any power cut-out (e.g.,
after using the battery master switch
or dead battery), check the seats
to ensure that they are operating
properly when the power supply
is available: perform the following
procedures on both seats in the event
of a malfunction.
With the ignition key in position STOP
(OFF) and the door on the side of the
seat concerned closed, open the door
and begin the following procedure
within 5 seconds, then complete it
within 10 seconds:
1)  forward - STOP
2)  backward - STOP
3)  forward - STOP
4)  backward - STOP
5)  tilt the seatback fully forward and

wait until the seat performs two
complete travels (forward and
backward).

6)  move the seatback to its normal

upright position.

WARNING: If you need to disconnect
the battery, wait at least 30 seconds
from the last seat movement.
If you disconnect the battery before,
you will have to perform the
initialization procedure.

Driver’s Easy Entry/Exit system

The easy entry/exit system helps the
driver when entering/exiting the
vehicle. When the driver exits the
vehicle, the steering wheel moves
upward.
This function is activated when the
door is opened only if the ignition key
has been extracted or is in position
STOP (OFF).
On re-entry, the driver finds the
steering wheel raised. After sitting
down and closing the door, upon
turning the key to position MAR
(ON), the steering wheel return to its
normal driving positions.
This function is linked to the presence
of the seat position memory system.

A

4

108

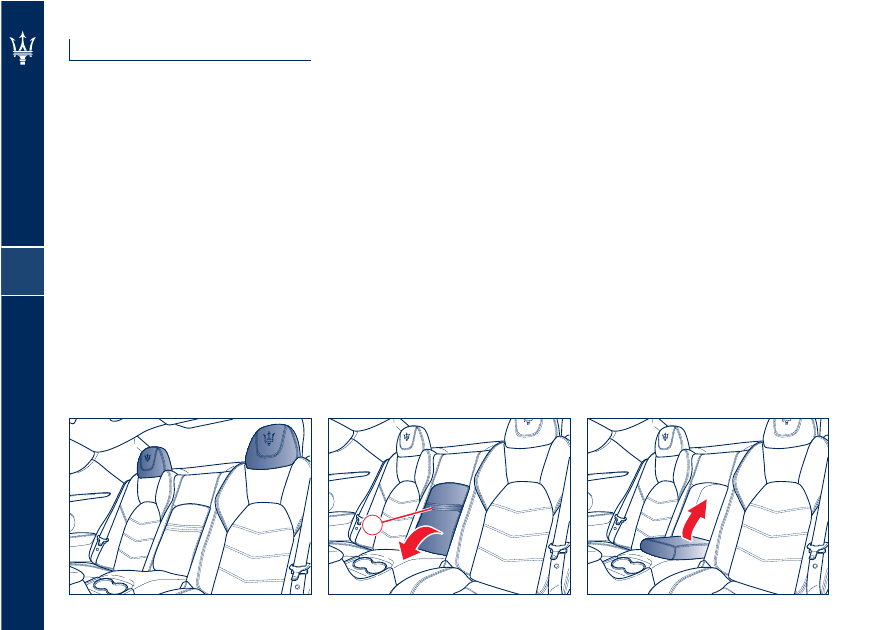

Rear seats

They can seat two passengers.

Headrest

The headrests are not movable.

Armrest

The rear center armrest is movable
and can be folded up into the seat
backrest. To lower it, pull the handle
A.

To close it, pull it upwards then push
it back into its seating.

A

4

109

Rear-view mirrors

Electrochromic external rear-
view mirrors

These mirrors can be adjusted
electrically (with the ignition key
turned to MAR (ON)) and they
are also equipped with anti-mist
elements.

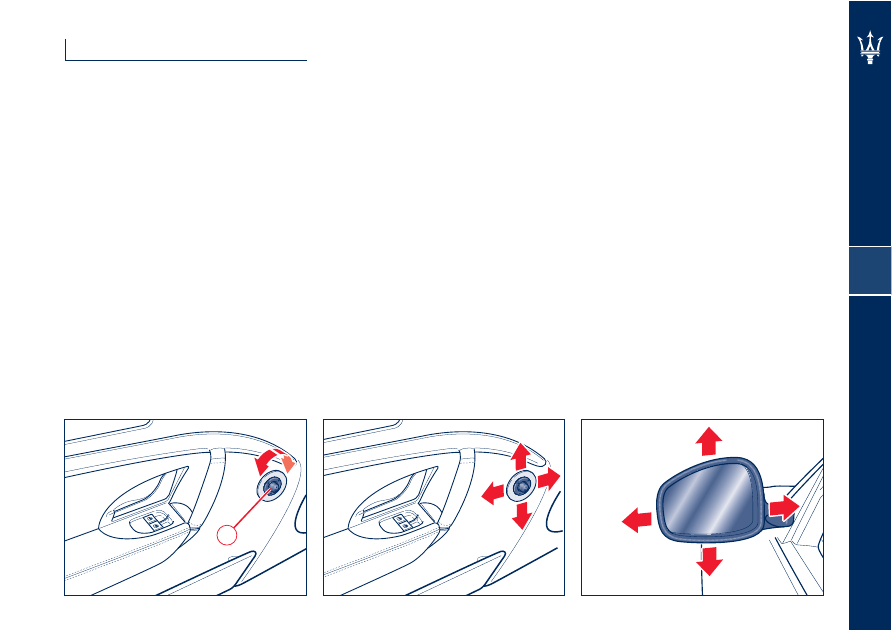

-  Mirror selector (right-hand or left-

hand): move the selector A to the
right or left, depending upon the
mirror you wish to adjust.

-  Mirror positioning: using control

A you can adjust each mirror with
four movements (up – down – right
– left). Bring the selector switch
back to the center position to avoid
changing the position of the mirror
involuntarily.

-  Mirror folding: by turning the

selector switch A to the lower
central position, both mirrors fold
inwards to facilitate parking in
narrow spaces. If the selector switch
is returned to the upper central
position, the mirrors return to the
open position.

A particular feature of these mirrors
is that they gradually darken as the
intensity of the light increases.

The mirrors are designed to yield
in both directions in the event of a
collision.

The external rear-view mirror
position, both for the normal driving
direction and for reversing, is
automatically memorized together
with each seat position.
To memorize a new position of the
external rear-view mirrors, turn
the ignition key to position MAR
(ON) and adjust the position of the
mirrors; then engage reverse gear and
position the external mirrors again
to ensure the best possible visibility
for reversing, then disengage reverse
gear.

4

110

Next press one of the buttons
“1”, “2” or “3” on the seat, each
corresponding to a memorizable
position, until you hear a
confirmation tone.
The new position of the external rear-
view mirrors will be automatically
memorized together with the seat
position.
It is also possible to change the
position of the mirrors only for the
normal traveling direction or for
reversing.

WARNING: Never retract or open the
mirrors by hand to avoid damaging
the power mechanism.

The mirrors must always be
in the open position while
driving.

The side rear view mirrors have
different curvatures: the left-hand
mirror is flat, while the right-hand
one is convex.

Pay particular attention to
objects viewed in the right-
hand mirror, as they are

closer than they appear.

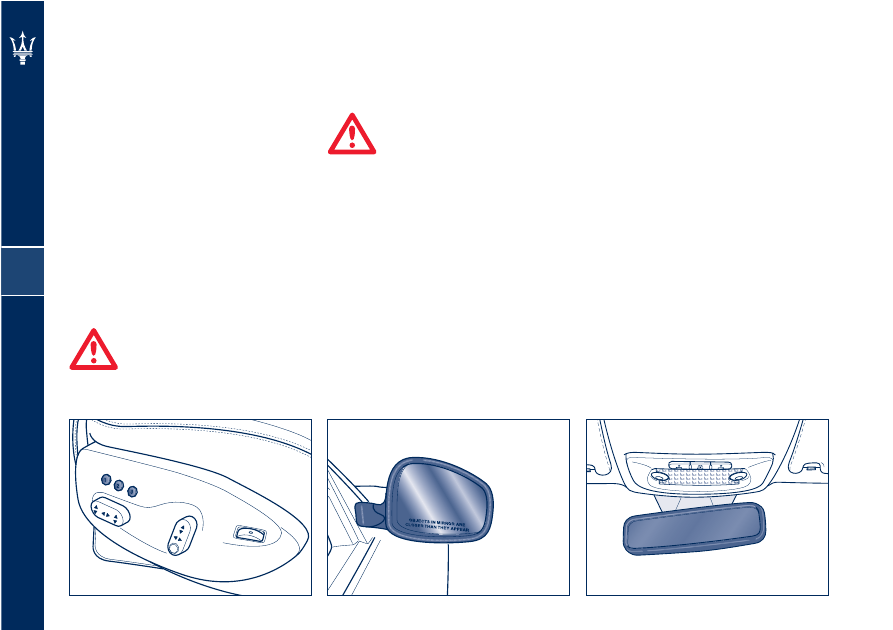

Electrochromic internal rear-
view mirror

This mirror can be manually adjusted
and is fitted with an accident-
prevention release system that is
designed to activate in the event of a
collision.
The electrochromic rear-view mirror
automatically operates an anti-dazzle
function by gradually darkening
as the light reflected on its surface
increases.
This function is automatically
deactivated when reversing, to help
ensure optimal visibility of obstacles.

B

4

111

Steering wheel

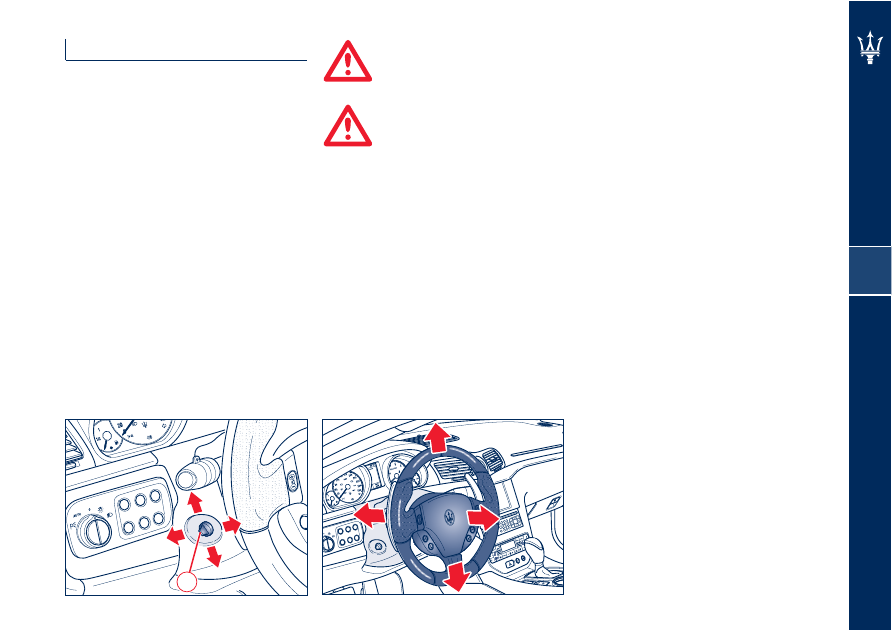

Adjusting the electric steering
wheel

The steering wheel can be electrically
adjusted, both in terms of height and
depth.
It can only be adjusted if the ignition
key is in position MAR (ON).
For adjustment, move control B in the
four directions.
The steering wheel position is
memorized, together with the
position of the external rear view
mirrors, when the driver’s seat
position is stored.


Do not adjust the steering
wheel while driving.

Under no circumstances
remove the steering wheel;
this procedure, if necessary,

must be performed by an Authorized
Maserati Dealer.

Driver’s Easy Entry/Exit system

The easy entry/exit system helps the
driver when entering/exiting the
vehicle. When the driver exits the
vehicle, the steering wheel moves
upward.
This function is activated when the
door is opened only if the ignition key
has been extracted or is in position
STOP (OFF).
On re-entry, the driver finds the
steering wheel raised. After sitting
down and closing the door, upon
turning the key to position MAR
(ON), the steering wheel return to its
normal driving position.
This function is linked to the presence
of the seat position memory system.

A

4

112

External lights and
direction indicators

The external lights and direction
indicators turn on only with the
ignition key in the MAR (ON) position.
Only the parking lights can be turned
on at any time.
The external lights can be turned on
and off manually or automatically,
according to the brightness of the
light outside.

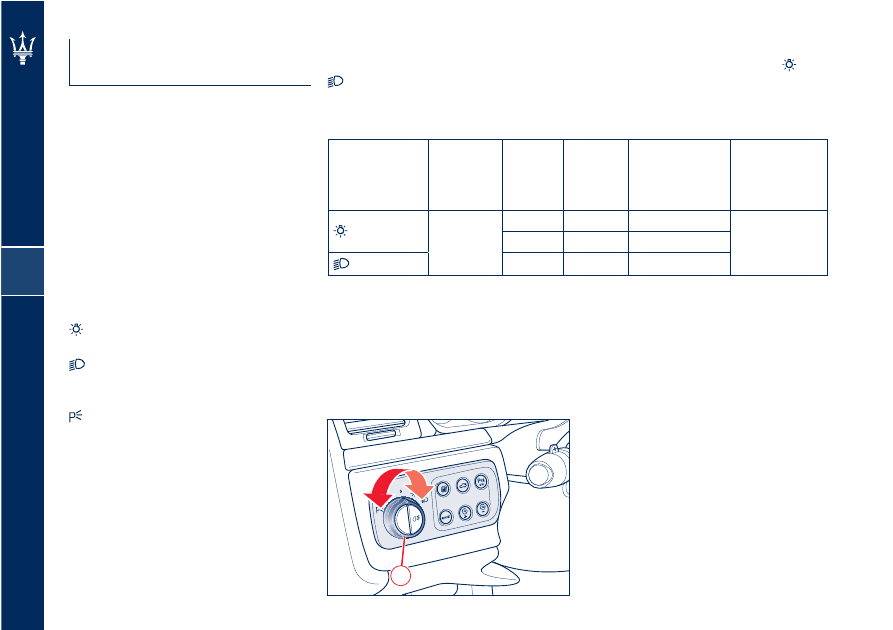

Light switch

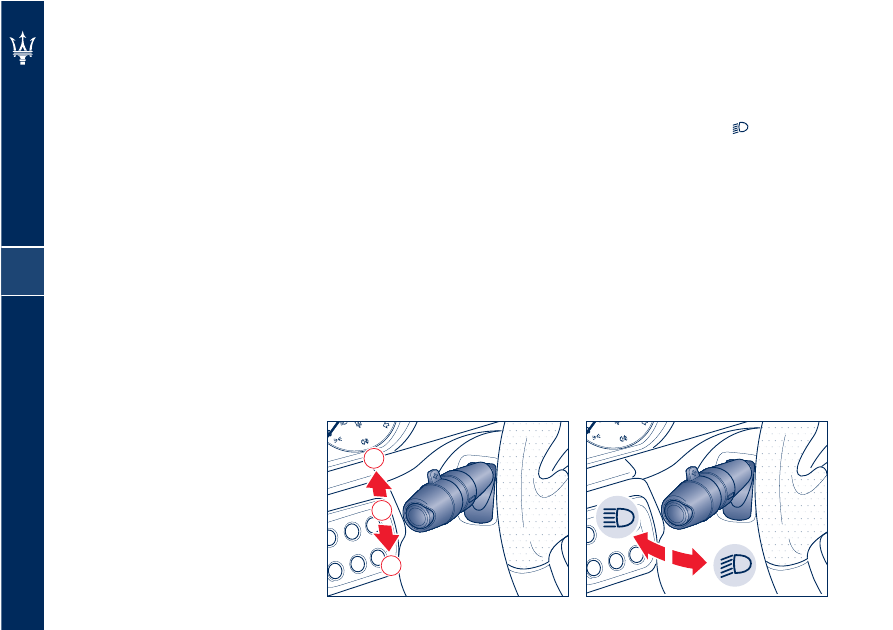

Switch A has 5 Positions:
0  – DRL (*) ON (if enabled);

 – LED position lights, side marker

and license plate lights ON;

 – low beam lights, LED position

lights, side marker and license
plate lights ON;

 – parking lights ON;

AUTO – automatic activation and
deactivation of the external lights,
depending on the light outside.

(*) On vehicles for the Canadian
market DRL are always enabled.

DRL

DRL are normally enabled. Under special conditions, with light switch in

 and

 position, led headlight can be turned on to full power (DRL), low power

(position lights) or off.
Status change of these lights is explained below.

Light switch
position

Key
position

Engine

DRL

Front position
lights

Rear position,
side marker
and license
plate lights



MAR

OFF

OFF

ON

ON

ON

ON

OFF

OFF/ON

OFF

ON

4

113

Parking lights

The parking lights only work with the
ignition key turned to STOP (OFF), or
ACC, or with the key removed.
They are activated by turning the
light switch to position  .
It is harder to turn the switch
to position   than to the other
positions. This is to avoid activating
the parking lights unintentionally and
wasting power.
When the parking lights are on, the
warning light   on the instrument
panel illuminates.
With parking lights ON, move down
LH lever to switch on position lights
on LH side, and move it up to switch
on only the ones on RH side.

Automatic activation/
deactivation

When the light switch A is turned
to AUTO and the ignition key is in
position MAR (ON), the position
lights, low beam lights and license
plate lights turn on and off
automatically, depending on the light
outside.

WARNING: The high beams can only
be turned on manually by pushing the
left-hand lever forward.

If the low beams are
activated, they will come
on automatically every time

the lights are turned on. You are
therefore advised to turn off the high
beams every time the twilight sensor
deactivates the external lights.

In foggy conditions during
daytime, the position lights
and low beams are not

activated automatically. The driver
must always be ready to turn the
lights on manually, including the rear
fog lights.

WARNING: After external lights
turn ON automatically, driver can
always manually turn on the rear
fog lights. When external lights turn
off automatically, the rear fog lights
will turn off automatically too, if on.
Upon the following automatic switch-
on driver must manually turn on rear
fog lights, if necessary.

The driver is always
responsible for turning
on the external lights,

depending on the light outside
and in compliance with applicable
legislation. The automatic system for
activating/deactivating the external
lights must be considered an aid for
the driver. If necessary, turn the lights
on and off manually.

B

C

D

4

114

Twilight sensor

The twilight sensor consists of two
sensors: a global sensor, capable of
measuring the light intensity above,
and a directional sensor, which
measures the light intensity in the
vehicle traveling direction, enabling
it to recognize tunnels and driveways.
You can adjust the sensing range of
the twilight sensor by means of the
Multi Media System, by selecting
the “Configuration” mode (see the
“Configuration” section in the Multi
Media System manual).
In the event of a sensor failure, the
system will turn on the low beams and
the position lights, regardless of the
light outside, and a failure message
will appear on the instrument panel
display.
The failure message will be displayed
as long as the light switch A is turned
to AUTO.
In this case, we recommend that you
deactivate the automatic system and
turn on the external lights manually
if necessary; contact your Authorized
Maserati Dealer as soon as possible.

Direction indicators

The lever has 3 positions:
B  - Direction indicators off.
C  - Lever up: right-hand side

indicators.

D  - Lever down: left-hand direction

indicators.

Lane change function

This function allows you to activate
either the right-hand or left-hand
direction indicators so that they flash
3 times, without moving the lever to
positions C or D, and then moving it
back to the standby position B.
To activate this function, you must
simply start moving the lever to a
different position: if you move it up
you activate the right-hand direction
indicators, if you move it down you
activate the left-hand direction
indicators.

This function is useful when
overtaking or changing lanes.

High beams

To turn on the high beams with the
light switch in position

, push the

left-hand lever toward the dashboard.
Pull the lever towards the steering
wheel again to turn off the high
beams and turn on the low beams.

WARNING: For the use of the high
beams, follow applicable legislation.

4

115

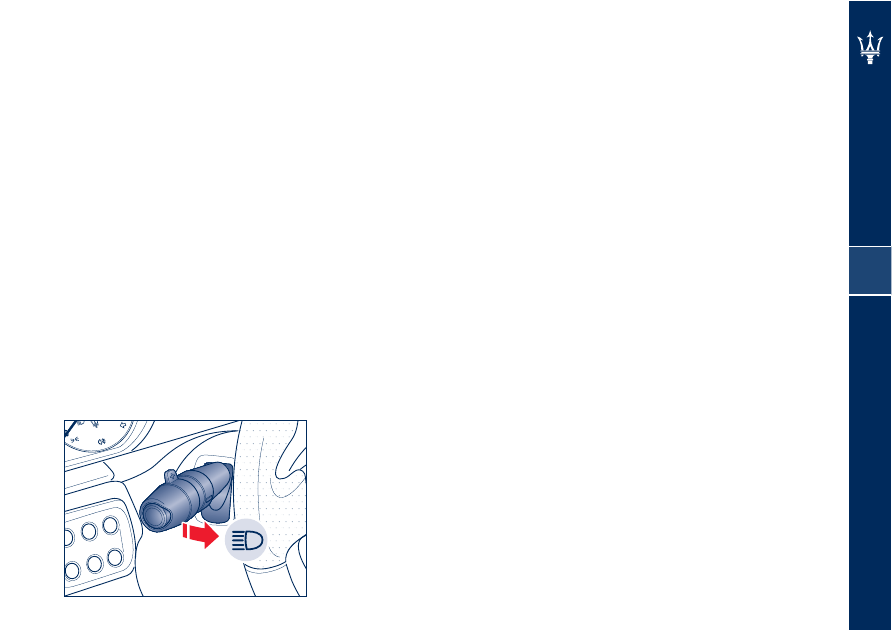

Flashing the headlights

The headlights can be flashed by
pulling the left-hand lever towards
the steering wheel.
Flashing occurs also with the lights off
if the ignition key is in position MAR
(ON).

WARNING: Flashing turns on
additional high beam lights only
if low beam lights are off, or high-
beam Bi-xenon lights when low beam
lights are on. Always comply with
road regulations and other provisions
regarding road traffic.

“Follow me home” function

This function allows you to set a
timing for activation of the position
lights and low beams, so that they
may remain on for a set time after
turning off the vehicle.
This function is activated by pushing
the lever on the steering column
switch, used to flash the headlights.
The position lights and low beams
turn on for 30 seconds, the message
“Follow me” appears on the
instrument panel display for 20
seconds, and the light activation time
is displayed.
When this function is active, every
time the lever for flashing the
headlights is operated, the time the
lights remain on is increased by 30
seconds, with a maximum total time
of 210 seconds. The display will show
the time set.
If the lever for flashing the headlights
is operated for more than 2 seconds,
the function is deactivated, and the
indicator on the instrument panel
display goes off.
When the function is active, turning
the key back to MAR (ON) deactivates
the system.

B

A

E

C

D

4

116

Windshield wipers/
washer and headlight
washers

The windshield wiper/washer only
works with the ignition key in the
MAR (ON) position.

Windshield wiper

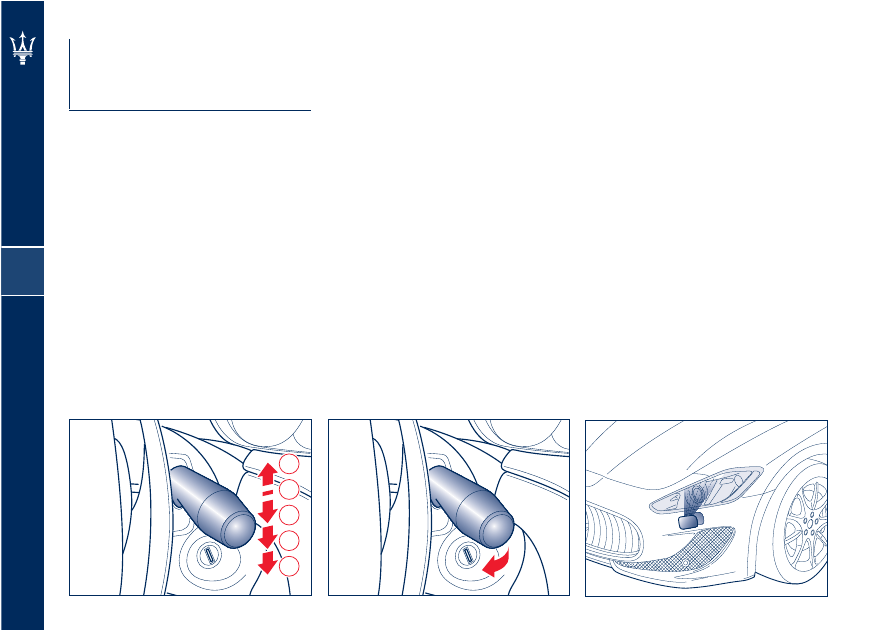

The lever has 5 positions:
A  - Windshield wipers off.
B  - Automatic operation. In this

position the rain sensor adapts
the windshield wiper frequency
to the intensity of the rain (lever
in the first click position).

C  - Slow continuous operation (lever

turned to second click position).

D  - Fast continuous operation (lever

turned to third click position).

E  - Fast temporary operation (non-

permanent position).

Windshield washer

Pull the lever towards the steering
wheel (non-permanent position) to
activate the windshield washer.
When the windshield washer is
activated, the windshield wiper starts
automatically. Releasing the lever
deactivates the windshield washer,
while the blades continue to wipe for
a little while.

WARNING: Do not activate the
windshield washer during the cold
months until the windshield has
warmed up. If it has not warmed up,
the liquid could freeze on the glass
and block your view.

WARNING: If there is ice or snow on
the windshield, do not activate the
windshield wiper to prevent damage
to the device.

Headlight washers

The headlight washers are activated
automatically when the windshield
washer is started and the external
lights are on.
The headlight washer and windshield
washer share the same fluid tank, and
a low fluid level is indicated by the
same warning light on the instrument
panel.
The headlight washers are deactivated
if the vehicle speed exceeds 75 mph
(120 km/h).

F

4

117

Rain sensor

The function of the rain sensor is to
adapt the frequency of the windshield
wiper strokes (in the intermittent
operation mode) to the intensity of
the rain.
All the other functions controlled
by the right-hand lever (windshield
wipers off, headlight and windshield
washer in continuous slow and fast
operation mode and in temporary fast
operation mode) remain the same.
The rain sensor is activated
automatically by moving the right-
hand lever to position B. The sensor
has a setting range that varies
progressively: from the windshield
wiper stationary position - when the
windshield is dry - to the windshield
wiper second speed - in conditions of
pouring rain.

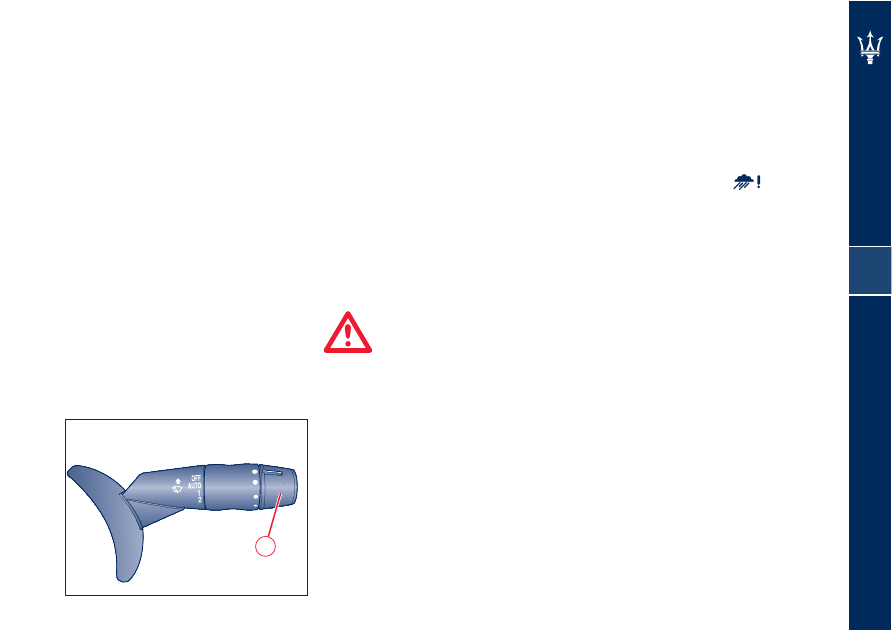

To regulate the frequency of
intermittent operation, with the lever
in position B, turn the end section F of
the lever.
Rotating the lever end section
clockwise, intermittent operation
varies from fast intermittent wipe
(max.) to slow intermittent wipe
(min).
If the engine is turned off during
automatic windshield wiper
operation, with the lever in position
B, to reactivate the function the next
time the engine is started, the lever
must be moved to A (stop position)
then back to position B.

Before cleaning the
windshield (for example at
the service stations) make

sure the rain sensor is deactivated or
that the key is turned to STOP (OFF).
The rain sensor must be deactivated
also when washing the vehicle by
hand or in automatic car washes.

WARNING: If there is ice or snow on
the front windshield, do not activate
the rain sensor to avoid damaging the
wiper motor.

Sensor failure

When the rain sensor is activated, in
the event that it is malfunctioning,
the windshield wiper will be turned
on in intermittent operation mode
and the sensing range will be set by
the user, regardless of whether or not
there is rain on the windshield.
On the display, the icon



illuminates.
In this case, we recommend that you
deactivate the rain sensor and turn on
the wipers, if necessary, in continuous
mode. Contact your Authorized
Maserati Dealer as soon as possible.

4

118

Multi Media System

The vehicle is equipped with the
Maserati Multi Media System. This
is an infotelematics system which
incorporates the on-board computer,
the satellite navigation system (with
digital maps where available), the CD-
ROM drive and the Bose

®

 Surround

Sound System.

The navigation system
assists the driver while
driving, providing advice

and suggestions, by means of voice
guidance and graphic information,
for the route to take for reaching
the set destination. The suggestions
provided by the navigation system
do not relieve the driver from full
responsibility for the maneuvers
made through traffic while driving,
or from compliance with road
regulations and other provisions
regarding road traffic. The person
driving the vehicle is always and in
any case responsible for safe driving
on the road.

The vehicle is equipped with a specific
supplement to the owner’s manual,
that describes the Maserati Multi
Media System in detail and lists all of
the warnings and precautions for use,
which are essential for safe use of the
system. We advise you to read this
booklet carefully and thoroughly and
to keep it within reach at all times.

B

A

4

119

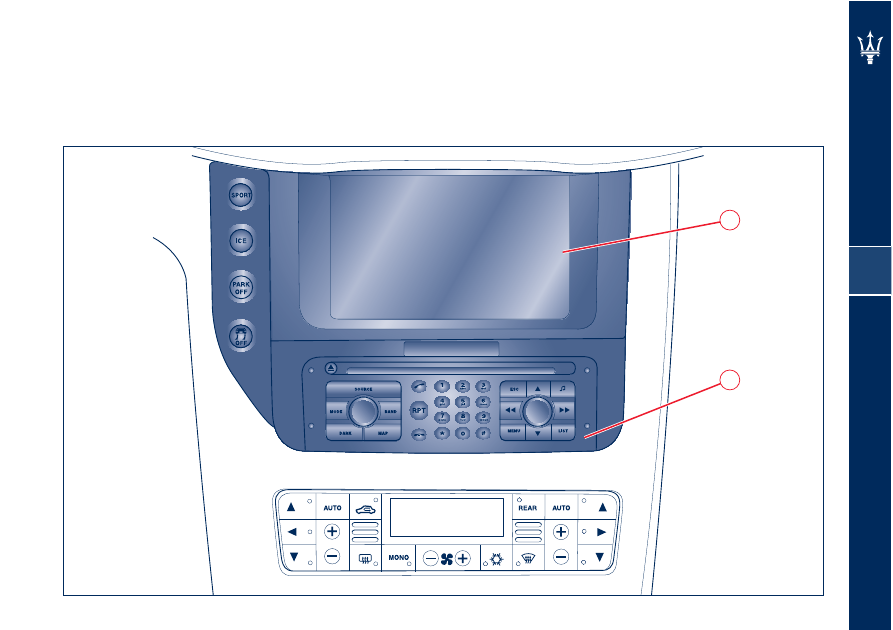

Controls

A - Display
B  - Multi Media System controls
