Reprogramming a single key

If you want to program activation
of a new system on an already used
HomeLink key, proceed as follows:
-  press and hold down the HomeLink

key selected;

-  after about 20 seconds, the LED T

starts flashing; keep the key pressed
down;

-  hold the original remote control of

the device to be controlled close to
the HomeLink control panel (12 in);

-  press and hold down the original

remote control key;

-  successful programming is signaled

by the LED T flashing faster;

-  release both keys.
The system previously programmed
on HomeLink has thus been replaced
with the new programming and is
ready to be used.
This operation has no impact on the
other HomeLink keys.

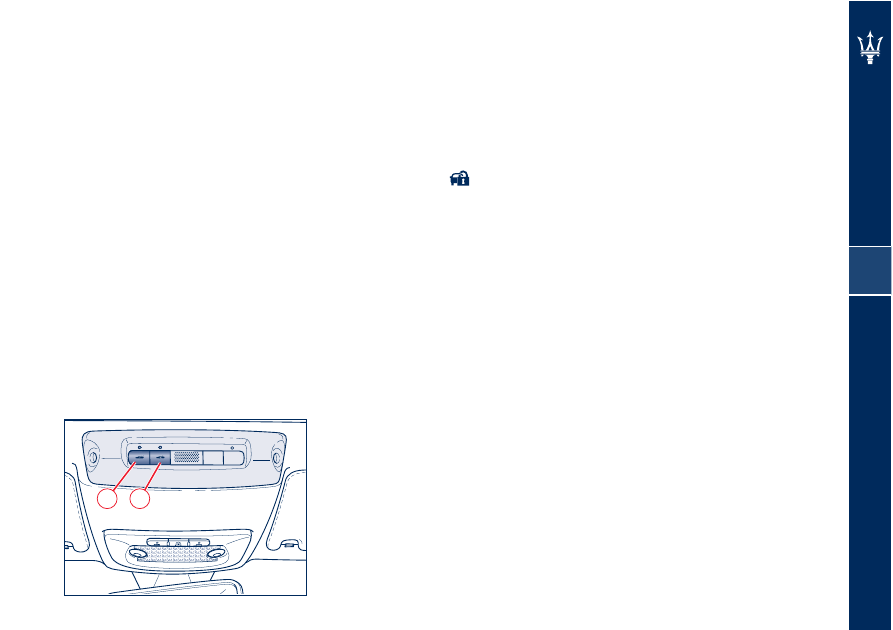

Deleting the programmed keys

Unlike programming which is done
for each individual key, deletion is
done for all three keys simultaneously.
To delete, proceed as follows:
-  press and hold down the keys Q

and S;

-  after about 20 seconds, the LED T

starts flashing;

-  release the keys.

WARNING: It is advisable to carry out
the HomeLink deletion procedure
when you intend to sell the vehicle.

As required by the FCC:

This device complies with Part 15 of
the FCC rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.

Changes or modifications not
expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
equipment.

This device complies with Industry
Canada Standard RSS-210.
Operation is subject to the following
two conditions: (1) this device may
not cause interference, and (2) this
device must accept any interference
that may cause undesired operation
of the device.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

4

89

Before you drive

Doors 90
Power windows

93

Engine compartment lid

94

Luggage compartment

94

Fuel tank door

96

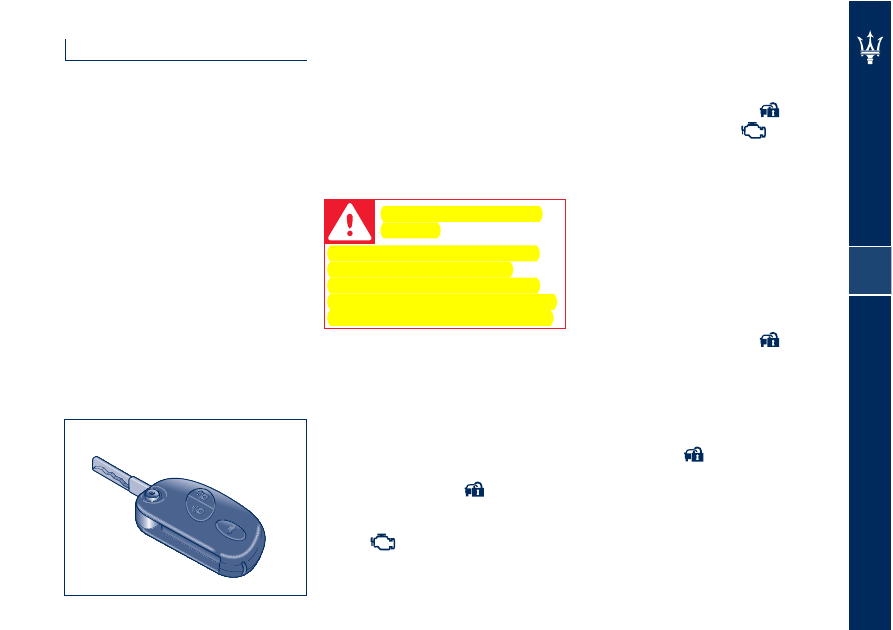

Keys 97

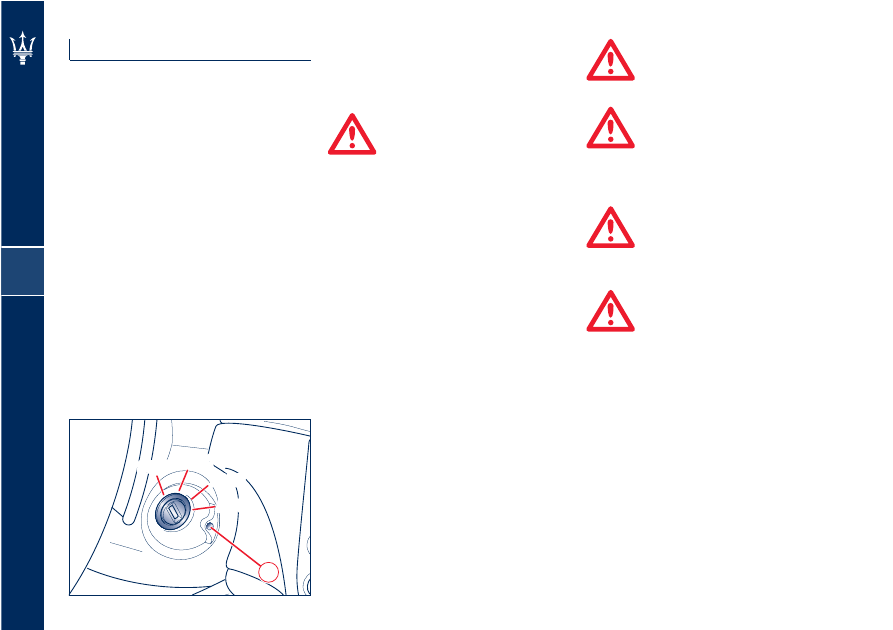

Ignition switch

100

Electronic alarm system device

101

Front seats

105

Rear seats

108

Rear-view mirrors

109

Steering wheel

111

External lights and direction indicators

112

Windshield wipers/washer and headlight washers

116

Multi Media System

118

Air conditioning

123

Bose

®

 Surround Sound System

129

A

C

D

E

4

90

Doors

Before opening a door, make
sure the maneuver can be
performed safely.

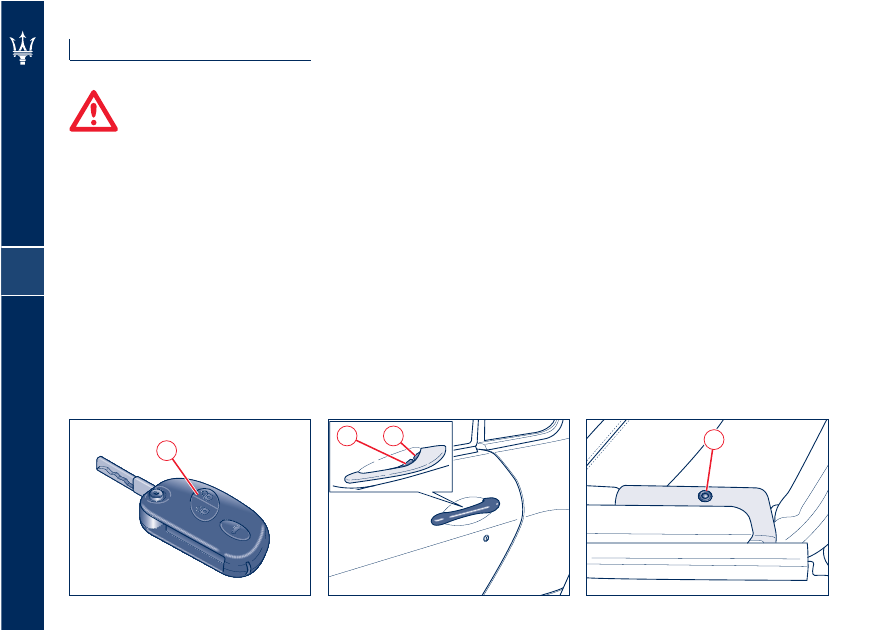

Opening from the outside

Turn off the alarm system and the
centralized door locking system by
pressing button A on the remote
control (see chapter “Electronic alarm
system device”, page 101) or insert
and turn the key in the lock on one
of the front doors. To open the door,
press button C inside each handle.
The vehicle is equipped with power
locks which move the mechanical
parts during when pressing this
button.

As these are electrically operated
locks, a slight pressure on the button
will unlock the doors.
In the event of an emergency (dead
battery or electric system failure)
to open the doors, with the locks
released, press button D. Otherwise, if
the doors are locked, you must release
them by turning the key in the lock to
open them, then press button D.
In this case, being a conventional
mechanism, hold button D down
longer.

On the door panels, in a position
which is visible from the outside,
there is a dual-color (green/red) LED
E which indicates the status of the
locks (locked/unlocked). The red LEDs
illuminate for 3 seconds after the
locks are engaged and the green LEDs
for the same amount of time when
they are unlocked.

WARNING: The door LEDs remain
illuminated for approximately 3
seconds and therefore, in normal
conditions, they are off.

F

G

H

4

91

When the alarm system is turned on
and the doors are locked, the LEDs on
the doors flash.
The remote control allows you to
operate the centralized opening of all
the doors or of the driver’s door only,
depending on the Multi Media System
settings. When locking the doors from
the outside, if one or more doors
are not properly closed they will
not be locked, while if the luggage
compartment is not properly closed,
the doors will always lock.
In both cases, the malfunction will be
indicated by the direction indicators
flashing for a few seconds.

WARNING: The interior buttons for
door locking/unlocking, luggage
compartment lid opening and fuel
tank door opening are disabled when
the doors are locked from the outside.

WARNING: In the event that the
inertia switch activates, the doors are
electrically unlocked and the vehicle
can be accessed by pressing button D.

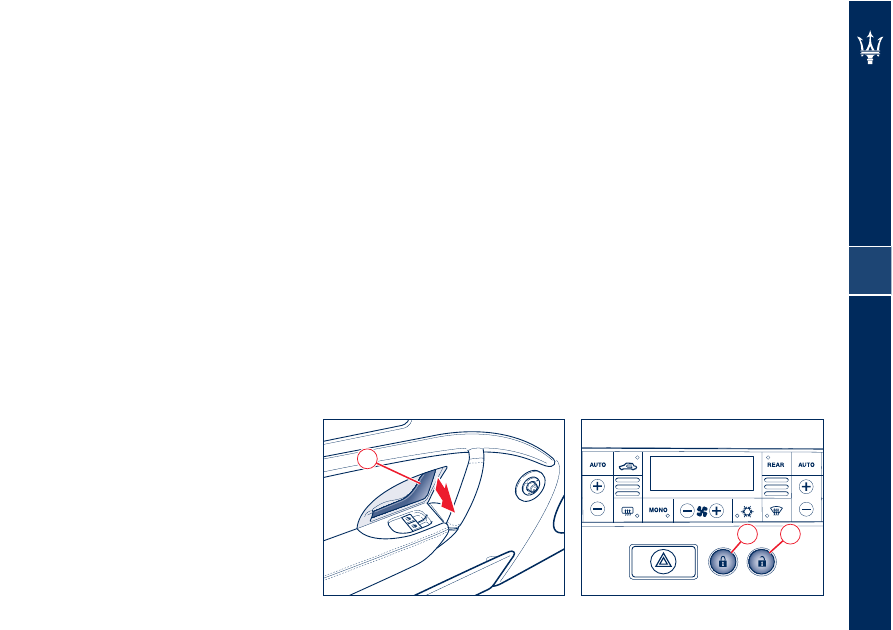

Opening from the inside

To open the door, even if the lock is
engaged, pull the internal handle F.
There are two buttons on the front
central dashboard, which operate the
door locking and unlocking functions:
G - door locking;
H - door unlocking.

WARNING: By pulling the internal
handle on the driver’s door, all the
locks can be released at the same time
or just the driver’s door, depending on
the Multi Media System settings.

Door open warning lights

If the doors and the engine/luggage
compartment lids are not closed
properly, this is signaled by the
illumination of appropriate symbols
on the instrument panel display,
accompanied by the messages “Door
open” or “Doors open”.

L

K

4

92

Door lock ECU initialization

Every time the battery is connected
or a fuse replaced, you must perform
the system initialization procedure
to ensure proper system operation.
To perform this procedure, lock and
then unlock the doors using the door
remote control.

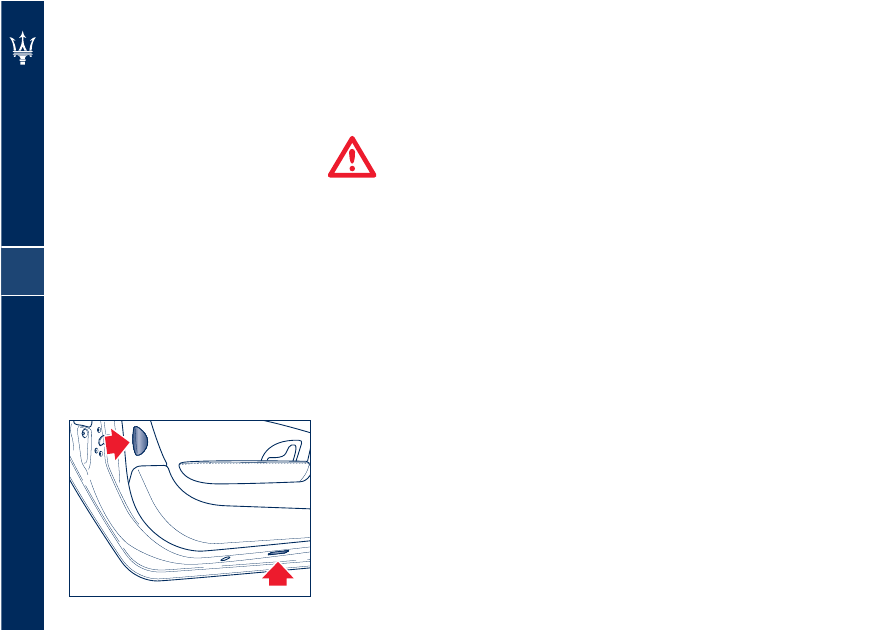

Door open indicator

Each door is provided with a reflector
K fitted on the lower side of the door
panel.

Buzzer

Upon exceeding a speed of 3 mph
(5 km/h), if one or more doors/lids
are open or not properly closed, a
warning buzzer will be activated.

Door courtesy light

Each door panel is fitted, on the
lower side, with a courtesy light L to
illuminate the area where passengers
enter/exit the vehicle.

For your safety, it is not
recommended to engage
and/or shift gears with the

doors, trunk lid or vehicle’s hood
open.

B

A

4

93

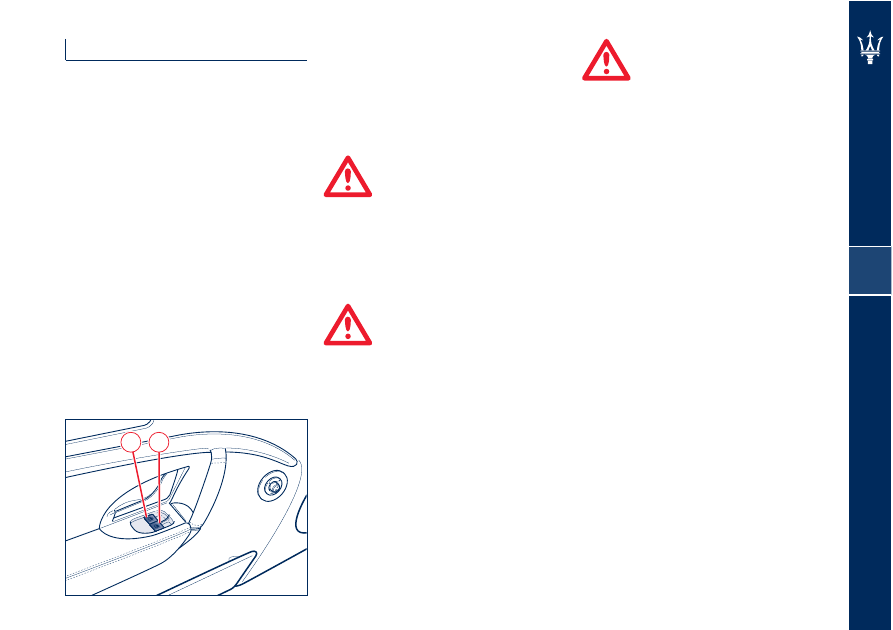

Power windows

Activation is only possible with the
ignition key in the MAR (ON) position.
The armrest on the driver’s door
is equipped with the controls for
operating all of the power windows,
while the other door panel house the
control for the relative window only.
A  - Front left-hand window opening/

closing.

B  - Front right-hand window

opening/closing.

Press the button for the driver’s
window A, with the ignition key to
MAR (ON), to activate automatic
operation: the window is closed when
it reaches the upper limit (or pressing
the button again).

WARNING: If the power window is
activated with the door open, the
window stops before reaching the
upper limit, to prevent interference
with the weather strip when the door
is closed.

When the door is opened,
the window is slightly
lowered and then closes

automatically after the door is closed:
take the greatest care to avoid
passengers (especially children) being
near the windows when opening/
closing the doors.

Improper use of the power
window controls can be
dangerous. Check that

passengers are away from the side
windows before closing them.
Always remove the ignition key when
you get out of the vehicle, in order
to avoid accidental activation of the
power windows - they represent a
hazard for passengers remaining in
the vehicle.

Leaving children in a parked
vehicle with the windows
shut is dangerous: the

temperature inside the vehicle
can reach very high levels, causing
fainting and serious injuries.

WARNING: Before disconnecting
the battery, lower the side windows
by at least 1-2 in (4-5 cm) to avoid
damaging the weather strips when
opening and closing the doors. When
the battery is connected and fully
charged, this operation is performed
automatically whenever the doors are
opened or closed. The windows must
remain lowered until the recharged
battery is reconnected. If the battery
is discharged and the windows are
fully up, only open the doors when
strictly necessary and being extremely
careful: do not close them again until
the windows can be lowered.

WARNING: Before activating the
alarm system, check that all the
windows and the sunroof are closed
to prevent accidental activation of the
alarm system.

A

B

A

4

94

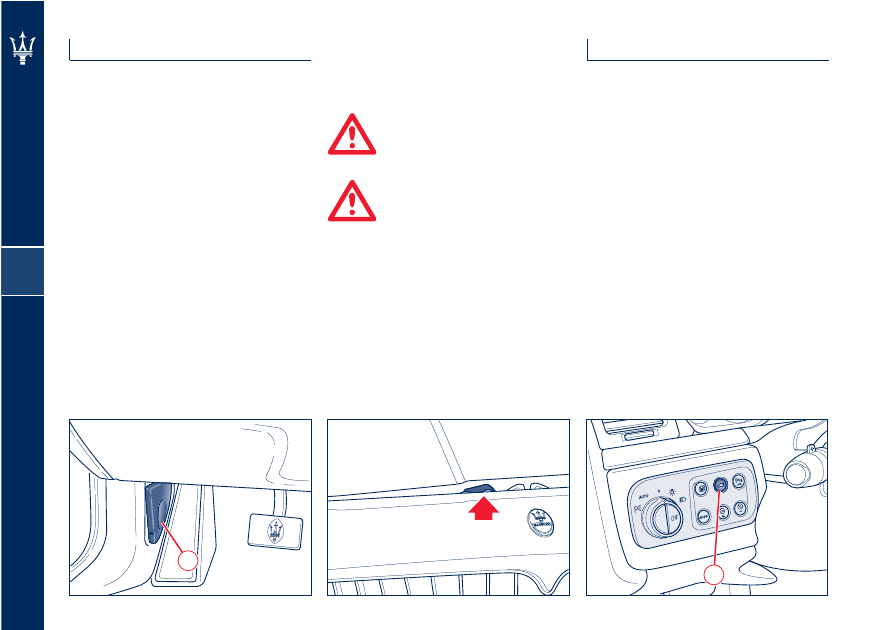

Engine compartment lid

To unlock the engine compartment
lid, pull the lever A found in
the lower, left-hand side of the
dashboard.

Disengage the safety latch by lifting
lever B shown in the figure.
Lifting the lid: this operation is
facilitated by two gas struts.
The engine lid positions itself at the
maximum opening position and does
not require support stays.

To close the engine lid: lower it to
about 8 in (20 cm) from the engine
compartment and let it drop: it will
close automatically.

Always check that the engine
lid is properly shut so that it
does not open while driving.

For your safety, it is not
recommended to engage
and/or shift gears with the

doors, trunk lid or vehicle’s hood
open.

Luggage compartment

The luggage compartment lid can
be opened from inside or outside
the vehicle. Button A, which opens
it from inside, is located to the left
of the steering wheel; it can only be
operated when the ignition key is
removed or turned to STOP (OFF) and
ACC.

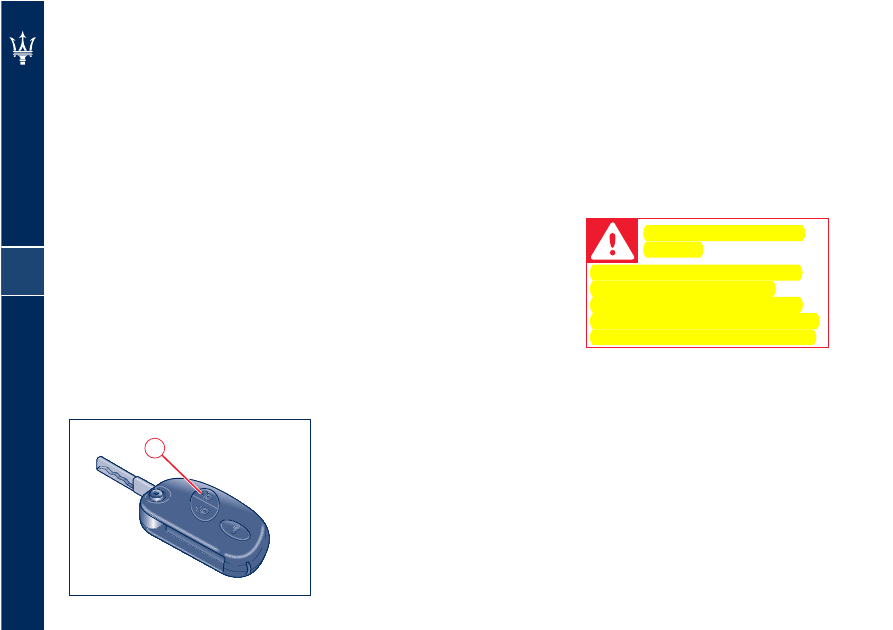

To open the luggage compartment lid

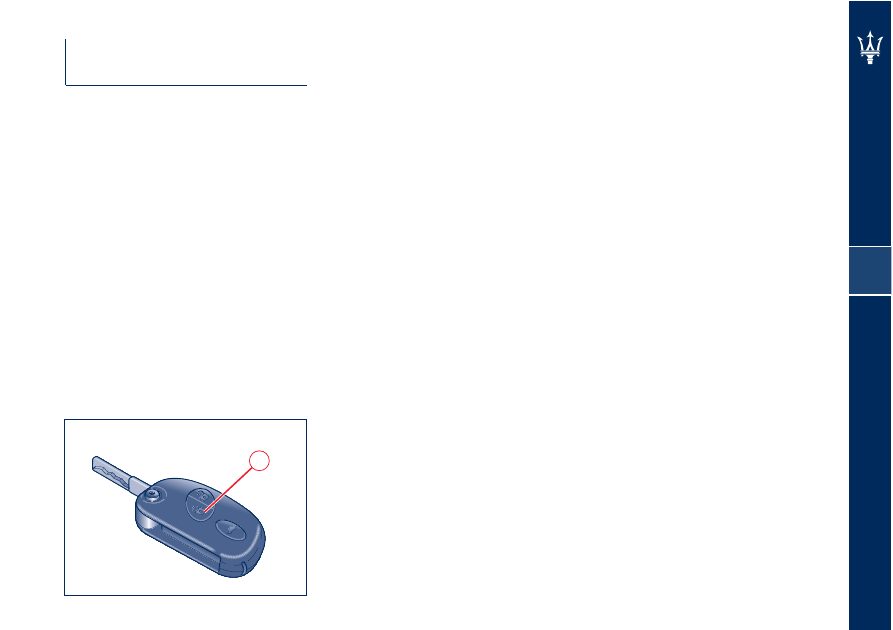

from outside, press button B on the
ignition key: this opens the lock and
the lid rises slightly.
To open the lid from the outside
when the alarm is deactivated and the
key is inside the vehicle, simply press
the button underneath the license
plate light frame. To avoid accidental
activation while the vehicle is moving,
it is only possible to open the luggage
compartment when the ignition key is

B

C

D

4

95

The luggage compartment is
illuminated by an internal light that
comes on automatically when the
luggage compartment lid is opened;
deactivation is timed. If the luggage
compartment lid is left open, the light
turns off after a few minutes. To turn
it on again, close the lid and then
reopen it.

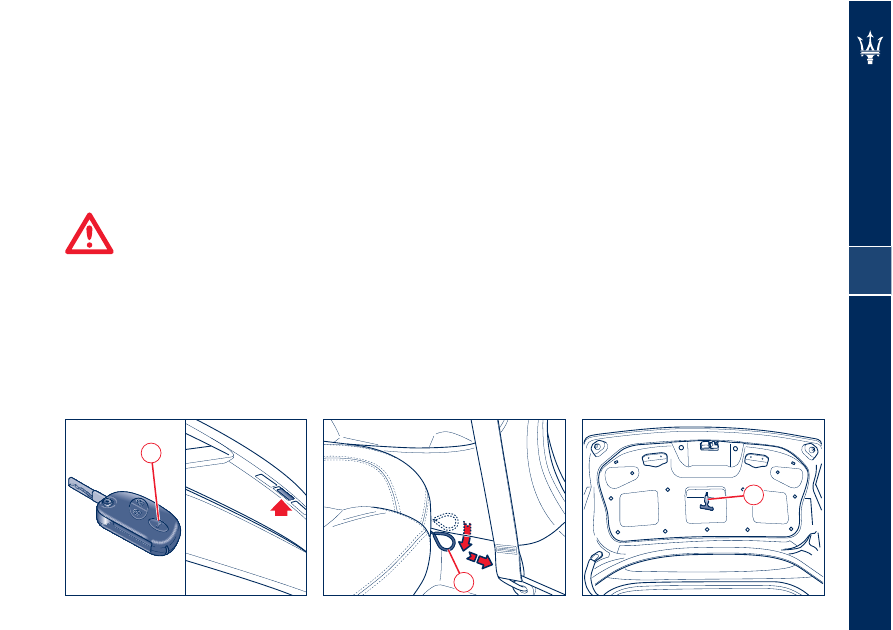

Emergency opening

If necessary, the luggage
compartment lid can be opened by
pulling the small cable C, hidden
underneath the covering of the left-
hand side panel.
Once you have located the cable
and pulled it out from the covering,
pull it forward to open the luggage
compartment lid.

Emergency opening of the luggage
compartment

In the event that somebody is
accidentally locked in the luggage
compartment, the lid can be opened
from the inside by pulling the lever
D positioned in the center of the
lid. The lever is visible even in poor
lighting conditions.

removed or turned to STOP (OFF) and
ACC.
Two gas struts facilitate the lid
opening. The struts are calibrated
to help ensure that they function
correctly with the weights specified
by the manufacturer. The arbitrary
addition of objects (spoiler, luggage
rack etc.) may impair the lid’s correct
operation and safety.

When using the luggage
compartment, never exceed
the maximum loads allowed

(see section on “Capacities and
technical specifications”). Also check
that the objects contained in the
luggage compartment are arranged
properly.

B

C

E

D

A

4

96

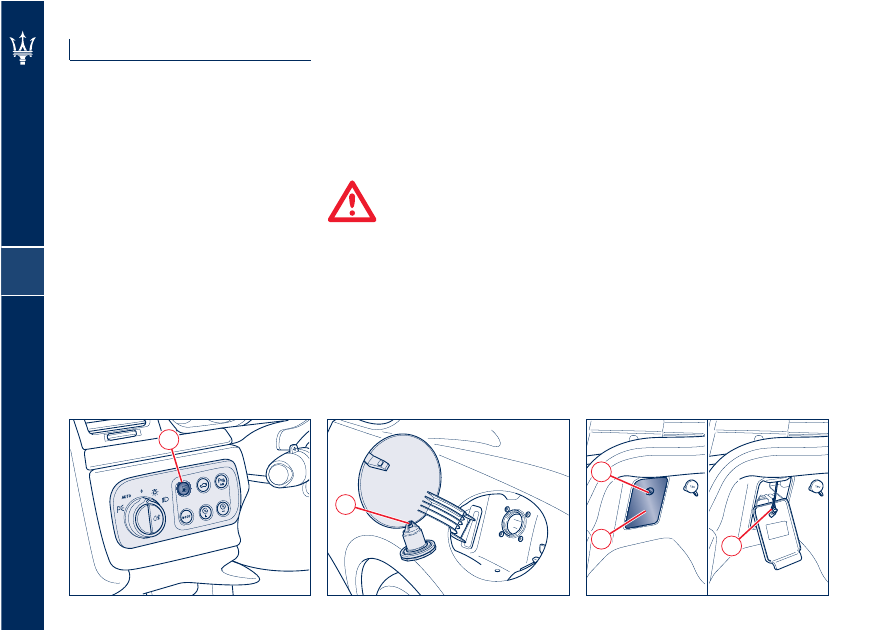

Fuel tank door

The fuel tank door is found on the
rear, left-hand side of the vehicle. To
open the door, press button A on the
left of the steering wheel.
It can be operated only when the
ignition key is removed or turned to
STOP (OFF).
The tank cap hermetic seal may result
in a slight pressure increase inside the
tank. Any hissing noise while the cap
is being opened is normal.
When refueling, the cap must remain
attached to the door by means of the
hook provided B.

The cap is linked to the filler neck
with a strap, to prevent it from being
lost while refueling.
The fuel tank door must be closed
manually.
Before closing the fuel tank door,
check that the filler cap is fully
tightened.

Never bring open flames
or lit cigarettes close to the
filler: Risk of fire!

Also avoid putting your face close to
the filler so as not to inhale noxious
fumes.

Fuel tank door emergency
opening

If necessary, the fuel tank door can be
opened by pulling the small cable C
inside the luggage compartment.

To reach the cable, you must remove
the small panel D turning the screw E
by a quarter of a turn.

4

97

Keys

The Maserati CODE system

In order to help increase protection
against theft, the vehicle is equipped
with an electronic engine immobilizer
system (Maserati CODE), which is
automatically activated when the
ignition key is removed.
Each ignition key contains an
electronic device which transmits a
code signal to the Maserati CODE
control unit, and engine ignition
is enabled only if the key code is
acknowledged by the system.
Two keys are supplied with the
vehicle.
The key is used for:
-  starting the engine
-  activating the central door locking

system

- deactivating/activating

the

passenger airbag (on vehicles
equipped with manual deactivation
system)

-  opening the luggage compartment

lid electrically

-  activating/deactivating the alarm

system

-  locking/unlocking the glove

compartment.

Operation

Each time the ignition key is removed
from the STOP (OFF) position, the
protection system will activate the
engine immobilizer.
When the key is turned to MAR (ON),
upon engine start-up:
1) If the code is acknowledged, the

CODE warning light

 on the

instrument panel will turn off within
a second, while the OBDII warning
light

, once the ECU diagnosis

cycle has been completed, will turn
off after about 18 seconds. If these

conditions are met, the protection
system recognizes the key code and
deactivates the engine immobilizer.
Turn the key to start the engine.

2) If the CODE warning light

 stays

on and the OBDII lamp

, goes off

after 18 seconds and then comes on
again immediately, the code is not
recognized. If this occurs, turn the
key to STOP (OFF) and then back to
MAR (ON). If the immobilizer stays
on, try with the other keys. If you
still cannot start the engine, try the
emergency start procedure (see on
page 174) and contact your local
Authorized Maserati Dealer.

When driving with the ignition key in
the MAR (ON) position:

1) If the CODE warning light



illuminates, it means that the system
is performing a self-diagnostic
cycle. At the first stop, you can
test the system: turn the ignition
key to STOP (OFF) the engine and
then back to MAR (ON). The CODE
warning light

 will come on and

should turn off in approximately
one second. If the warning light
stays on, repeat the procedure
described previously leaving the
key at STOP (OFF) for more that 30
seconds. If the malfunction persists,
contact your local Authorized
Maserati Dealer.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

4

98

2) If the CODE warning light

 flashes, it means that the

vehicle is not protected by the
immobilizer device. Contact your
local Authorized Maserati Dealer
immediately to have the codes of
all the keys restored in the memory.

WARNING: Strong impacts can
damage the electronic components in
the key.

WARNING: Each key has its own
specific code, which must be stored
in the memory of the system control
unit.

Duplicating the keys

When ordering additional keys,
remember that the memorization
procedure (up to maximum of 7
keys) must be performed on all the
keys, including those already in
your possession. Contact your local
Authorized Maserati Dealer directly,
bringing with you all the keys in your
possession, the Maserati CODE system
CODE CARD, the electronic alarm
system CODE CARD, a personal ID and
the identification and registration
documents proving ownership of the
vehicle. The codes of any keys that are
not available when the new storage
procedure is performed will be erased
from the memory to prevent any lost
or stolen keys being used to start the
vehicle.

Emergency starting

If the MASERATI CODE fails to
deactivate the engine immobilizer,
the CODE warning light

 will

illuminate permanently, the OBDII
warning light

 will turn off after

four seconds and then will illuminate
immediately and the engine will
not start. To start the engine, it is
necessary to follow the emergency
start procedure.

WARNING: We recommended that
you read the entire procedure before
carrying it out. If you make a mistake,
you should turn the ignition key to
STOP (OFF) and repeat the operations
from step 1.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

4

99

1) Read the 5-digit electronic code on

the CODE CARD.

2) Turn the ignition key to MAR

(ON): the CODE

 and OBDII



warning lights are on.

3) Press the accelerator pedal

fully down and keep it pressed.
Approximately 8 seconds later, the
OBDII warning light

 will go

off. Release the accelerator and
get ready to count the number of
times the OBDII warning light



flashes.

4) As soon as the displayed number

of flashes is equal to the first digit
of your CODE CARD, depress the
accelerator and keep it pressed
down until the OBDII warning light

 goes off, after being off for

approximately 4 seconds. You can
now release the accelerator pedal.

5) The OBDII warning light



starts flashing again. As soon as
the displayed number of flashes
is equal to the second digit of
your CODE CARD, press down the
accelerator pedal and hold it.

6) Proceed in the same manner for the

remaining digits in the code on the
CODE CARD.

7) When the last digit has been

entered, keep the accelerator pedal
pressed down. The OBDII warning
light

 illuminates for 4 seconds

and then goes off. You can now
release the accelerator pedal.

8) A quick flashing of the OBDII

warning light

 (about 4 seconds)

confirms that the operation has
been performed correctly.

9) Start the engine turning the key

from MAR (ON) to AVV (START).

  If the OBDII warning light



remains on, turn the key to STOP
(OFF) and repeat the procedure
from step 1.

  This procedure can be repeated an

unlimited number of times.

WARNING: After an emergency
start-up, you should contact your
local Authorized Maserati Dealer,
otherwise you will have to perform
the emergency start procedure every
time the engine is started.

STOP ACC

MAR

AVV

A

4

100

Ignition switch

The ignition key can turn in 4
positions:

STOP  -  Engine off, engine

immobilizer and steering
wheel lock activated,
connected devices disabled,
apart from those that are
not key-controlled (e.g.,
centralized door lock,
luggage compartment
opening, etc.). The key is
removable.

ACC  -  Position for cigarette lighter

and power socket activation.
The key is not removable.

MAR  -  Driving position. All electrical

devices can operate.

AVV - Engine

starting.



Upon exceeding a speed of 3 mph
(5 km/h), if one or more doors/lids
are open or not properly closed, a
warning buzzer will be activated.

When you get out of the
vehicle, always remove the
key to prevent someone

from accidentally activating the
controls.

WARNING: The ignition key can be
removed from the switch only when
the gearshift lever (see page 134) is
in position P. If the gearshift lever
is shifted to P after turning off the
engine, the key can only be removed
within 30 seconds from turning it to
STOP (OFF). If you do not remove
the key within 30 seconds, you will
need to turn it back to MAR (ON) and
then to STOP (OFF) to have a further
30 seconds within which to remove
the key. In the event that the key
unlocking system fails or if it is not
possible to shift the gearshift lever
to P, to remove the key you must
turn it to STOP (OFF), then remove
the cap A using a pen or sufficiently
pointed tool, then press the button
just uncovered and at the same time
extract the key. Once the key has
been removed, refit the cap A.

After stopping the vehicle,
always shift the gearshift
lever to P.

In the event of tampering
with the starter switch (e.g.,
attempted theft), have it

checked by your Authorized Maserati
Dealer before restarting the vehicle.

If the automatic electric
parking brake function is
deactivated, remember to

apply the parking brake manually.


Never leave children
unattended in the vehicle.

A

4

101

Electronic alarm system
device

The electronic alarm system performs
the following functions:
-  remote control of the centralized

door locking/unlocking system

-  perimeter surveillance, detecting

the opening of doors, engine/
luggage compartment lids

-  motion surveillance, detecting

intrusion in the passenger
compartment

-  vehicle movement surveillance.

WARNING: The engine immobilizer
function is ensured by the Maserati
CODE system, which is automatically
activated when the key is removed
from the ignition switch.

Activation

Press button A on the key to activate
the alarm system:
-  the direction indicators flash once
-  the system beeps;
-  the red LEDs on the front door

panels flash;

-  the vehicle centralized door locking

is activated and the doors are
locked.

The system becomes operative after
approximately 25 seconds and the
alarm is activated when:
-  a door is opened
-  the luggage compartment lid is

opened

-  the engine compartment lid is

opened

-  someone attempts to enter the

vehicle from a window

-  the power supply is disconnected
-  the siren is disconnected
-  the vehicle is moved.

When the electronic alarm is active,
the user may remotely open the
trunk. In this case, the motion and
anti-lift sensors are temporarily
deactivated.
If the luggage compartment is then
closed, the sensors will be reactivated.

Should the direction indicators flash
9 times when you activate the alarm
system, this means that one of the
doors or lids is not properly closed
and therefore is not protected by
the perimeter surveillance. Check
for correct closing of doors, engine/
luggage compartment lids and close
the open one without deactivating
the alarm system: the direction
indicators flashing once indicate
that now the door, engine/luggage
compartment lids are closed properly
and are protected by the perimeter
surveillance.

WARNING: If the direction indicators
flash 9 times when the alarm system
is activated with doors, front and
rear lids properly closed, this means
that the self-diagnostic function has
detected a malfunction in the system
and that you should contact your
Authorized Maserati Dealer to have
the system checked.

B

4

102

Deactivation

Press button B on the key to
deactivate the alarm system:
-  the direction indicators flash twice
-  the system emits a double beep
-  the red LEDs on the front door

panels turn off

-  the centralized door locking system

is activated and the doors are
unlocked.

The alarm system is off and it is
therefore possible to enter the vehicle
and start the engine.

Pressing button B twice unlocks the
doors and also turns on the low
beams for 30 seconds.

WARNING: The alarm system is not
deactivated when the key is turned in
the locks.

Getting into the vehicle when
the alarm system is on

When the remote control battery is
dead, to access the vehicle you must
insert the key in the lock on one
of the two front doors and turn it
clockwise to unlock it: the alarm will
sound but you can continue with the
normal starting procedure (see page
132). The alarm will turn off.

California Proposition 65
Warning

THIS MOTOR VEHICLE CONTAINS
CHEMICALS KNOWN TO THE
STATE OF CALIFORNIA TO CAUSE
CANCER, BIRTH DEFECTS OR OTHER
REPRODUCTIVE HARM (see page 7)

C

D

4

103

Deactivating the motion sensing
alarm

The motion sensing system can be
deactivated also by pressing button C
on the roof panel. When this function
is deactivated, the LED on the button
flashes for 3 seconds and then turns
off.

Deactivating the anti-theft
alarm

Press button D to deactivate the
anti-lift alarm. When this function is
deactivated, the LED on the button
flashes for 3 seconds and then turns
off.

WARNING: Deactivation of the
motion sensing and anti-lift alarm
devices remains memorized until the
following alarm system activation.
Therefore, if these devices are

deactivated but the alarm system
is not activated within a very short
time, their deactivation will remain
memorized until the next system
activation, regardless of whether the
vehicle is on or off.

Alarm memory

If the warning light

 appears

on the display when the vehicle is
started, accompanied by the message
“Break-in attempt detected” this
means that an intrusion has been
attempted during your absence.

The alarm system memory is reset
when you turn the ignition key.

Ordering extra remote keys

To purchase new keys with remote
control, contact your Authorized
Maserati Dealer, bringing with you:
-  all the keys with remote control in

your possession

-  the Maserati CODE system CODE

CARD

-  the electronic alarm system CODE

CARD

-  your identity card
-  the identification and registration

documents proving ownership of
the vehicle.
