Maserati Grandturismo Sport. Service Manual - part 5

3

71

Fuel economy

While driving, the system
will indicate that you should

shift gears in order to optimize fuel
consumption when the required
speed is reached.
The recommended gearshift indicator
will only work when the gearbox is
set to manual sequential operation.

Maintenance Schedule

Depending on the
accompanying message, this

indicates that maintenance schedule
deadlines are either approaching or
due.
Upon reaching a deadline, contact
your Authorized Maserati Dealer.

3

72

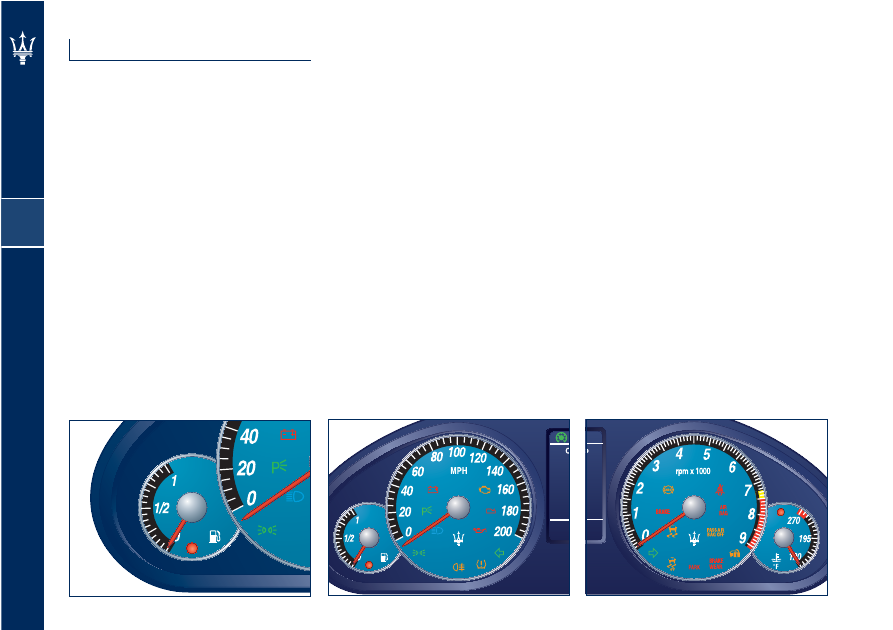

Instruments and gauges

Fuel gauge

The illumination of the warning light
inside the gauge indicates that there
are approx. 4.7 U.S. gal (18 liters) of
fuel in the tank.
If the pointer positions on 0
(beginning of scale) and the fuel
reserve warning light flashes, this
indicates a system malfunction.
In this case, contact the Authorized
Maserati Dealer to have the system
checked.

Speedometer

It indicates the vehicle speed. The
gauge starts providing data when
2.5 mph (4 km/h) are exceeded.

Tachometer

It indicates the engine RPM Proper
driving allows the driver to achieve
proper engine performance, without
the need of over-revving.

B

H

A

C

G

D

E

F

3

73

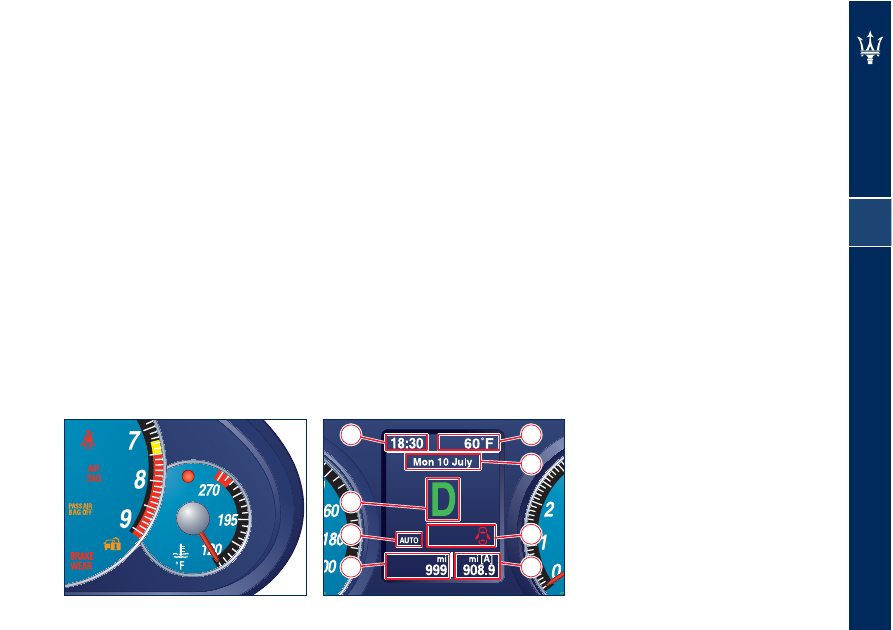

Coolant thermometer

It indicates the temperature of the
coolant. If the needle indicates high
temperatures and at the same time
the warning light illuminates, stop
the vehicle immediately and have
the cooling system checked by your
Authorized Maserati Dealer.

Display

Incorporated in the instrument panel,
it performs the following functions:
-  provides general information while

driving;

-  signals failures and warnings.
The user can interact with the system
by setting the parameters for the
information that can be recalled.
The screen page displayed following
the initial check cycle, in normal
operating conditions, (standard
screen page) contains the following
information:
A  - date
B  - time
C  - gear engaged
D  - driving mode

E  - total odometer
F  - trip odometer A, B or vehicle

speed repeated

G  - other symbols that may be

displayed as icons

H - outside temperature.
From the set-up menu in the Multi
Media System, the user can also
choose to have the information
displayed for the Audio, Navigator
and Telephone repeated on the
dashboard. For the relevant
procedures and instructions, see the
“Multi Media System” manual.

J

K

L

3

74

Controls

MODE

The screen page activation and
setting are controlled by pressing the
MODE J buttons, “+” K and “-” L.
Pressing the MODE J button briefly
will switch to the following screen
pages in sequence:
- Trip

A

- Trip

B

- Tire

pressure

-  Left-hand front seat comfort
-  Right-hand front seat comfort
- Option

Selection

- TPMS

calibration

- Standard.

Each of these has a 10-second
timing, after which the non-flashing
information previously viewed is
restored.

Pressing the MODE J button at length
(over 2 seconds) the user will select
the Trip Odometer information
currently displayed, or the Trip
Odometer A if the tachometric
repetition is active. This piece of
information will flash for 10 seconds,
after which the non-flashing
information previously viewed is
displayed once again.

“+“ and “-”

By means of the “+ “ K and “-” L
buttons, the user can adjust the
instrument panel brightness.
When the “Option Selection” screen
page is viewed, these buttons can be
used to select, choosing between Trip
Odometer A and Trip Odometer B, the
information to be repeated on the
display. By selecting, Odo A or Odo
B using the MODE J button and then
pressing buttons “+ “ and “-”, the
user will display the trip information
selected (flashing) alternately.
When the “TPMS calibration” page
is displayed, press button “+” to
activate the calibration process.

Trip Odometer reset

In all these cases, and before the 10-
second timing has elapsed, pressing
the MODE J button briefly (less
than 2 seconds) will reset the trip
information relating to the flashing
Odometer (A or B).

Setting the date

The date can be set by means of
the set up menu of the Multi Media
System (see Multi Media System
Manual).



N

O

3

75

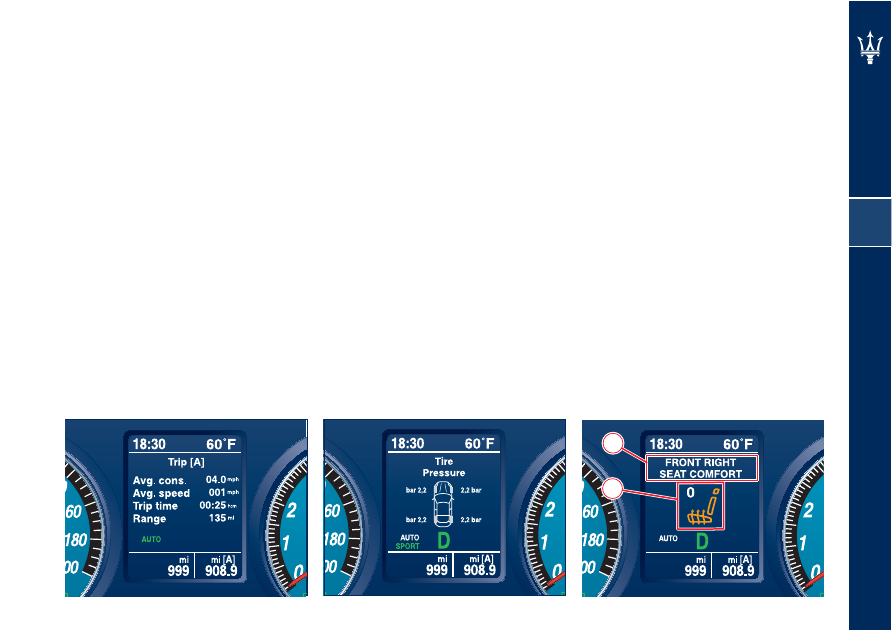

TRIP screen page

The Trip screen page is recalled by
pressing the MODE J button; Each
TRIP screen page (A or B) is timed, i.e.,
it is displayed for a maximum of 10
seconds, after which the screen page
previously active is displayed once
again.
When the TRIP A or TRIP B feature is
active, the following information is
viewed on the display:
-  traveled distance (km - miles)
-  average fuel consumption (km/l –

mpg)

-  average traveling speed (km/h -

mph)

-  trip time (hh:mm)
-  fuel range (km – miles)
The unit for fuel consumption
measurement can be adjusted by the
user from the Multi Media System set-
up menu.

Tire pressure screen page

Pressing the MODE J button the user
will display information about the
“Tire Pressure”.
This screen page is displayed for 10
seconds and, in normal conditions, it
will appear as shown in figure.
In addition, the system acknowledges
the following conditions:
-  system not calibrated
- system

failure

-  low pressure or puncture in one or

more tires.

Comfort screen page

Repeatedly press the MODE J button
to display the screen page showing
the operating status of the heating
system for each seat.
The user can view the following
information:
N - Seat indication.
O - Heating level.
This screen page remains displayed for
10 seconds, as shown in figure.

3

76

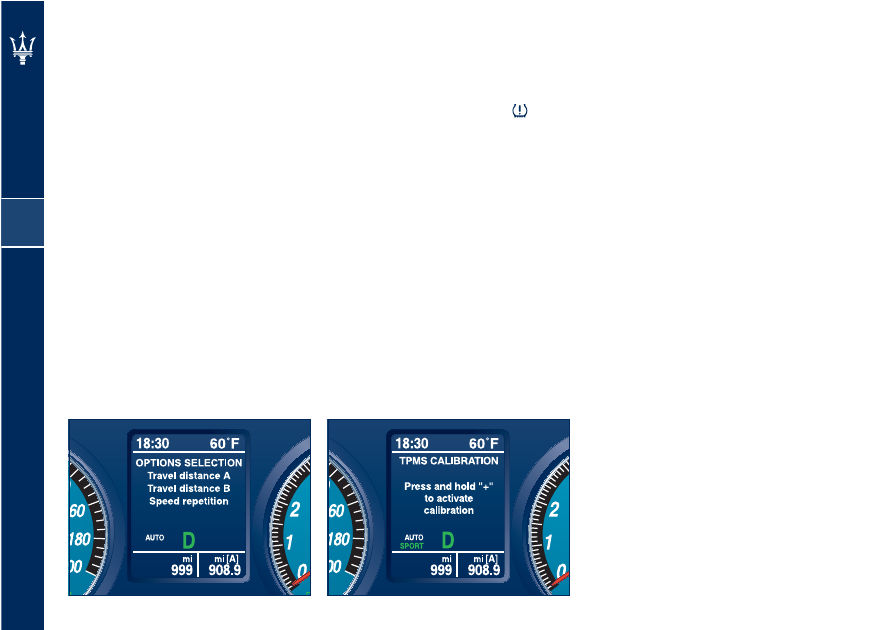

Option Selection Screen Page

Briefly press the MODE J button to
display the screen page and select the
desired value among the following
ones:
-  TRIP A distance.
-  TRIP B distance.
-  Current speed repetition.
the value to be set, in the F area of
the display, on the Standard screen
page (see page 73).
This screen page remains displayed for
10 seconds, as shown in figure.
The options listed can be selected
by pressing the “+” and “-“ buttons
and are confirmed by briefly pressing
the MODE J button or simply not
performing any operation for 10
seconds.

TPMS calibration page

In the event that: the system has
not been calibrated, following
replacement or reversal of one or
more tires, the warning light

 will

illuminate on the instrument panel
and the display will show the message
warning the driver to calibrate the
system.
To calibrate the system, you need
to  to select the “TPMS calibration
page” by pressing the MODE J button.
Subsequently press and hold button
“+” to activate the calibration process
(see on page 48).

Multi Media System
Configuration Menu

By accessing the Configuration
mode, the user can set-up the vehicle
features.
The parameters that can be set are
the following:
- Display

configuration

s

between day/night mode or
automatic setting)

s

- Sounds

s

-  Language selection (Italian, English,

Spanish, German, French, Dutch)

-  Define the vehicle parameters

s

locking

s

panel

s

A

C

D

3

77

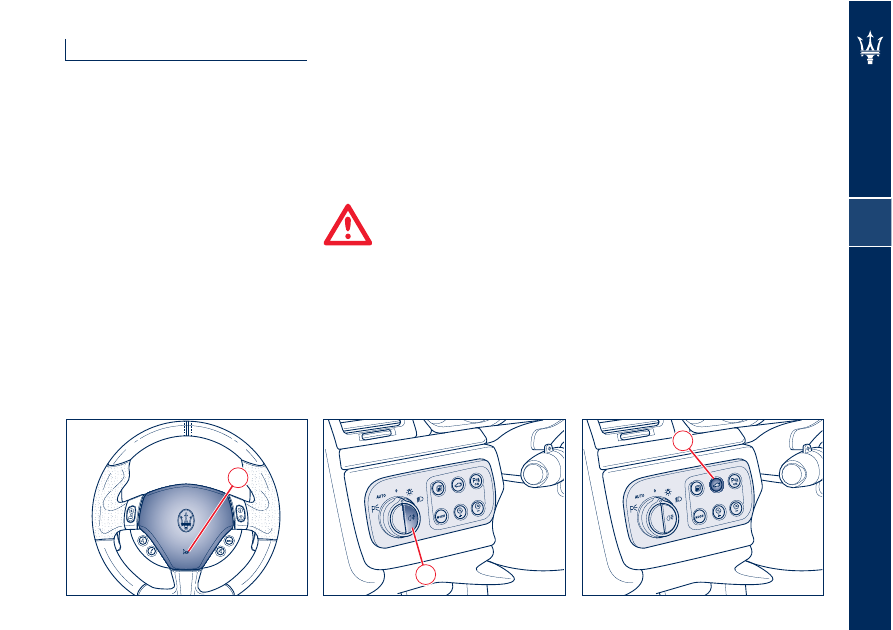

Controls

Horn

Press the horn symbol A, to activate
the horn.

Controls to the left of the
steering wheel

Rear fog lights

Press button C to turn on the rear
fog lights. They only work when the
low beams are on. The symbol on the
button illuminates when the lights
are on.

Do not use the rear fog
lights in normal visibility
conditions to avoid dazzling

vehicles behind.

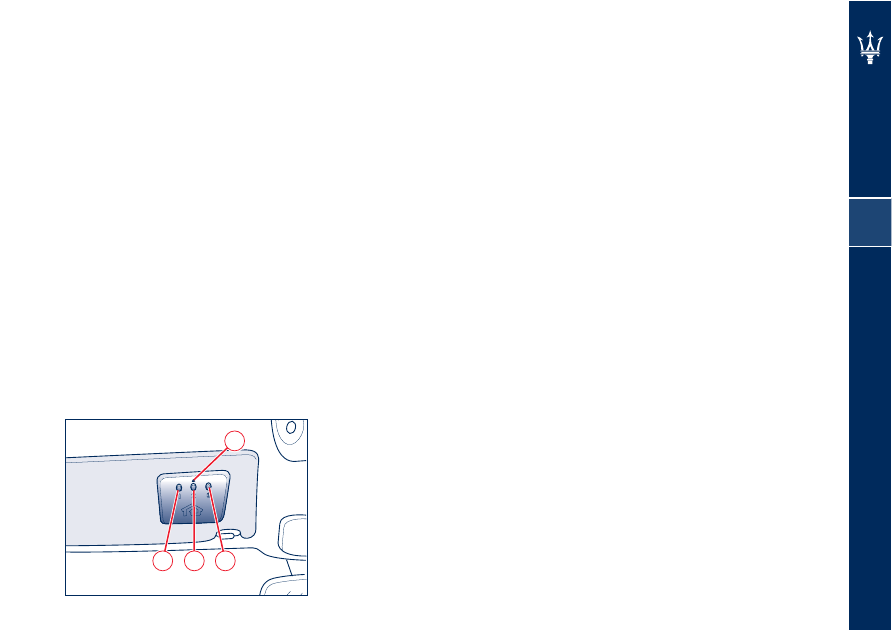

Opening the luggage compartment

Press button D to open the luggage
compartment lid.
It can be operated only when the
ignition key is removed or turned to
STOP (OFF) and ACC.
Vehicles are also equipped
with a lever inside the luggage
compartment, which permits opening
from the inside.

H

L

E

F

G

3

78

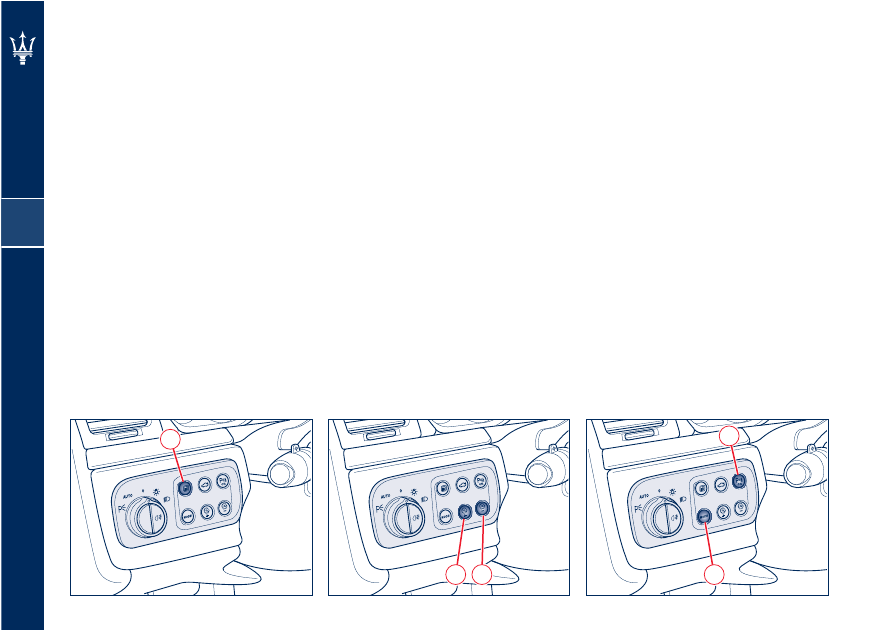

Opening the fuel tank door

Press button E to open the fuel tank
door on the rear right-hand side of
the vehicle.
It can be operated only when the
ignition key is removed or turned to
STOP (OFF).

Setting the brightness level of
instruments and gauges

Press button F or G to increase
or decrease the brightness of the
instruments and gauges.
You can adjust the brightness both in
daytime (headlights off) and night-
time (headlights on) mode.

MODE

Pressing button H will select the
screen pages to be viewed on the
instrument panel display.

Front parking sensors enable/
disable

Front parking sensors can be disabled
and enabled through button L,
depending on the Stop & Go mode
(see “Stop & Go function” on
page 52).

N

O

P

M

3

79

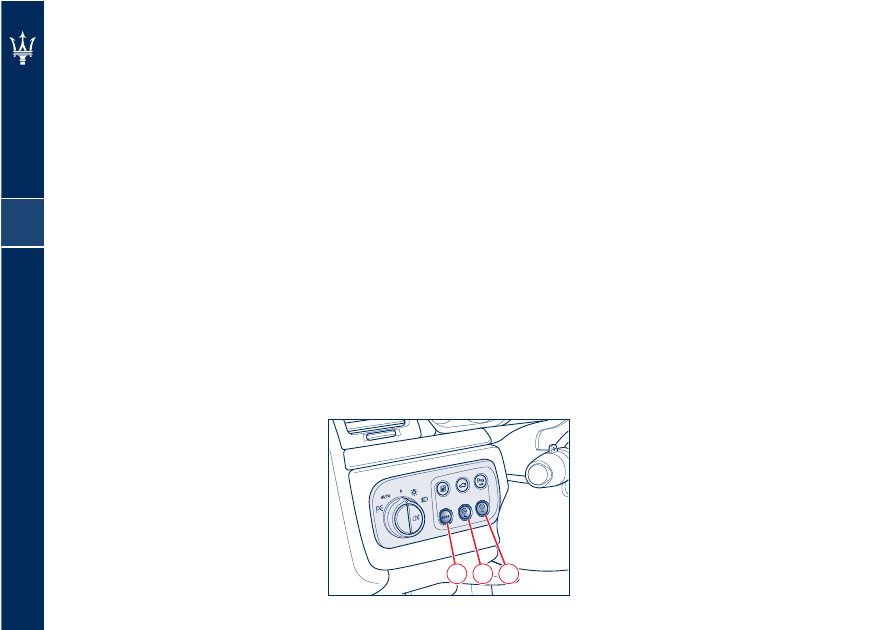

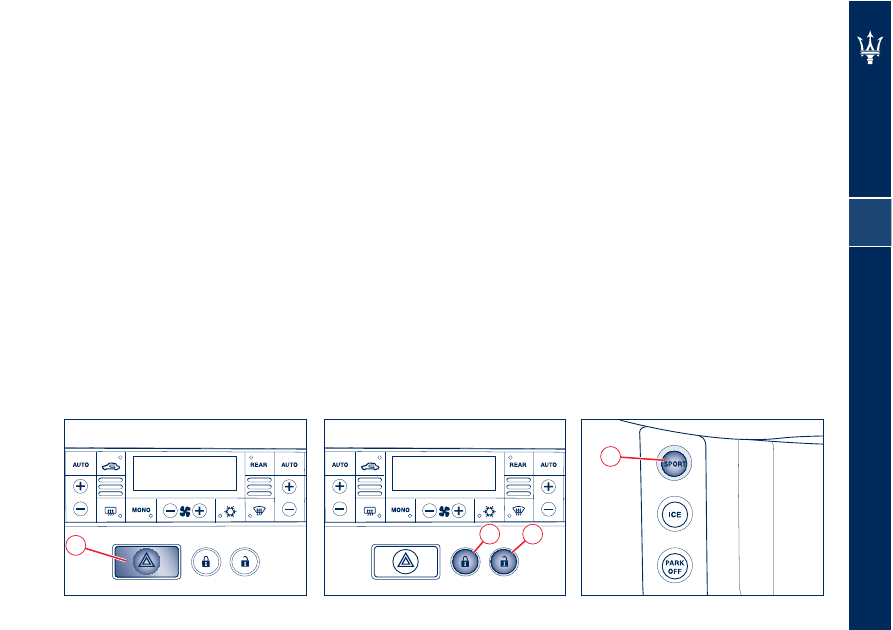

Dashboard buttons

Hazard warning lights

Press button M to turn on the hazard
lights. These lights will operate with
the ignition key in any position. Press
the button again to turn them off.
When the hazard lights are on, the
direction indicators, the relative
warning lights on the instrument
panel and the button itself flash.

WARNING: When the hazard warning
lights are activated, the direction
indicators control is disabled.

Door locking and unlocking

Buttons N and O control the locking
and unlocking of the locks.

SPORT mode

Press the button P to select SPORT
mode for a racing-style setting
which acts on the following systems:
suspension, traction control,
automatic gearbox, and on exhaust
opening.
Please note: that selecting SPORT
mode will strongly decrease driving
comfort, especially in city traffic and
on uneven road surfaces.

Q

R

S

3

80

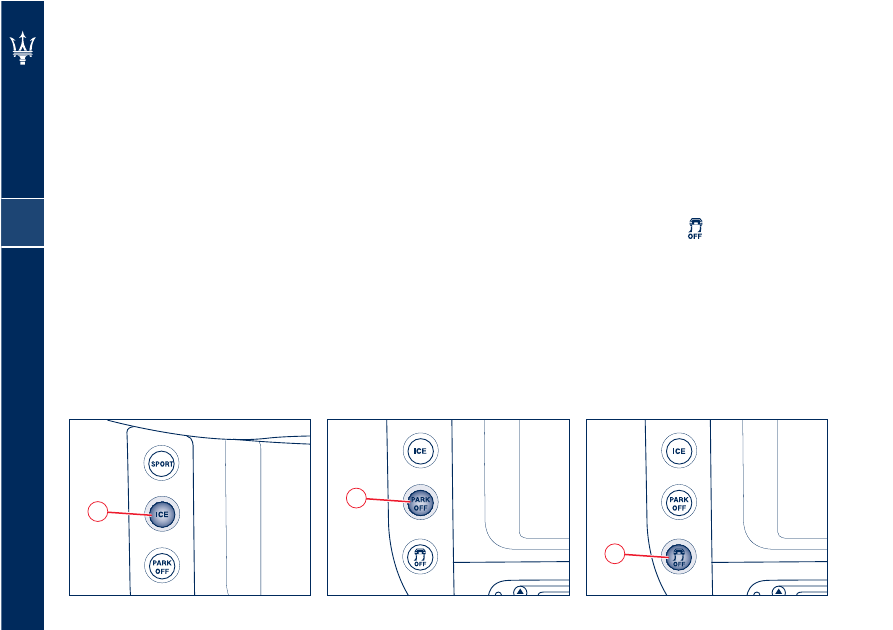

Low Grip

This mode should be used on
particularly slippery road surfaces
(e.g., rain, snow, ice). To activate/
deactivate this mode, press button Q.
When this function is active, the word
“ICE” illuminates on the display (see
chapter “Other system function” on
page 140).

PARK OFF

This function disables the automatic
activation of the electric parking
brake (EPB) (see page 163). The EPB
is deactivated/reactivated by pressing
the R button.

ESC System

The ESC system is automatically
activated every time the engine starts.
While driving, it is possible to
deactivate and reactivate the system
by pressing button S. To avoid
accidental deactivation, it is necessary
to hold the button down for
approximately 2 seconds to deactivate
the ESC system.
When the system is deactivated,
the amber light

 lights up on the

instrument panel and on the display,
and the latter displays a specific
message.

U

T

3

81

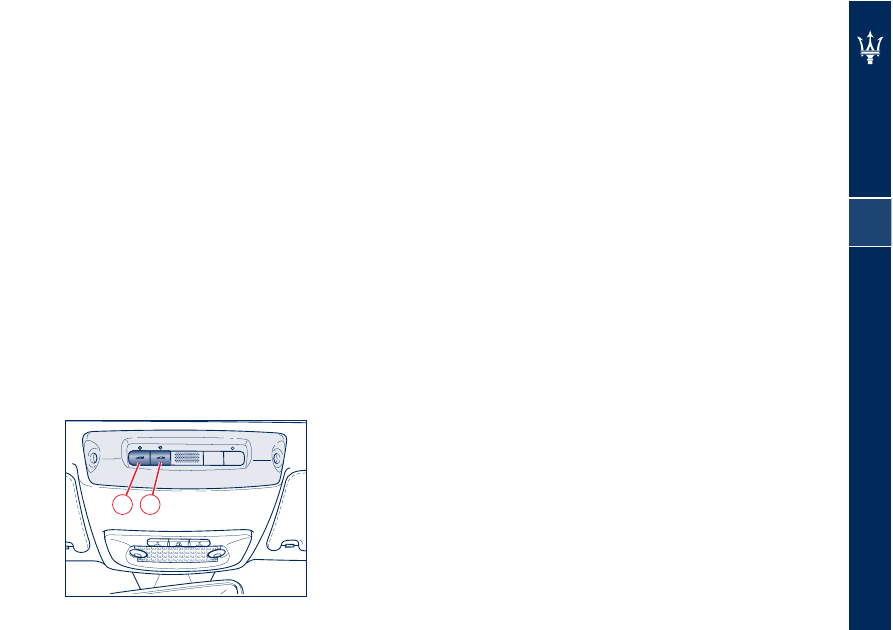

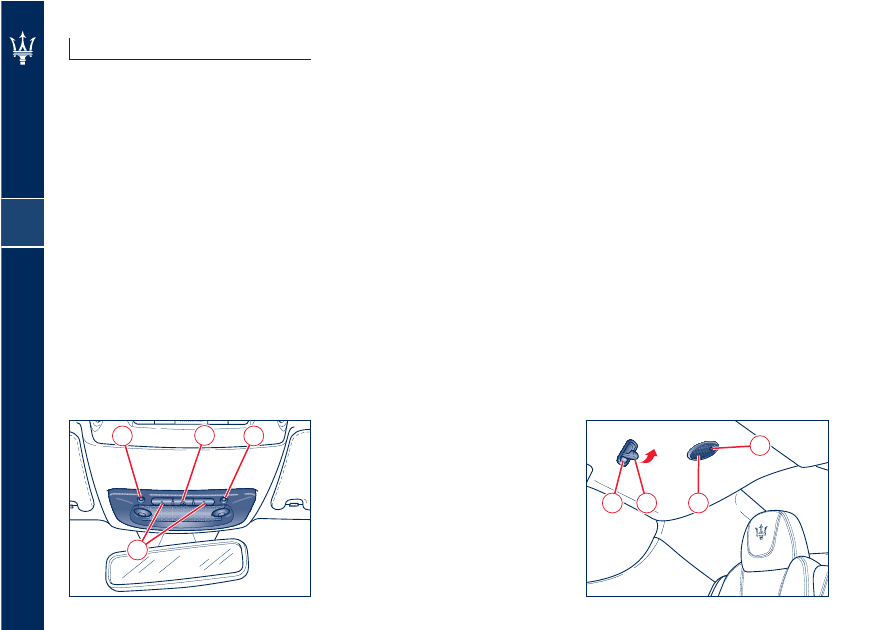

Roof panel buttons

Deactivating the alarm system
motion sensors

Press button T to deactivate the alarm
motion sensing system. When this
function is deactivated, the LED on
the button flashes for 3 seconds and
then turns off.

Anti-lift alarm system deactivation

Press button U to deactivate the
anti-lift alarm. When this function is
deactivated, the LED on the button
flashes for 3 seconds and then turns
off.

WARNING: Deactivation of the
motion sensing and anti-lift alarm
devices remains memorized until the
following alarm system activation.
Therefore, if these devices are
deactivated but the alarm system
is not activated within a very short
time, their deactivation will remain
memorized until the next system
activation, regardless of whether the
vehicle is on or off.

A

C

C

B

E

D

G

F

3

82

Internal equipment

Front dome light

The dome light includes a central light
and two reading lights. The central
light, which turns on automatically
when one of the doors is opened and
turns off following the door closing
(timed deactivation) may be turned
on manually by pressing button A.
The reading lights are controlled by
the relative buttons B.
If they are turned on pressing the
button, both the central and reading
lights will remain on for about 15
minutes after turning the engine off
and will then turn off.
When the exterior lights are turned
on, the two night LEDs C illuminate.

Opening one or more doors, the front
and rear dome lights will turn on
for approx. 3 minutes. If the door is
closed before this time has elapsed,
the lights will turn off after about 10
seconds.
Upon removing the key from the
switch and activating the centralized
door locking system with the remote
control, the dome lamps turn on for
about 10 seconds.
In the event of a collision causing
the inertia switch activation, the
dome lights turn on automatically for
approx. 15 minutes.

Rear dome light

The rear dome lights D, with
automatic operation upon opening
of one of the doors and timed
deactivation, may be turned on/off
manually by pressing the transparent
button at point E.

Clothing hook

The hook F can be ejected by pressing
button G.
To close it, simply tilt it and push it
back into its seating.

H

L

M

3

83

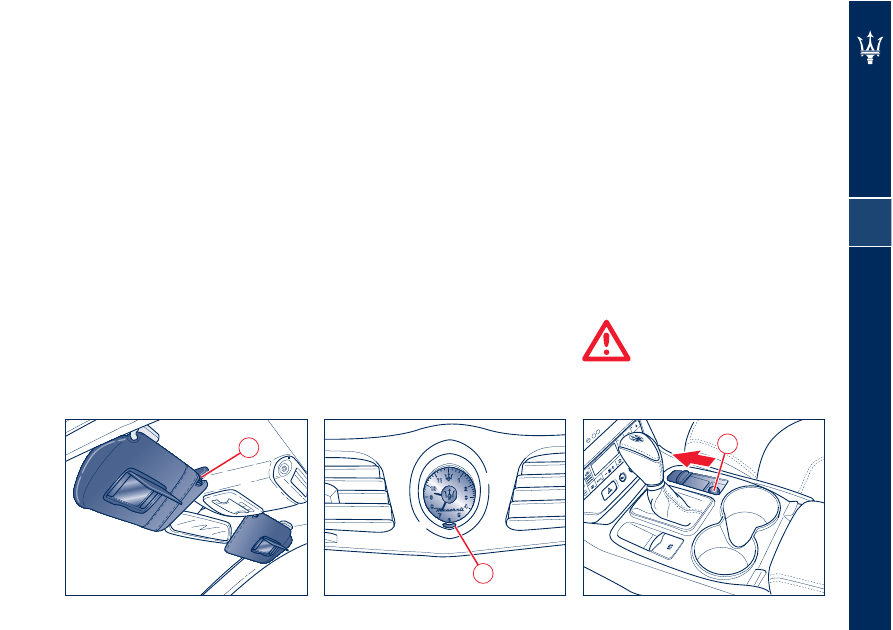

Sun visors

The sun visors can be folded to the
front and to the side of the vehicle. To
move the visor to the sides, lower and
release it from the catch H.
By lowering the visor on the
passenger’s side you can access the
courtesy mirror with incorporated
light. This turns on automatically
(with the ignition key in MAR (ON)
position) when raising the mirror
protective cover. Before raising the
visor, close the mirror cover.

Clock

Press button L to set the clock:
brief pressure = slow adjustment
prolonged pressure = fast adjustment.
This illuminates when the external
lights are turned on.

Front ashtray and cigarette
lighter

They are found on the center console,
under a cover. To open the cover, slide
it forward.
Press button M fully down to operate
the cigarette lighter. After about 20
seconds this returns automatically to
the initial position and is ready for
use.
Remove the tray in order to clean the
ashtray.

WARNING: Always check to ensure
that the cigarette lighter has turned
off.

The cigarette lighter reaches
very high temperatures.
Handle it carefully and do

not allow children to use it: risk of
fire and burns!

N

O

P

3

84

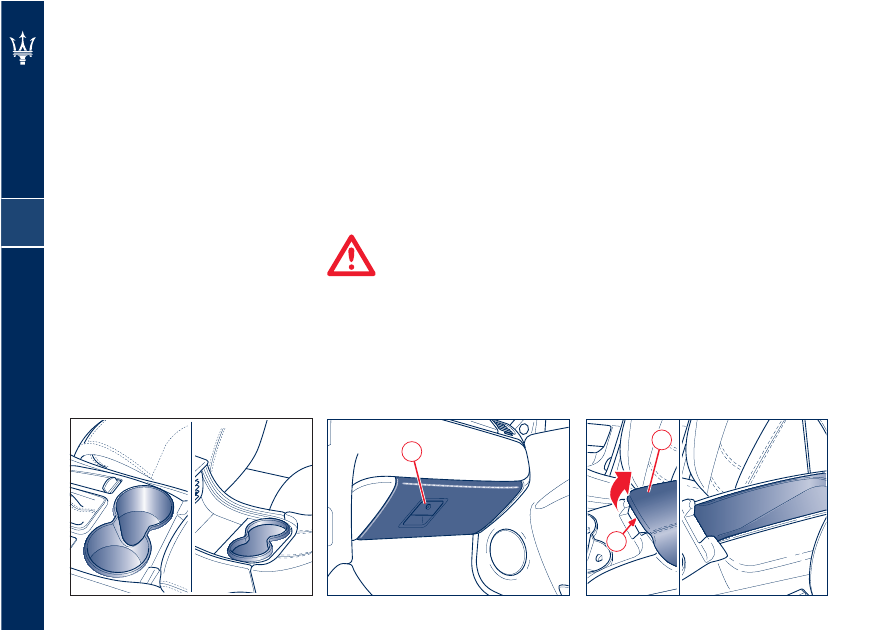

Front and rear beverage holders
on center console

The front beverage holder is
positioned behind the gearshift
lever and the rear one on the center
console between the two seats.

Glove compartment

The glove compartment is positioned
in the lower part of the dashboard
on the passenger’s side, and can be
opened by lifting the handle with lock
N.
The glove compartment is equipped
with a courtesy light that turns on
automatically when the compartment
door is opened and turns off when it
is closed.

To help ensure passenger
safety, the compartment
must always remain closed

while driving.

WARNING: Do not place objects
weighing over 22 lb (10 kg) in the
glove compartment.

Pocket-change compartment

The front armrest houses a glove
compartment.
To access the compartment, lift the
armrest P pulling on the internal
handle O. To close the compartment,
lower the armrest until the lock
engages.

Q

R

S

T

3

85

HomeLink

This system allows you to control
automatic gate and garage door
opening devices, as well as lighting or
alarm systems from inside the vehicle.
Programmable directly on the
transmitting station by means of
the original remote controls for the
devices to be controlled, it adapts to
the existing systems.
The control and programming panel
is composed of three keys: Q, R, S and
a LED T.

Customer Assistance

If you have problems with training
the HomeLink Universal Transceiver,
or would like information on home
products that can be operated by the
transmitter, call (800) 355-3515. On the
Internet, go to www.Homelink.com.

Important Safety Precautions

Always refer to the operating
instructions and safety information
that came with your garage door
opener or other equipment you
intend to operate with the HomeLink
Universal Transceiver. If you do not
have this information, you should
contact the manufacturer of the
equipment.

While training or using HomeLink,
make sure you have a clear view of
the garage door or gate, and that no
one will be injured by its movement.

General Information

If you are programming HomeLink
to operate a garage door or gate, it
is recommended that you unplug the
motor for that device during training.
Repeatedly pressing the remote
control button could burn out the
motor.
HomeLink stores the code in a
permanent memory. There should
be no need to retrain HomeLink if
your car’s battery goes dead or is
disconnected.
If your garage door opener was
manufactured before April 1982,
you may not be able to program
HomeLink to operate it. Garage door
openers manufactured before that
date do not have a safety feature that
causes them to stop and reverse if an
obstacle is detected during closing,
increasing the risk of injury. If you
have questions, call (800) 355-3515.

3

86

Programming

-  Press and hold down the keys Q

and S;

-  after about 20 seconds, the LED T

starts flashing;

-  release the keys;
-  hold the remote control for the

device to be controlled close to the
HomeLink control panel (12 in);

-  simultaneously press and hold

down the key of the hand-held
remote control and one of the
three HomeLink keys Q, R or S;

-  successful programming is signaled

by the LED T flashing faster;

-  release the keys.
To program the other keys, repeat
the operations skipping the first three
steps.

Use

-  When the signal of the device to

be activated reaches its operating
range, press the dedicated
HomeLink key.

- The

LED

T remains on while the

signal is being transmitted.

The devices controlled via the
HomeLink function can, in any case,
still be activated from the original
remote controls.
Should the programmed HomeLink
not activate the system to be
controlled, it may be that it is
controlled by a remote control with a
rolling code.
A rolling activation code can be
recognized in the following ways:
-  consulting the instruction manual

provided with the device to be
controlled;

-  despite the HomeLink

programming procedure having
been carried out correctly, the
HomeLink function does not
activate the device;

-  holding the dedicated HomeLink

key pressed down, the LED T briefly
flashes fast and then stays on for 2
seconds; this sequence is repeated
for about 20 seconds.

Programming for devices controlled
by rolling code

-  Locate the specific setting key

by consulting the user manual of
the system to be controlled. This
is normally located on the motor
which drives the device.

-  Press the key and, in normal

conditions, a LED will come on.

WARNING: Normally, after this
operation you have 30 seconds to
start the next one.

-  Briefly press the HomeLink key you

have chosen to control the device
(Q, R, S).

-  Press it a second time; when it

is released the operation should
be completed. For some types of
motors, the key might have to be
pressed a third time.
