Oldsmobile Alero (2004 year). Manual

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Total Weight of Your Vehicle’s Tires

Be sure your vehicle’s tires are inflated to the upper limit
for cold tires. You’ll find these numbers on the
Tire-Loading Information label at the rear edge of the
driver’s door or see Loading Your Vehicle on page 4-34.
Then be sure you don’t go over the GVW limit for
your vehicle, including the weight of the trailer tongue.

Hitches

It is important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough roads are
a few reasons why you willl need the right hitch.
Here are some rules to follow:

•

The rear bumper on your vehicle is not intended for
hitches. Do not attach rental hitches or other
bumper-type hitches to it. Use only a
frame-mounted hitch that does not attach to the
bumper.

•

Will you have to make any holes in the body of
your vehicle when you install a trailer hitch? If
you do, then be sure to seal the holes later when
you remove the hitch. If you do not seal them,
deadly carbon monoxide (CO) from your exhaust
can get into your vehicle. See Engine Exhaust
on page 2-31. Dirt and water can, too.

Safety Chains

You should always attach chains between your vehicle
and your trailer. Cross the safety chains under the
tongue of the trailer so that the tongue will not drop to
the road if it becomes separated from the hitch.
Instructions about safety chains may be provided by the
hitch manufacturer or by the trailer manufacturer.
Follow the manufacturer’s recommendation for attaching
safety chains and do not attach them to the bumper.
Always leave just enough slack so you can turn
with your rig. And, never allow safety chains to drag on
the ground.

Trailer Brakes

Does your trailer have its own brakes?

Be sure to read and follow the instructions for the trailer
brakes so you will be able to install, adjust and
maintain them properly. And because you may have
anti-lock brakes, do not try to tap into your vehicle’s
brake system. If you do, both systems will not work well,
or at all.

4-42

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving with a Trailer

Towing a trailer requires a certain amount of experience.
Before setting out for the open road, you will want to
get to know your rig. Acquaint yourself with the feel of
handling and braking with the added weight of the trailer.
And always keep in mind that the vehicle you are
driving is now a good deal longer and not nearly as
responsive as your vehicle is by itself.

Before you start, check all trailer hitch parts and
attachments, safety chains, electrical connector, lamps,
tires and mirror adjustment. If the trailer has electric
brakes, start your vehicle and trailer moving and then
apply the trailer brake controller by hand to be sure
the brakes are working. This lets you check your
electrical connection at the same time.

During your trip, check occasionally to be sure that the
load is secure, and that the lamps and any trailer
brakes are still working.

Following Distance

Stay at least twice as far behind the vehicle ahead as
you would when driving your vehicle without a trailer.
This can help you avoid situations that require
heavy braking and sudden turns.

Passing

You will need more passing distance up ahead when
you’re towing a trailer. And, because you are a good deal
longer, you will need to go much farther beyond the
passed vehicle before you can return to your lane.

Backing Up

Hold the bottom of the steering wheel with one hand.
Then, to move the trailer to the left, just move that hand
to the left. To move the trailer to the right, move your
hand to the right. Always back up slowly and, if possible,
have someone guide you.

Making Turns

Notice: Making very sharp turns while trailering
could cause the trailer to come in contact with the
vehicle. Your vehicle could be damaged. Avoid
making very sharp turns while trailering.

When you are turning with a trailer, make wider turns
than normal. Do this so your trailer will not strike
soft shoulders, curbs, road signs, trees or other objects.
Avoid jerky or sudden maneuvers. Signal well in
advance.

4-43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Turn Signals When Towing a Trailer

When you tow a trailer, your vehicle may need a
different turn signal flasher and/or extra wiring. Check
with your dealer. The arrows on your instrument
panel will flash whenever you signal a turn or lane
change. Properly hooked up, the trailer lamps will also
flash, telling other drivers you are about to turn,
change lanes or stop.

When towing a trailer, the arrows on your instrument
panel will flash for turns even if the bulbs on the trailer
are burned out. Thus, you may think drivers behind
you are seeing your signal when they are not. It
is important to check occasionally to be sure the trailer
bulbs are still working.

Driving On Grades

Reduce speed and shift to a lower gear before you start
down a long or steep downgrade. If you do not shift
down, you might have to use your brakes so much that
they would get hot and no longer work well.

Parking on Hills

{

CAUTION:

You really should not park your vehicle, with a
trailer attached, on a hill. If something goes
wrong, your rig could start to move. People can
be injured, and both your vehicle and the trailer
can be damaged.

But if you ever have to park your rig on a hill, here is
how to do it:

1. Apply your regular brakes, but do not shift into

PARK (P) for an automatic transaxle or into a
gear for a manual transaxle, yet. When parking
uphill, turn your wheels away from the curb. When
parking downhill, turn your wheels into the curb.

2. Have someone place chocks under the trailer

wheels.

3. When the chocks are in place, release the regular

brakes until the chocks absorb the load.

4. Reapply the regular brakes. Then apply your

parking brake and shift into PARK (P) for an
automatic transaxle or REVERSE (R) for a manual
transaxle.

5. Release the regular brakes.

4-44

-------------------------------------------------------------------------------------------------------------------------------------------------------------

When You Are Ready to Leave After
Parking on a Hill

1. Apply your regular brakes and hold the pedal down

while you:

•

start your engine,

•

shift into a gear, and

•

release the parking brake.

2. Let up on the brake pedal.

3. Drive slowly until the trailer is clear of the chocks.

4. Stop and have someone pick up and store the

chocks.

Maintenance When Trailer Towing

Your vehicle will need service more often when you are
pulling a trailer. See the Maintenance Schedule for more
on this. Things that are especially important in trailer
operation are automatic transaxle fluid (do not overfill),
engine oil, drive belt, cooling system and brake system.
Each of these is covered in this manual, and the Index
will help you find them quickly. If you are trailering, it is a
good idea to review this information before you start
your trip.

Check periodically to see that all hitch nuts and bolts
are tight.

Engine Cooling When Trailer Towing

Your cooling system may temporarily overheat during
severe operating conditions. See Engine Overheating on
page 5-26.

4-45

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Service

Your dealer knows your vehicle best and wants you to
be happy with it. We hope you will go to your dealer
for all your service needs. You will get genuine GM parts
and GM-trained and supported service people.

We hope you will want to keep your GM vehicle all GM.
Genuine GM parts have one of these marks:

Doing Your Own Service Work

If you want to do some of your own service work, you
will want to use the proper service manual. It tells
you much more about how to service your vehicle than
this manual can. To order the proper service manual,
see Service Publications Ordering Information on
page 7-12.

Your vehicle has an air bag system. Before attempting
to do your own service work, see Servicing Your Air
Bag-Equipped Vehicle on page 1-60.

You should keep a record with all parts receipts and list
the mileage and the date of any service work you
perform. See Maintenance Record on page 6-14.

{

CAUTION:

You can be injured and your vehicle could be
damaged if you try to do service work on a
vehicle without knowing enough about it.

•

Be sure you have sufficient knowledge,
experience, the proper replacement parts
and tools before you attempt any vehicle
maintenance task.

CAUTION:

(Continued)

5-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

CAUTION:

(Continued)

•

Be sure to use the proper nuts, bolts and
other fasteners. “English” and “metric”
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.

Adding Equipment to the Outside of
Your Vehicle

Things you might add to the outside of your vehicle can
affect the airflow around it. This may cause wind
noise and affect windshield washer performance. Check
with your dealer before adding equipment to the
outside of your vehicle.

Fuel

Use of the recommended fuel is an important part of the
proper maintenance of your vehicle.

Gasoline Octane

Use regular unleaded gasoline with a posted octane of 87
or higher. If the octane is less than 87, you may get a
heavy knocking noise when you drive. If this occurs, use
a gasoline rated at 87 octane or higher as soon as
possible. Otherwise, you might damage your engine. A
little pinging noise when you accelerate or drive uphill is
considered normal. This does not indicate a problem
exists or that a higher-octane fuel is necessary. If you are
using 87 octane or higher-octane fuel and hear heavy
knocking, your engine needs service.

Gasoline Specifications

It is recommended that gasoline meet specifications
which were developed by automobile manufacturers
around the world and contained in the World-Wide Fuel
Charter which is available from the Alliance of
Automobile Manufacturers at www.autoalliance.org.
Gasoline meeting these specifications could provide
improved driveability and emission control system
performance compared to other gasoline.

5-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

In Canada, look for the
“Auto Makers’ Choice”
label on the pump.

California Fuel

If your vehicle is certified to meet California Emission
Standards (see the underhood emission control label), it
is designed to operate on fuels that meet California
specifications. If this fuel is not available in states
adopting California emissions standards, your vehicle
will operate satisfactorily on fuels meeting federal
specifications, but emission control system performance
may be affected. The malfunction indicator lamp may
turn on (see Malfunction Indicator Lamp on page 3-32 )
and your vehicle may fail a smog-check test. If this
occurs, return to your authorized GM dealer for

diagnosis. If it is determined that the condition is caused
by the type of fuel used, repairs may not be covered
by your warranty.

Additives

To provide cleaner air, all gasolines in the United States
are now required to contain additives that will help
prevent engine and fuel system deposits from forming,
allowing your emission control system to work properly.
You should not have to add anything to your fuel.
However, some gasolines contain only the minimum
amount of additive required to meet U.S. Environmental
Protection Agency regulations. General Motors
recommends that you buy gasolines that are advertised
to help keep fuel injectors and intake valves clean. If your
vehicle experiences problems due to dirty injectors or
valves, try a different brand of gasoline.

Gasolines containing oxygenates, such as ethers and
ethanol, and reformulated gasolines may be available in
your area to contribute to clean air. General Motors
recommends that you use these gasolines, particularly if
they comply with the specifications described earlier.

Notice: Your vehicle was not designed for fuel that
contains methanol. Do not use fuel containing
methanol. It can corrode metal parts in your fuel
system and also damage the plastic and rubber parts.
That damage would not be covered under your
warranty.

Canada Only

5-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Some gasolines that are not reformulated for low
emissions may contain an octane-enhancing additive
called methylcyclopentadienyl manganese tricarbonyl
(MMT); ask the attendant where you buy gasoline
whether the fuel contains MMT. General Motors does not
recommend the use of such gasolines. Fuels containing
MMT can reduce the life of spark plugs and the
performance of the emission control system may be
affected. The malfunction indicator lamp may turn on. If
this occurs, return to your authorized GM dealer for
service.

Fuels in Foreign Countries

If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard
to find. Never use leaded gasoline or any other fuel
not recommended in the previous text on fuel. Costly
repairs caused by use of improper fuel would not
be covered by your warranty.

To check the fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you will be driving.

Filling Your Tank

{

CAUTION:

Fuel vapor burns violently and a fuel fire can
cause bad injuries. To help avoid injuries to you
and others, read and follow all the instructions
on the pump island. Turn off your engine when
you are refueling. Do not smoke if you are near
fuel or refueling your vehicle. Keep sparks,
flames and smoking materials away from fuel.
Do not leave the fuel pump unattended when
refueling your vehicle — this is against the law
in some places. Keep children away from the
fuel pump; never let children pump fuel.

5-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

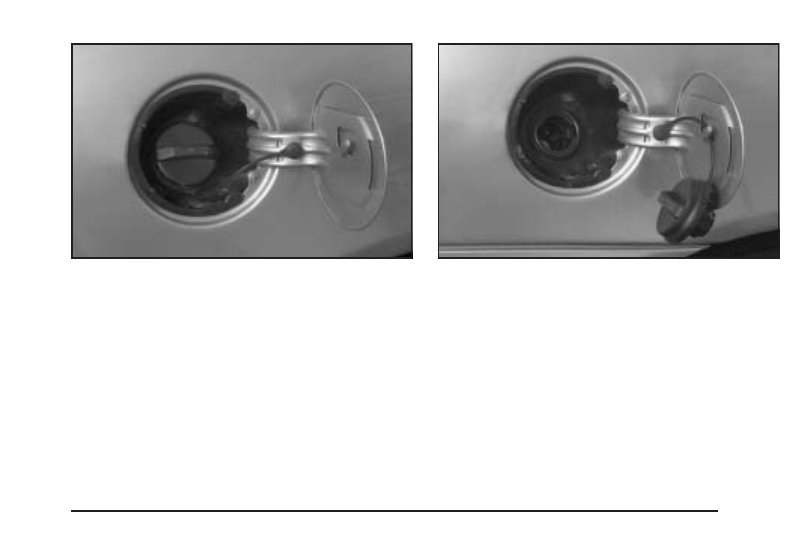

To remove the fuel cap, turn it slowly to the left
(counterclockwise). The fuel cap has a spring in it; if
you let go of the cap too soon, it will spring back to
the right.

{

CAUTION:

If you spill fuel and then something ignites it,
you could be badly burned. Fuel can spray out
on you if you open the fuel cap too quickly. This
spray can happen if your tank is nearly full, and
is more likely in hot weather. Open the fuel cap
slowly and wait for any “hiss” noise to stop.
Then unscrew the cap all the way.

Be careful not to spill fuel. Don’t top off or overfill your
tank, and wait a few seconds after you’ve finished
pumping before you remove the nozzle. Clean fuel from
painted surfaces as soon as possible. See Cleaning
the Outside of Your Vehicle on page 5-85.

When you put the fuel cap back on, turn it to the right
(clockwise) until you hear a clicking sound. Make
sure you fully install the cap. The diagnostic system can
determine if the fuel cap has been left off or improperly
installed. This would allow fuel to evaporate into the
atmosphere. See Malfunction Indicator Lamp on
page 3-32.

{

CAUTION:

If a fire starts while you are refueling, do not
remove the nozzle. Shut off the flow of fuel by
shutting off the pump or by notifying the
station attendant. Leave the area immediately.

Notice: If you need a new fuel cap, be sure to get
the right type. Your dealer can get one for you.
If you get the wrong type, it may not fit properly.
This may cause your malfunction indicator lamp to
light and may damage your fuel tank and emissions
system. See “Malfunction Indicator Lamp” in the
Index.

5-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Filling a Portable Fuel Container

{

CAUTION:

Never fill a portable fuel container while it is in
your vehicle. Static electricity discharge from
the container can ignite the gasoline vapor.
You can be badly burned and your vehicle
damaged if this occurs. To help avoid injury to
you and others:

•

Dispense gasoline only into approved
containers.

•

Do not fill a container while it is inside a
vehicle, in a vehicle’s trunk, pickup bed or
on any surface other than the ground.

•

Bring the fill nozzle in contact with the
inside of the fill opening before operating
the nozzle. Contact should be maintained
until the filling is complete.

•

Do not smoke while pumping gasoline.

Checking Things Under
the Hood

{

CAUTION:

An electric fan under the hood can start up
and injure you even when the engine is not
running. Keep hands, clothing and tools away
from any underhood electric fan.

{

CAUTION:

Things that burn can get on hot engine parts
and start a fire. These include liquids like fuel,
oil, coolant, brake fluid, windshield washer and
other fluids, and plastic or rubber. You or others
could be burned. Be careful not to drop or spill
things that will burn onto a hot engine.

5-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Hood Release

To open the hood, do the following:

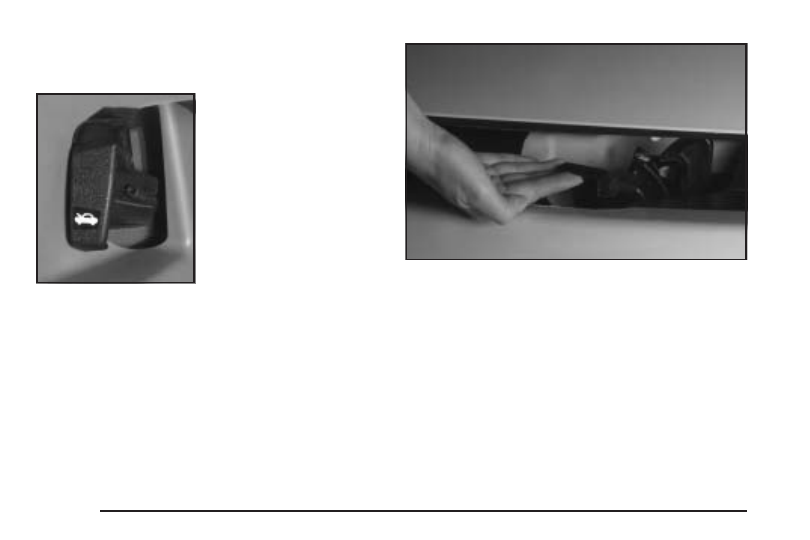

1. Pull the handle located

under the instrument
panel on the driver’s
side of the vehicle.

2. Then go to the front of the vehicle and pull up

clockwise on the secondary hood release.

5-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

3. Lift the hood.

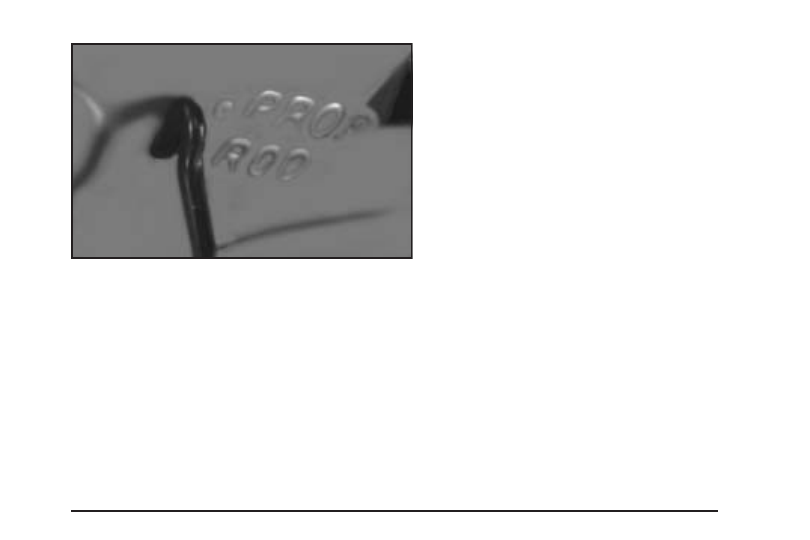

4. Release the hood prop rod from its retainer and put

the hood prop into the slot in the hood marked
PROP ROD.

Before closing the hood, be sure all the filler caps are
on properly. Then lift the hood to relieve pressure on the
hood prop. Remove the hood prop from the slot in the
hood and return the prop to its retainer. Then let
the hood down and close it firmly.

5-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Oldsmobile Alero (2004 year). Manual - part 14
